J5Create-069
j5create
JVA11
| Category | Specification |
|---|---|
| Hardware | |
| Audio Input | 1 - HDMI™ Female |
| Audio Output | N/A |
| Audio Switcher | N/A |
| Host Connector | 1 - USB-C® 3.2 Gen 1 Female (Type-A to USB-C®) |
| Ports | 1 - USB-C® 3.2 Gen 1 (Host) |
| 1 - HDMI™ Input | |
| Power Source | N/A |
| Video Input | 1 - HDMI™ Female |
| Video Output | N/A |
| Video Switcher | N/A |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Compressions | USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0 |
| USB™ 2.0: YUV4:2:0 | |
| HDMI Input Resolutions | 3840 x 2160 @ 30 |
| HDR Supported | No |
| Headset | N/A |
| Maximum Capture Capability | USB™ 3.0: 3840 x 2160 @ 30 |
| USB™ 2.0: 1280 x 720 @ 30 | |
| Maximum Capture Refresh Rate | 4K30 fps, 2K60 fps, 1080p120 fps |
| Max Display Refresh Rate | N/A |
| Microphone | N/A |
| Power | |
| Input Current | 1.5A |
| Input Voltage | 5V |
| Output Current | N/A |
| Output Voltage | N/A |
| Power Consumption | ≤ 530 mA |
| Power Delivery | N/A |
| Physical Specifications | |
| Cable Length | 7.87 in. (20 cm) |
| Color | Black |
| Enclosure Type | Aluminum |
| Operating Humidity | < 80% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Depth | 0.56 in. (14.14 mm) |
| Product Height | 2.83 in. (72 mm) |
| Product Weight | 1.94 oz (55 g) |
| Product Width | 1.61 in. (41 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Package Contents | |

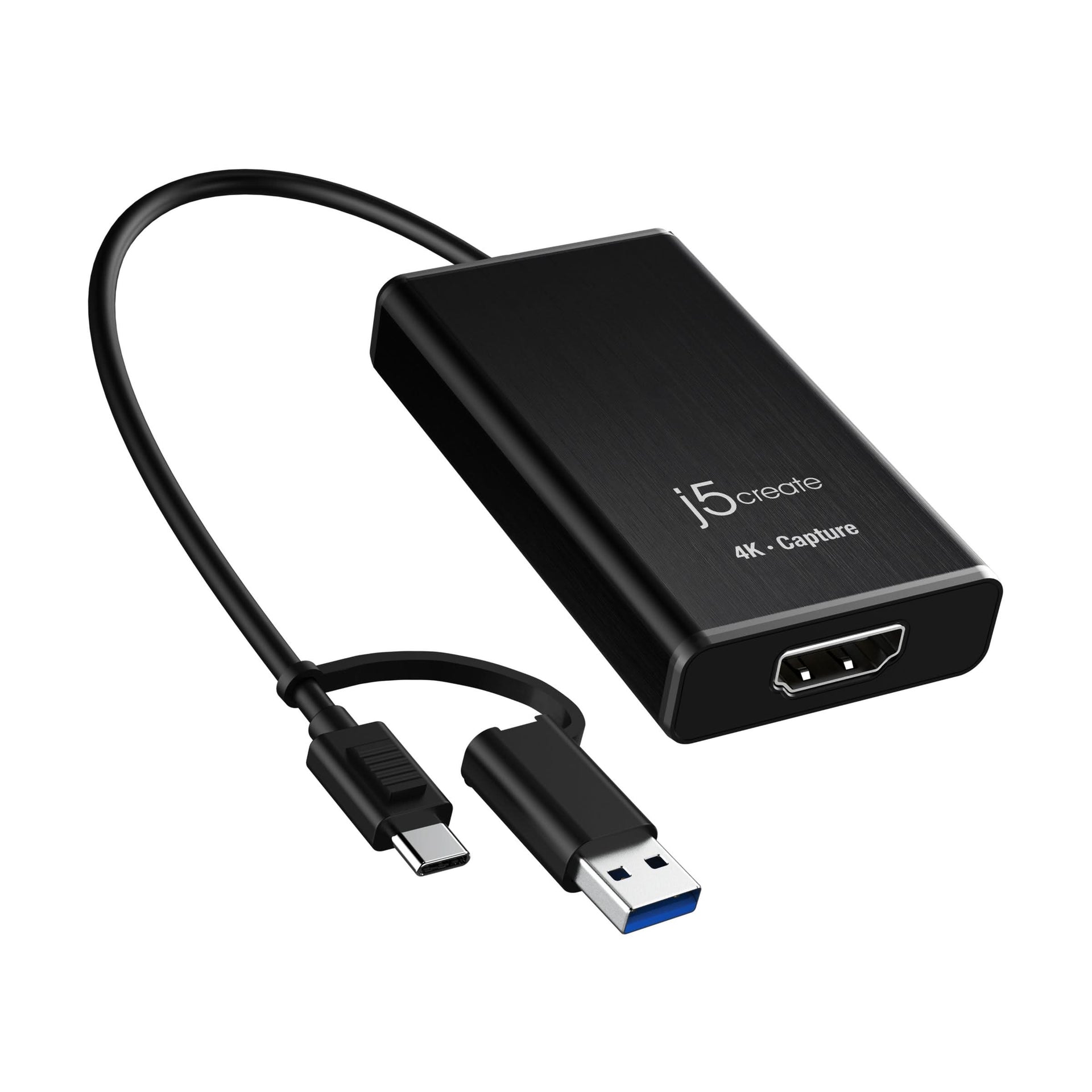

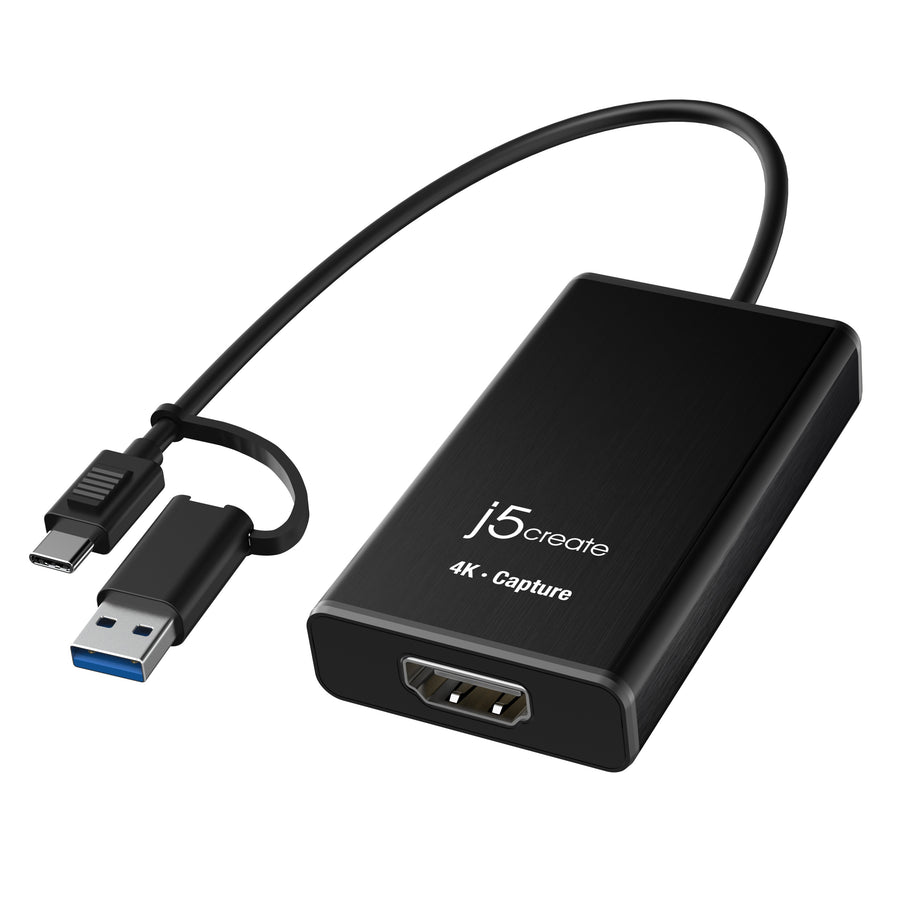

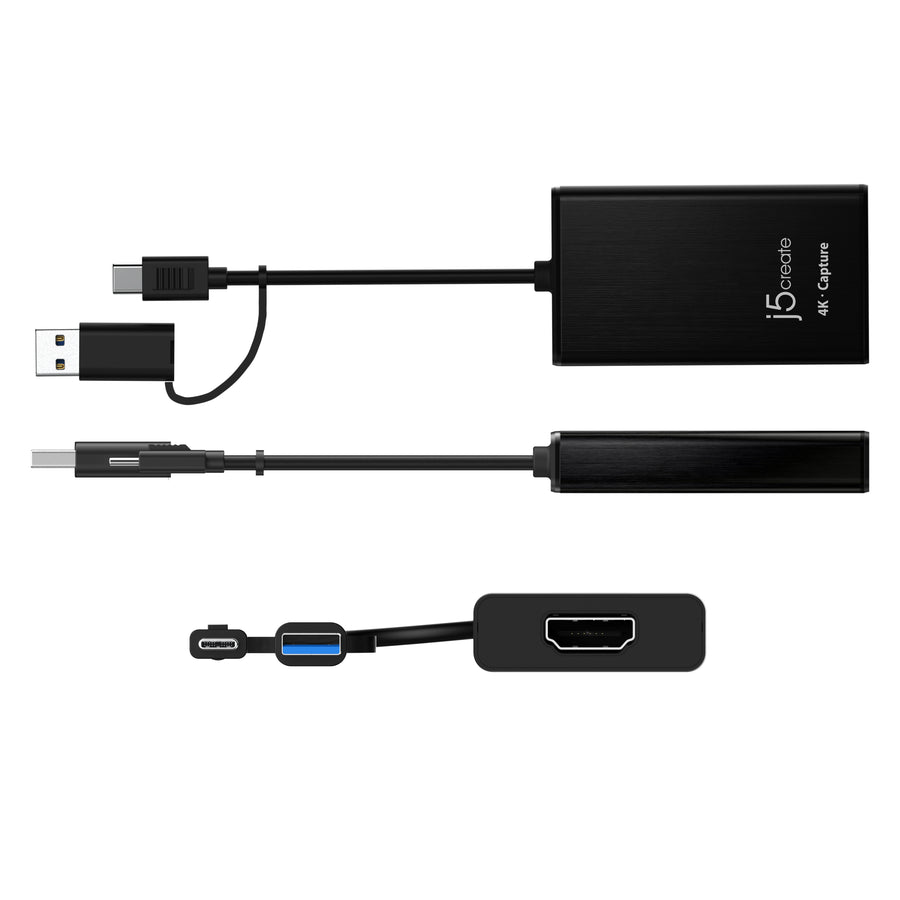

| 1 - JVA11 4K HDMI™ Capture Adapter | |
| 1 - Quick Installation Guide (QIG) |
