Description Specifications:

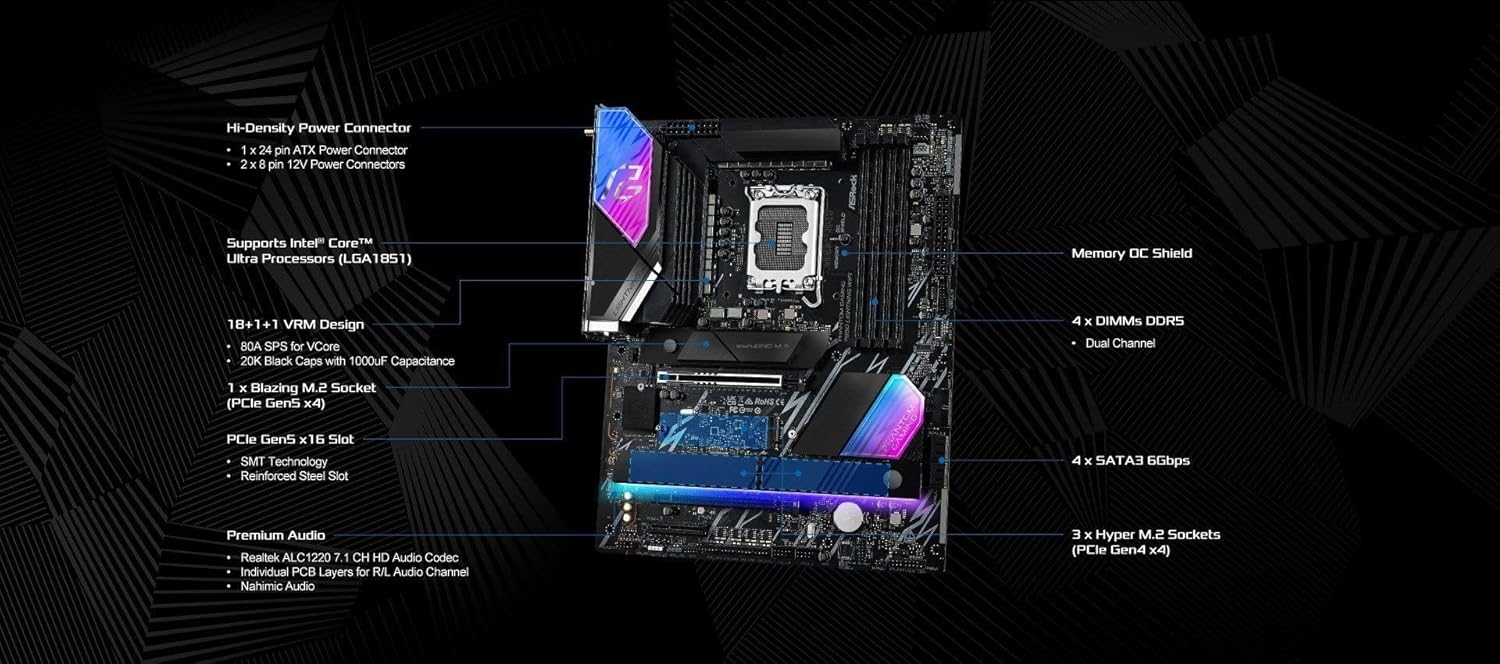

Feature Details Unique Features PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt™ 4 Type-C Ports (40 Gb/s) Superb Productivity Server-Grade Low-Loss PCB 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor Memory OC Shield Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming Killer 2.5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker CPU Support Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration Chipset Intel® Z890 Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0x * 1DPC 1R Up to 9466+ MHz (OC), 5600 MHz Natively.
BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11.
Slots 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB Ports 2 x Thunderbolt™ 4 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 8 x USB 3.2 Gen1 (4 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

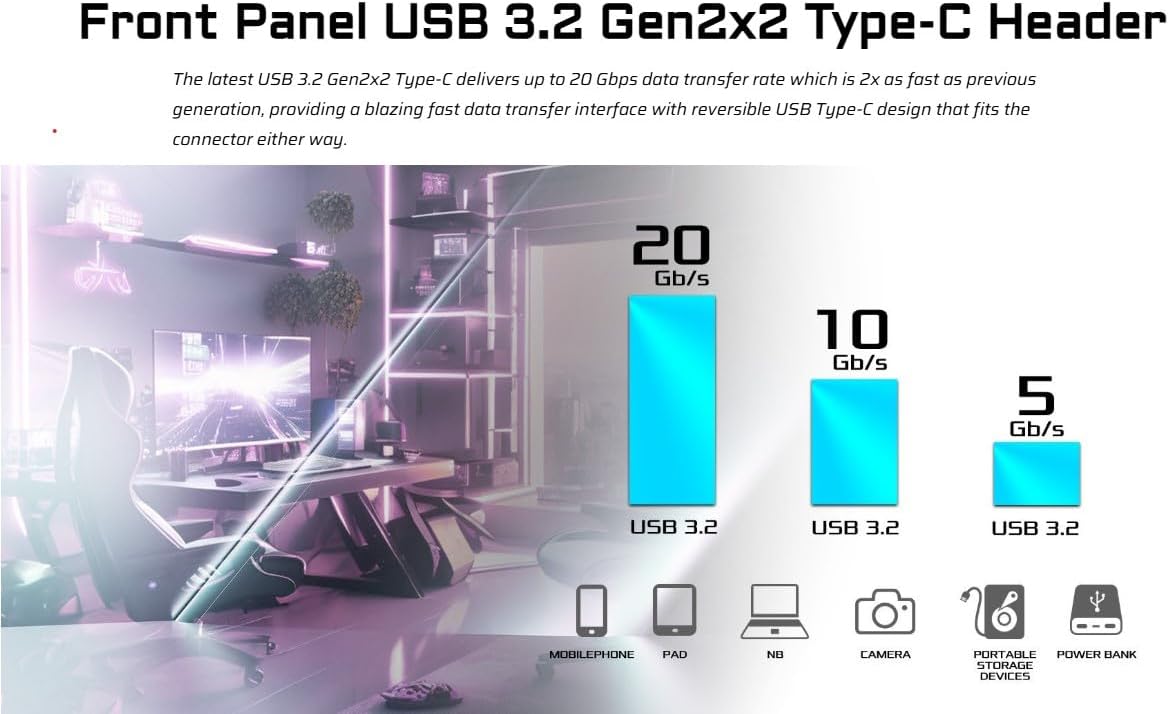

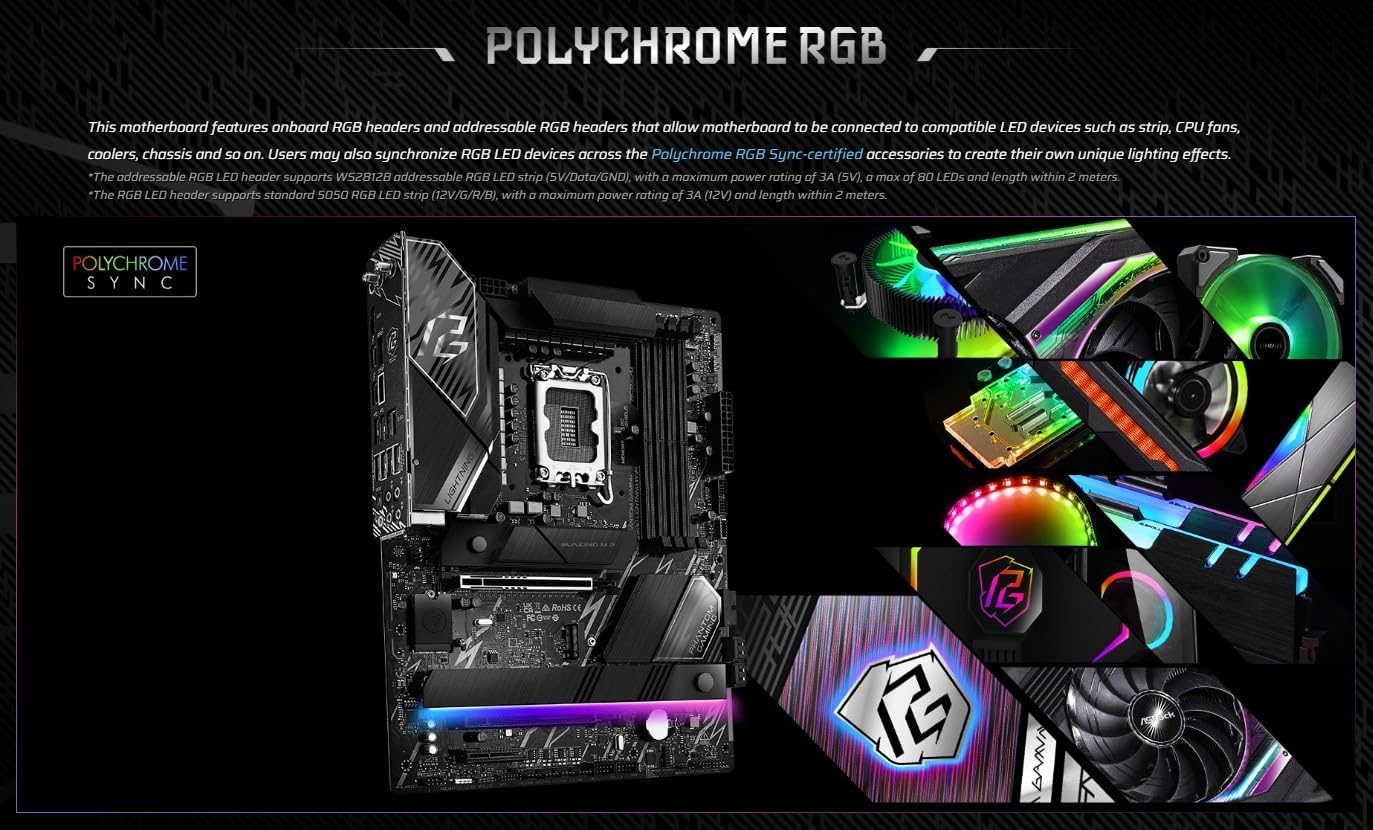

Connectors 1 x Thermistor Cable Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip

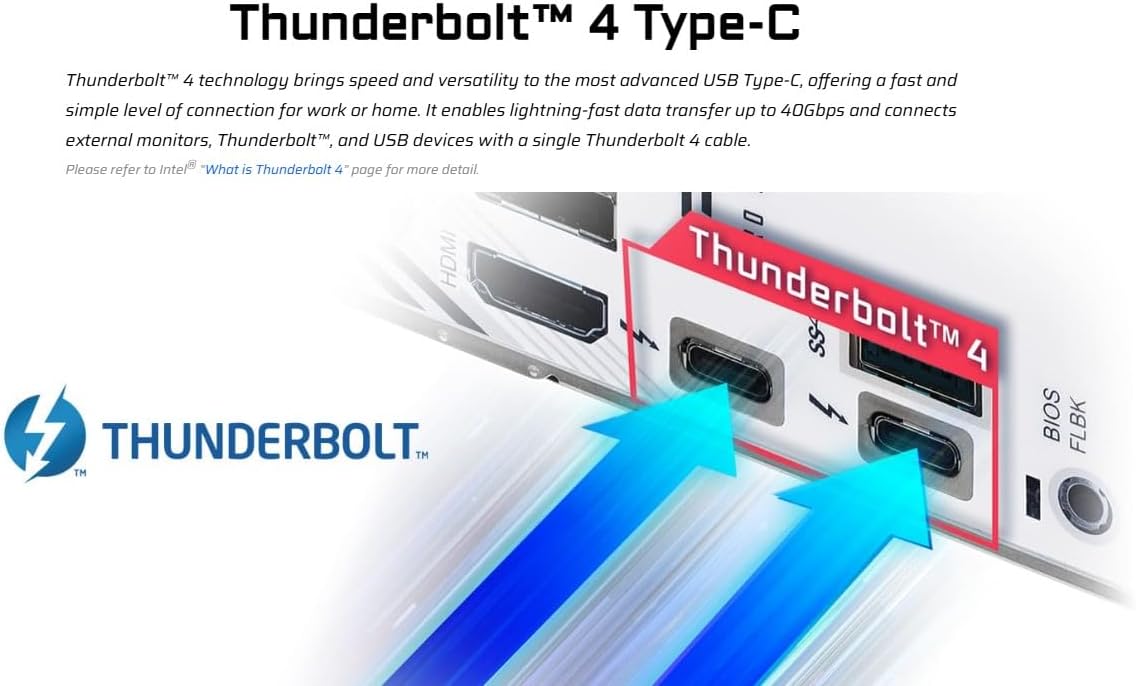

Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s) 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) * Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI:
Accessories 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x ARGB Splitter Cable 1 x Thermistor Cable Form Factor ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm) OS Support Microsoft Windows® 11 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Shipping & Return Shipping Policy
1. General Information All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.
2. Shipping Rates & Delivery Estimates Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.
Standard Shipping: 3-5 business days
3. Shipment Confirmation & Order Tracking You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
4. Damages Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at support1@vishalperipherals.com.
5. Returns Policy Our Return & Refund policy provides detailed information about options and procedures for returning your order. Please refer to our Returns Policy page for more information.

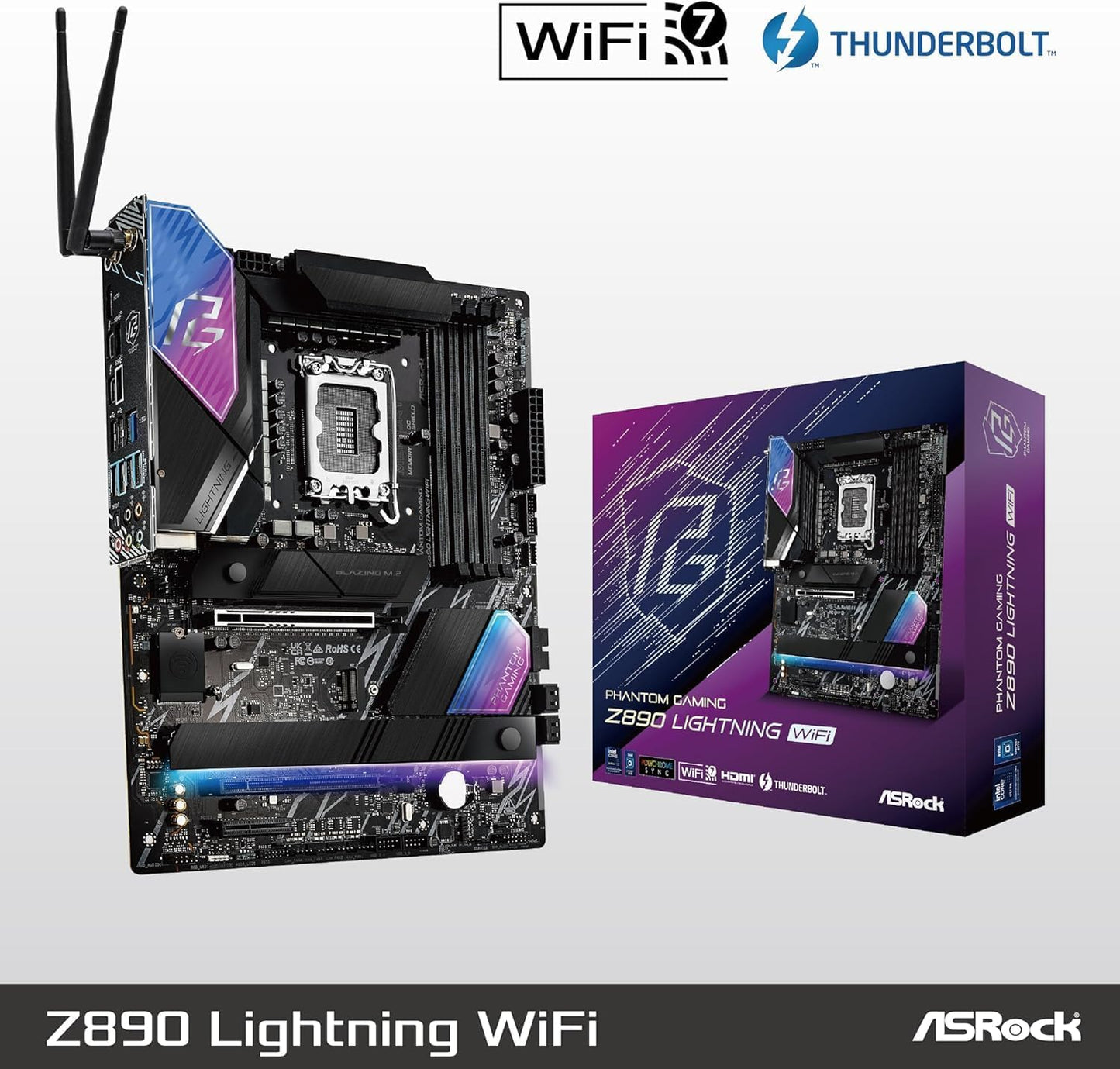

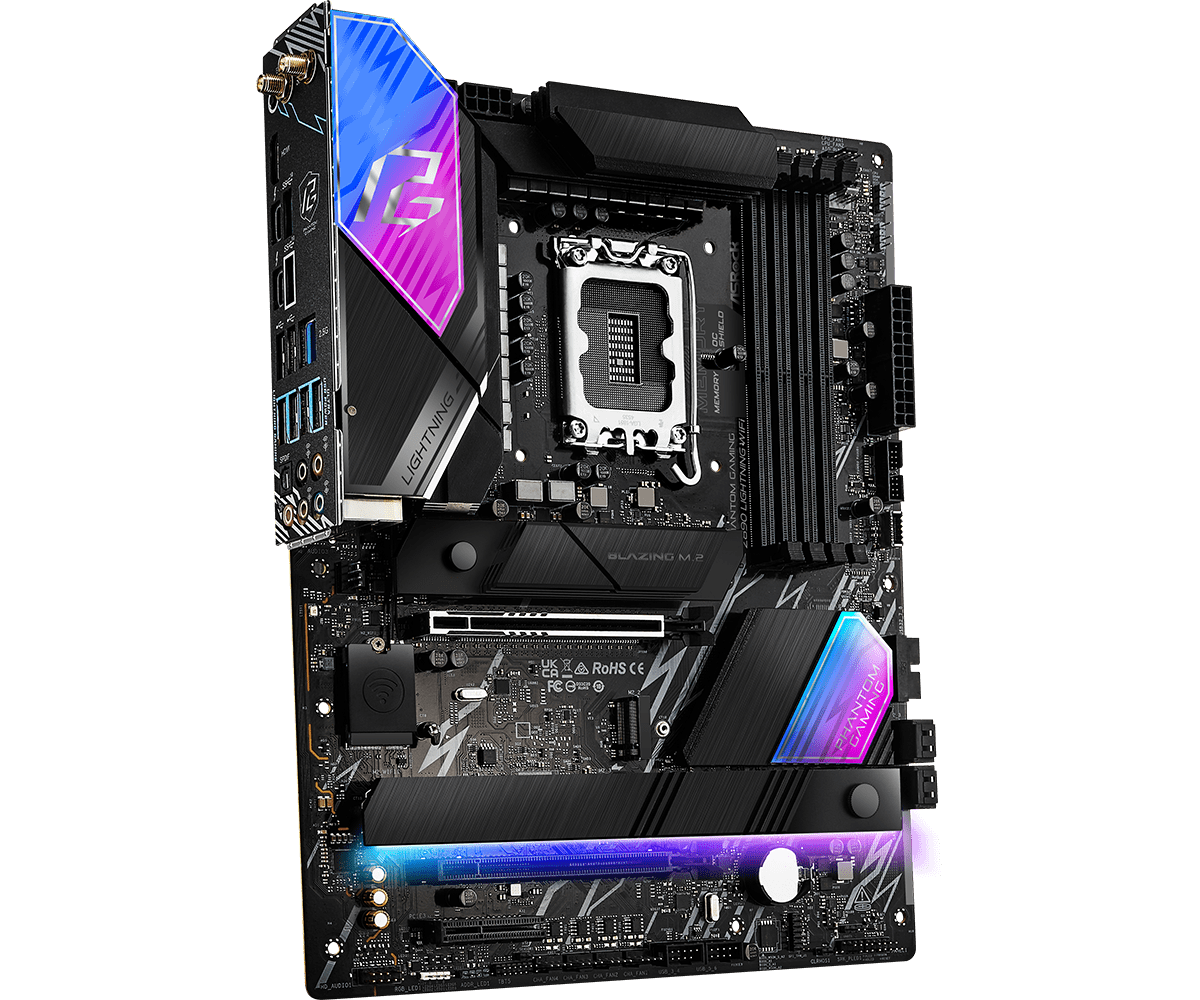

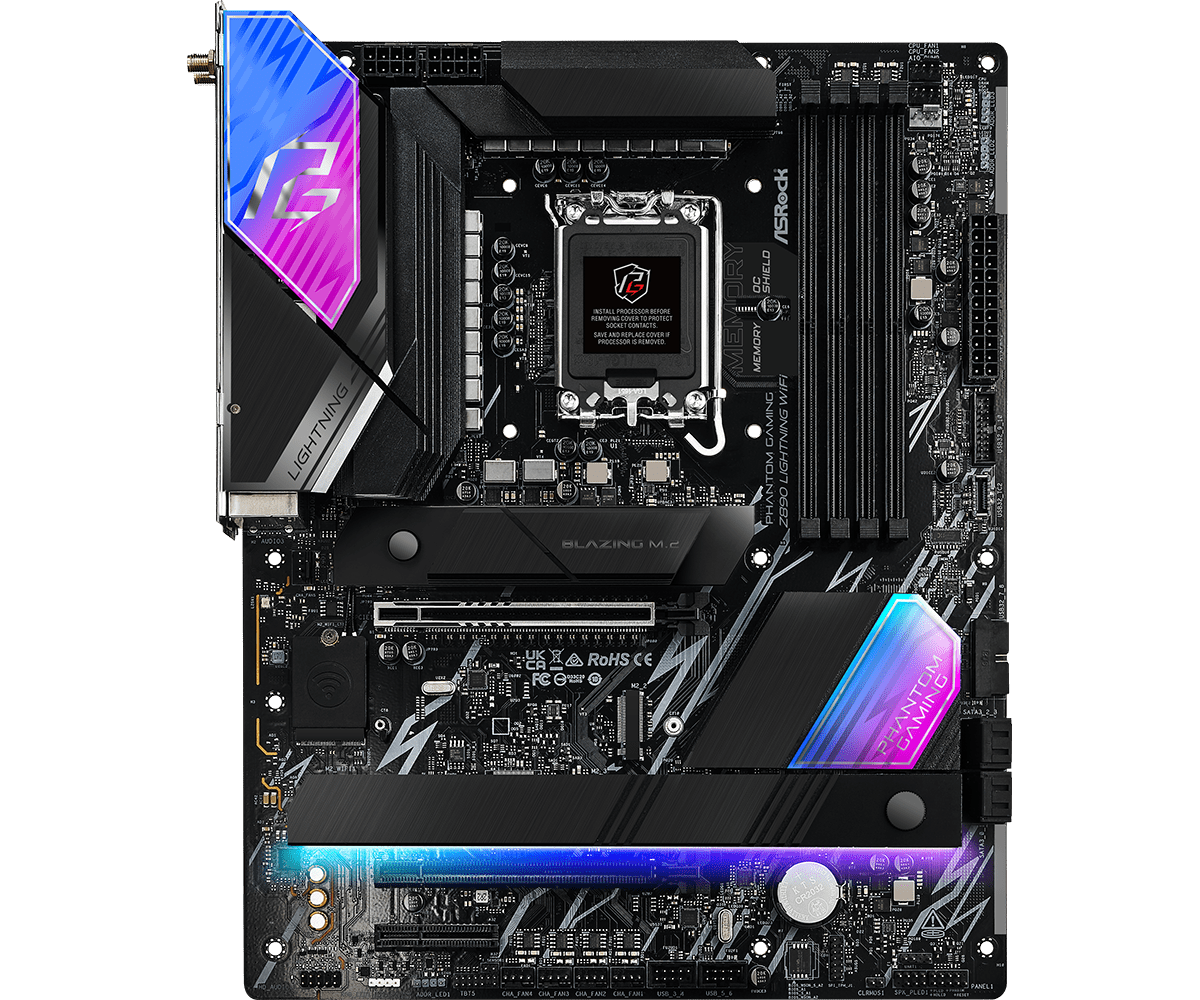

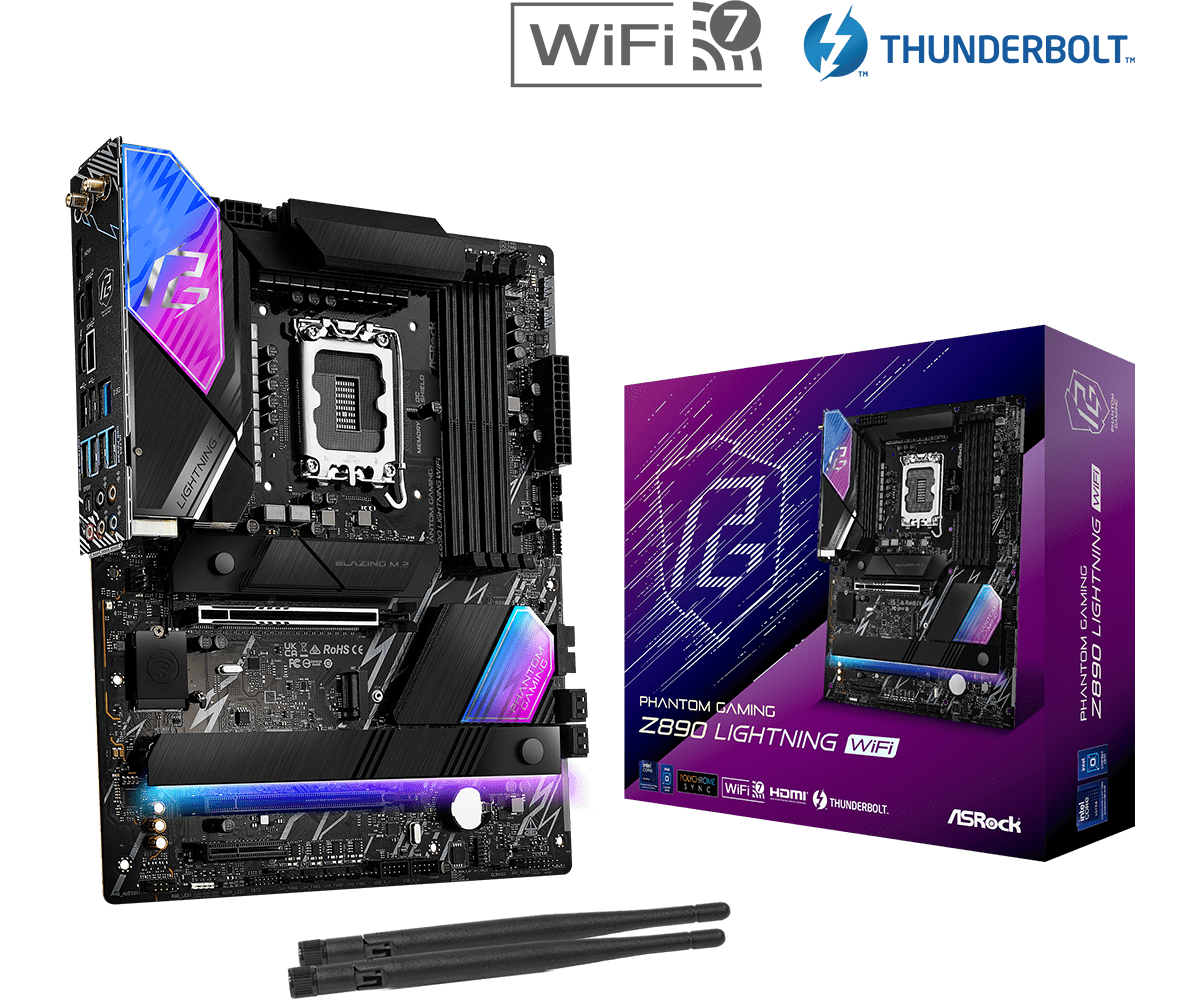

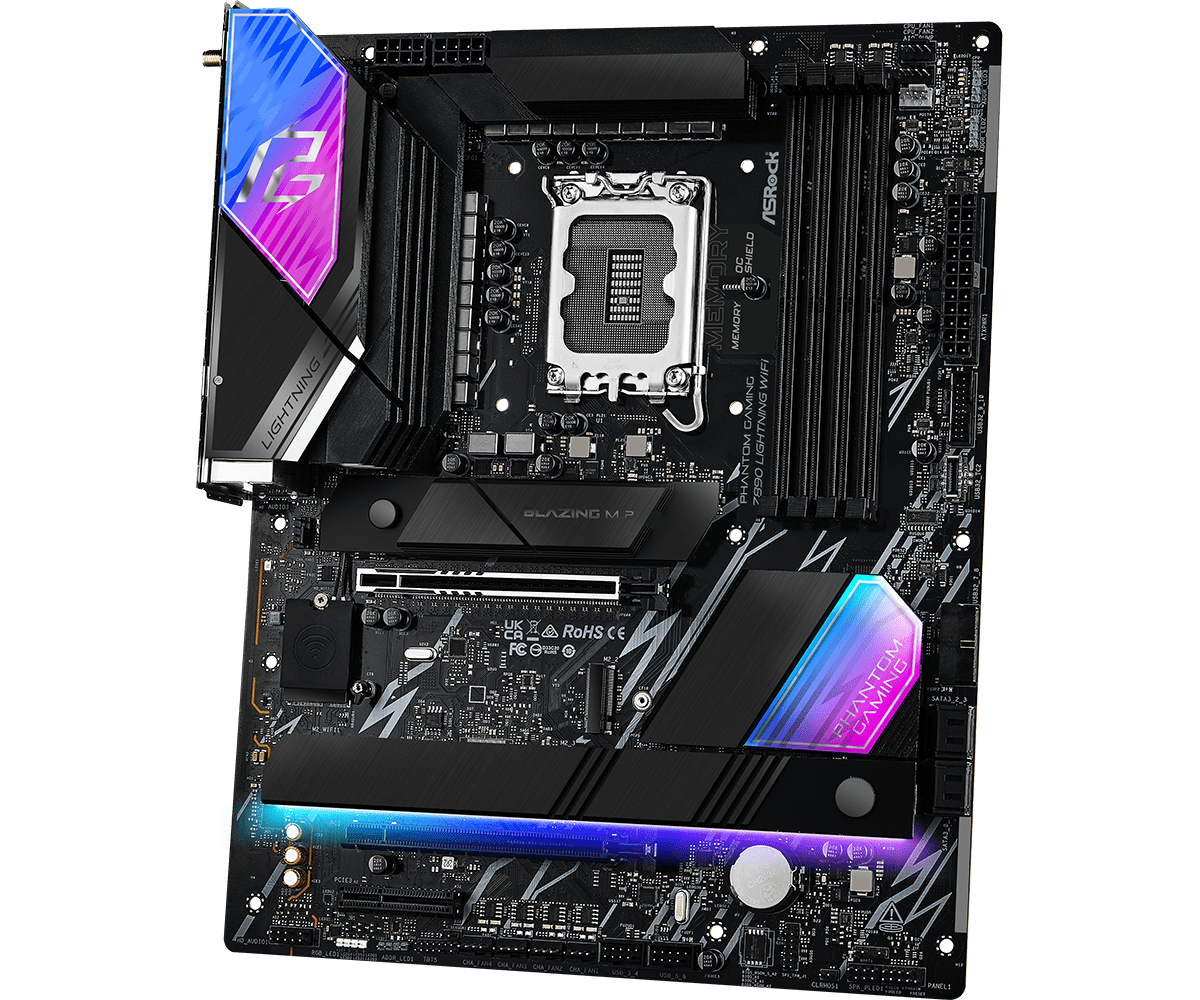

ASROCK Z890 LIGHTNING WIFI LGA 1851 ATX MOTHERBOARD
₹ 30,000 ₹ 65,000
