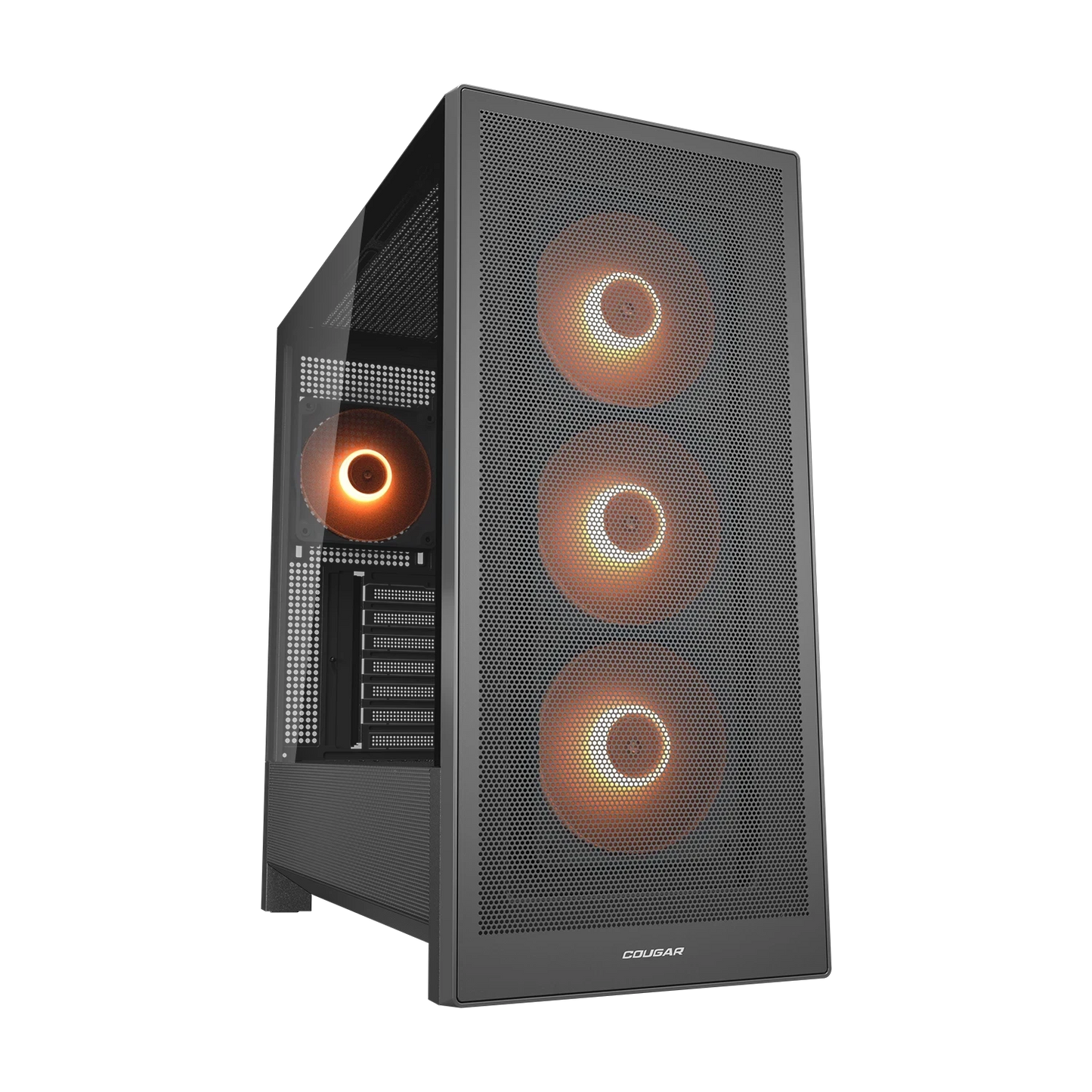

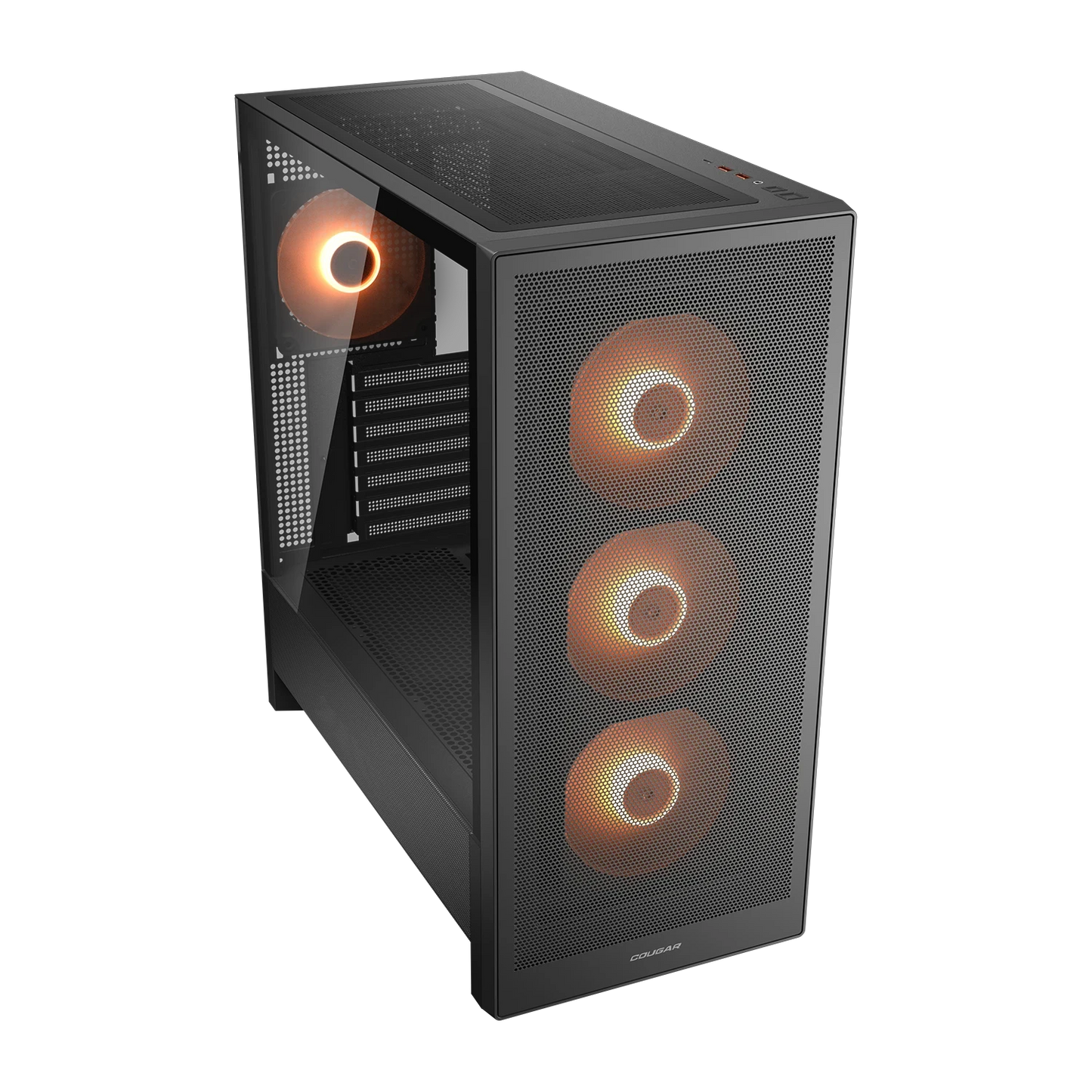

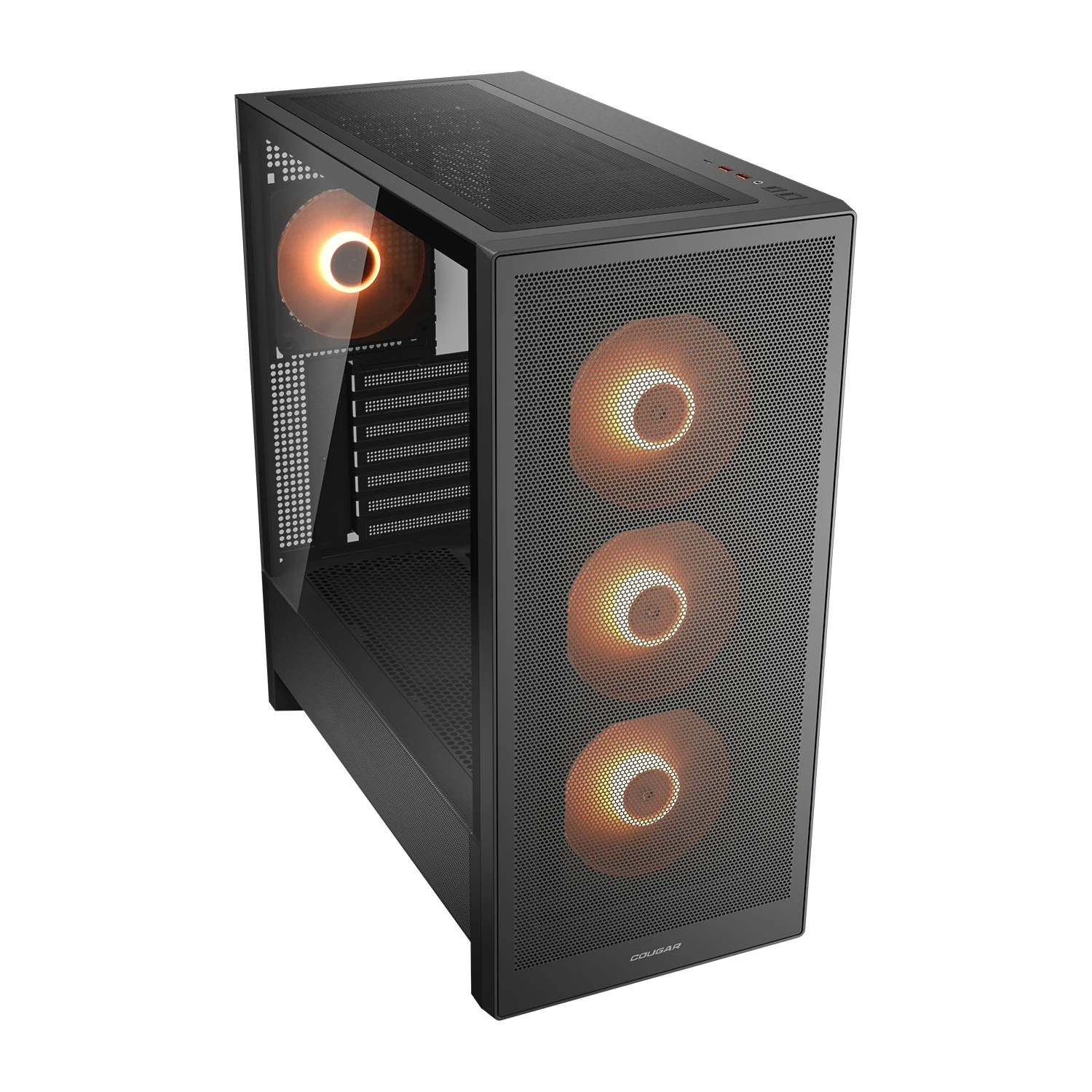

Cougar MX230 RGB Black Cabinet

Designed for performance, the MX230 RGB is an airflow-first PC case that combines high-volume, intake-enhanced cooling potential—including a triple-fan porous PSU shroud and angled mesh base slopes—with quality-of-life features for easy upkeep. Cool, simple… and game-ready.

• All-metal front mesh panel doubles as dust filter.

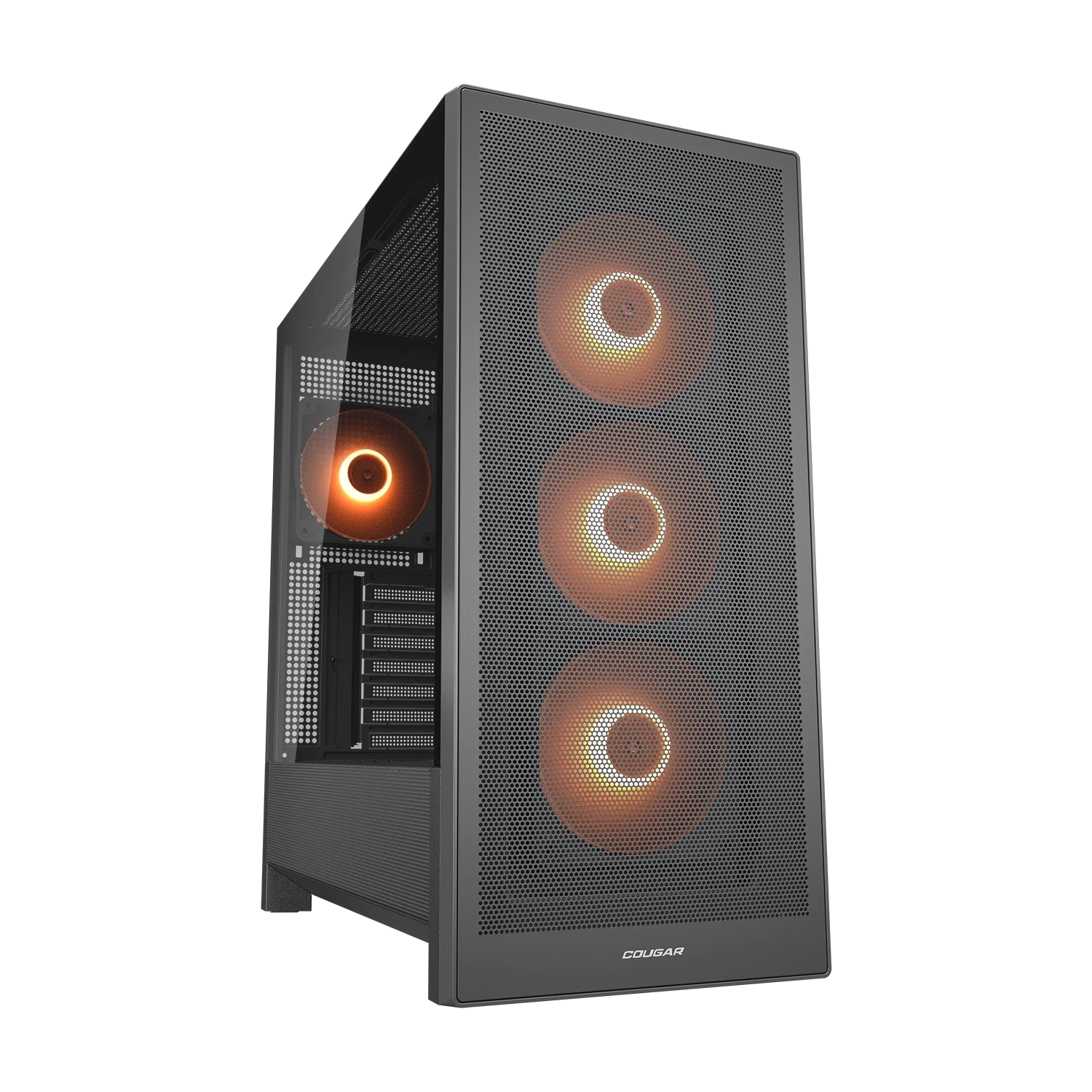

• 3 x 120mm ARGB front fans and 1 x 120mm ARGB rear fan preinstalled.

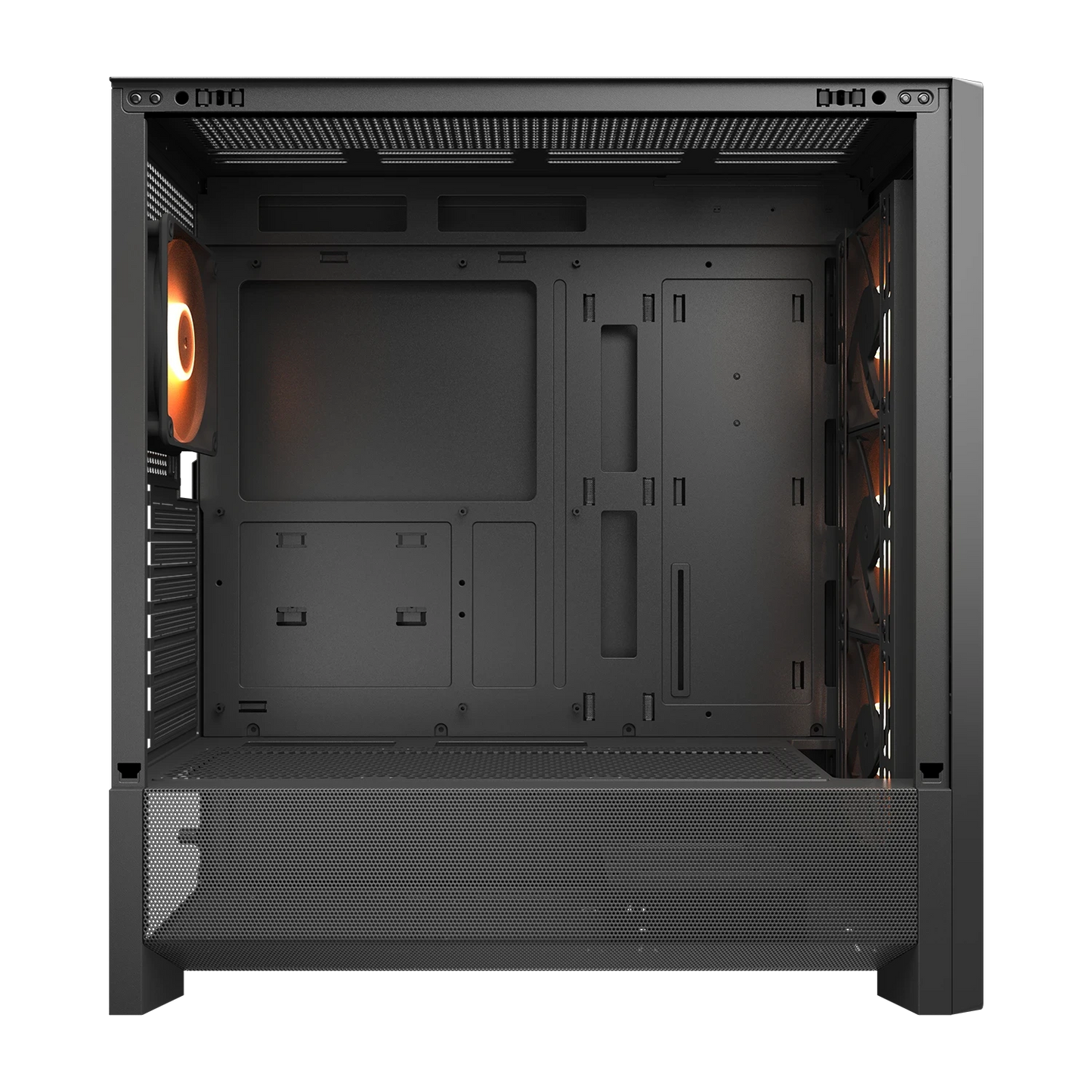

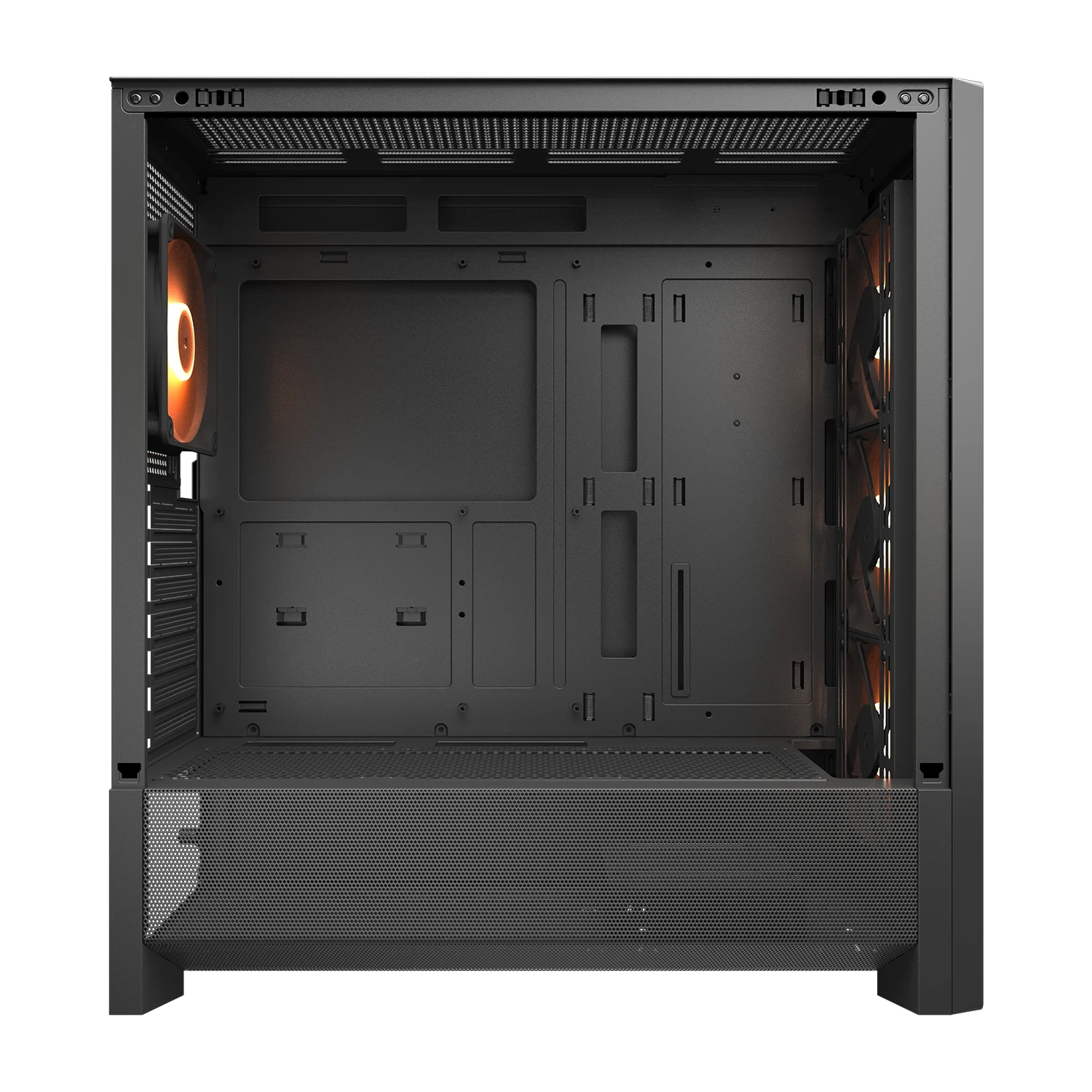

• Porous PSU shroud seats 3 x 120mm fans, creating a true vertical intake path.

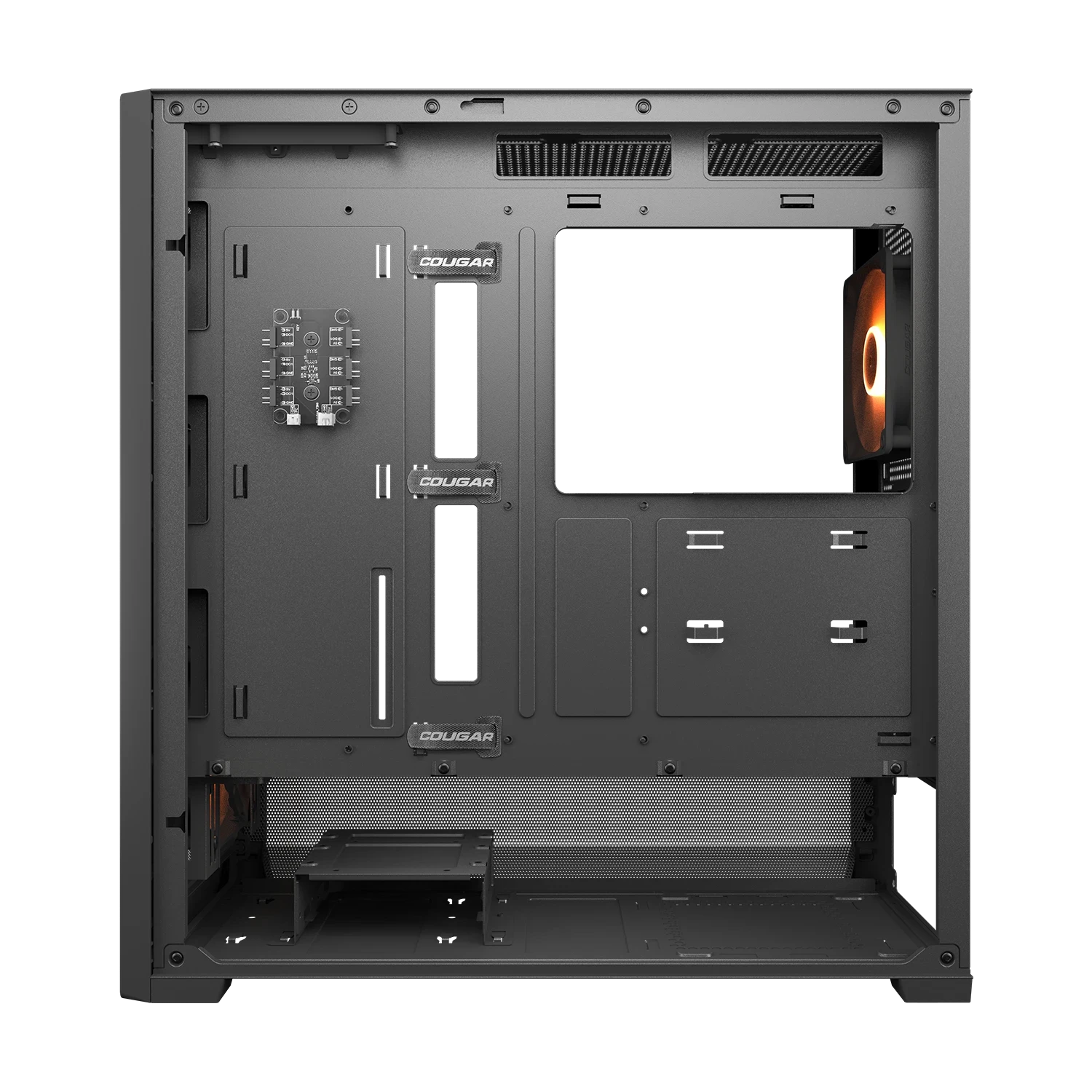

• Right-offset PSU cabin maximizes airflow space.
• Perforated base slopes increase intake surface area.
• Top filter rimmed with solid borders for a more refined look and feel.
• Supports 360mm AIO cooling up top and a maximum fan capacity of 10.
• Equipped with USB 3.2 Gen 2 2×1 Type-C (10Gbps) x 1 and USB 3.0 Type-A x 2 ports.
• Compatible with Mini ITX / Micro ATX / ATX / E-ATX motherboards.
• Accommodates up to 400mm GPUs.
• Houses 2 x 3.5” HDDs or 1+1 2.5” SSDs (converted from 3.5” drive bays).

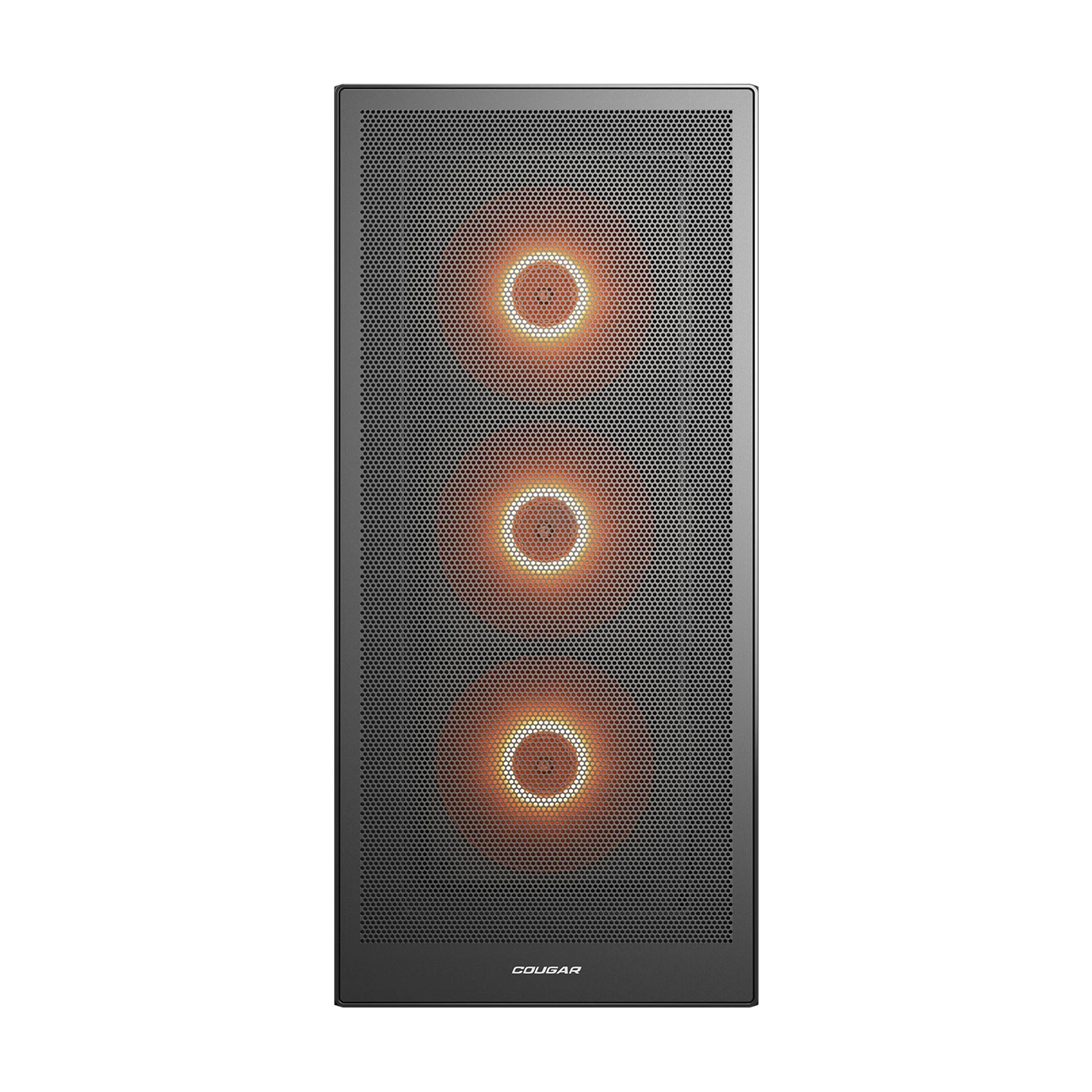

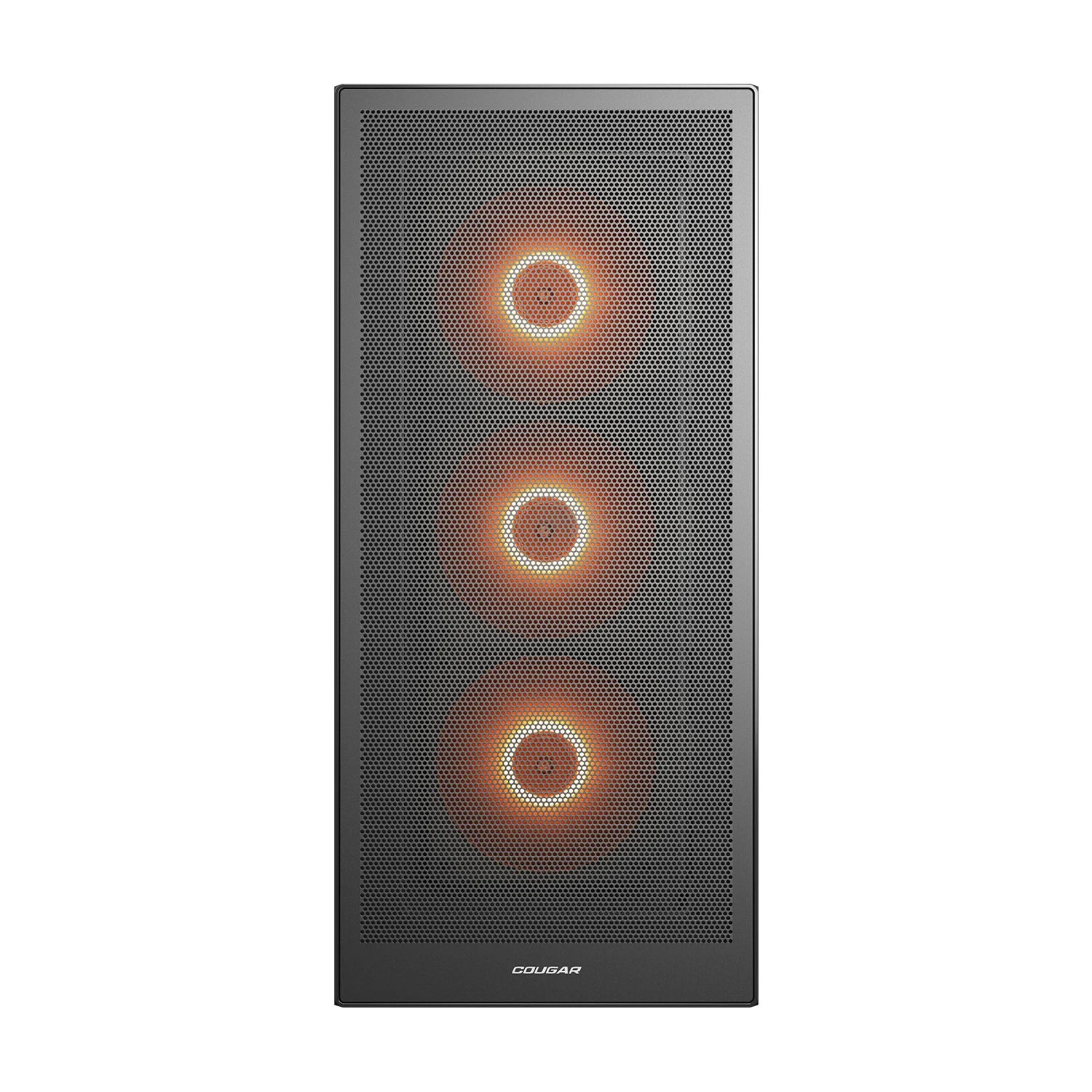

Mesh-Integrated Front Panel

An all-metal front panel uses a rugged, snap-fit mechanism for a more snug connection that won’t shift or loosen easily. Integrating the ultra-fine mesh filter into the panel allows for tool-less, single-step maintenance without compromising filtration — just pop it out and snap it back into place.

Specifications:

Product Name		MX230 RGB
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / E-ATX
Dimensions (WxHxD)		220 x 475 x 445 (mm) 8.7 x 18.7 x 17.5 (in)

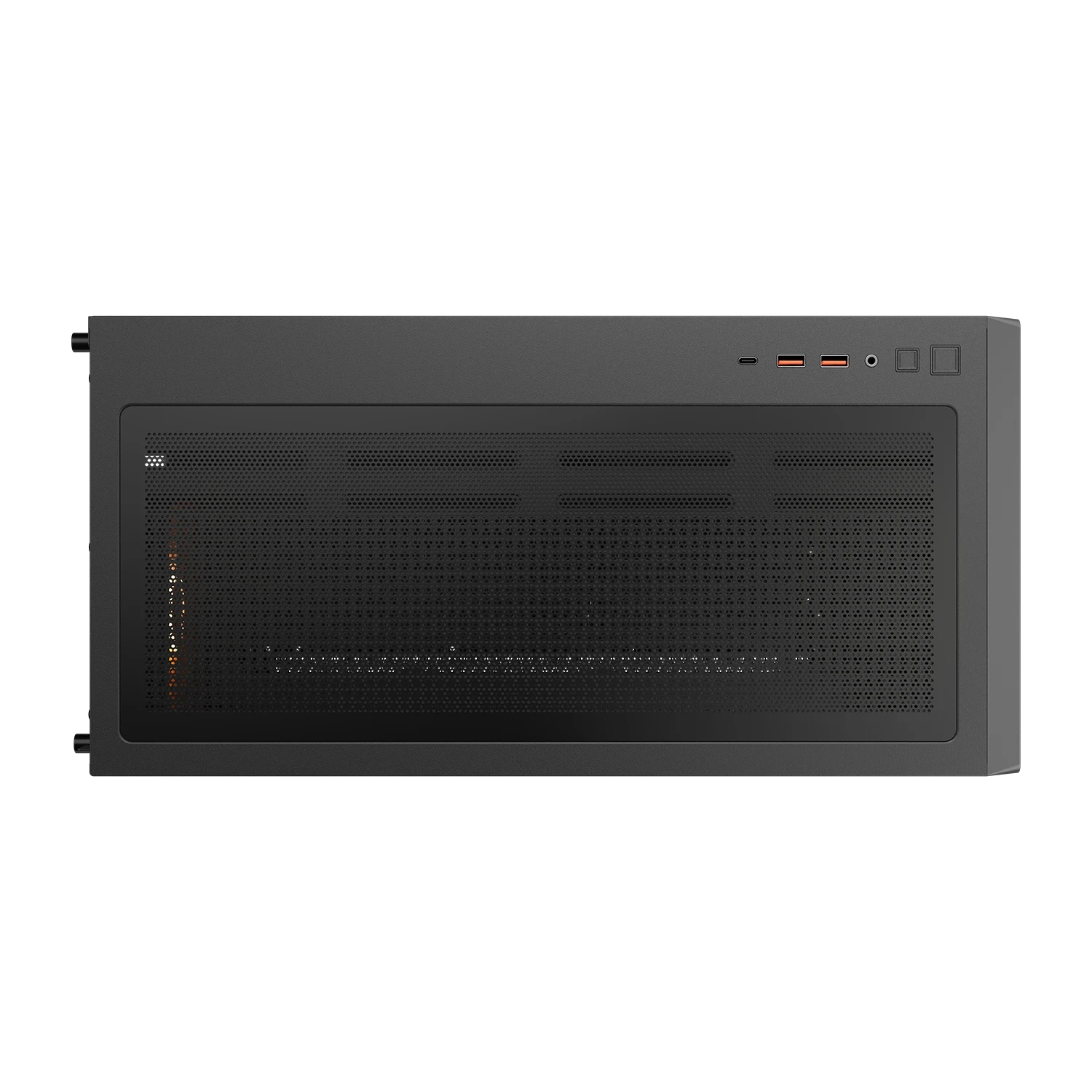

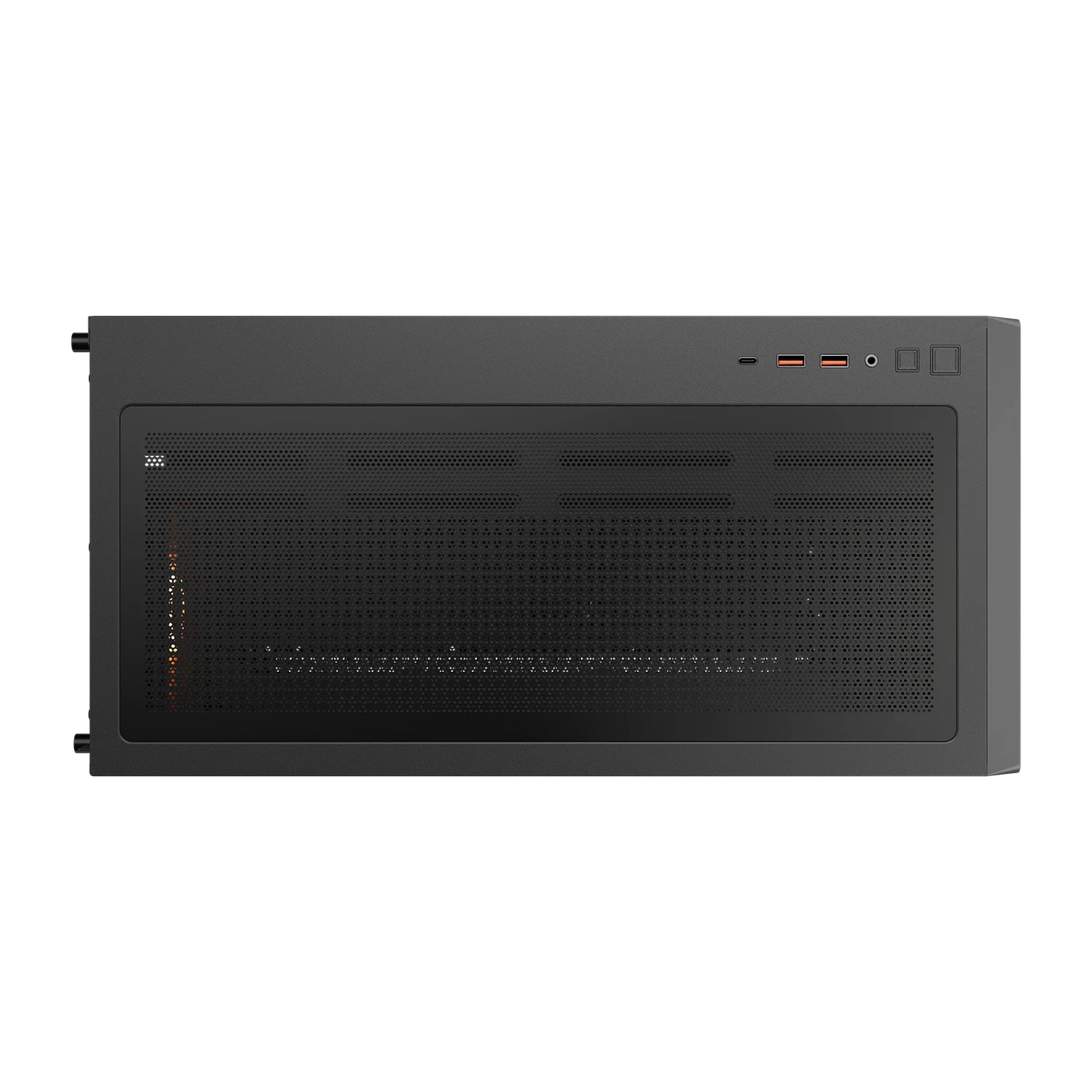

I/O Panel		USB 3.2 Gen 2x1 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay		2
2.5" Drive Bay		1+1(converted from 3.5" drive bays)
Expansion Slots		7
Cooling Fan Support	Front	120mm x 3 / 140mm x 2
	Top	120mm x 3 / 140mm x 2
	PSU shroud	120mm x 3
	Rear	120mm x 1
Pre-installed Fans	Front	120mm ARGB fan x 3
	Rear	120mm ARGB fan x 1
	Speed	1000 ± 10% RPM
	Connector	5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans		10
Water Cooling Support	Top	360mm / 240mm / 120mm
	Rear	120mm
RGB Hub Sync with M/B		Yes
Max. Graphics Card Length		400 (mm) / 15.7 (in)
Max. CPU Cooler Height		170(mm) /6.7 (in)
Max. PSU Length		200 (mm) / 7.9 (in)
