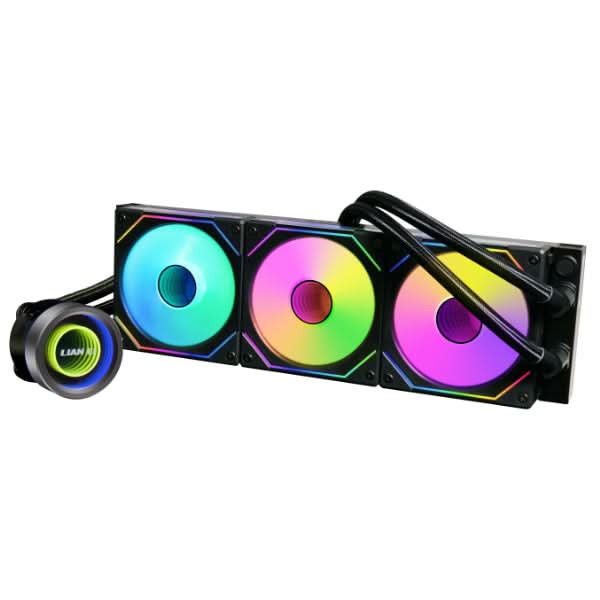

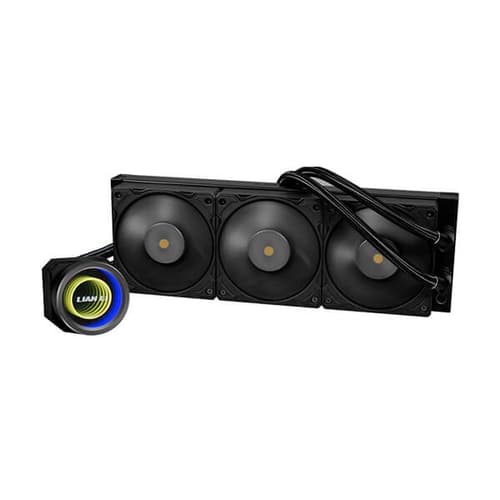

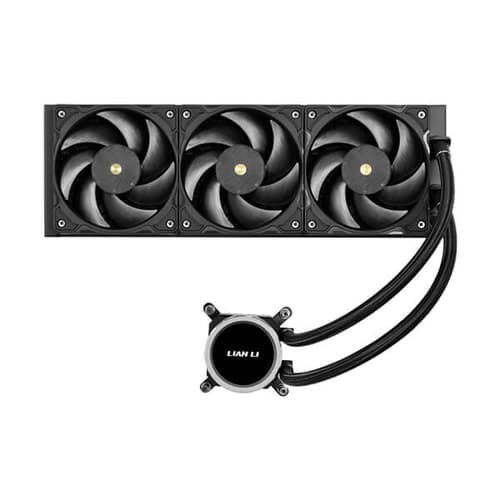

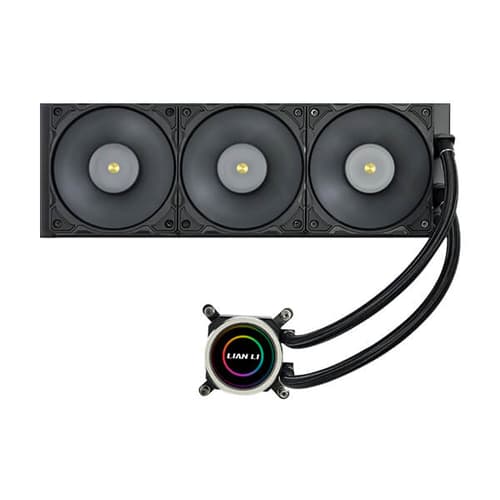

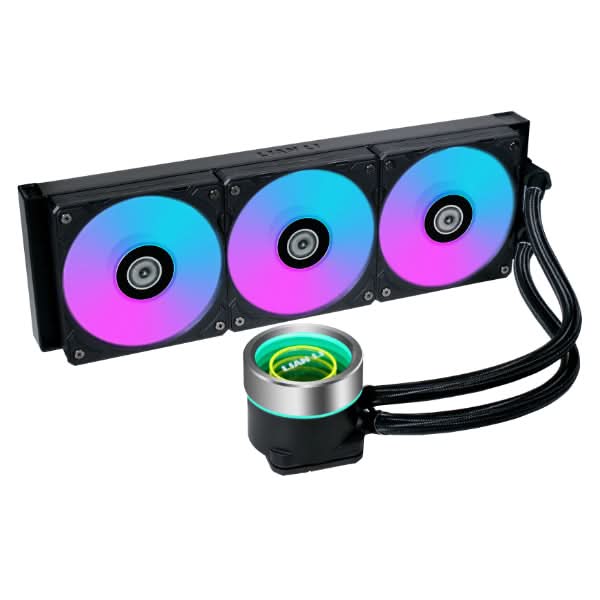

LIAN LI GALAHAD II 360 TRINITY 360MM AIO LIQUID COOLER BLACK

Features



• 3 interchangeable pump looks that can be customized with L-Connect 3
• Factory installed with daisy-chainable radiator LCP fans
• Pump motor speed goes up to 4200RPM
• Includes a newly designed pathway, copper plate and larger impeller for better waterflow for liquid coolant
• 45-degree tubing connector with tubes’ inner diameter increased to 7mm

BOOST PERFORMANCE TO THE NEXT LEVEL

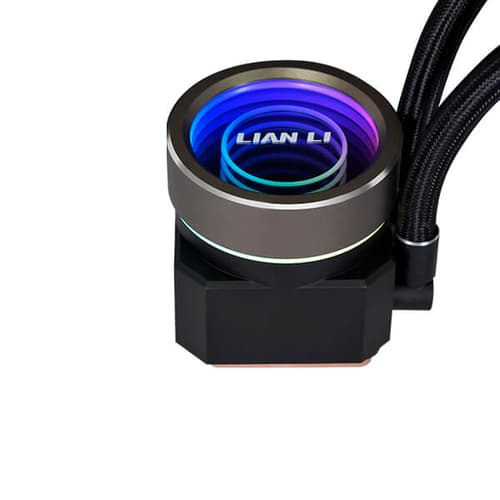

Galahad II Trinity Performance pump is larger than the regular one so that it accommodates upgraded components to efficiently cool the CPU.

CHOOSE PREFERABLE LOOK

The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.

• DUO- INFINITY

An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center. (90° Rotatable)

• DAZZLE

An entirely shining pump cap that brings the most vivid lighting to your build.

• SINK-HOLE

The combination of the diffuser and infinity mirror creates the sinkhole effect.

HIGH DENSITY ALUMINUM RADIATOR

The 32mm thick radiators feature a double-wave radiator fin design of 19 FPI which provides more surface area to dissipate heat with a high performance fan.

DAISY-CHAINABLE LCP FAN

The double-stack radiator fins provide better heat dissipation due to the enlarged surface area. However, the increased density also requires a more performance-oriented fan. These high-performance LCP fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. Just like the UNIFAN P28, this 120mm fan is 28mm in thickness and features a copper shield bearing for high RPM stability and quiet operations.

H – Performance oriented with maximum speed at 3000 RPM
L – Noice optimized with maximum fan speed at 2300 RPM

MOUNT IN ANY WAY

This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.

INSTALATION MADE EASY, FOR YOU

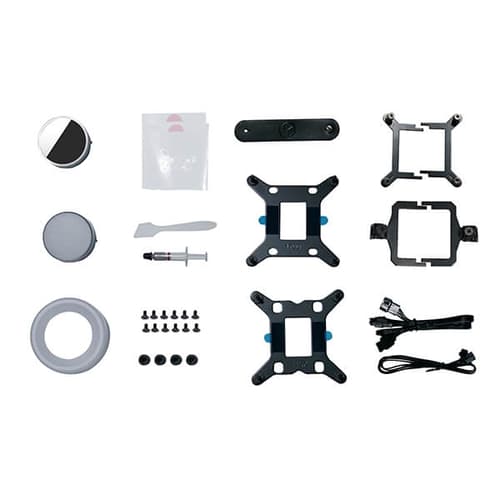

The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.

SIMPLE CONNECTION

The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.

ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3

5V ARGB
Required for motherboard sync(No need to use if only using L-Connect)

SATA Cable
For power

USB Cable
Plug into a motherboard 9-pin USB header for L-Connect 3 support

4-PIN PWM Cable
Required for RPM control

5 YEAR WARRANTY

Built with quality, the Galahad II Trinity AIO is proudly backed by a 5-year warranty, including the fans and controller. Damage of other components from leakage will be backed up to 3 years after we closely inspect the cause of leakage.



Specification



PRODUCT NAME	GALAHAD II TRINITY PERFORMANCE
MODEL	GA2P36B
TYPE	360mm
COLOR	Black
PUMP SPEED	4200 RPM
RADIATOR FINS	Double wave
RADIATOR SIZE	396 x 130 x 32mm
PUMP SIZE	74 x 74 x 79mm
INCLUDED PUMP BLOCK CAPS	Dazzle Mode, Sink Hole, Duo-Infinity
FAN SIZE	120 x 120 x 28mm
FAN SPEED	L: 2300 RPM (Max.) H: 3000 RPM (Max.)
STATIC PRESSURE	L: 4.08mmH2O (Max.) H: 6.99 mmH2O (Max.)
AIRFLOW	L: 81.54CFM(Max.) L: 108.29 CFM (Max.)
ACOUSTIC NOISE	L: 32.1 dB(A) H: 39.9 dB(A)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
COMPATIBLE CPU SOCKETS	Intel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4
Warranty	5 Years
Note	*** Features, Price, Specifications are subject to change without notice.
