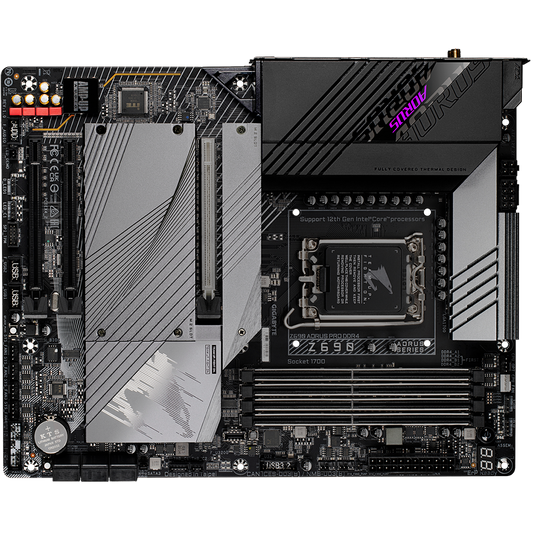

CPU	LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
	(Go to GIGABYTE's website for the latest CPU support list.)
	L3 cache varies with CPU
	(Please refer to "CPU Support List" for more information.)
Chipset	Intel Z690 Express Chipset
Memory	DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek ALC4080 CODEC
	High Definition Audio
	2-channel analog output
	Support for S/PDIF Out
	7.1-channel digital signals
	* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6 AX200:
	WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)
	(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
	2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
	(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
	2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
	6 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, RAID 5, and RAID 10
	* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

	Intel Optane Memory Ready
	* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB	Chipset:
	2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
	4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	Chipset+2 USB 3.2 Gen 1 Hubs:
	6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hub:
	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	4 x system fan headers
	2 x system fan/water cooling pump headers
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	4 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x noise detection header
	2 x Thunderbolt add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x power button
	1 x reset button
	1 x Q-Flash Plus button
	2 x temperature sensor headers
	1 x reset jumper
	1 x Clear CMOS jumper
	?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1 x USB Type-C port, with USB 3.2 Gen 2x2 support
	4 x USB 3.2 Gen 2 Type-A ports (red)
	4 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	2 x SMA antenna connectors (2T2R)
	1 x DisplayPort
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
	Noise detection
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Support for Xpress Install
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
