Zoom
Description
Specifications
| Category | Details |
|---|---|
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel H610 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s modules 2 × DDR4 DIMM sockets, up to 64 GB Dual-channel memory architecture Supports ECC Un-buffered DIMM (non-ECC mode) Supports non-ECC Un-buffered DIMM Supports Extreme Memory Profile (XMP) (See Memory Support List for details.) |
| Onboard Graphics | Integrated Intel HD Graphics 1 × D-Sub port, max 1920×1200 @ 60 Hz 1 × HDMI port, max 4096×2160 @ 60 Hz * HDMI 2.1 & HDCP 2.3 supported ** Native HDMI 2.1 TMDS compatible ports (Graphics depend on CPU) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel 7.1-channel configurable in audio software |
| LAN | Intel GbE LAN (1 Gbps/100 Mbps) |
| Expansion Slots | 1 × PCI Express x16 (PCIe 4.0) 1 × PCI Express x1 (PCIe 3.0) * Use PCIEX16 slot for GPU |
| Storage Interface | 1 × M.2 Socket 3 (2260/2280, PCIe 3.0 x4/x2) 4 × SATA 6Gb/s connectors |
| USB | Chipset: 4 × USB 3.2 Gen 1 (2 rear, 2 internal) 4 × USB 2.0/1.1 (rear) Chipset + USB Hub: 4 × USB 2.0/1.1 (internal) |
| Internal I/O | 1 × 24-pin ATX power 1 × 8-pin ATX 12V 1 × M.2 Socket 3 4 × SATA 6Gb/s 1 × CPU fan 2 × system fan 1 × RGB LED header 1 × front panel 1 × front audio 1 × USB 3.2 Gen 1 header 2 × USB 2.0 headers 1 × TPM header 1 × serial header 1 × Clear CMOS jumper |

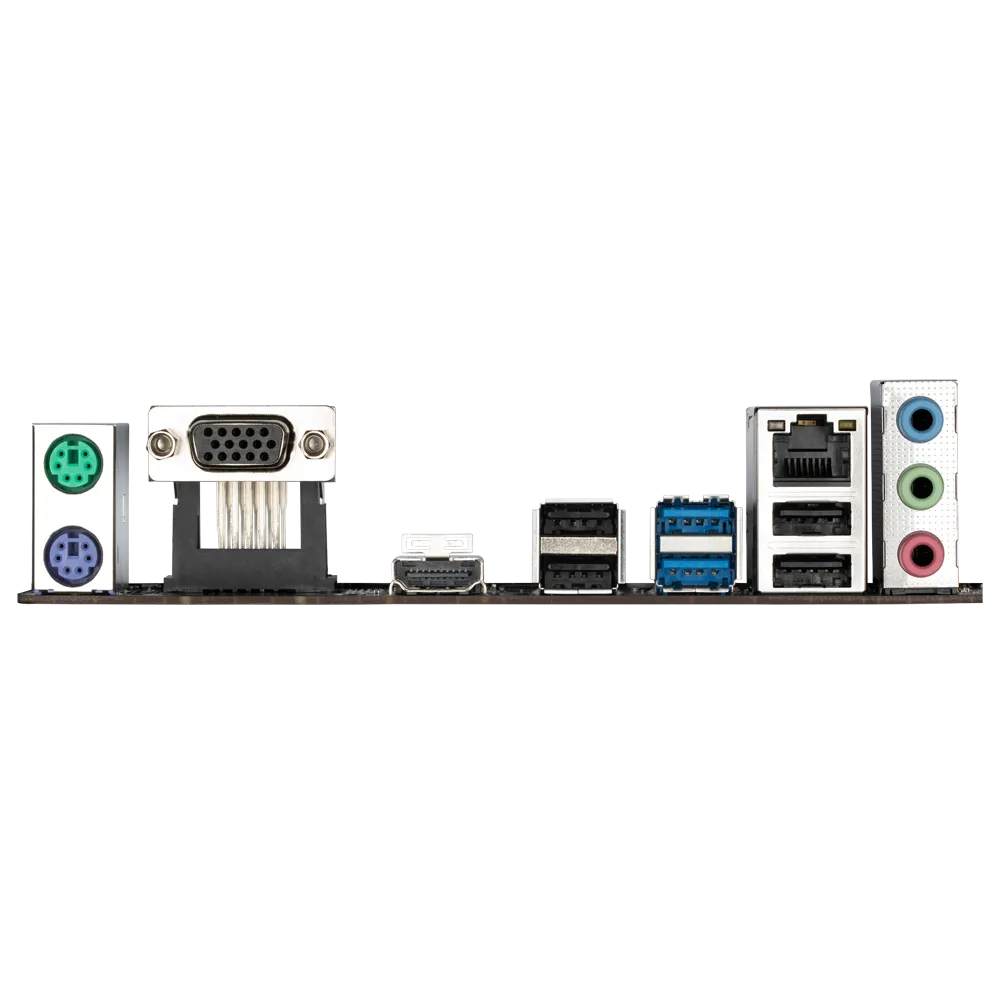

| Back Panel | 1 × PS/2 keyboard 1 × PS/2 mouse 1 × D-Sub 1 × HDMI 2.0 2 × USB 3.2 Gen 1 4 × USB 2.0 1 × RJ-45 LAN 3 × audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, and fan speed detection Overheating and fan fail warnings Fan speed control (cooler dependent) |
| BIOS | 1 × 256 Mbit flash AMI UEFI BIOS Supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center (availability varies) @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Q-Flash Xpress Install |
| Bundled Software | Norton Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX, 23.0 cm × 21.5 cm |
