Description
About This Product

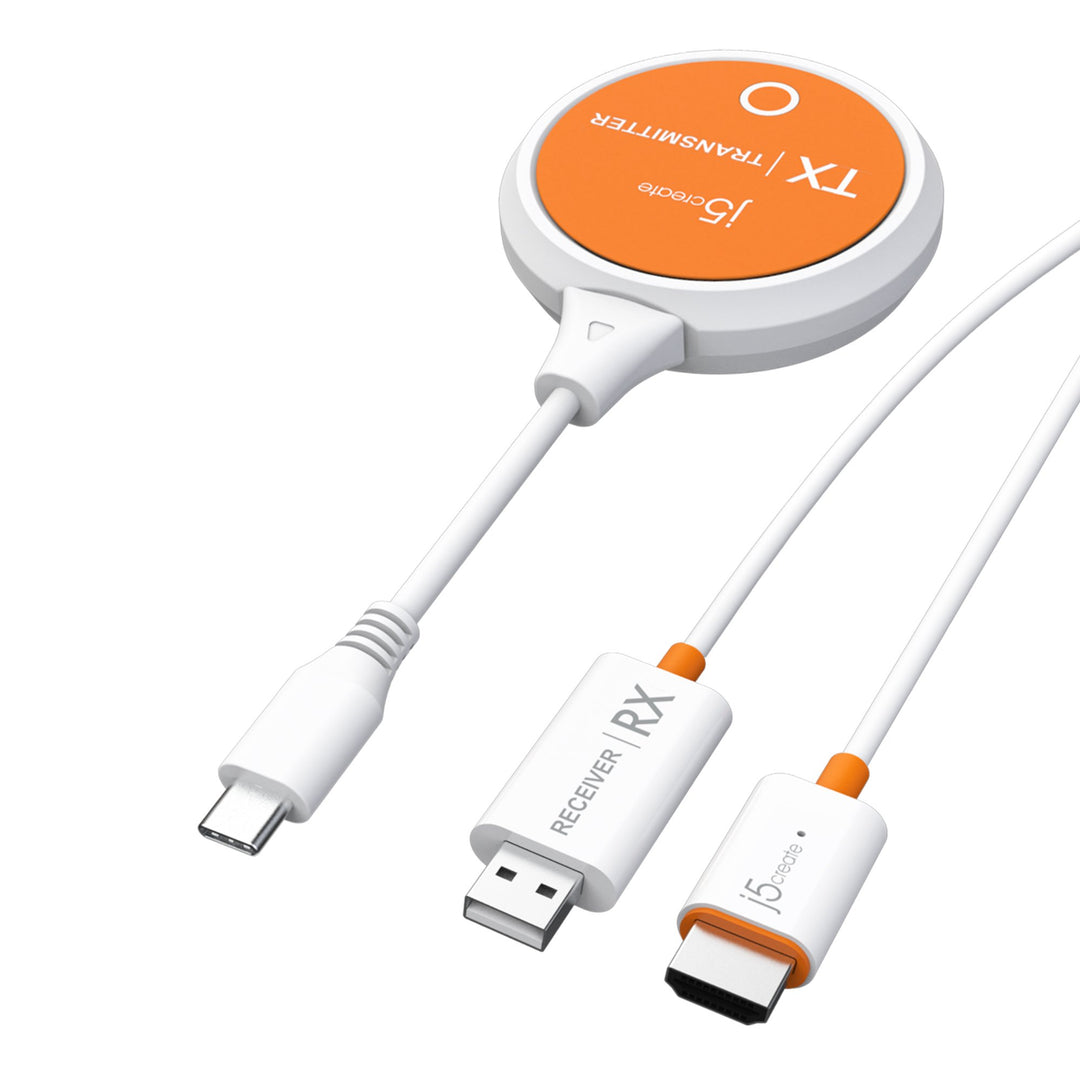

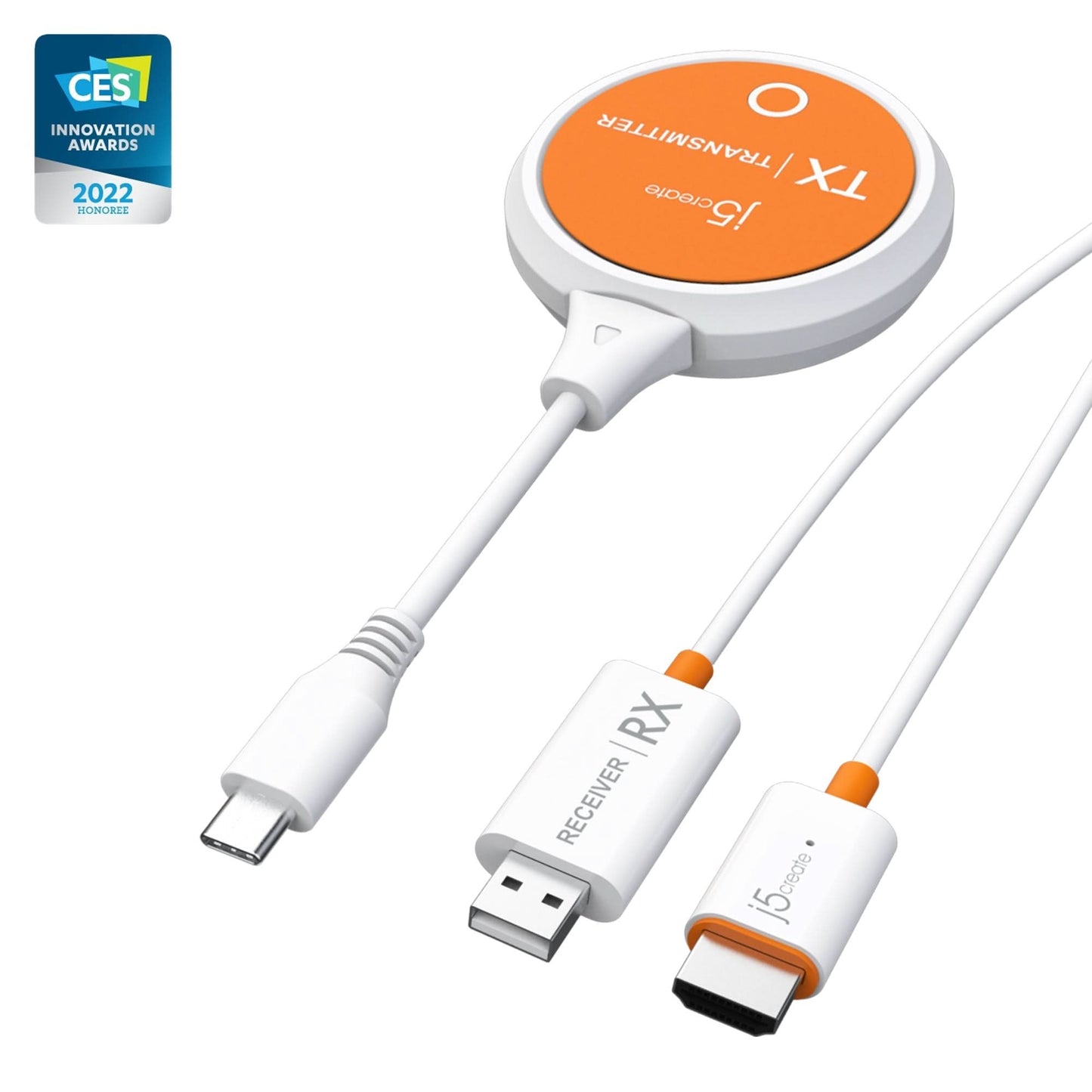

Eliminate the need and expense for cables by wirelessly sending what’s on your laptop, tablet, or mobile phone to your HDTV with this HDMI™ Extender. It transmits audio and video signal from a USB-C® equipped device to an HDMI™ enabled TV, projector, or monitor, creating a dedicated AV connection without an existing network. Enjoy a large screen experience by simply connecting the USB-C® transmitter to your compatible device and then connect the HDMI™ receiver to your TV.
Features
• Wirelessly cast full HD content from your mobile device to a larger TV or display
• With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favorite streaming applications, such as Netflix®, Amazon Prime Video™, Hulu™, DISNEY+™, and more
• Supports 1080p HD video
• Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience
• Includes an USB™ Type-A extension cable for added convenience
• Compact design is ideal for home, office, school, or on-the-go
• Supports multiple wireless standards including Miracast™, AirPlay®, and Google™ Chromecast™
System Requirements
- • Available USB-C® port that supports DisplayPort™ Alt Mode
| Hardware | |
| Warranty | 1 Year Limited |
| Host Connector | USB-C® with DisplayPort™ Alt-mode |
| Power Source | USB™ Type-A male |
| LED Indicator | N/A |
| Ports | N/A |
| IR | N/A |
| Performance | |
| HDMI™ Compliance | HDMI™ v1.3 |
| HDCP Compliance | HDCP 1.4 |
| Audio Channel | 2.1 via HDMI™ |
| Display Output Supported Resolutions | 1920 × 1080 |
| RF Output Power | N/A |
| Security (Encryption) | WPA2 |
| IR Return Frequency | N/A |
| ESD Protection | N/A |
| OVP Protection | N/A |
| Wireless Protocols | |
| Standard | IEEE 802.11ac |
| Frequency | 2.4 GHz, 5 GHz |
| Range | Up to 10 - 15 meters |
| Channel Width | 20 MHz, 40 MHz |
| Antenna Type | Internal antenna |
| Physical Specifications | |
| Color | White |
| Enclosure Type | Plastic |

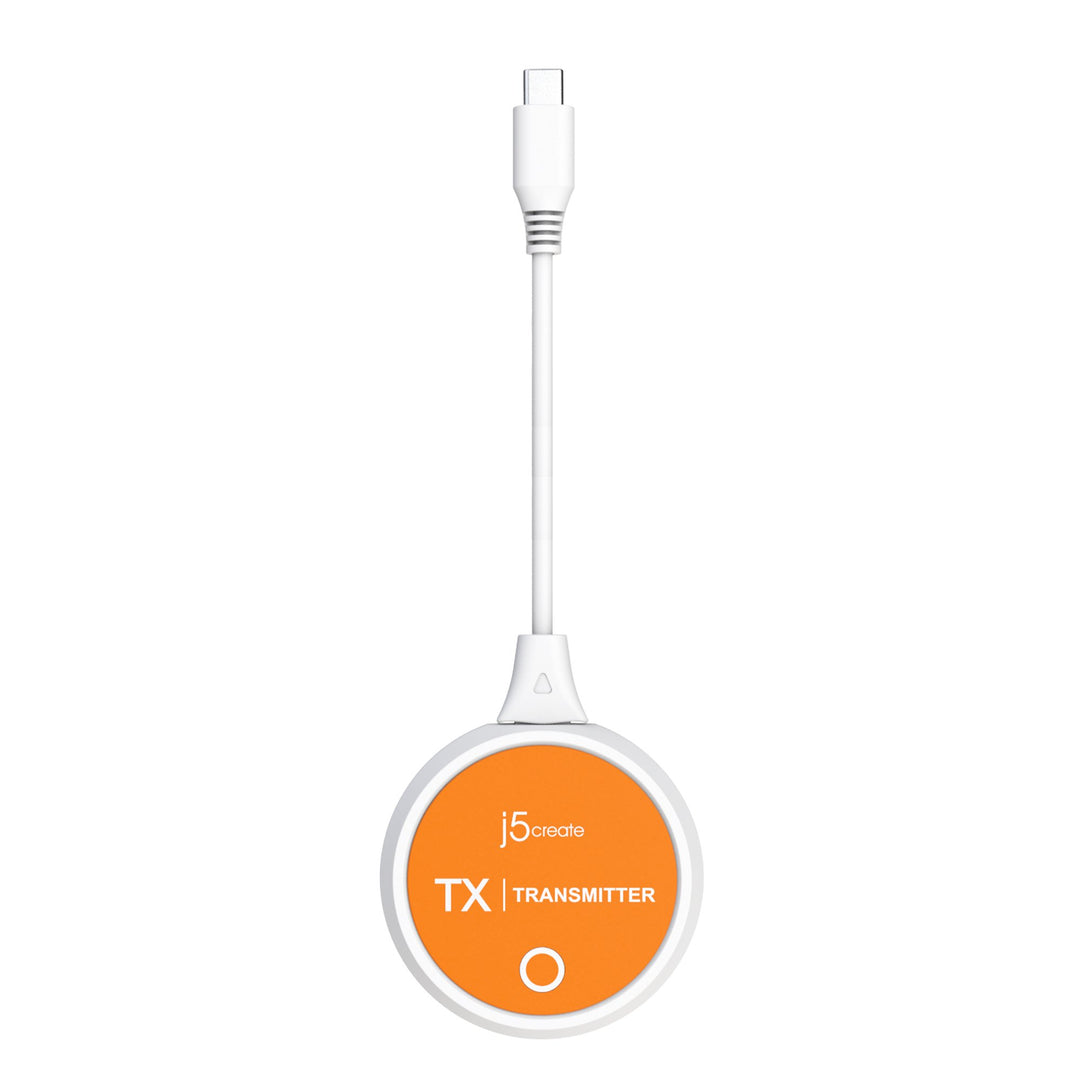

| Cable Length | USB-C® Transmitter (TX): 3.34 in. (85 mm) |
| Product Height | USB-C® Transmitter (TX): 2.56 in. (65 mm) |
| Product Width | USB-C® Transmitter (TX): 2.56 in. (65 mm) |
| Product Depth | USB-C® Transmitter (TX): 0.66 in. (17 mm) |
| Product Weight | USB-C® Transmitter (TX): 1.9 oz (54g) |
| Operating Temperature | +14 to +104 °F (-10 to +40 °C) |
| Operating Humidity | < 85% non-condensing |
| Storage Temperature | -4 to +122°F (-20 to +50°C) |
| Storage Humidity | < 85% non-condensing |
Package Contents

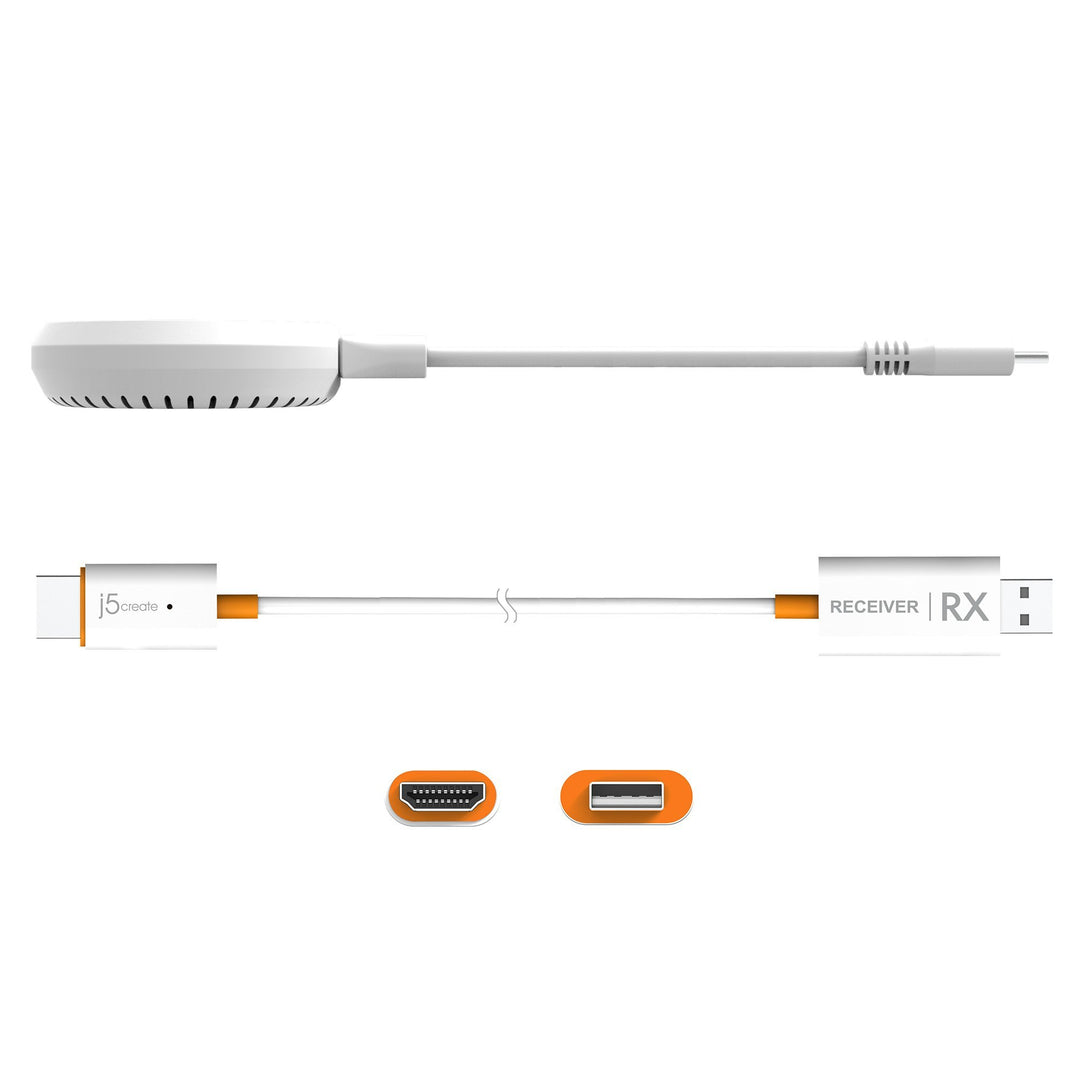

- • 1 - JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver)
- • 1 - USB™ Type-A extension cable (23.6”)
- • 1 - Quick Installation Guide (QIG)
