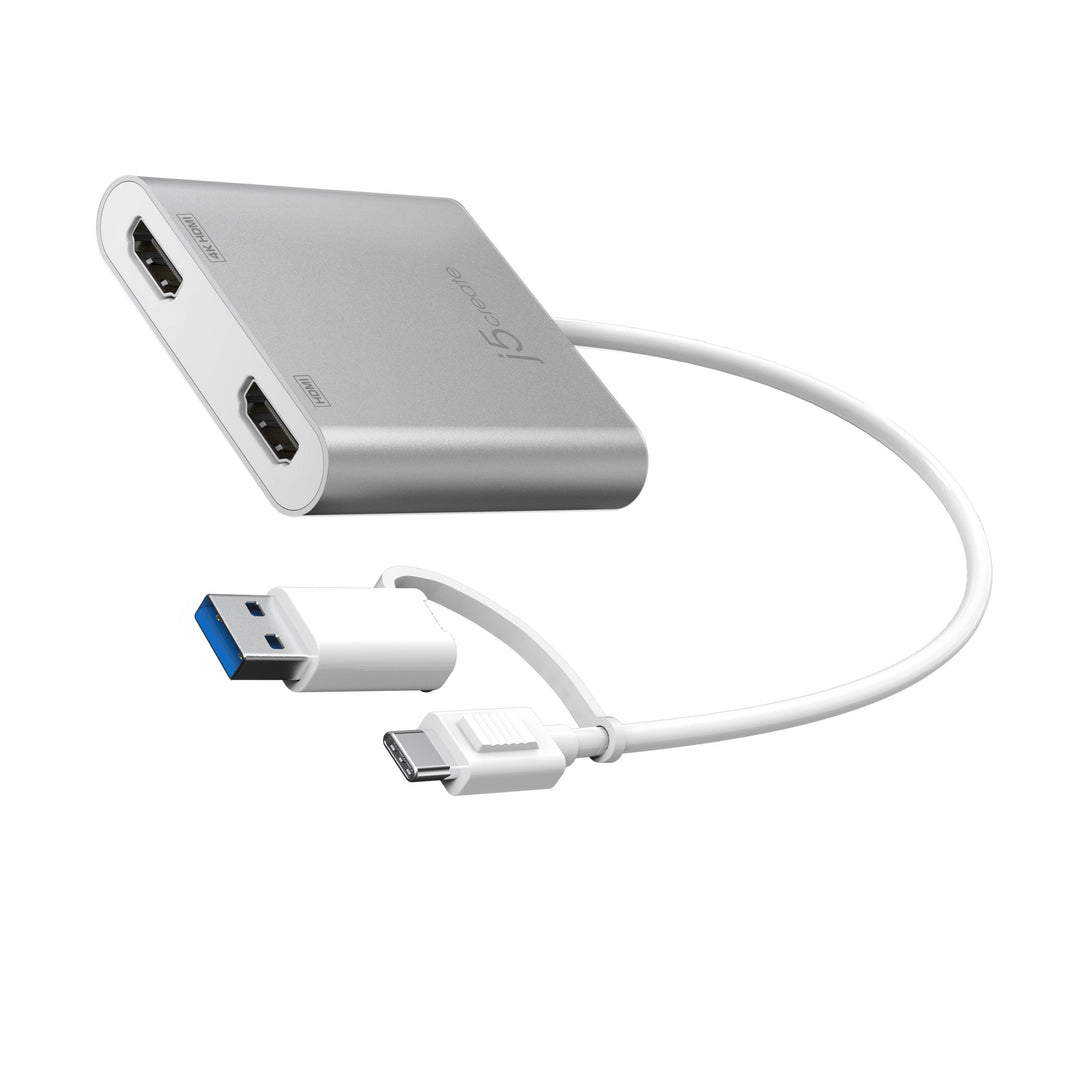

J5CREATE USB-C & USB-A TO DUAL HDMI MULTI-MONITOR ADAPTER (MAC & WINDOWS)

About This Product

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.

Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!

Features

• Easily add two HDMI™ video outputs though a single USB-C® port
• Compatible with USB-C® enabled macOS® & Windows® laptops
• Compact and lightweight design for maximum portability
• 4 display modes: Mirror, Extend, Primary, or Rotation*
*Rotation mode only available on Windows® computers
• Supports resolutions up to 3840 x 2160 @ 30 Hz & 2048 x 1152 @ 60 Hz
• Hot swappable USB™ enables you to add or remove monitors without rebooting your system
• USB™ 3.1 provides up to 5 Gbps transfer rate which is 10x faster than USB™ 2.0
• 2-channel audio support

• Specifications

  •


    System Requirements


    • • Windows® 10 or later
      macOS® 10.14 or later
    • • Available USB-C® port
      USB™ 3.1/3.0 is required for 4K resolutions
    • • For Office applications/Web browsers:
      • ◦ CPU: Intel® Core™ i3 5th gen Dual Core 1.8 GHz
      • ◦ RAM: 4 GB memory or higher
    • • For 2048 x 1152 @ 60 Hz full-screen video playback:
      • ◦ CPU: Intel® Core™ i5 5th gen Quad Core
      • ◦ RAM: 4 GB memory or higher
    • • For one 4K or two 2048 x 1152 @ 60 Hz full-screen video playback:
      • ◦ CPU: Intel® Core™ i7 5th gen Quad Core
      • ◦ RAM: 8 GB memory or higher
      • ◦ GPU: Intel® HD Graphics 5xx or AMD™/ NVIDIA® equivalent or higher




    Hardware
    Warranty	2 Year Limited
    Host Connector	USB-C® 3.1 Male
    Video Output	HDMI™ Female
    Power Source	Bus-powered
    Audio Supported	Yes
    USB™ Pass-Through	No
    Ports	1 - HDMI™ 1 - 4K HDMI™
    Performance
    Maximum Display Resolution	3840 x 2160
    Maximum Display Refresh Rate	4K @ 30 Hz 2K @ 60 Hz
    Maximum Data Transfer Rate	N/A
    Displays Supported	2
    Wide Screen Supported	N/A
    Audio Channel	2.1 via HDMI™
    Power
    Power Delivery	N/A
    Power Consumption	≤ 600 mA
    Physical Specifications
    Color	Silver
    Enclosure Type	Aluminum
    Cable Length	7.87 in. (200 mm)
    Product Height	2.4 in. (61 mm)
    Product Width	2.68 in. (68 mm)
    Product Depth	0.59 in. (15 mm)
    Product Weight	2.96 oz (84g)
    Storage Temperature	14 to 149°F (-10 to 65°C)
    Storage Humidity	< 85% non-condensing
    Operation Temperature	32 to 104°F (0 to 40°C)
    Operation Humidity	< 85% non-condensing




    Special Notes

    • • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
    • • The adapter is not intended for graphic intensive applications, such as gaming
    • • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
    • • The adapter can connect to a USB™ 2.0 port, but it will only support resolutions up to 2048 x 1152 @ 60 Hz
    • • Rotation mode is supported on Windows® only
    • • Only one adapter is supported per macOS® computer
    • • Content protected by HDCP may not play when connected to an unsupported display
    • • Internet access is required to automatically install the driver on Windows® 10
    • • To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model




    Package Contents

    • • 1 - USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
    • • 1 - Quick Installation Guide (QIG)
