Description
About the item

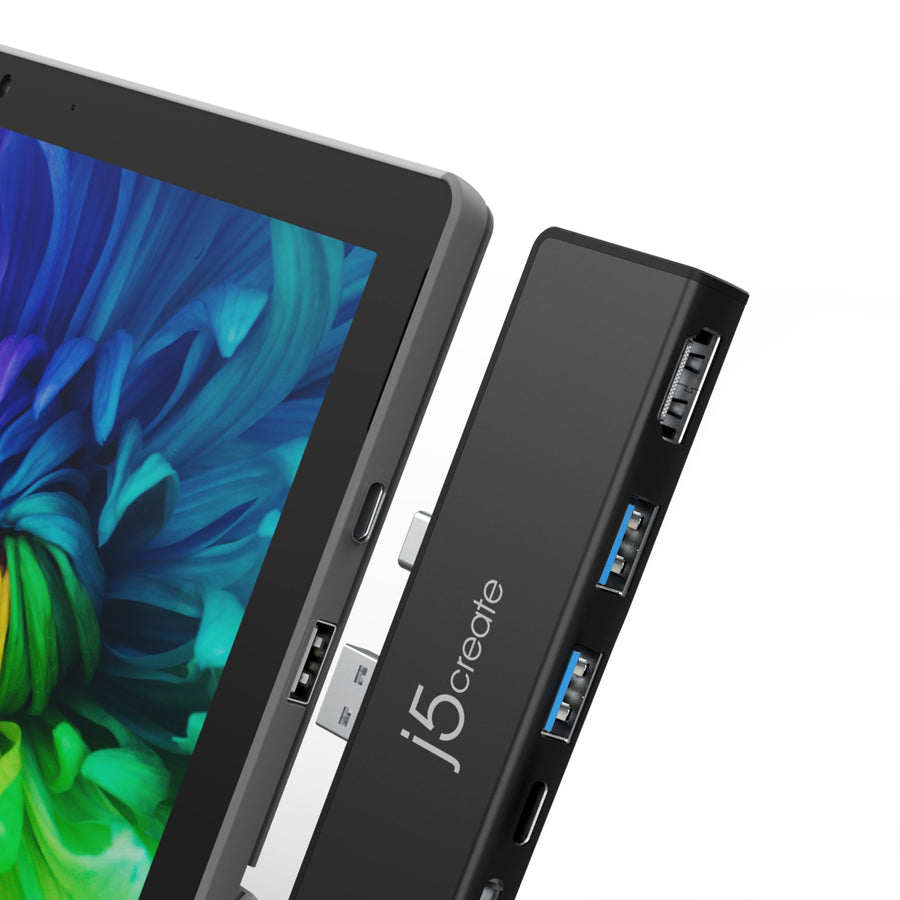

- Designed to sit flush against the Surface™ Pro 7
- 2-SuperSpeed+ USB™ 3.1 Gen 2 ports provide up to 10 Gbps transfer speed, which is 2x faster than USB™ 3.0, and 20x faster than USB™ 2.0
- Supports HDMI™ resolutions up to 4K @ 60 Hz with High Dynamic Range (HDR) and 3D vision
- USB-C™ 3.1 Gen 2 with PD 3.0 provides up to 60W of charging power + data transfer
- Memory card reader/writer slots allow for external memory access up to 2 TB, supporting microSD™ and SD™ 3.0 UHS-I with data transfer speeds up to 104 Mbps
- Plug-and-play, no driver installation required
Specifications
Category | Specification |
---|---|
Hardware | |
Audio Supported | Yes |

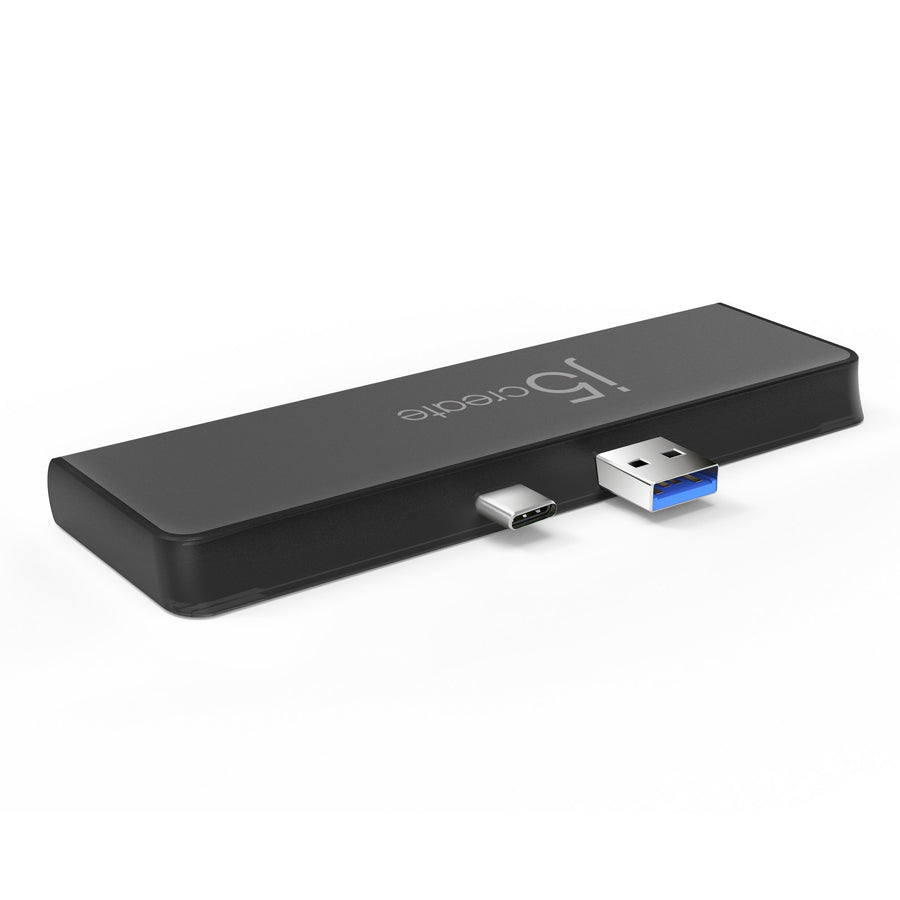

Host Connector | 1 - USB-C™ 3.1 Male |
1 - USB™ Type-A Male | |
Network Interface | N/A |

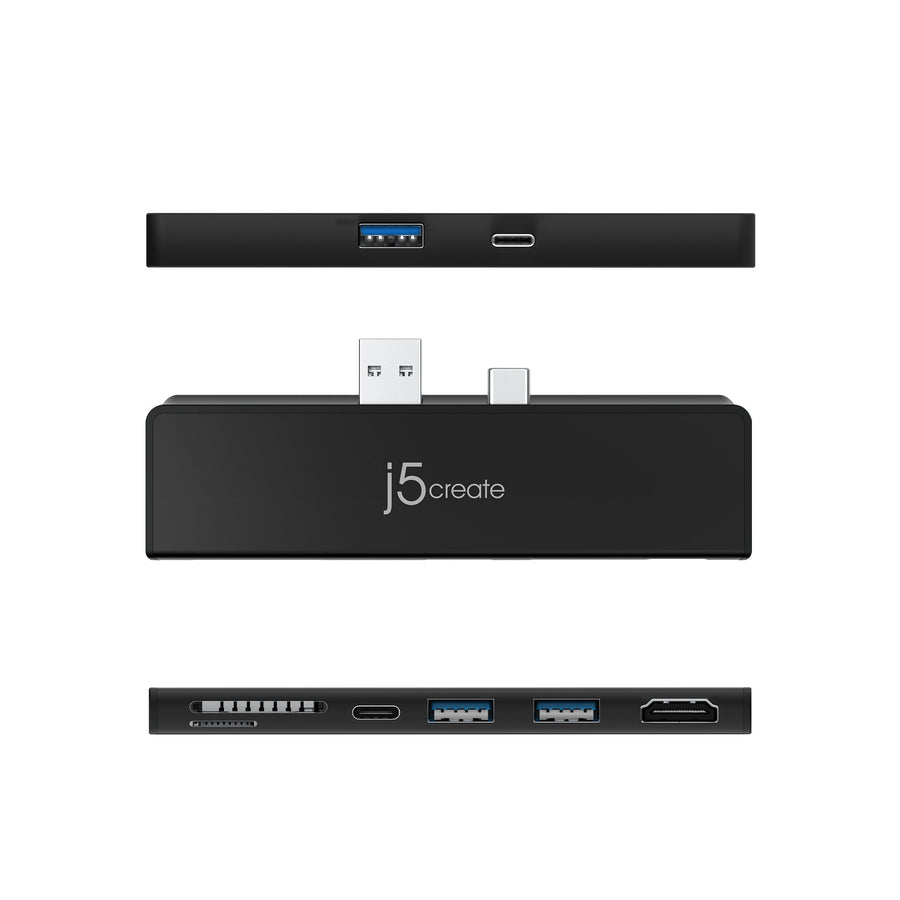

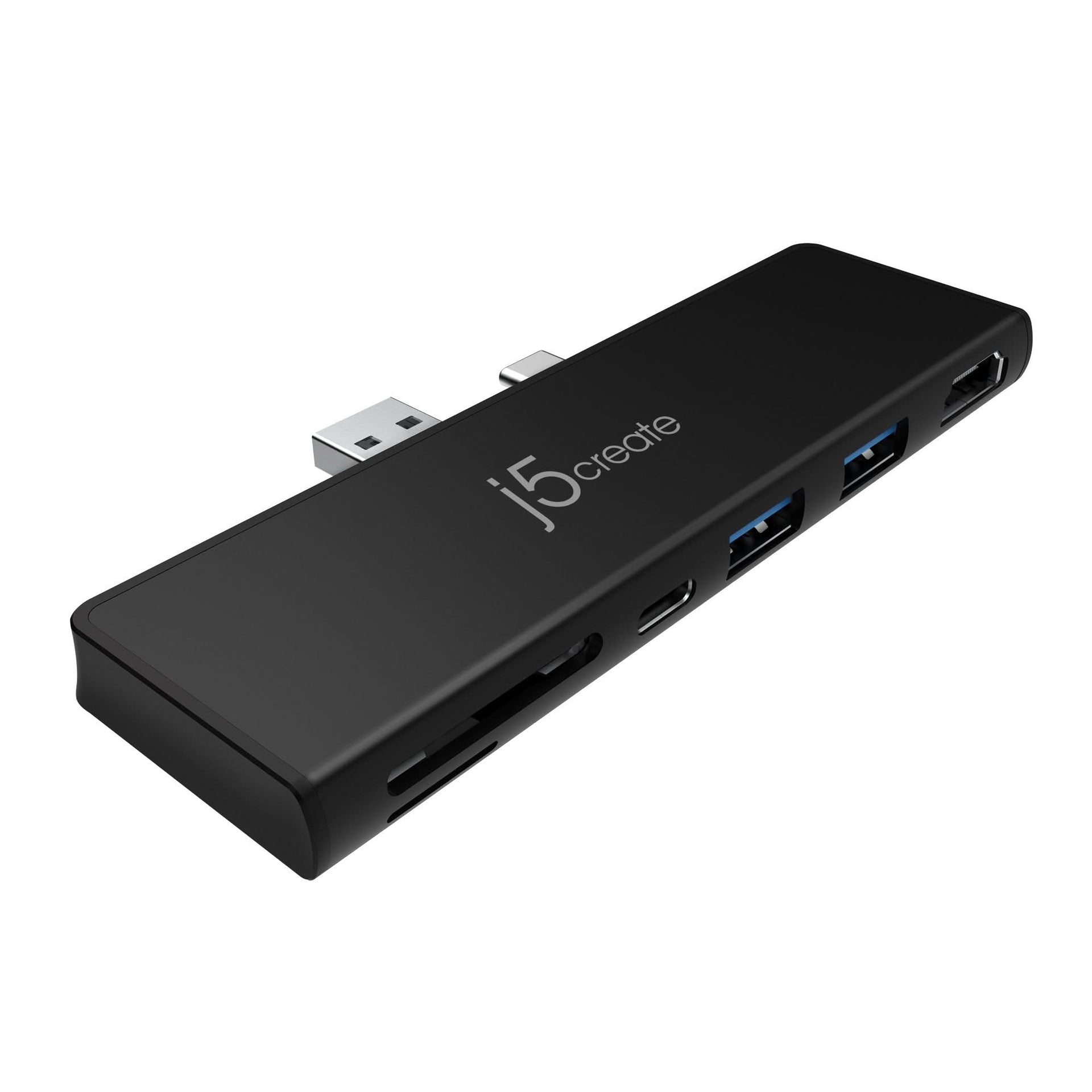

Ports | 2 - USB™ 3.1 Gen 2 Type-A |
1 - USB-C™ 3.1 Gen 2 (PD 3.0 + Data Transfer) | |
1 - microSD™ & SD™ Card Reader/Writer | |
1 - HDMI™ | |
Power Source | Bus-powered or self-powered |
Video Output | 1 - HDMI™ Female |
Warranty | 2-Year Limited |
Performance | |
Audio Channel | 2.1 via HDMI™ |
Compatible Networks | N/A |
Displays Supported | 1 |
Max Data Transfer Rate | 10 Gbps |
Max Display Refresh Rate | 60 Hz |
Max Display Resolution | 3840 x 2160 |
Power | |
Input Current | Up to 3A |
Input Voltage | Up to 20V |
Output Current | Up to 3A |
Output Voltage | Up to 20V |
Power Consumption | ≤ 400 mA |
Power Delivery | Up to 60W via USB-C™ |
Physical Specifications | |
Cable Length | N/A |
Color | Black or Silver |
Enclosure Type | Aluminum |
Operating Humidity | < 85% non-condensing |
Operating Temperature | 30 to 116°F (-1 to 41°C) |
Product Depth | 0.37 in. (9.5 mm) |
Product Height | 4.65 in. (118 mm) |
Product Weight | Silver: 1.57 oz (44.5 g) |
Black: 1.68 oz (47.5 g) | |
Product Width | 1.44 in. (36.5 mm) |
Storage Humidity | < 85% non-condensing |
Storage Temperature | 0 to 155°F (-17 to 68°C) |
Package Contents | |
1 - JCD324 ULTRADRIVEMINIDOCK™ 7-in-1 for Surface™ Pro 7 | |
1 - Quick Installation Guide |
