Description

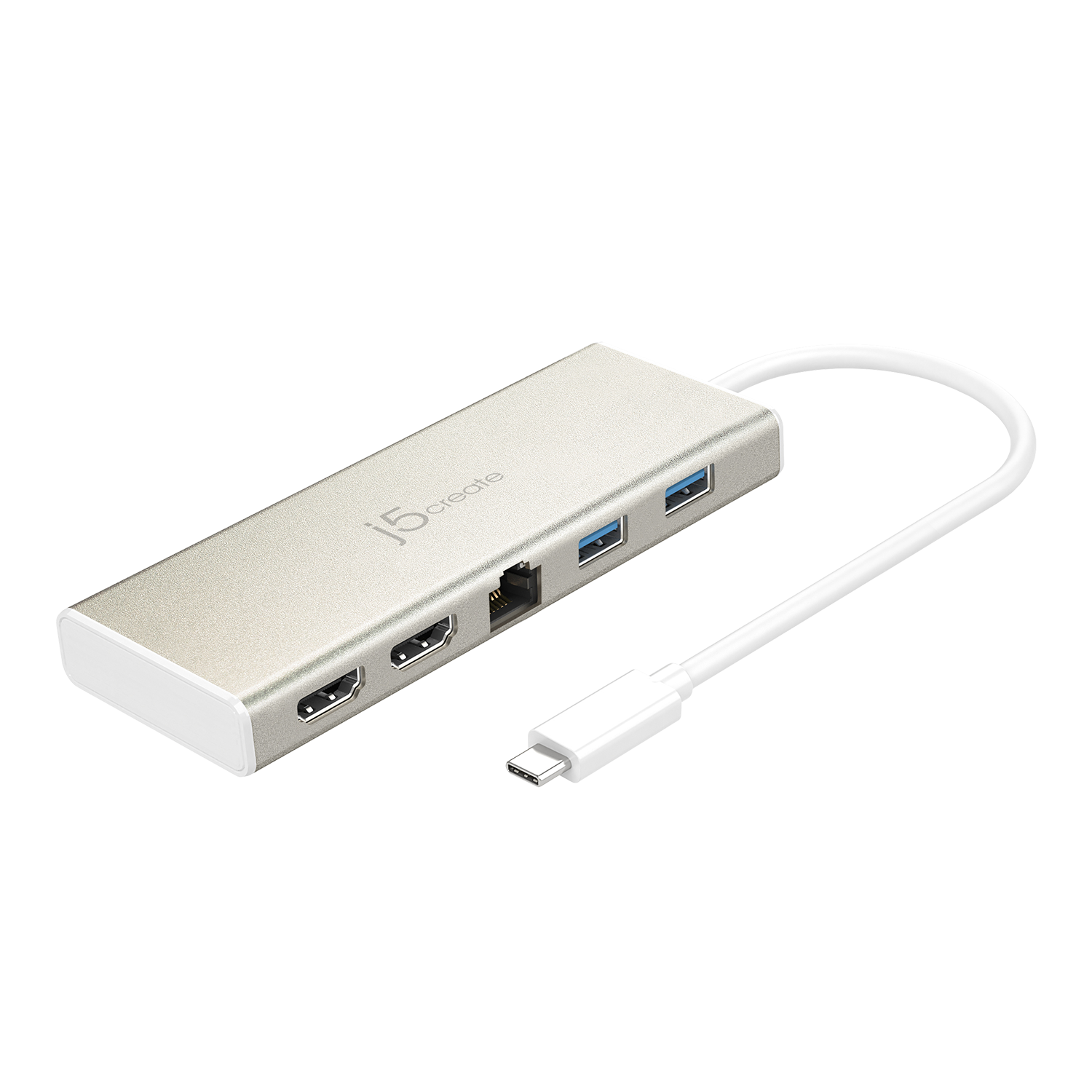

The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.
Features
- • Easily add a 4K or two 2K displays via HDMI™
- • USB-C® power delivery 2.0 provides charging power to the connected devices
- • Connect or charge your USB™ devices with 2 x USB™ ports
- • SuperSpeed USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
- • Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
- • Reliable network connectivity via the Gigabit Ethernet port
-
- System Requirements
- • Windows® 10 or later
macOS® 10.14 or later - • Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0. (USB™ 3.0 is recommended)
Please refer to the manufacturer of your hardware for more information on your device. - • For office applications / Web:
- • CPU: Intel® Core™ i3 Dual Core 2.8 GHz
- • RAM: 2 GB memory or higher
- • For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:
- • CPU: Intel® Core™ i5 Quad Core
- • RAM: 4 GB memory or higher
- • For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:
- • CPU: Intel® Core™ i7 Quad Core
- • RAM: 8 GB memory or higher
Special Notes- • The adapter can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
Hardware
Warranty
2-Year Limited
Host Connector
1 - USB-C™ Male
Video Output
2 - HDMI™ Female
Power Source
Bus-powered or self-powered
Network Interface
Yes
Audio Supported
Yes
Ports 1 - USB-C® Power Delivery 2.0
2 - USB™ Type-A 3.0
1 - RJ45 Gigabit Ethernet
1 - 4K HDMI™
1 - HDMI™Performance
Maximum Display Resolution
Dual Displays:
3840 x 2160 and 2048 x 1152 / 1920 x 1080Single Display:
3840 x 2160Maximum Display Refresh Rate
4K @ 30 Hz
2K / 1080p @ 60 HzMaximum Data Transfer Rate
5 Gbps
Displays Supported
2
Compatible Networks
10/100/1000 Mbps
Audio Channel
HDMI™ 2.1
Power
Power Delivery
Up to 60W via USB-C®
Power Consumption
≤ 450mA
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 3A
Output Voltage
Up to 20V
Physical Specifications
Color
Champagne Metallic
Enclosure Type
Aluminum
Cable Length
7.8 in. (198.12mm)
Product Height
2.1 In. (54 mm)
Product Width 5.1 In. (130 mm)
Product Depth 0.6 In. (15 mm)
Product Weight 4.00 oz (113.5 g)
Storage Temperature 14 to 140°F (-10 to 65°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
32 to 98°F (0 to 37°C)
Operating Humidity
< 85% non-condensing
Package Contents
- • 1 - JCD381 USB-C® Dual HDMI™ Mini Dock
- • 1 - Quick Installation Guide
Special Notes
• Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
- • Windows® 10 or later
-
