Description
Specifications
Dimensions (L x W x H) | 111.5 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
Controller | Marvell AQtion AQC107 |
Number of Ports | 2 x NBASE-T (RJ45) |
Connector | NBASE-T (RJ45) |
PCIe and Lanes | PCIe 3.0 x4 |
Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
IEEE Standards | IEEE 802.3an IEEE 802.3bz |

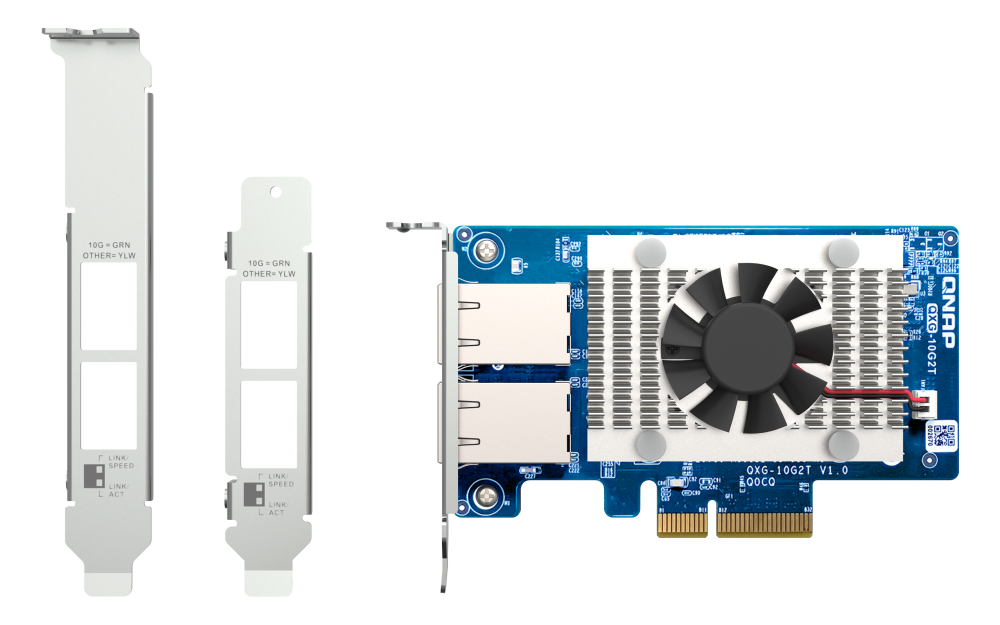

Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
Supported NAS operating systems | At least QTS/QuTS 5.0.1.2430 build 20230614 |
Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
Support Ubuntu Commercial Linux Distribution | Linux 3.10 and higher |
Support RedHat | Linux 3.10 and higher |
Support Windows | Windows 10/11 (32-bit/64-bit) |
Support Debian | Linux 3.10 and higher |
Port and Cable | RJ-45; over CAT-6 class cable |
Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
Standard Warranty | 3 years |
