| Feature | Description |
|---|---|
| Unique Feature | Superb Productivity |
| PCIe Gen5 | Graphics, M.2 |
| Memory | Dual Channel DDR5 |
| USB4 Type-C Ports | 40 Gb/s |

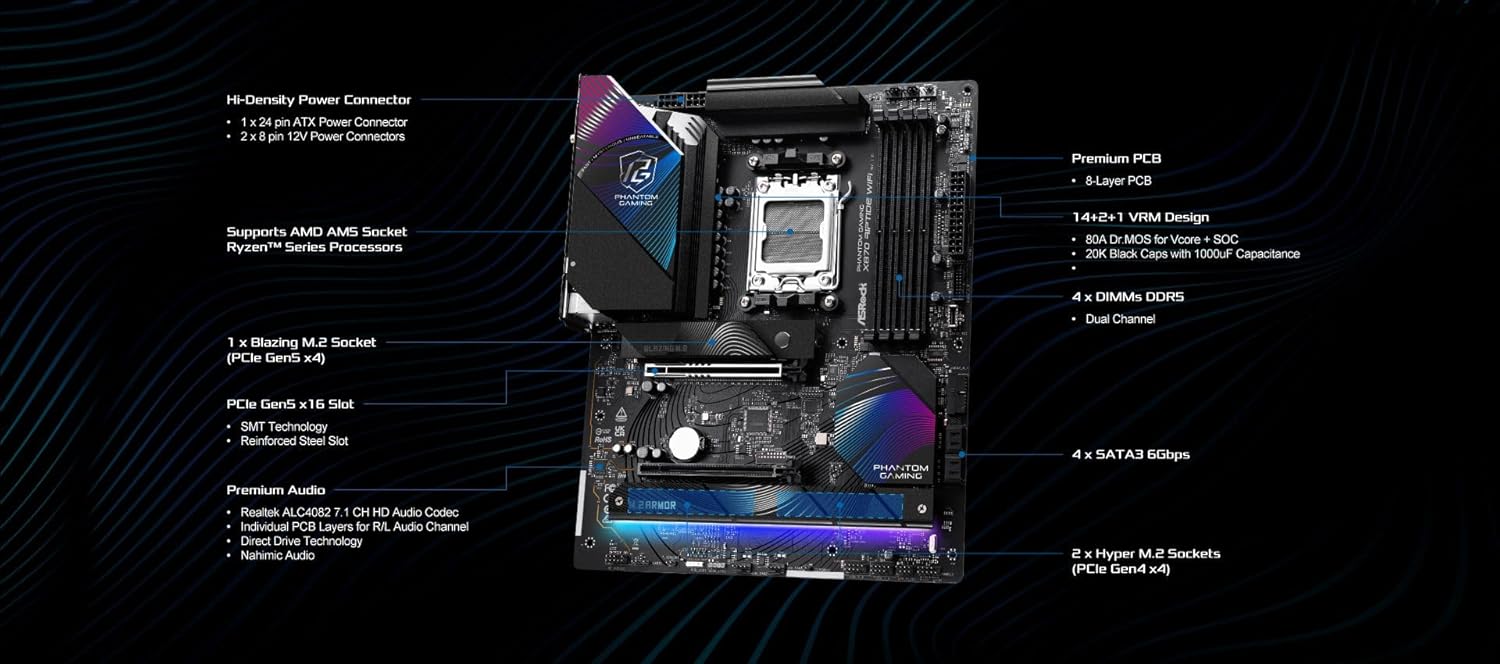

| Rock-Solid Durability | 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor |
| I/O Shield | Flexible Integrated I/O Shield |
| Capacitors | 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Ultrafast Gaming | Killer 2.5G LAN, 802.11be Wi-Fi 7 Module |
| Lightning Gaming Ports | ASRock Lightning Gaming Ports |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870 |
| Memory Technology | Dual Channel DDR5 Memory Technology |
| DIMM Slots | 4 x DDR5 DIMM Slots |
| Memory Support | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) |
| Max Memory Capacity | 256GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1, 2 x USB4 |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082), Individual PCB Layers for R/L Audio Channel, Nahimic Audio |
| LAN | 2.5 Gigabit LAN (10/100/1000/2500 Mb/s), Killer E3100G, Supports Killer LAN Software |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 Module, supports multiple bands (2.4GHz/5GHz/6GHz) |
| Bluetooth | Supports Bluetooth 5.4 and MU-MIMO |
| Slots | 1 x PCIe 5.0 x16 Slot (PCIE1), 1 x PCIe 4.0 x16 Slot (PCIE2), 1 x Vertical M.2 Socket (Key E) |

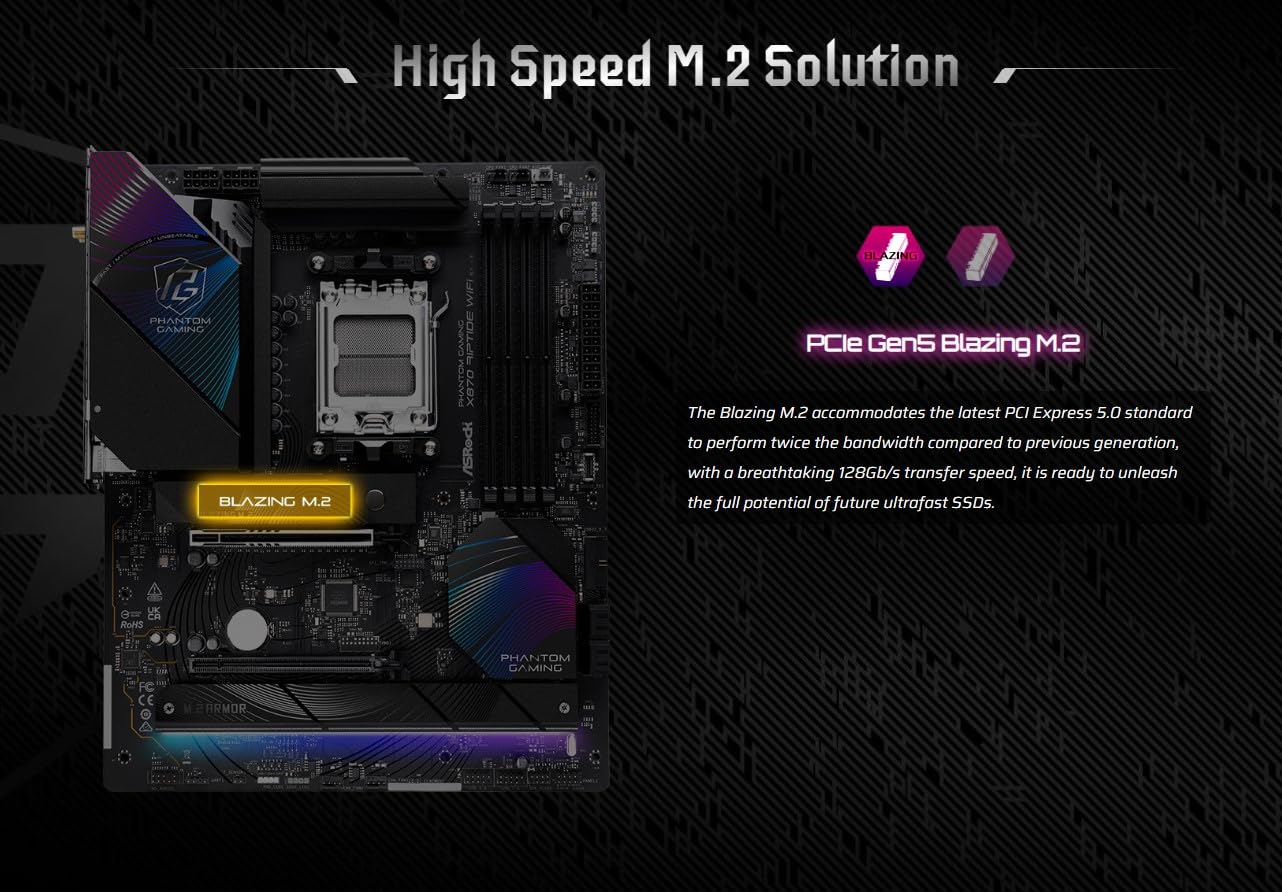

| Storage | 1 x Blazing M.2 Socket (M2_1, Key M) for PCIe Gen5x4, 1 x Hyper M.2 Socket (M2_2, Key M) for PCIe Gen4x4, 1 x Hyper M.2 Socket (M2_3, Key M) for PCIe Gen4x4, 4 x SATA3 6.0 Gb/s Connectors |
| RAID Support | Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB Ports | 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-A (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 Ports |

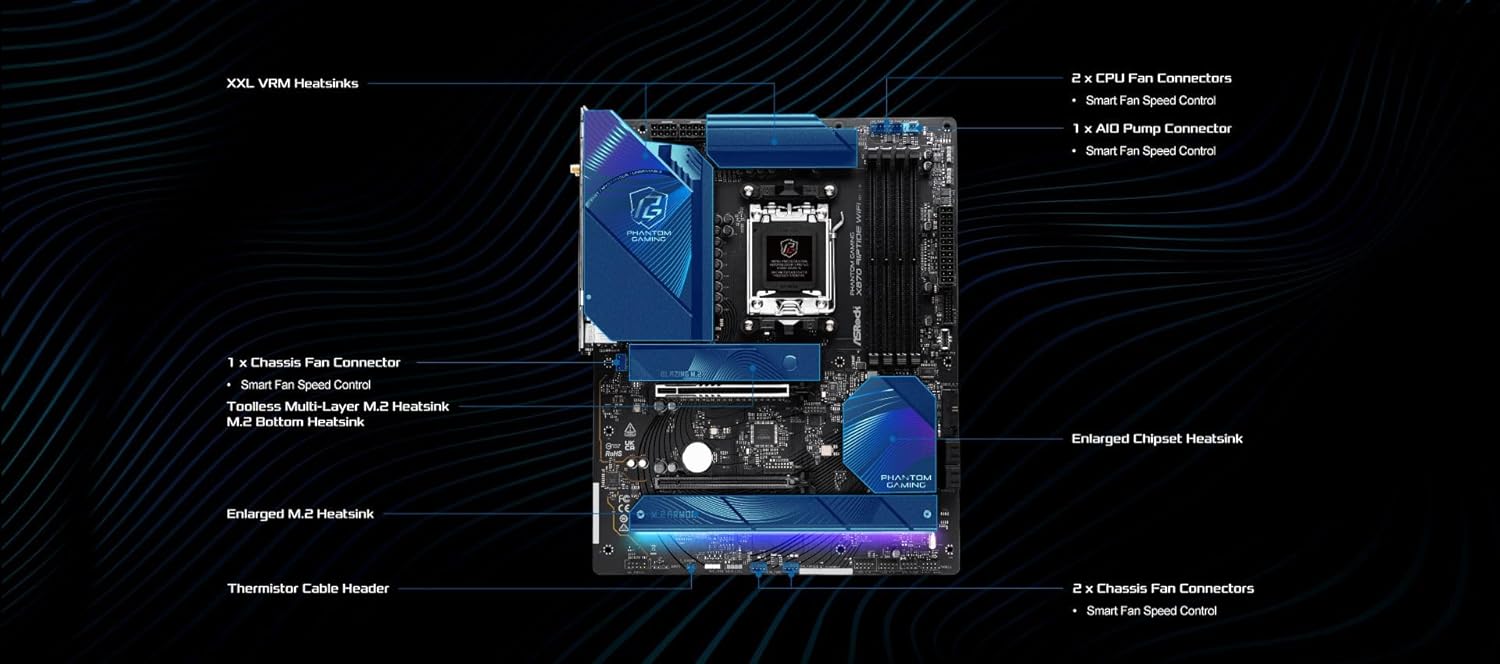

| Connectors | 1 x Thermistor Cable Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connectors, 3 x Chassis Fan Connectors, 1 x AIO Pump Fan Connector, 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 1 x Front Panel Audio Connector |

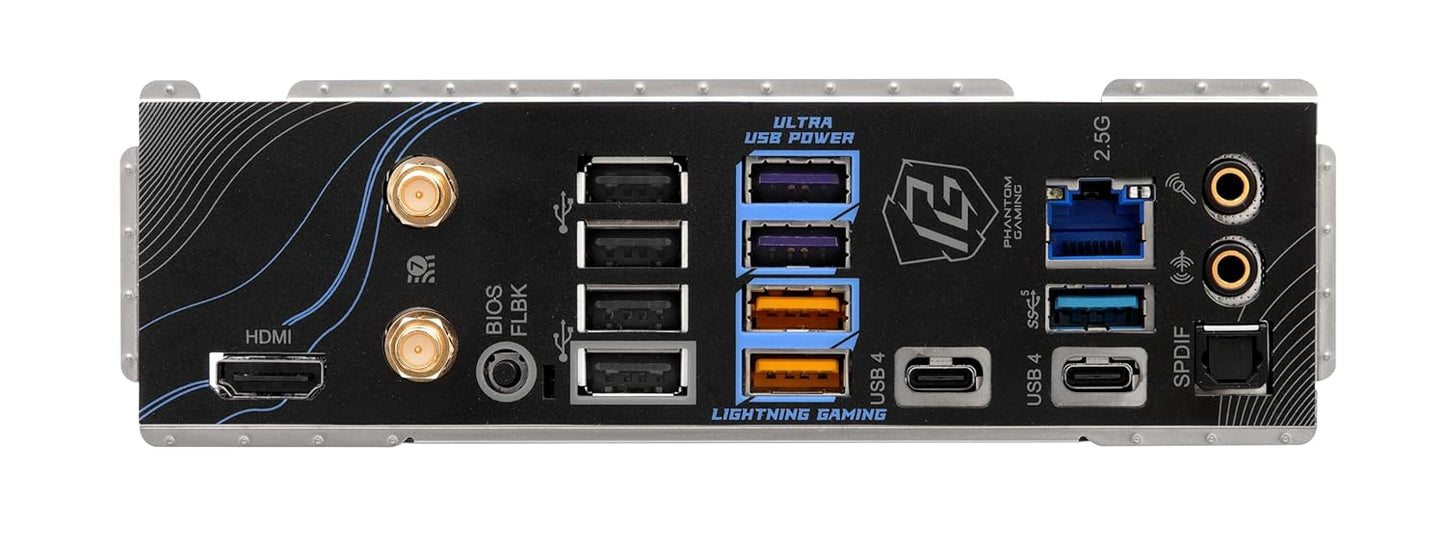

| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 3.2 Gen2 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, 1 x Line Out Jack, 1 x Microphone Input Jack |
| Software | ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, ASRock Polychrome SYNC |
| UEFI | ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash |

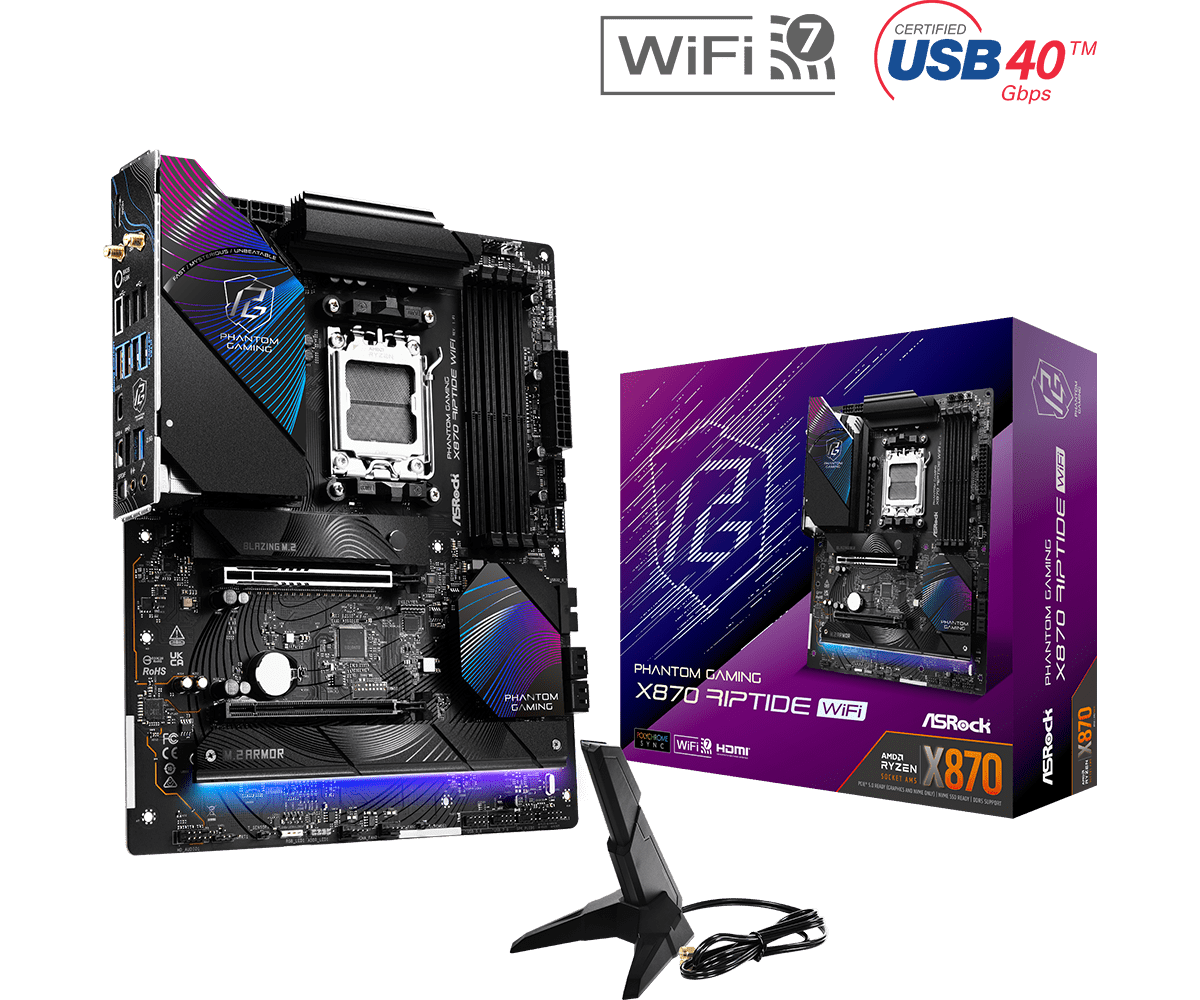

| Accessories | 2 x SATA Data Cables, 1 x ASRock WiFi 2.4/5/6 GHz Antenna, 1 x ARGB Splitter Cable, 1 x Thermistor Cable |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
| PCB Layers | 8 Layer PCB |
| OS Support | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
