Description

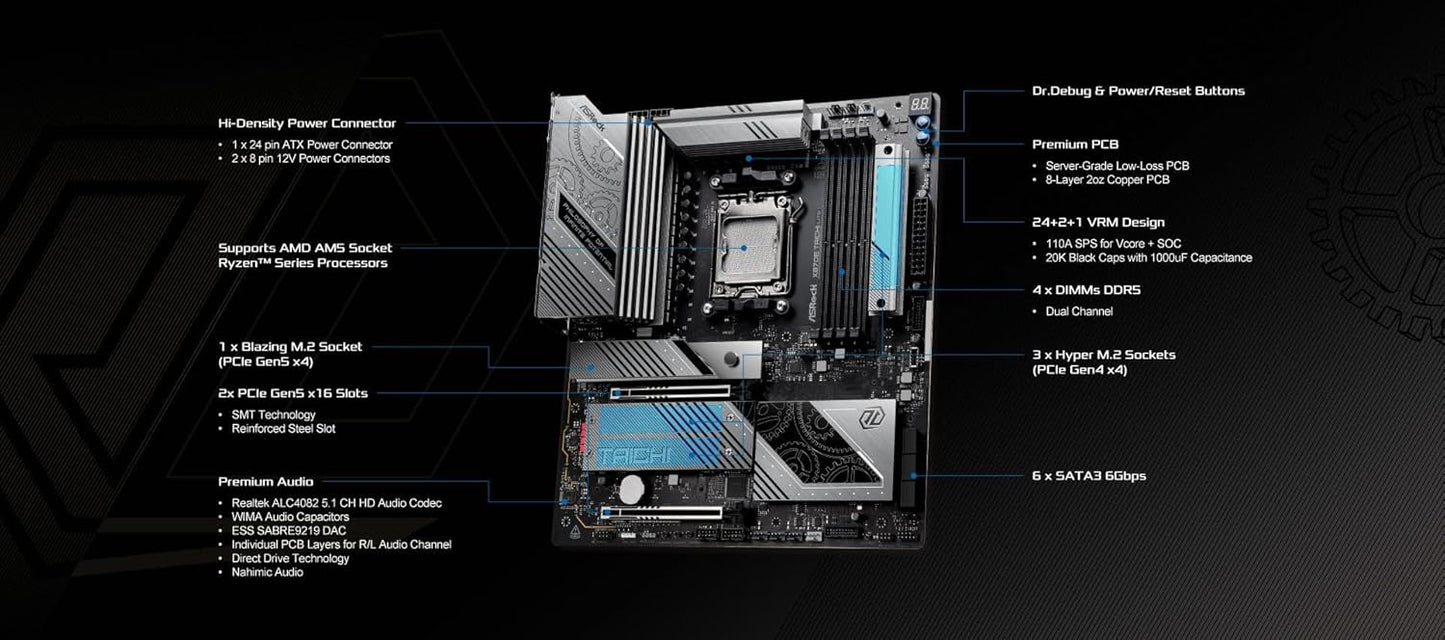

Features:
X870E Taichi Lite
- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 24+2+1 Phase Power Design, 110A SPS
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC) - 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 6 SATA3
- 2 USB4 Type-C (Rear),1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design.
PHILOSOPHY OF INFINITE POTENTIAL
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.
Exclusive 20K Cap with 1000uF Capacitance
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Wi-Fi 7
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Specifications:
| Model Name | X870E Taichi Lite |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors - Supports ASRock Hyper BCLK Engine |
| Chipset | - AMD X870E |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Audio | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Rear Outputs) - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
| LAN | - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 |
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
| Slots | CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 6 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 3 x USB 3.2 Gen2 Type-A (Rear) - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | - 3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |

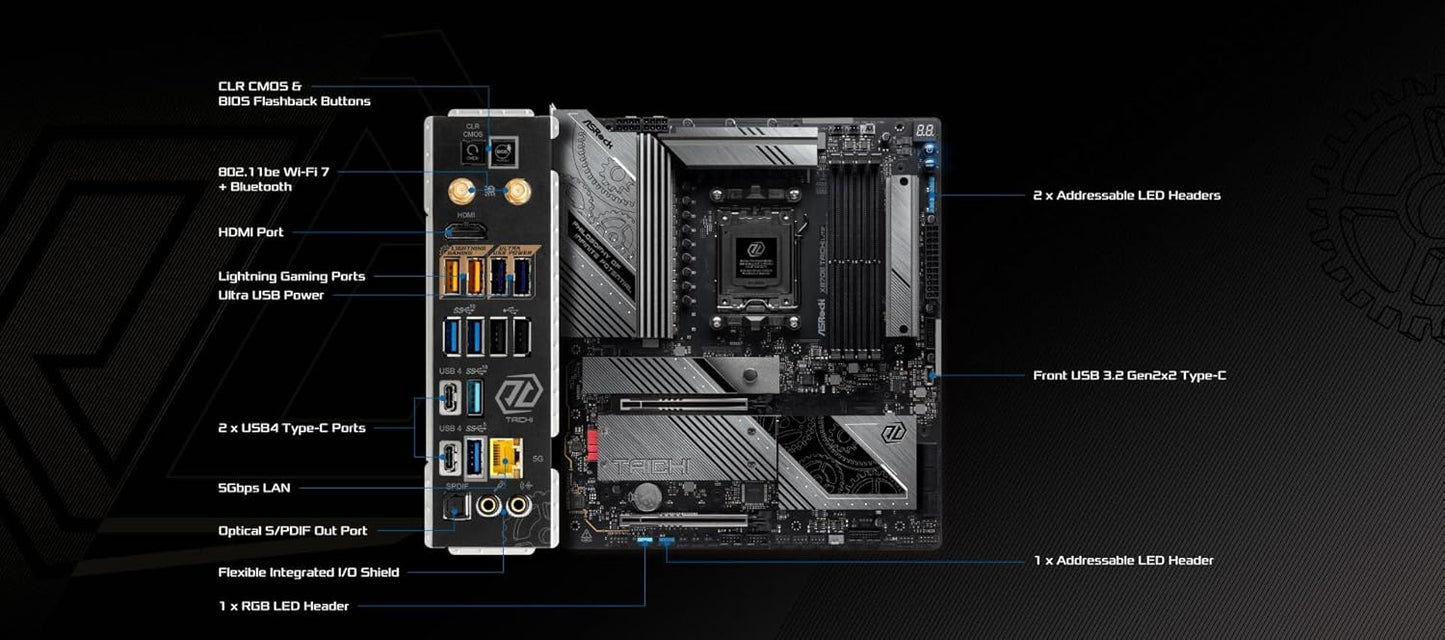

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |

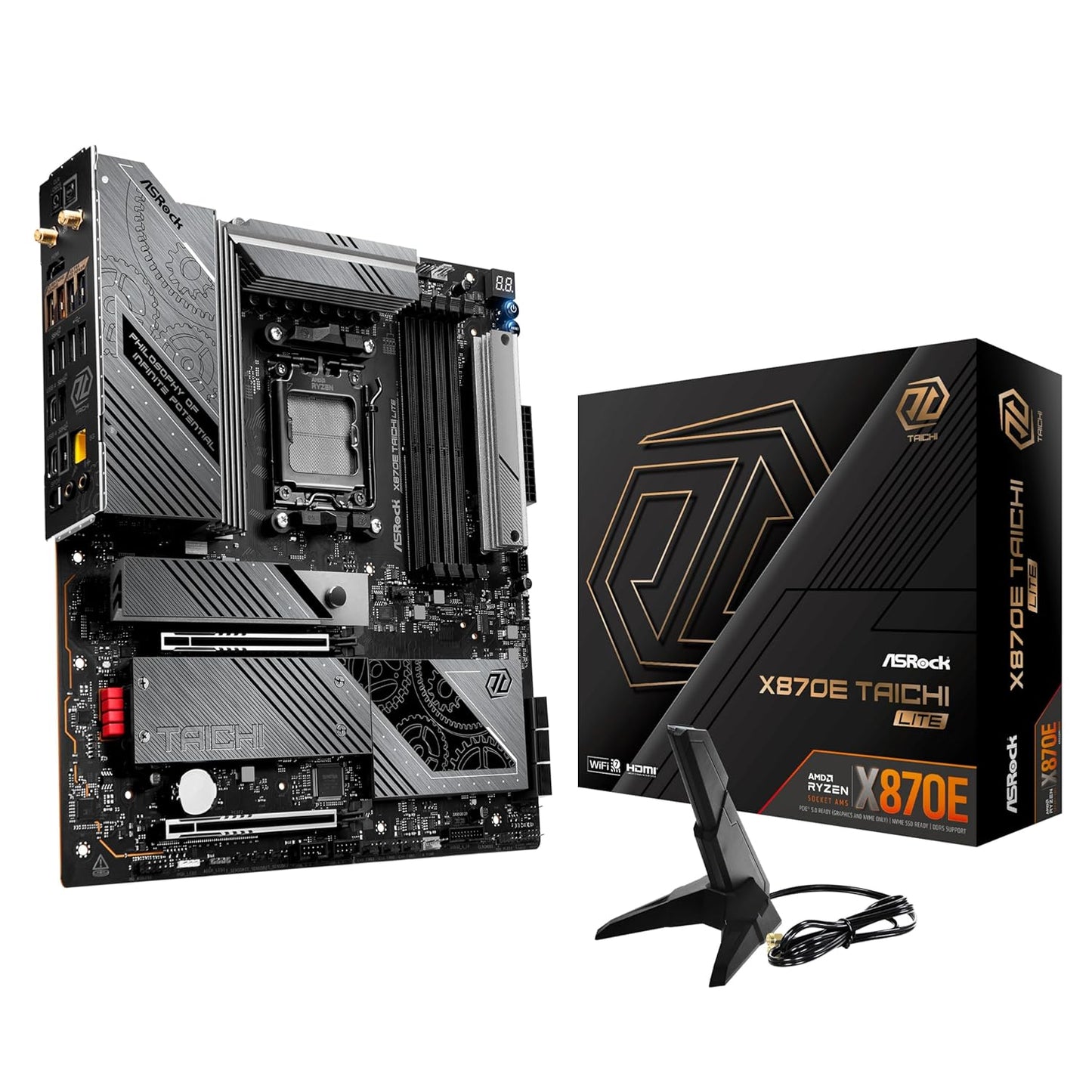

| Accessories | - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 3 x Thermistor Cables |

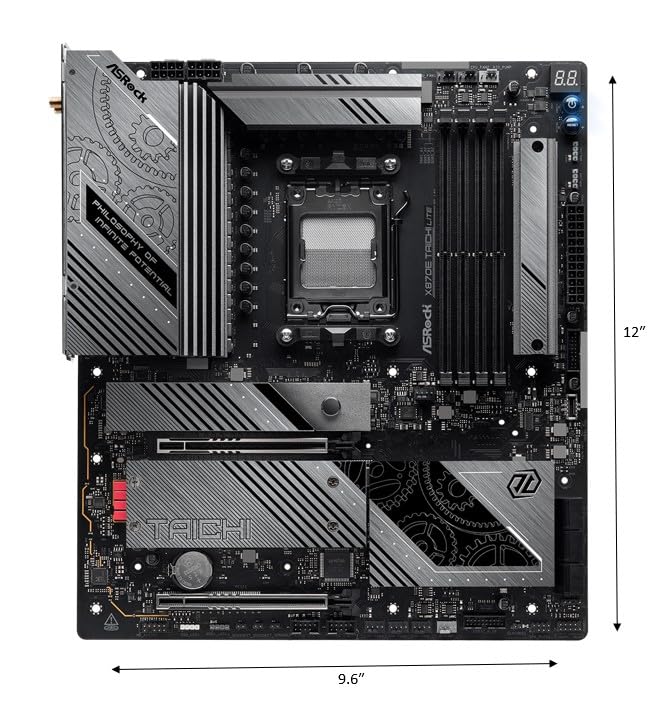

| Form Factor | - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm - 8 Layer PCB - 2oz Copper PCB |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
