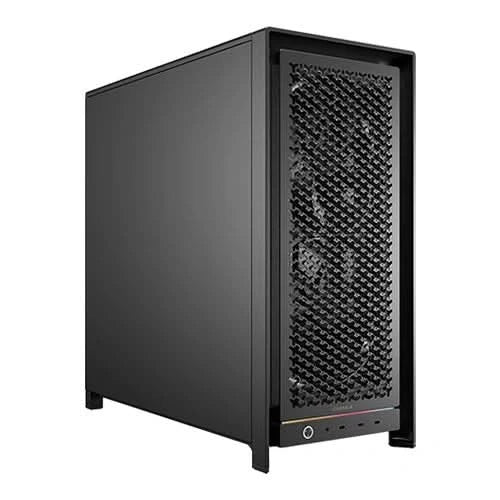

Corsair Frame 5000D RS Workstation E-ATX Mid Tower Case

Features:

• Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB
• Case Height: 542mm
• Case Length: 556mm
• Case Width: 250mm
• Compatible Liquid Coolers: H60,H100,H115,H150,NAUTILUS,TITAN

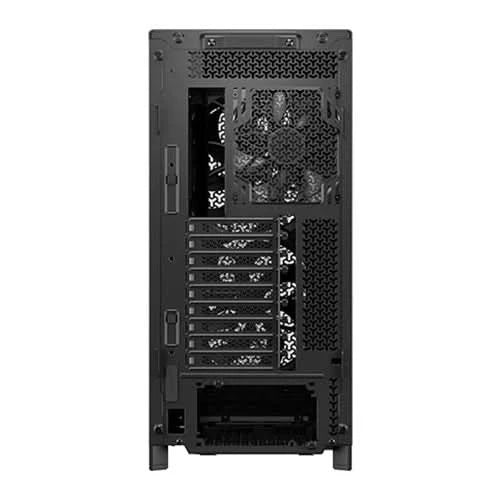

• Case Expansion Slots: 8 Horizontal or 3 Vertical
• Case Power Supply: ATX
• Front IO Motherboard Connections: 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
• Reverse Connector Motherboard Support: Yes
• Included Fans: RS Series
• Dust Filtration: Yes
• Cable Routing Space: 42mm
• RapidRoute Included: Yes
• Left Side Panel: Tempered Glass
• Right Side Panel: Steel
• Vertical Mount Support: Supported (Riser Card Sold Separately)

Corsair FRAME 5000D WORKSTATION Modular Mid-Tower PC Case

• A roomy chassis with 9 PCI slots for multi-GPU builds
• Steel side panels feature sound dampening material
• GPU immobilization and anti-sag options
• Support for SSI-EEB/CEB, reverse-connector motherboards
• Dual 200mm intake fans for quiet, powerful airflow
• Optional UV printing and custom hardware configurations available

FILL IT UP WITH THE LATEST HARDWARE

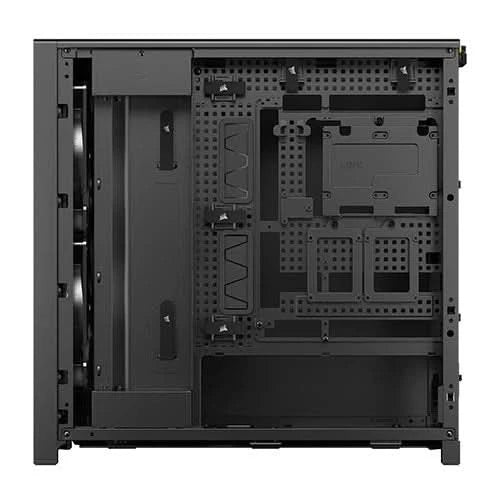

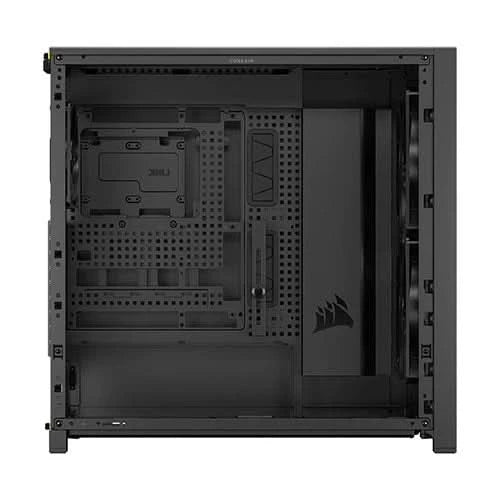

The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.

BUILT FOR DEMANDING WORKLOADS

The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.

BUILT TO ELIMINATE NOISE

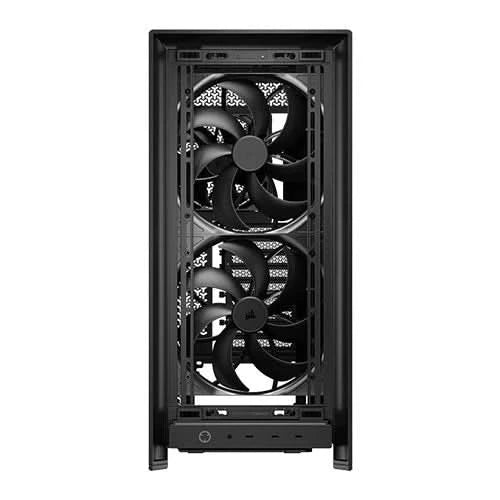

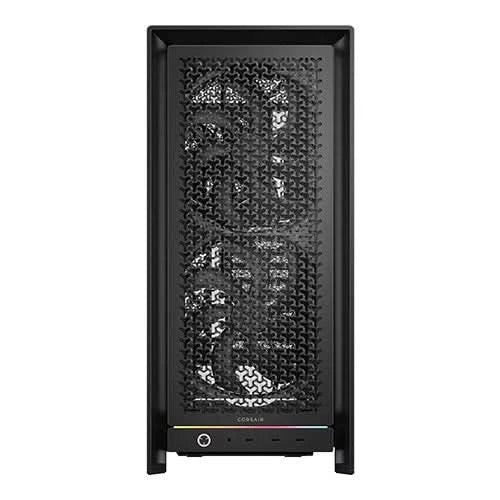

The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.

PLENTIFUL STORAGE

Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.

WIDE COOLING FLEXIBILITY

Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.

DIMENSIONS

The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.

FAN CAPACITY

Includes 2x 200mm intake fans and 1x 140mm exhaust fan with a total of 9x 120mm or 140mm fan mounts for flexible cooling options on every surface of the interior.

RADIATOR CAPACITY

Mount a 360mm or 280mm radiator in the front and a 360mm or 480mm radiator on top for enhanced airflow.

MODULAR AND CUSTOMIZABLE

The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.

Radiator Support

• Top: 420mm, 360mm, 280mm, 240mm
• Front: 360mm, 280mm, 240mm
• Bottom: None
• Side: 360mm, 280mm, 240mm
• Rear: 140mm, 120mm

Fan Support

Top: 3x 120mm, 3x 140mm
Front: 3x 120mm, 3x 140mm, 2x 200mm
Bottom: 4x 120mm
Side: 3x 120mm, 3x 140mm
Rear: 1x 140mm, 1x 120mm
