Description
Overview :

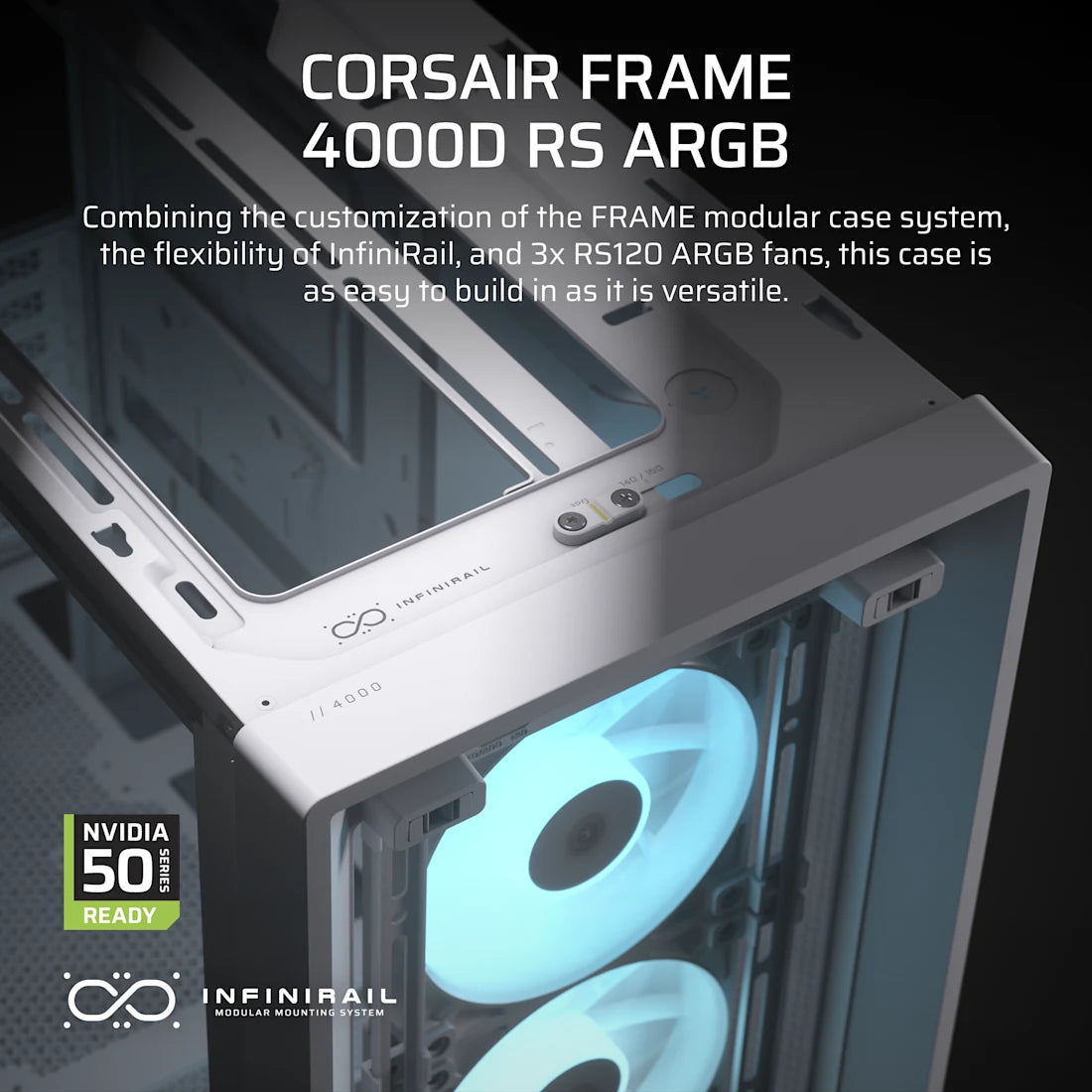

Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS ARGB, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS ARGB PWM Fans with daisy-chainable 4-pin connectors, eight LEDs per fan, and +5V ARGB motherboard control. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
Main Features :

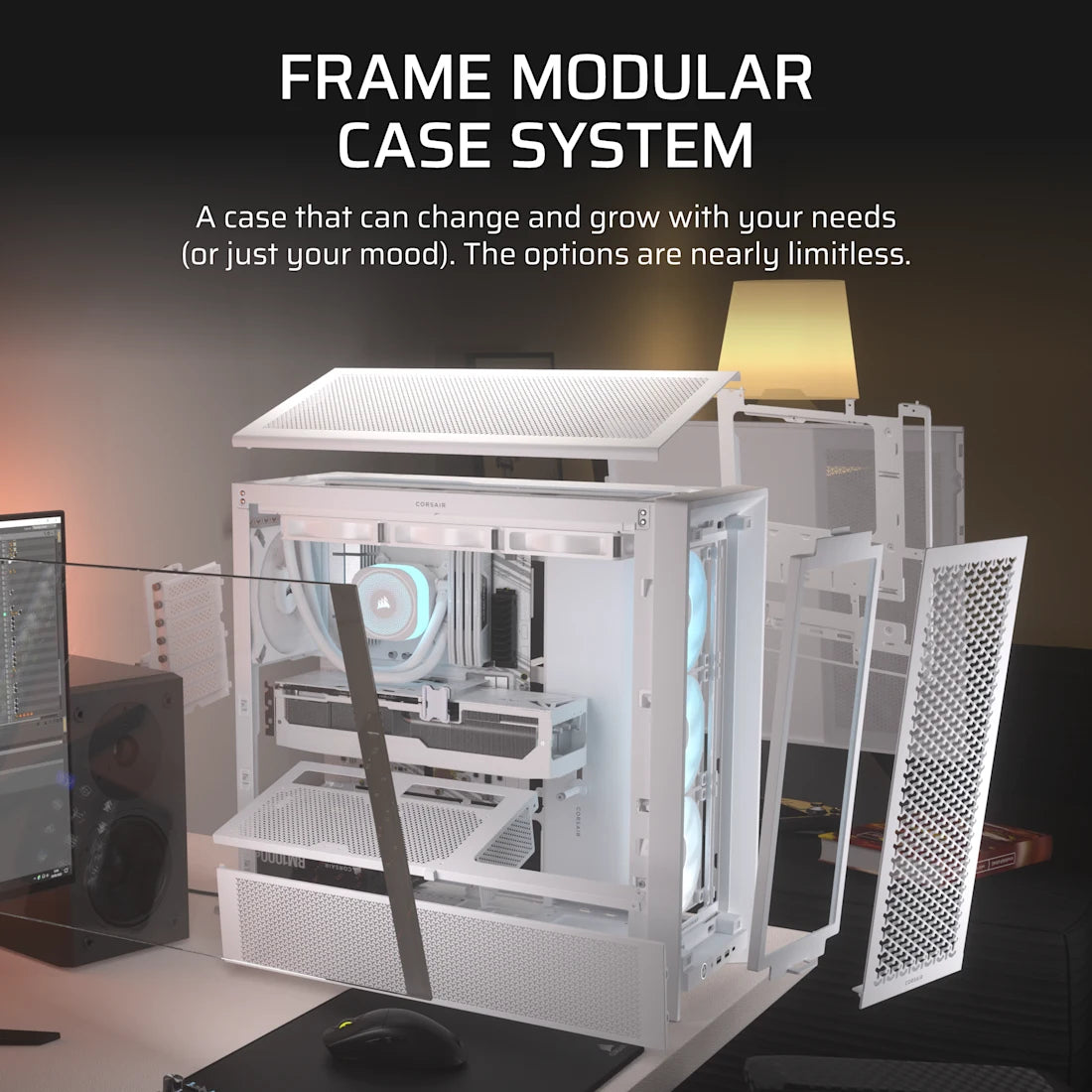

- FRAME Modular Case System – The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS ARGB PWM Fans – High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads. Each Fan has eight LEDs and easily controllable with your motherboard’s +5V ARGB connector.
- CORSAIR InfiniRail Fan Mounting System – This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
- Clean Lines or Turbo Cooled – The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
- 3D Y-Pattern Airflow Panel – Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

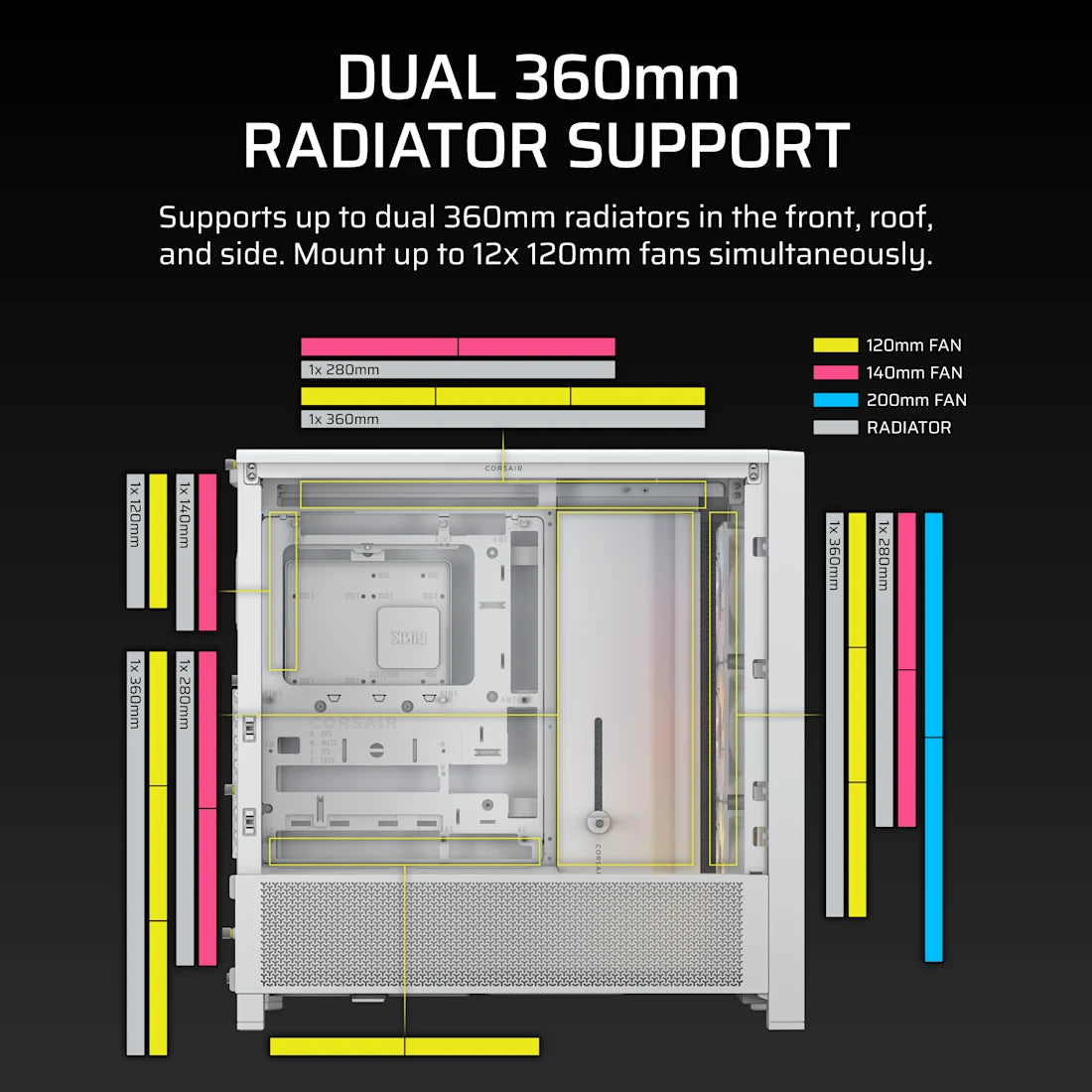

- Dual 360mm Radiator Support – Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.
- Designed With Reverse Connection Motherboards in Mind – ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- Versatile Connectivity – Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives – Included drive trays for dual 3.5″ hard drives or four 2.5″ SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally) – Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.
- Just a Bit Bigger – The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
- Built for iCUE LINK – Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Specification :
| User Controls | |
| User Controls | Power |
| Reset | |
| Storage | |
| Internal Expansion Bays | 4 x 2.5″ |
| 2 x 3.5″ | |
| Expansion | |
| Expansion Slots | 7 x Full Height |
| Interfaces/Ports | |
| USB Ports | 1 x USB-C 3.1 |
| 2 x USB 3.0 | |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
| Electrical | |
| Cooling System | Front: Supports 2 x 200mm, 2 x 140mm or 3 x 120mm fans (3 x 120mm ARGB fans included) |
| Top: Supports 2 x 140mm or 3 x 120mm fans | |
| Side: Supports 2 x 140mm or 3 x 120mm fans | |
| PSU Shroud: Supports 2 x 120mm fans | |
| Rear: Supports 1 x 140mm or 120mm fan | |
| Power Supply | ATX Power Supply supported |
| Warranty | |
| Warranty | 2 Years |
| Physical | |
| Form Factor | Mid Tower Case |
| Case Colour | White |
| Material | Steel |
| Tempered Glass | |
| Motherboard Compatibility | E-ATX (up to 277mm) |
| ATX | |
| mATX | |
| Mini-ITX | |
| In The Box | Case |
| Accessory Box | |
| Width | 239 mm |
| Depth | 487 mm |
| Height | 486 mm |
| Weight | 8.2 kg |
| Key Features | |
| Max Motherboard Width | 277 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | White |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | ARGB |
| Max 3.5″ Drives | 2 |
| Max 2.5″ Drives | 4 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| Cooler Height | 170 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 370 mm |
| PSU Depth | 180 mm |
| Number of Fans | 3 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
| Maximum Motherboard Size Supported | E-ATX |
| RGB Software Type | None |
| Total 2.5″ + 3.5″ drive bays | 6 |
| Power Requirement (auto) | 9 W |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | Yes |
| Item Details | |
| Manufacturer | Corsair |
| Manufacturer Code | CC-9011296-WW |
