Description
About the item

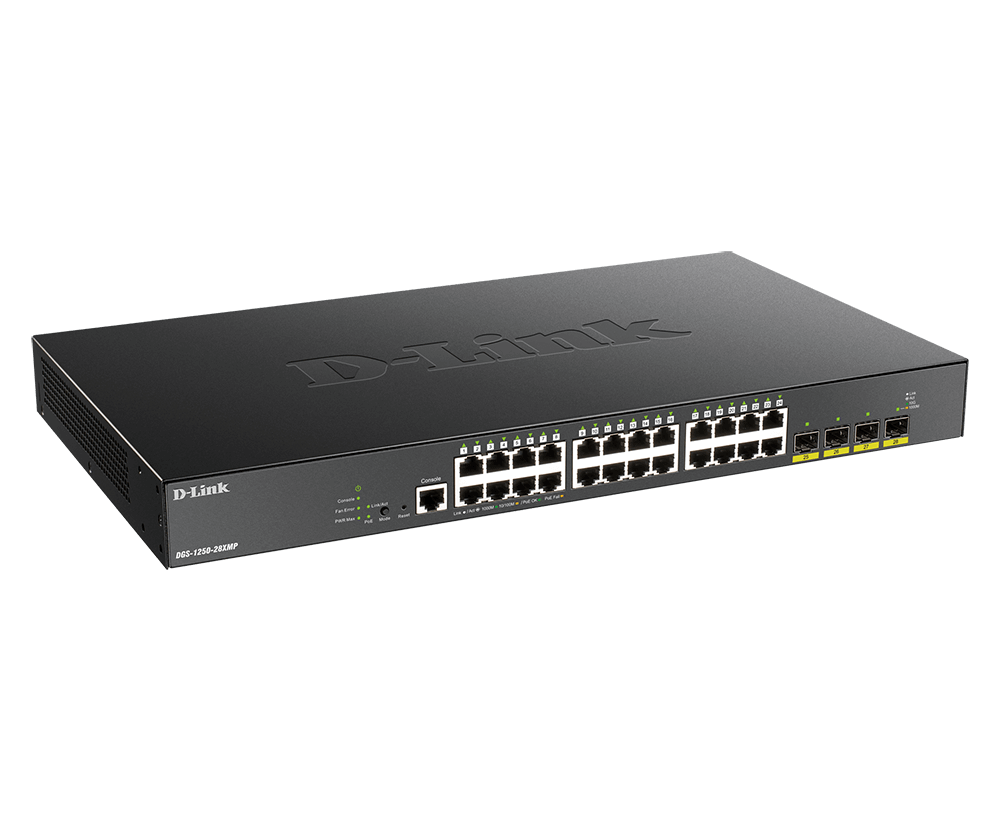

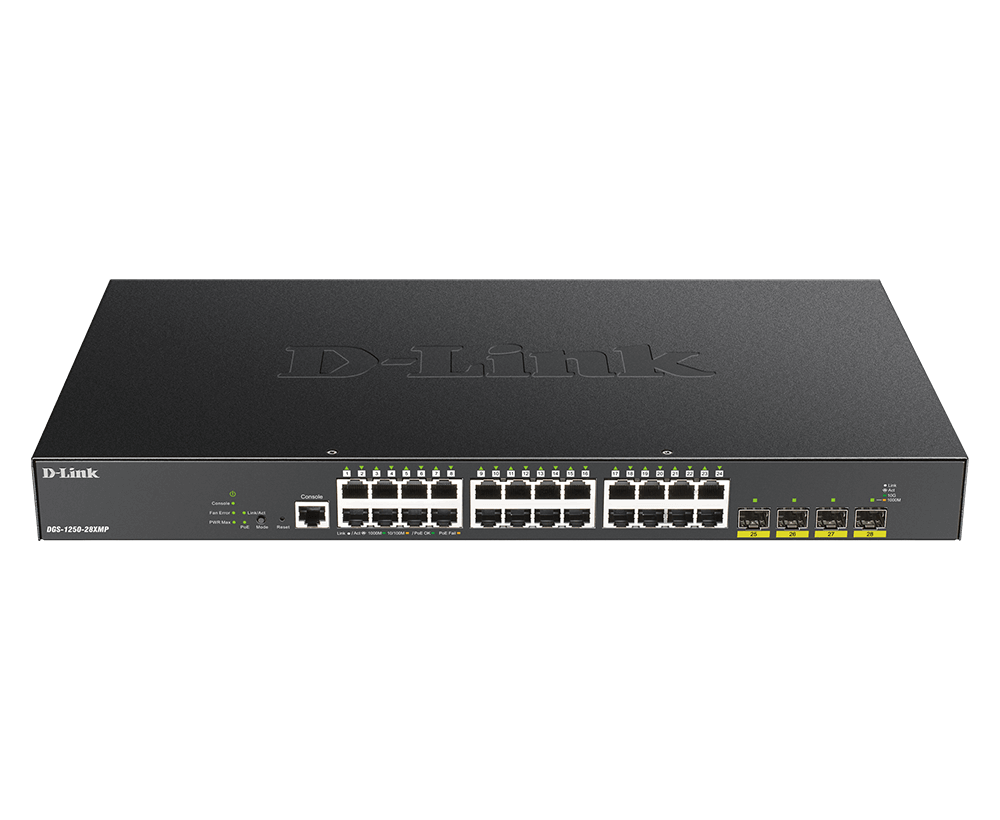

- 24 x 10/100/1000BASE-T PoE ports
- 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement
- Lite L3 Static Routing for increased network efficiency
- Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network
- 370W PoE Power Budget (802.3af/at) to allow more power for connected devices
- Dual Image & Configuration for reduced downtime
- Supports STP/RSTP/MSTP to maintain the quality of network
- Full CLI for for easy management
- QoS Enablement for performance improvement of critical network traffic
- 11 Web Languages for management flexiblity
Specifications
CPU Speed | 800MHz |
---|---|
Dimensions | 440mm x 250mm x 44mm |
DRAM Size | DDR3 2G |
FAN | Smart Fan |
Flash Memory Size | 64MB |
Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
Interfaces | 24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports |
Max. Packet Forwarding Rate | 95.24 Mpps |
Maximum Heat Dissipation | PoE Off: 131.626 BTU/hr (100 V) 133.331 BTU/hr (240 V) PoE ON: 1551.891 BTU/hr (100 V) 1471.415 BTU/hr (240 V) |
Maximum Power Consumption | PoE Off: 38.6 W/100 V 39.1 W/240 V PoE ON: 455.1 W/100 V 431.5 W/240 V |
MTBF | 463,430.16 hours |
Operating Altitude | 1500 m |
Packet Buffer Size | 12 Mbits |
PoE Power Budget | 370 W |
Power Input | 100 to 240 V AC |
Switch Capacity | 128 Gbps |
Temperature | Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
Weight | 3.46 kg |
