Features

Specifications

Wireless	Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
	Frequency	2.4 - 2.4835GHz
	Signal Rate	11n: Up to 300Mbps (Dynamic)
		11g: Up to 54Mbps (Dynamic)
		11b: Up to 11Mbps (Dynamic)
	Reception Sensitivity	270M: -70dBm@10% PER
		130M: -74dBm@10% PER
		108M: -77dBm@10% PER
		54M: -76dBm@10% PER
		11M: -90dBm@8% PER
		6M: -92dBm@10% PER
		1M: -97dBm@8% PER
	Transmission Power	<20dBm
	Wireless Security	WPA-PSK / WPA2-PSK
	Wireless Functions	WDS bridge
Software	WAN Type	Dynamic IP/Static IP/PPPoE/L2TP/PPTP
	Management	Parental Control
		Access control
		Local management
		Remote management
	DHCP	Server
	Port Forwarding	Virtual server, UPnP, DMZ
	Dynamic DNS	DynDNS?NO-IP
	Firewall Security	IP and MAC address binding
	Protocols	IPv4, IPv6
	Guest Network	2.4GHz guest network
Hardware	Dimensions (W X D X H)	114x94x26 mm
	Interfaces	2 10/100Mbps LAN ports
		1 10/100Mbps WAN port
	Button	RESET
	External Power Supply	5VDC/0.6A
	Antenna Type	2 x 5dBi fixed omni directional antennas
Others	Certifications	CE, ROHS

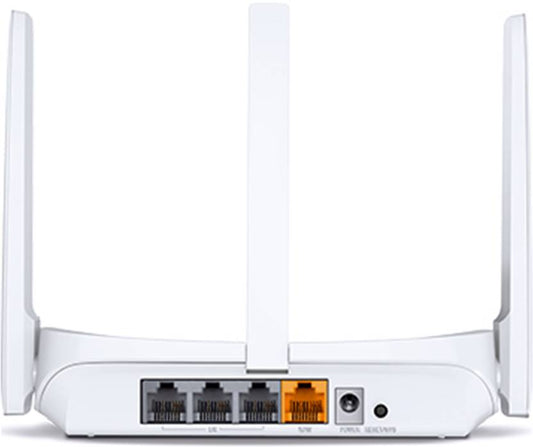

	Package Contents	300Mbps Wireless N Router
		MW301R
		Power adapter
		Quick Installation Guide
		Ethernet cable
	Environment	Operating temperature: 0?C ~ 40?C (32?F ~ 104?F)
		Storage temperature: -40?C ~ 70?C (-40?F ~ 158?F)
		Operating humidity: 10% ~ 90%, non-condensing
		Storage humidity: 5% ~ 90%, non-condensing
