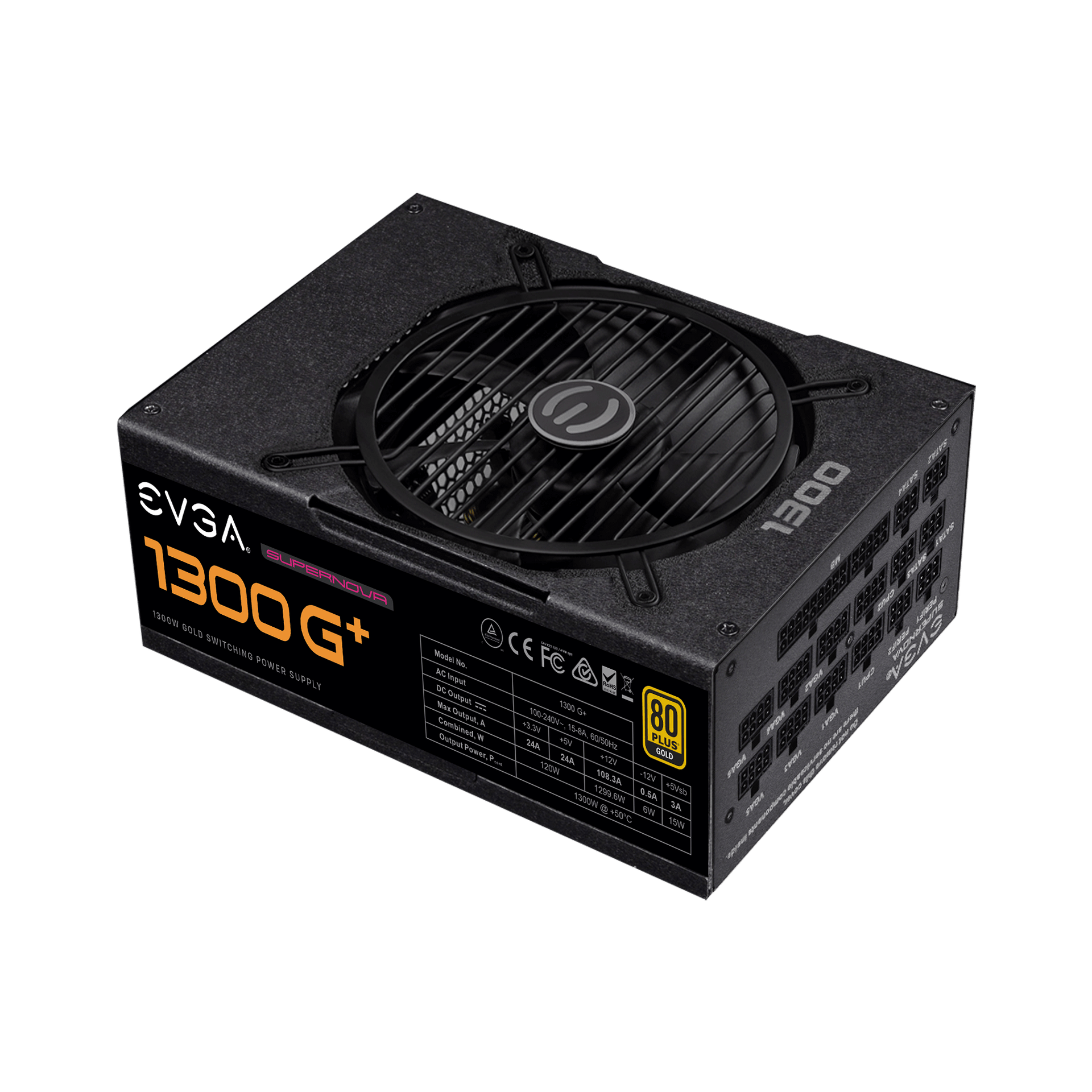

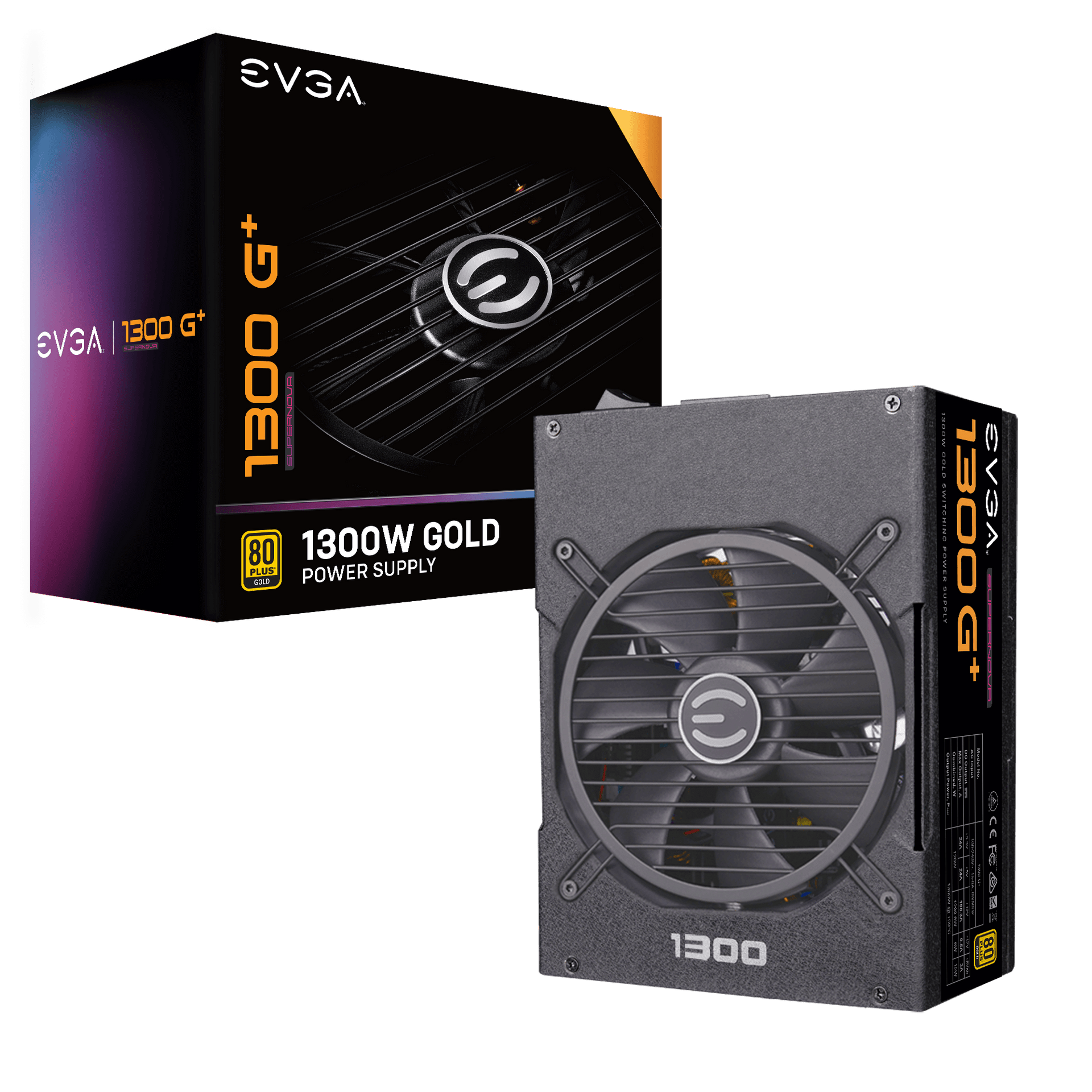

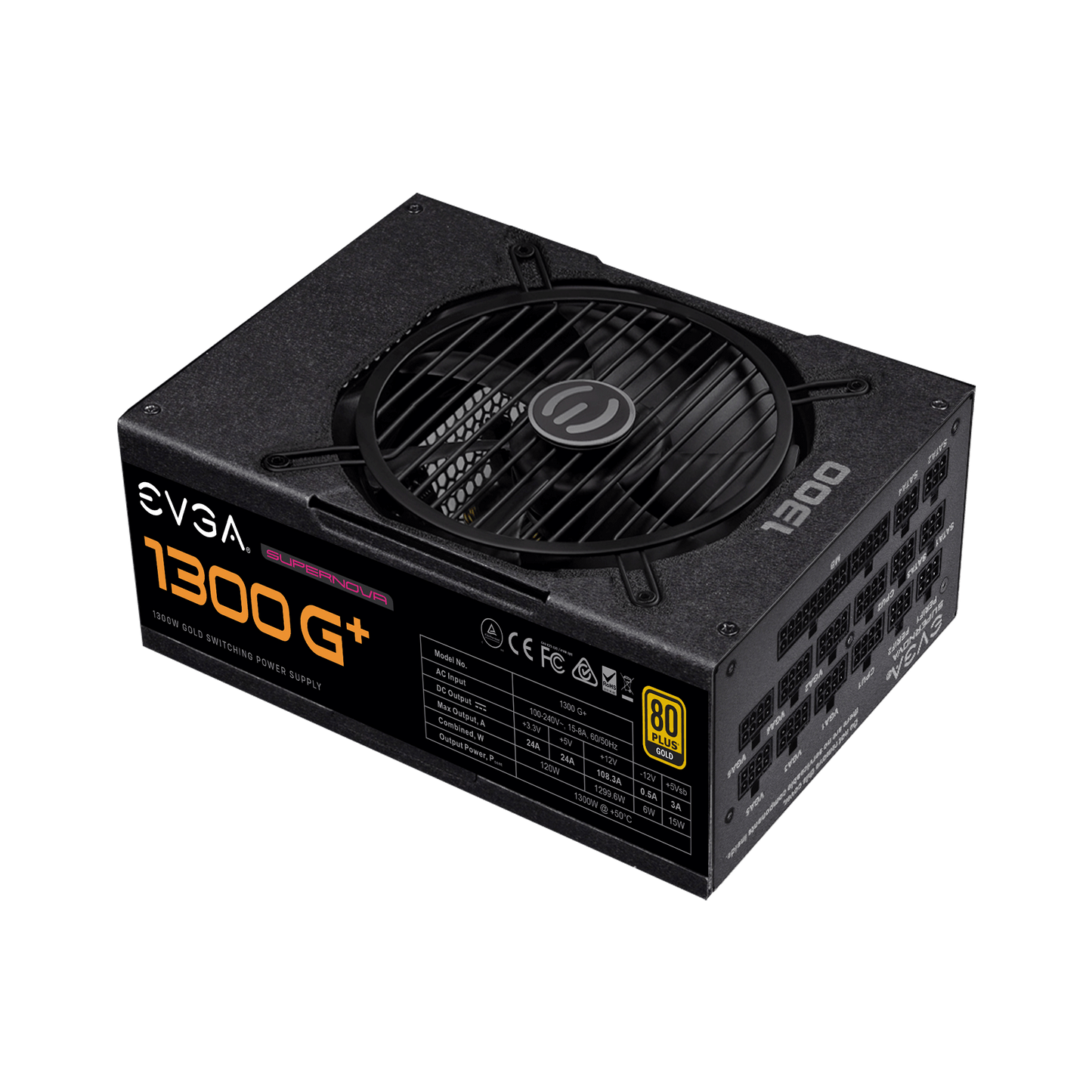

EVGA 1300 Watt 80 Plus GOLD Fully Modular Smps

Features

• Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

• 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

• Fully Modular to reduce clutter and improve airflow

• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

• 100% Japanese Capacitors ensure long-term reliability

• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

• DC-DC Converter improves 3.3V/5V stability

• 135mm Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan



  Specifications

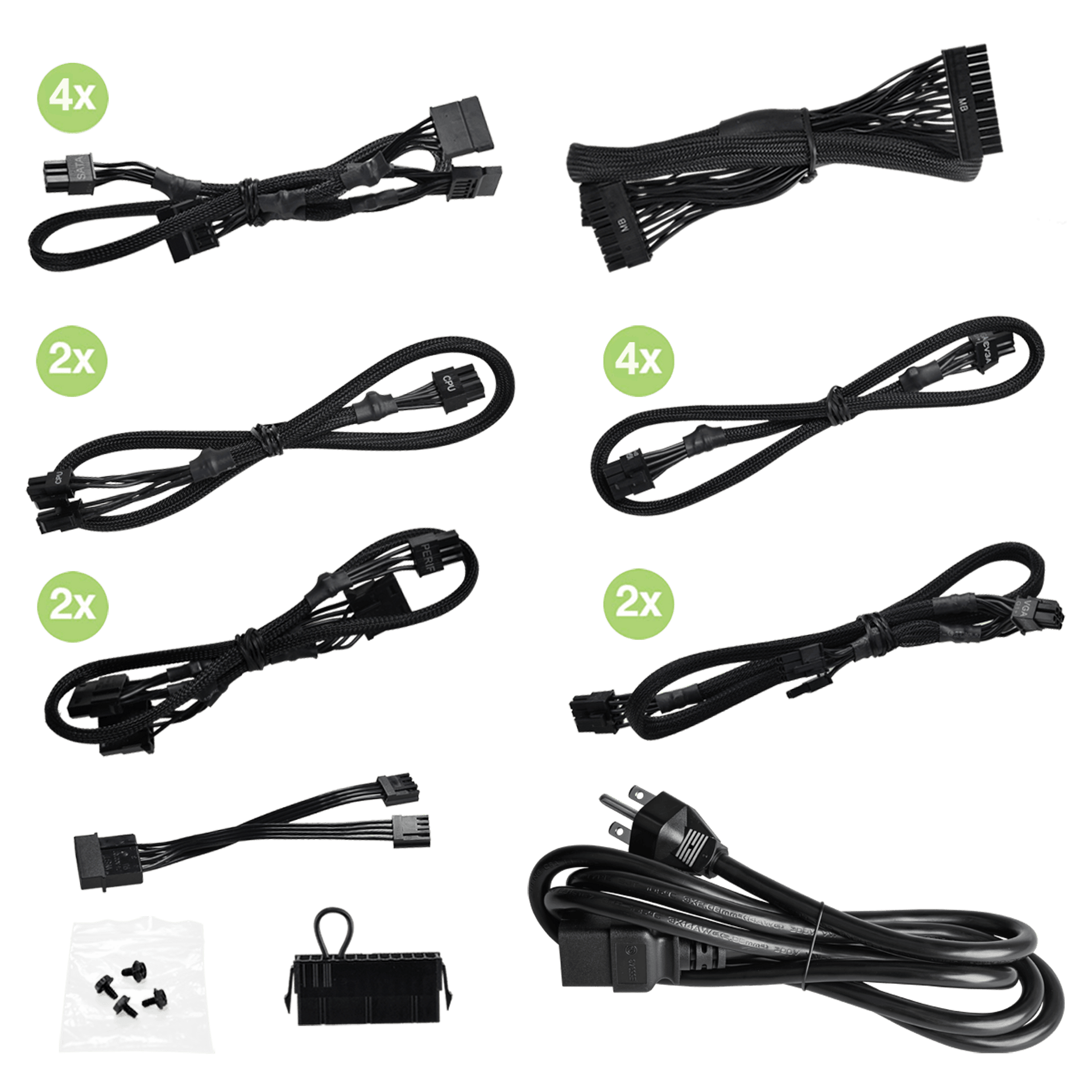

  ATX Cable	1x 600mm
  EPS Cable	2x 750mm
  PCIe Cable	4x 750mm, 2x 750mm, 900mm
  SATA Cable	4x 550mm, 650mm, 750mm
  Four-Pin Peripheral Cable	2x 550mm, 650mm, 750mm
  Floppy Adapter	1x 100mm
  AC Power	1x 1800mm
  Modular Cable Type	Full
  Molex to FDD	1x

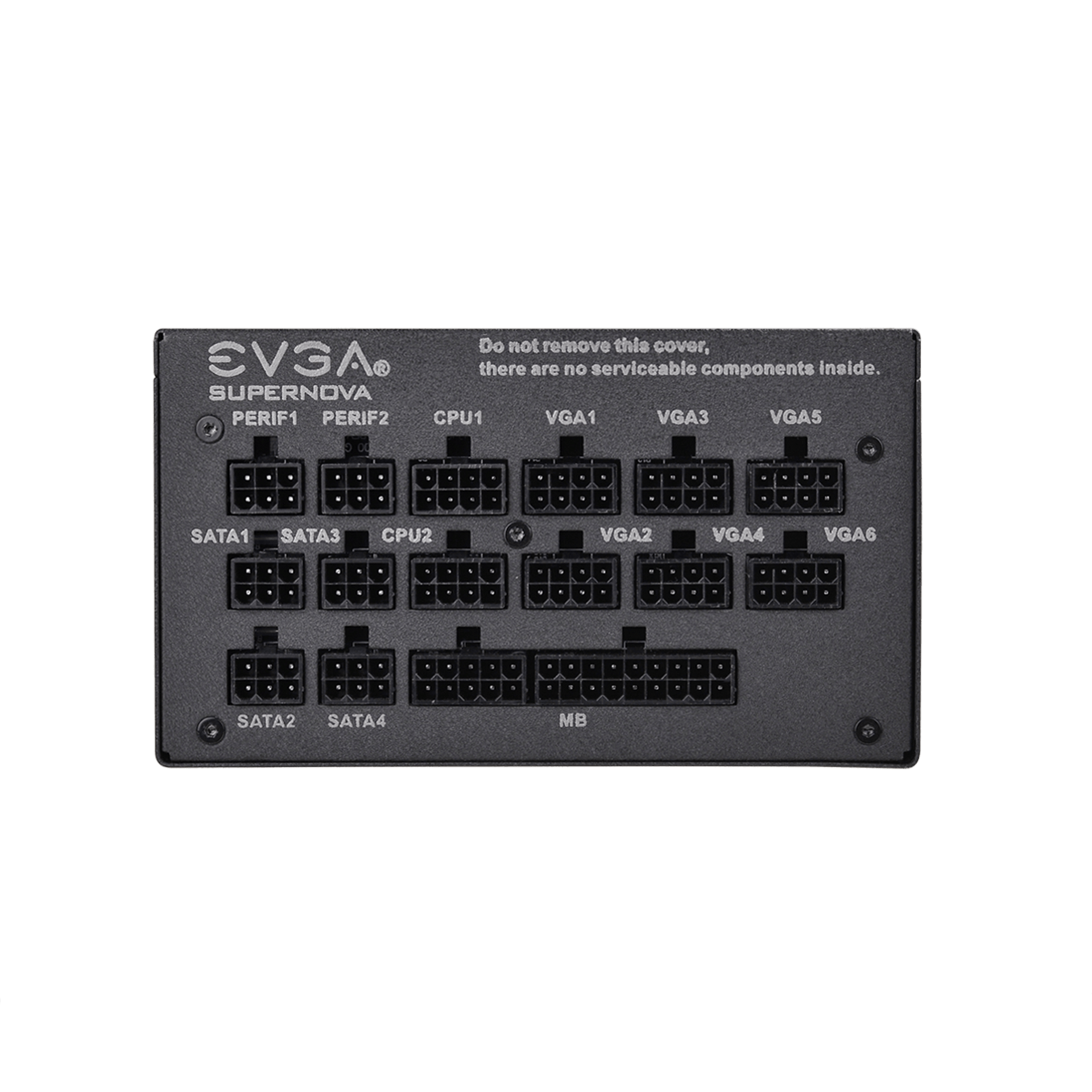

  Connector Quantity

  24 Pin ATX	1x
  EPS (CPU)	2x 8pin (4+4)
  PCIe	8x 8pin (6+2)
  SATA	12x
  Four-Pin Peripheral	6x
  Floppy	1x

  Power Specs

  AC Input	100-240V~, 15-8A, 60/50 Hz
  Rail	+3.3V	+5V	+12V	+5Vsb	-12V
  Max Output	24A	24A	108.3A	3.0A	0.5A
  	120W		1299.6W	15W	6W
  Total	1300W

  Additional Details

  Operating Temperature	0° to 50° C
  Japanese Capacitors	100%
  ECO Mode	Yes
  MTBF	100,000 Hours
  Net Weight	8.20 lbs
  Size	86mm (H) x 150mm (W) x 200mm (L)
  Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
  Fan Size / Bearing	135mm Fluid Dynamic Bearing
