Specifications:

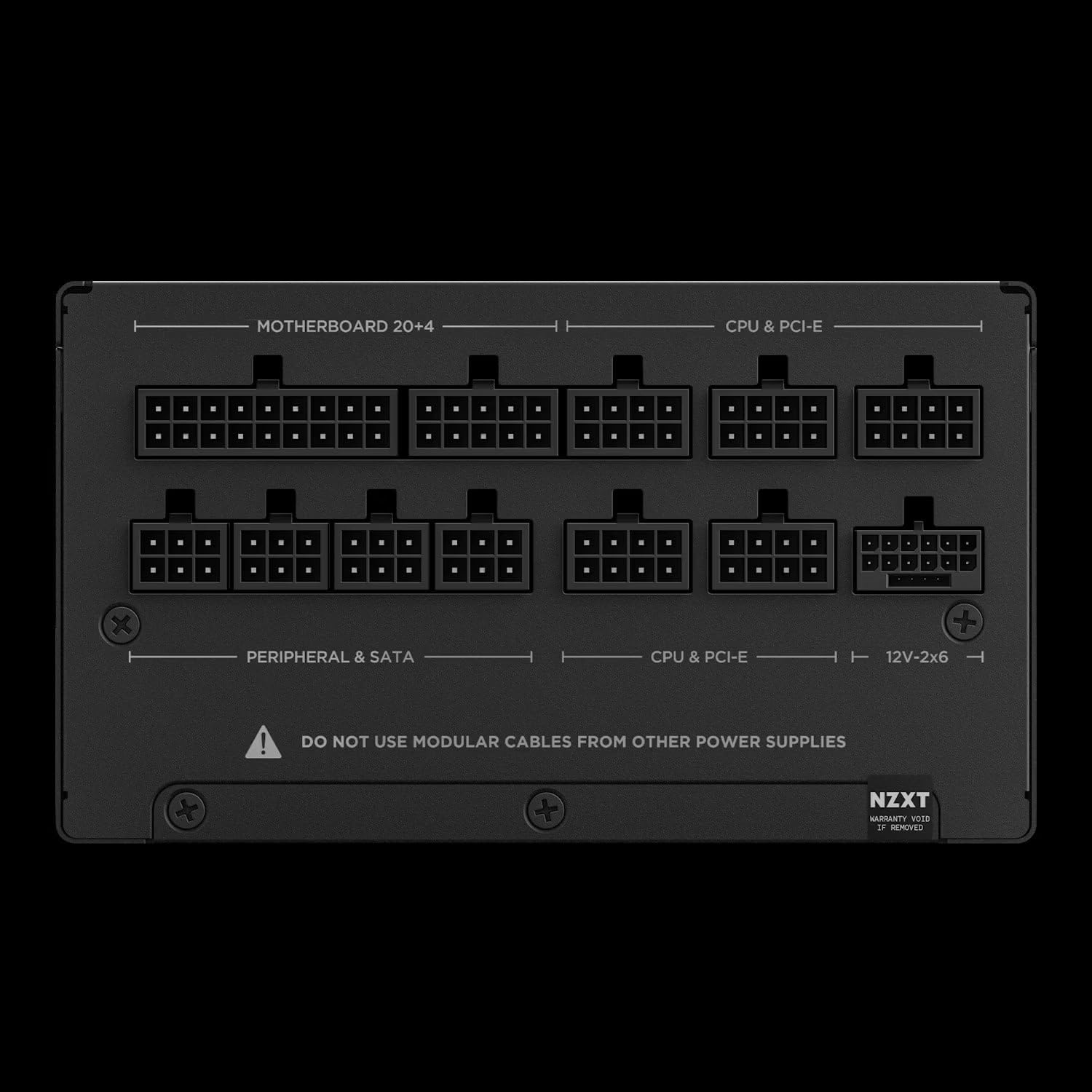

| Output Connectors | 24-pin ATX Power Cable: 1 4+4-pin CPU Power Cable: 1 8-pin CPU Power Cable: 1 6+2-pin PCIe Power Cable: 3 16-pin (12+4) 12V-2x6 PCIe Cable: 1 SATA Cable: 12 Peripherals Cable: 4 |
|---|---|
| Cable Specs | 24-pin ATX Power Cable: 600mm with nylon sleeving 4+4-pin CPU Power Cable: 700mm with nylon sleeving 8-pin CPU Power Cable: 700mm with nylon sleeving 6+2-pin PCIe Power Cable: 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving SATA Cable: 500 + 150mm Peripherals Cable: 500 + 150mm |
| AC Input Rating | 100 - 240Vac: 13A 50Hz-60Hz 200 - 240Vac: 6.5A 50Hz-60Hz (China & South Korea) |
| DC Output Rating | 3.3V / +5V: 22A (120W) 12V: 83.3A (1000W) 5Vsb: 3A (15W) Total: 1000W |

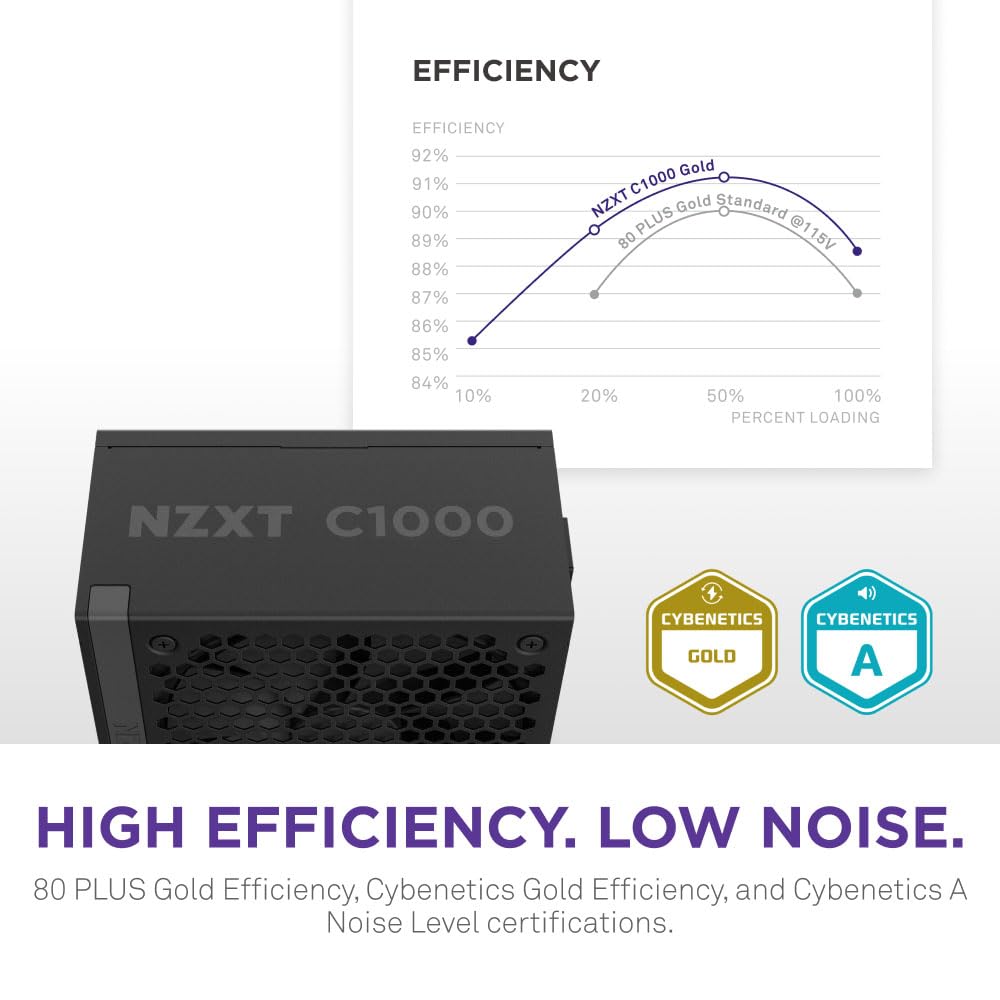

| Energy Efficiency | Rating: 80 Plus Gold 10% loading: 85.5% @115Vac 20% loading: 89.7% @115Vac 50% loading: 91.9% @115Vac 100% loading: 89.3% @115Vac |
| Electrical Features | PF Correction: Active @0.99 Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) |
| Fan Specs | Dimensions: 135 x 135 x 25 mm Speed: 2300 ± 10% RPM Airflow: 93.02 CFM (Min.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
| Operation | MTBF: 100,000 hours Temperature: 0 - 50 °C |
| Dimensions | Width: 150 mm Height: 86 mm Depth: 160 mm |
| General | Material(s): Steel, PCB, and Plastic Compliance Standard: ATX12V v3.1 / EPS12V v2.92 Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 Warranty: 10 Years |
| Model Number (Black) | PA-0G2BB-CN / PA-0G2BB-UK / PA-0G2BB-US / PA-0G2BB-EU / PA-0G2BB-JP / PA-0G2BB-AU |
| Model Number (White) | PA-0G2BW-CN / PA-0G2BW-UK / PA-0G2BW-US / PA-0G2BW-EU / PA-0G2BW-JP / PA-0G2BW-AU |
| EAN (Black) | 5056547204680 (CN) / 5056547204697 (UK) / 5056547204703 (US) / 5056547204710 (EU) / 5056547204727 (JP) / 5056547204734 (AU) |
| EAN (White) | 5056547206318 (CN) / 5056547206325 (UK) / 5056547206332 (US) / 5056547206349 (EU) / 5056547206356 (JP) / 5056547206363 (AU) |
| UPC (Black) | 810074844758 (CN) / 810074844765 (UK) / 810074844772 (US) / 810074844789 (EU) / 810074844796 (JP) / 810074844802 (AU) |
| UPC (White) | 810074846370 (CN) / 810074846387 (UK) / 810074846394 (US) / 810074846400 (EU) / 810074846417 (JP) / 810074846424 (AU) |
