| CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors* |
| 2. L3 cache varies with CPU |
| Chipset | 1. IntelÆ B760 Express Chipset |
| Memory | 1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 3. Dual channel memory architecture |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1. 1 x HDMI port, supporting a maximum resolution of 4096◊2160@60 Hz |
| * Support for HDMI 2.0 version and HDCP 2.3. |
| 2. 1 x DisplayPort, supporting a maximum resolution of 4096◊2304@60 Hz |
| * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | 1. RealtekÆ Audio CODEC |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| 4. Support for S/PDIF Out |
| LAN | 1. RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | IntelÆ Wi-Fi 6E AX211 |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Support for AMD CrossFireXô technology |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 2. 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: |
| 1. 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2◊2 support |
| 2. 1 x USB Type-CÆ port with USB 3.2 Gen 2 support, available through the internal USB header |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| 4. 1 x USB 3.2 Gen 1 port on the back panel |
| 5. 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Chipset+USB 3.2 Gen 1 Hub: |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+USB 2.0 Hub: |
| 1. 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x 4-pin ATX 12V power connector |
| 4. 1 x CPU fan header |
| 5. 3 x system fan headers |
| 6. 2 x addressable LED strip headers |
| 7. 2 x RGB LED strip headers |
| 8. 2 x M.2 Socket 3 connectors |
| 9. 4 x SATA 6Gb/s connectors |
| 10. 1 x front panel header |
| 11. 1 x front panel audio header |
| 12. 1 x USB Type-CÆ header, with USB 3.2 Gen 2 support |
| 13. 1 x USB 3.2 Gen 1 header |
| 14. 2 x USB 2.0/1.1 headers |
| 15. 2 x Thunderboltô add-in card connectors |
| 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 17. 1 x Q-Flash Plus button |
| 18. 1 x reset button |
| 19. 1 x reset jumper |
| 20. 1 x Clear CMOS jumper |

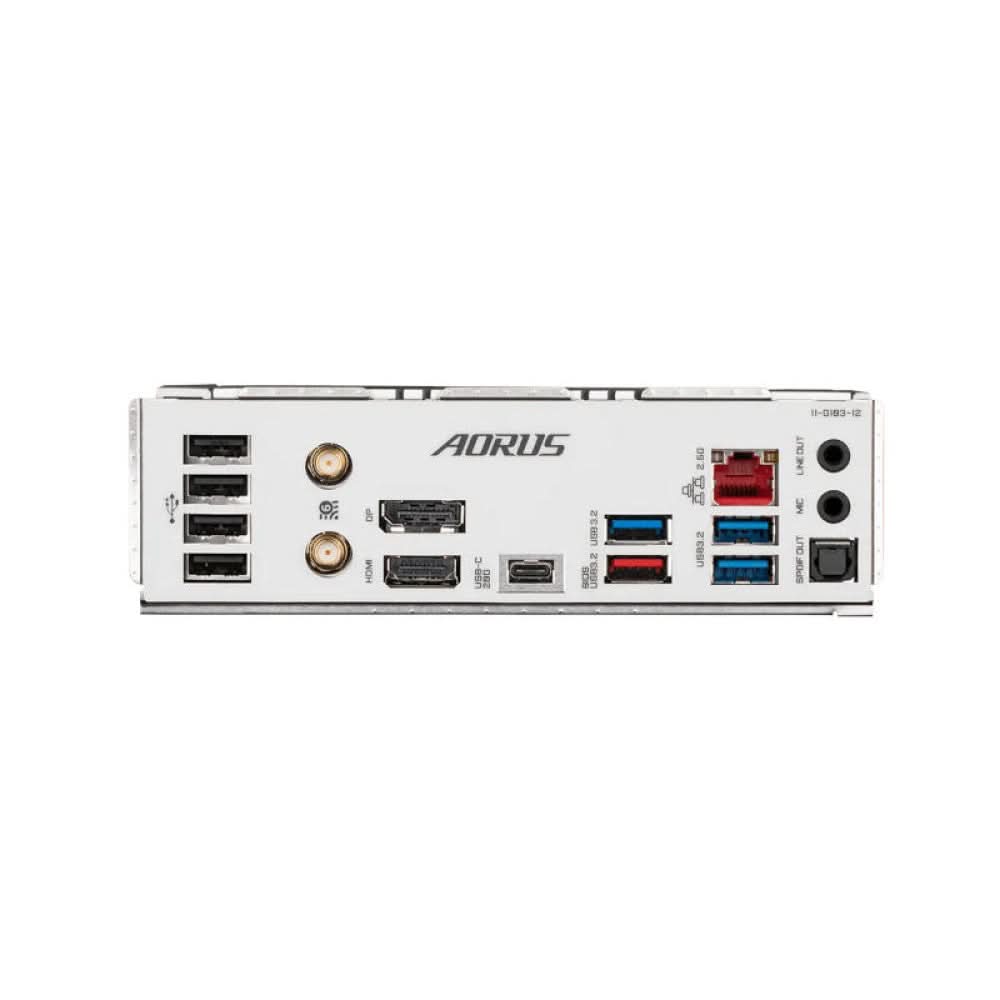

| Back Panel Connectors | 1. 1 x USB Type-CÆ port, with USB 3.2 Gen 2◊2 support |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) |
| 3. 3 x USB 3.2 Gen 1 ports |
| 4. 4 x USB 2.0/1.1 ports |
| 5. 1 x HDMI port |
| 6. 1 x DisplayPort |
| 7. 1 x RJ-45 port |
| 8. 1 x optical S/PDIF Out connector |
| 9. 2 x audio jacks |
| I/O Controller | 1. iTEÆ I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Water cooling flow rate detection |
| 5. Fan fail warning |
| 6. Fan speed control |
| BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Feature | 1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| 2. Support for Q-Flash |
| 3. Support for Q-Flash Plus |
| Bundled Software | 1. NortonÆ Internet Security (OEM version) |
| 2. LAN bandwidth management software |
| Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
