Description
| CPU | AMD Socket AM5, support for: AMD Ryzenô 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPOô) and Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| Support for DisplayPort 1.4 version and HDR. | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Support for HDMI 2.1 version and HDCP 2.3. | |
| Support native HDMI 2.1 TMDS compatible ports. | |
| Audio | RealtekÆ Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Ou | |
| LAN | RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| IntelÆ Wi-Fi 6E AX210 (For PCB rev. 1.1) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) | |
| * Actual support may vary by CPU. | |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| 4 x SATA 6Gb/s connectors | |
| USB | CPU: |
| 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| CPU + USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-CÆ port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| 4 x USB 3.2 Gen 1 ports on the back pane | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-CÆ header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x serial port header | |
| 1 x THB_U4 add-in card connector | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

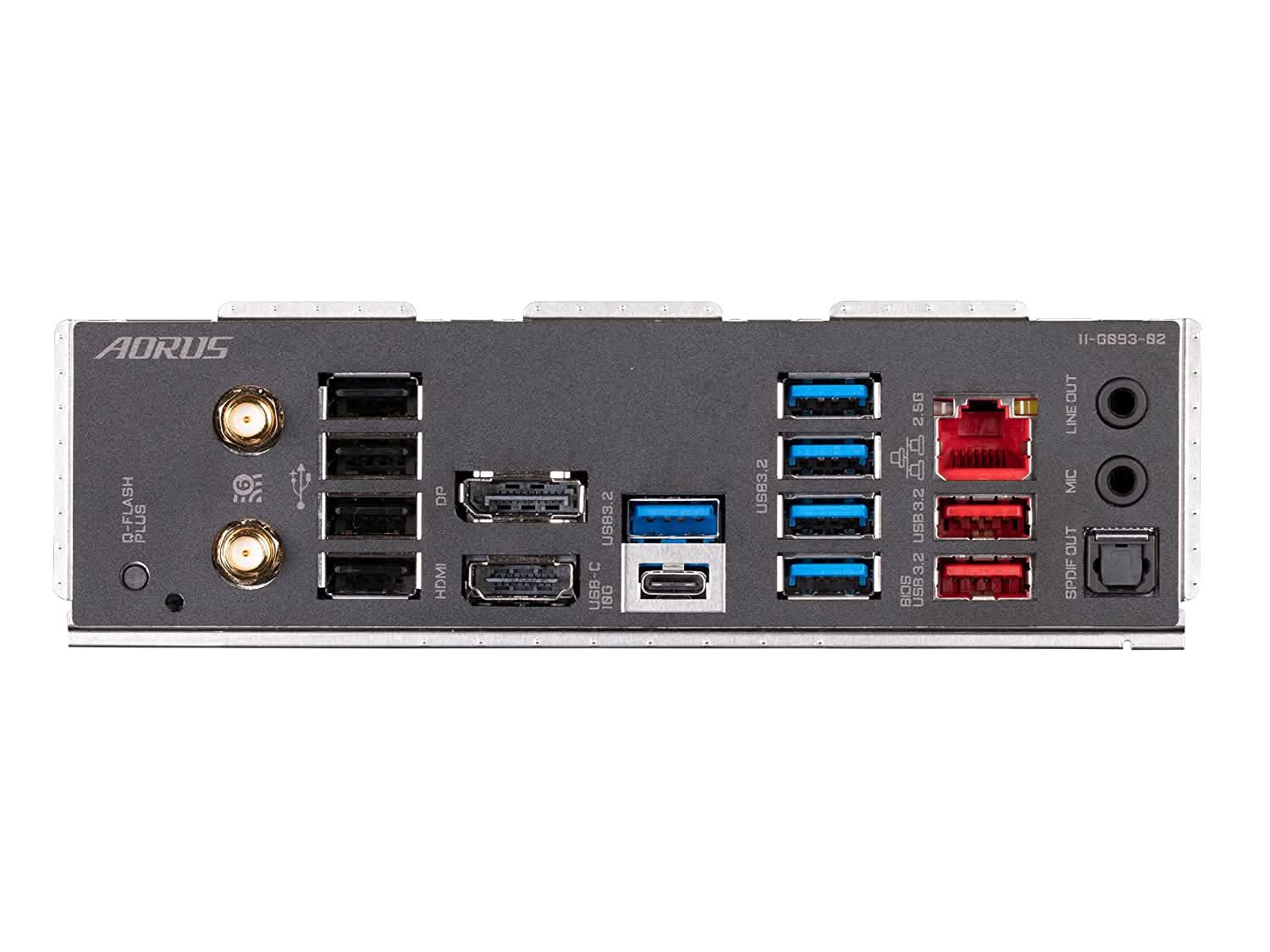

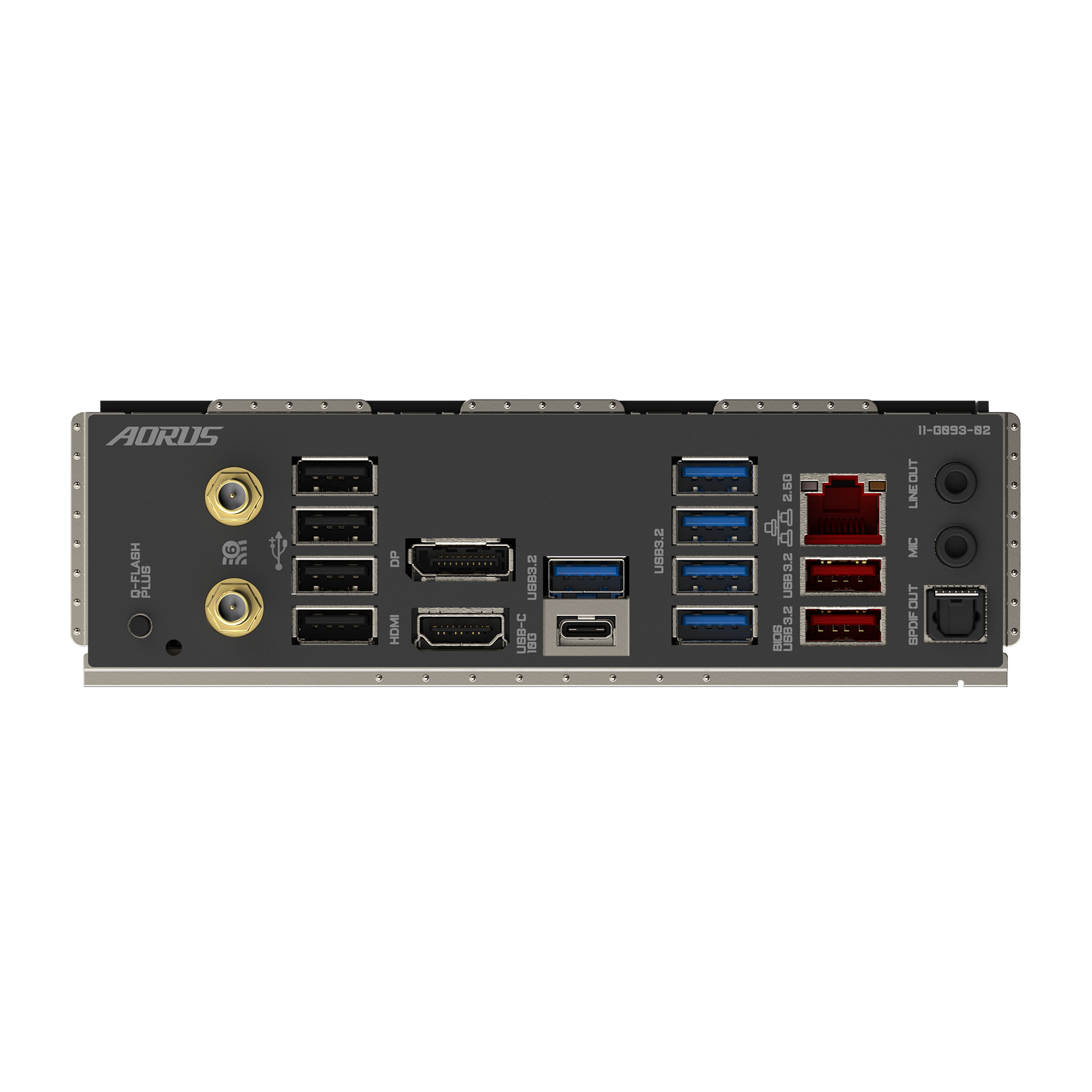

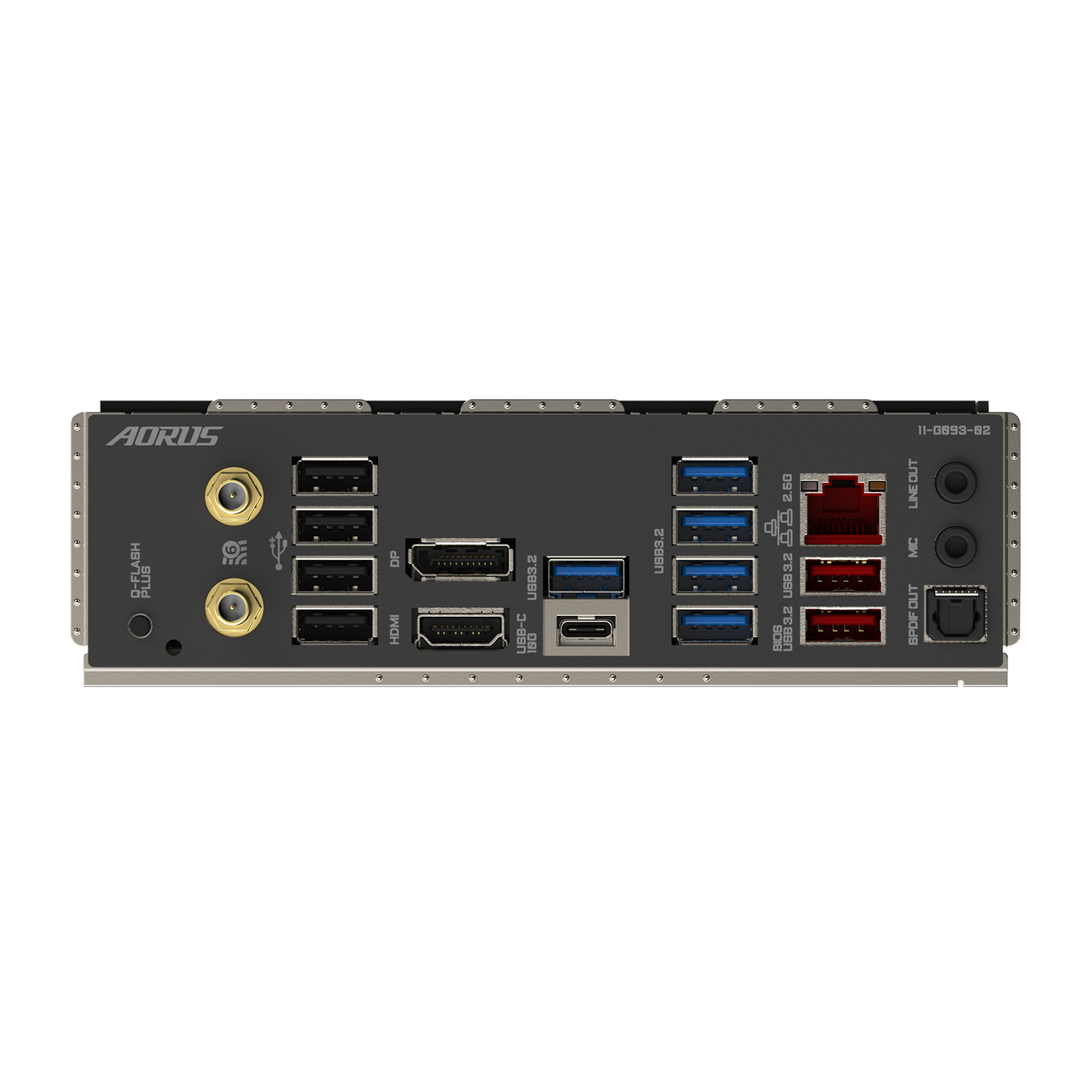

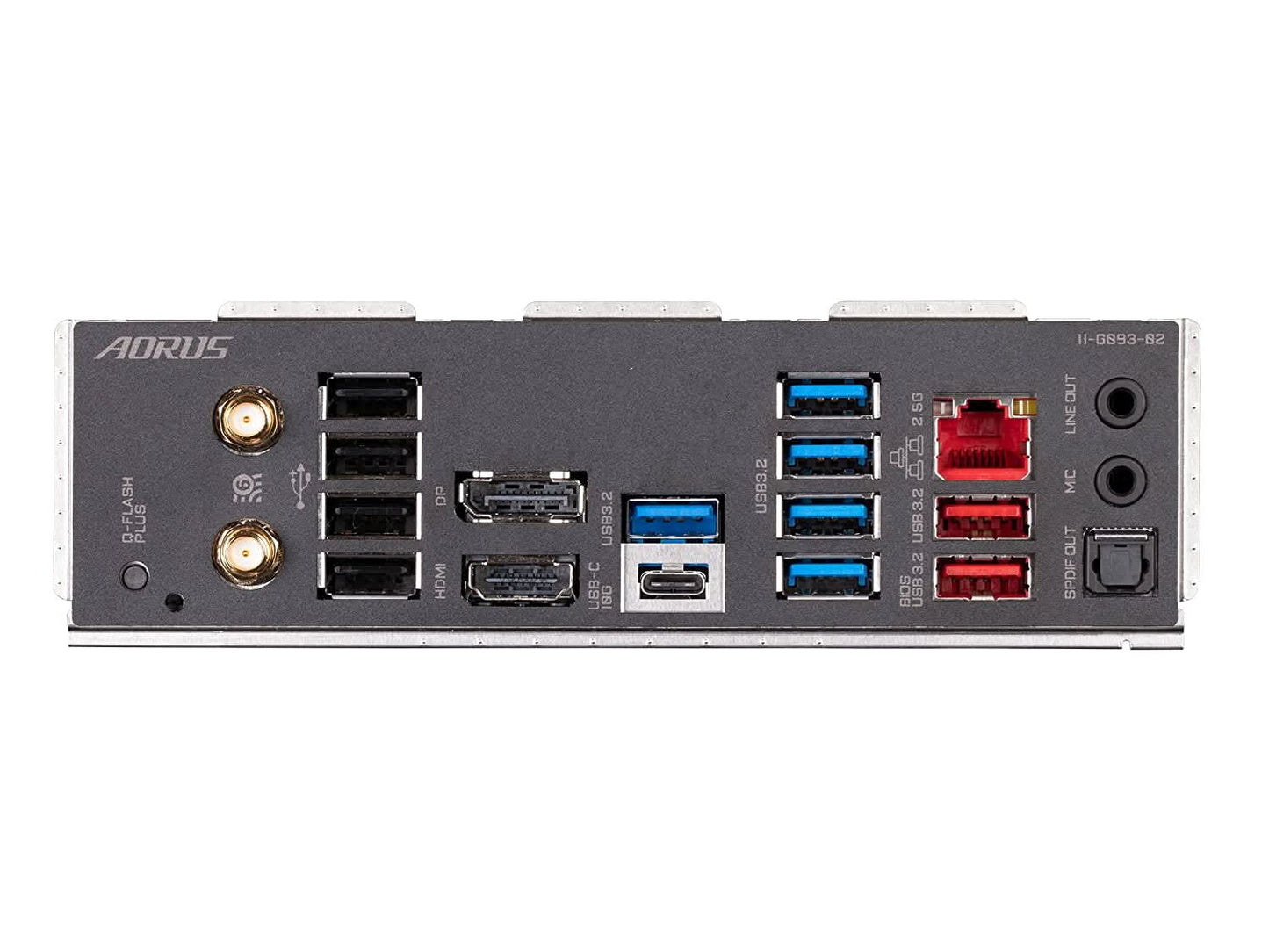

| Back Panel Connectors | I/O Controller1 x Q-Flash Plus button |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x USB Type-CÆ port, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 5 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| I/O Controller | iTEÆ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Bundled Software | NortonÆ Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
