Description
Features:

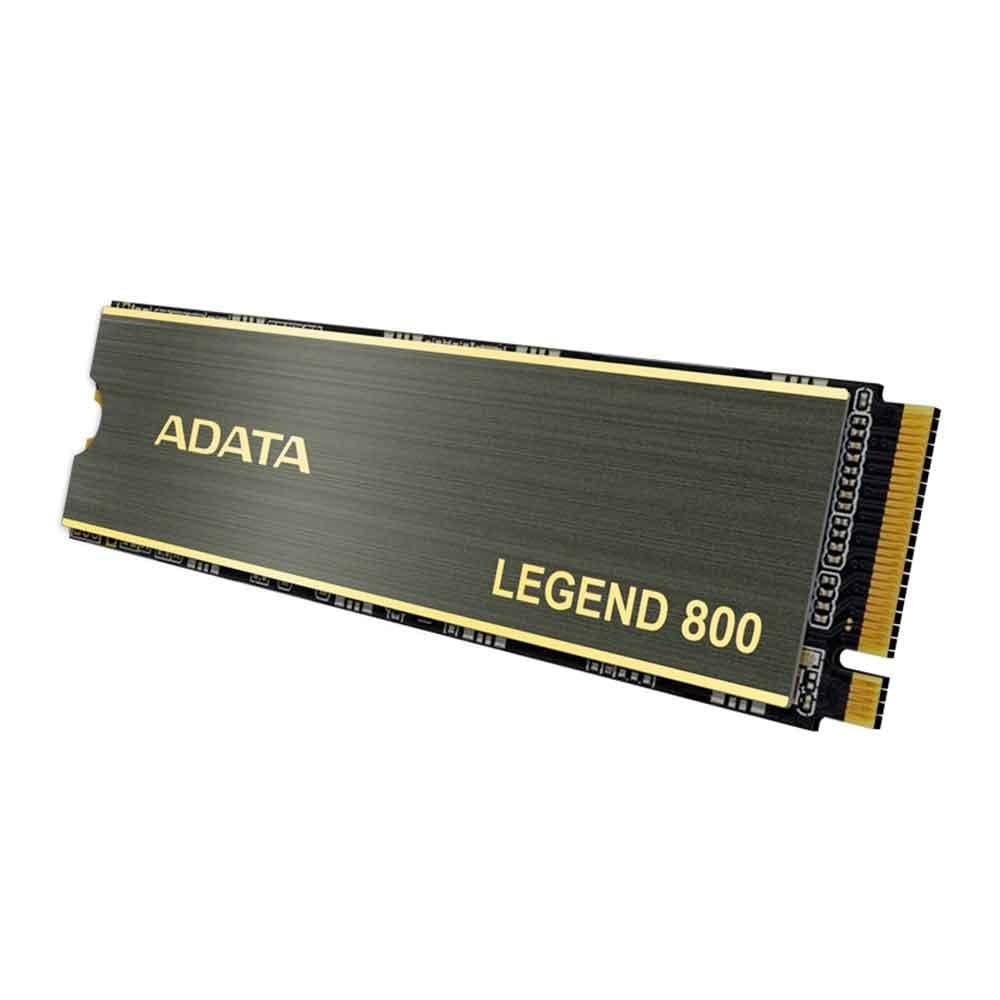

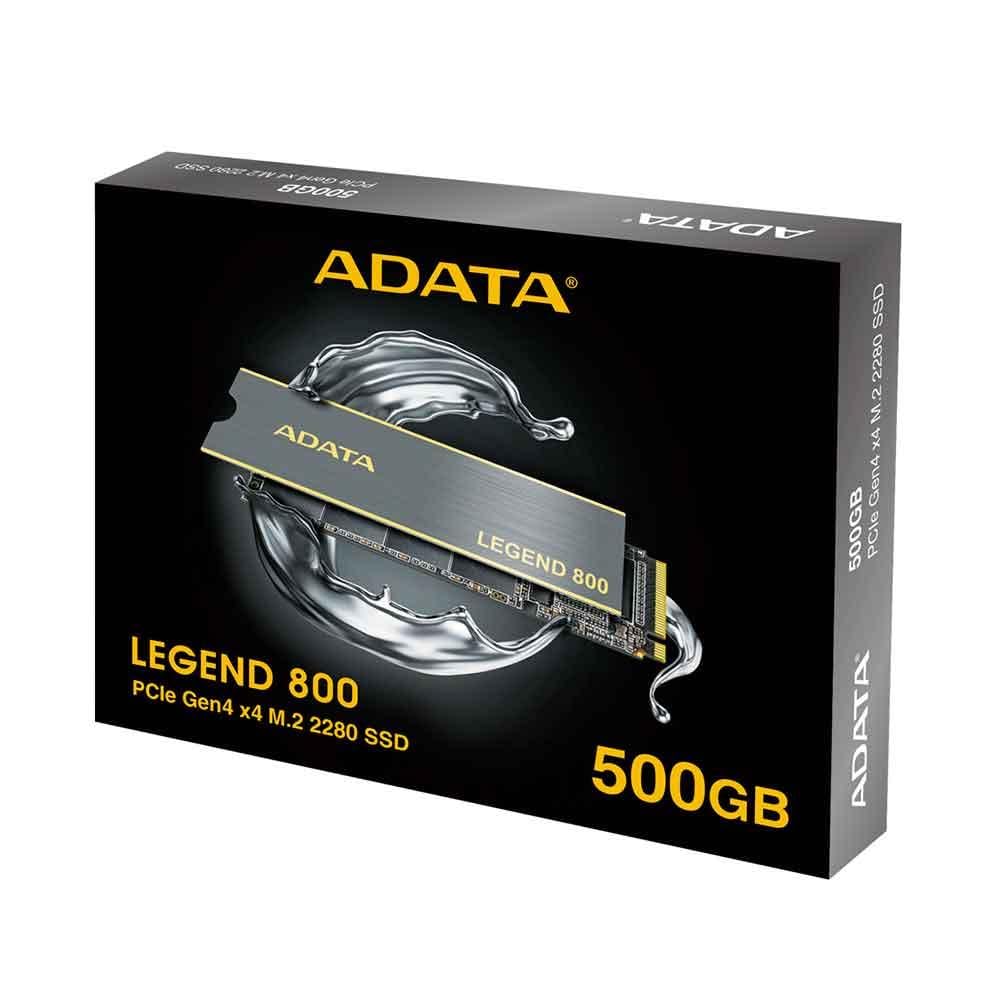

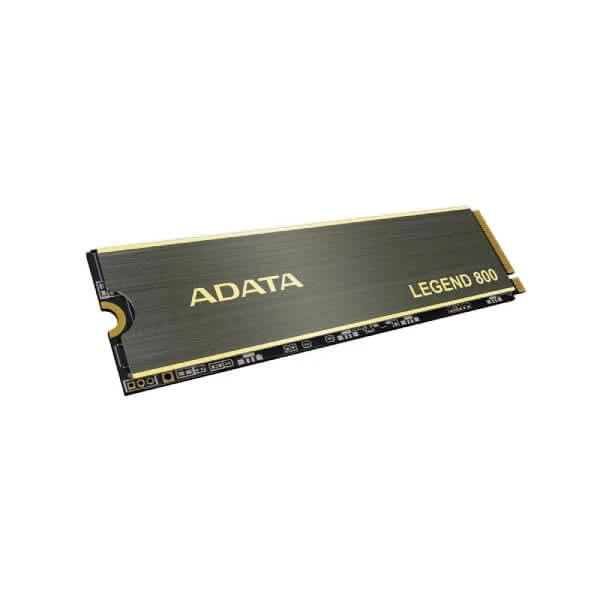

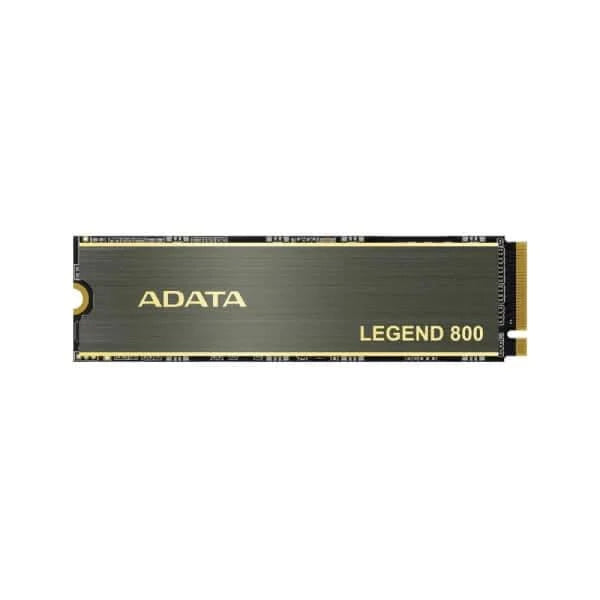

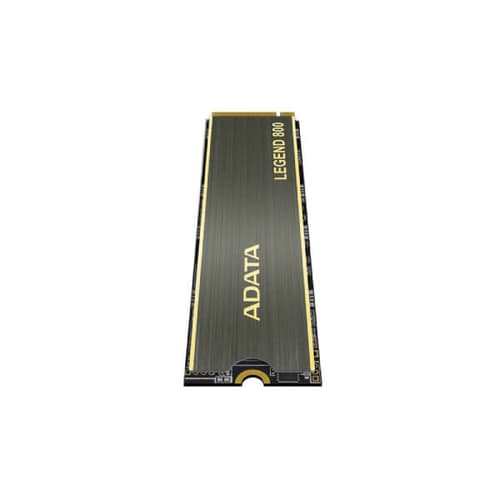

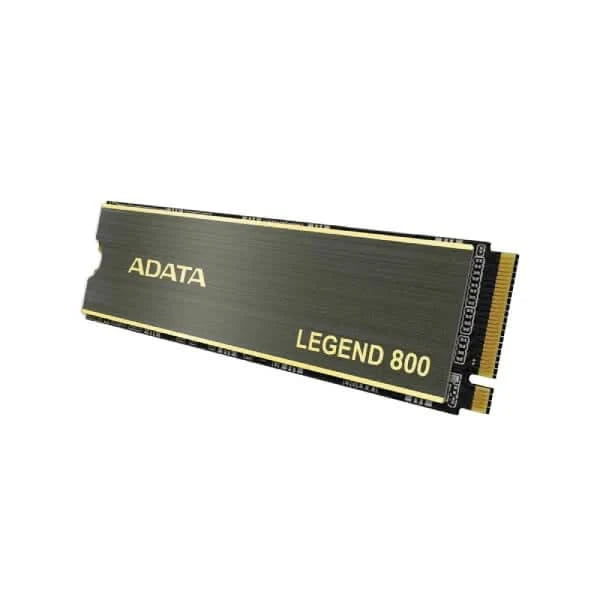

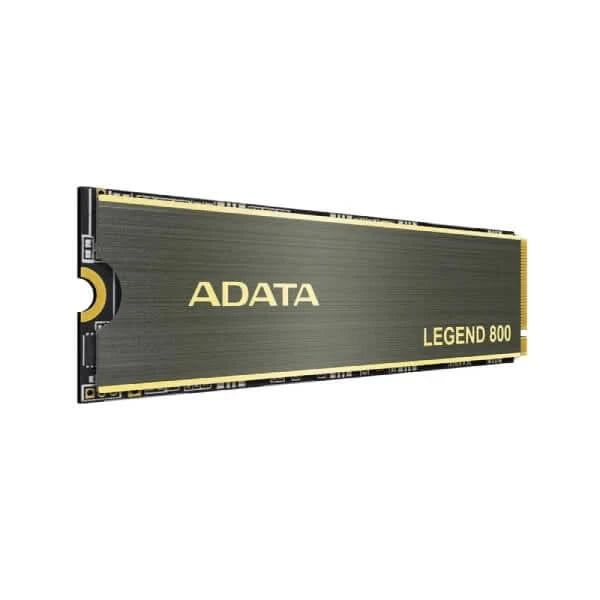

LEGEND 800 PCIe Gen4 x4 M.2 2280 Solid State Drive:
With PCIe 4.0, sequential read/write speeds of 3,500/2,200MB per second, and up to 500GB of capacity,the LEGEND 800 will help you create seamlessly on the latest Intel and AMD platforms.
- Ultra-fast PCIe Gen4 x4 interface
- R/W speed up to 3,500/2,200MB/s
- NVMe 1.4 support
- Advanced hardware LDPC ECC Technology
- Supports Host Memory Buffer(HMB)
- Great upgrade option for creators
- Compact M.2 2280 form factor – also ideal for 2D
drawing, engineering drawing, video editing, etc. - Free software: SSD Toolbox
Evolve Your Creativity:
LEGEND 800 supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, and support for the latest Intel and AMD platforms. Whether on a desktop or notebook PC, progress you creativity
Unlock Inspiration:
LEGEND 800 delivers sequential read and write speed of 3,500/2,200MB per second, which is up to 2 times faster than a standard PCIe Gen3 SSD and 6 times faster than a SATA SSD. It is backward compatible with PCIe 3.0 and made for creating, whether 3D graphic of video!
Imagine the Possibilities:
Creativity can't wait! The LEGEND 800 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.
Keeping Things Cool:
The LEGEND 800's black heat sink design with bronzing trimming and sandblasted surfaces look cool and keep things cool. Through a cutting-edge surface treatment, it dissipates heat incredibly effectively reducing temperature.
Create Without Worry:
With LDPC (Low Density Parity Check Code) the LEGEND 800 ensures accurate data transmissions.
SSD ToolBox Software:
ADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.
3-Year Warranty:
LEGEND series solid state drives use high-quality chips that can withstand the test of time and space. They undergo a rigorous verification and testing process to ensure reliability. If that wasn't enough, they come backed by a 3-year warranty.
Specification:
| Model Name | LEGEND 800 PCIe Gen4 |
| Model Part Number | ALEG-800-500GCS |
| Capacity | 500GB |
| Form factor | M.2 2280 |
| Interface | PCIe Gen4 x4 |
| NAND Flash | 3D NAND |
| Dimensions (L x W x H) | 80 x 22 x 2.65mm / 3.15 x 0.87 x 0.1inch (with heat sink) 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) |
| Weight | With heat sink?9.3g / 0.33oz Without heat sink?6.3g / 0.22oz |
| Sequential Read (Max) | Up to 3,500MB/s |
| Sequential Write (Max) | Up to 2,200MB/s |
| Operating temperature | 0°C - 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1500G/0.5ms |
| MTBF | 2,000,000 hours |
| Terabytes Written (TBW) | 300TB |
| Warranty | 3-year limited warranty |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
