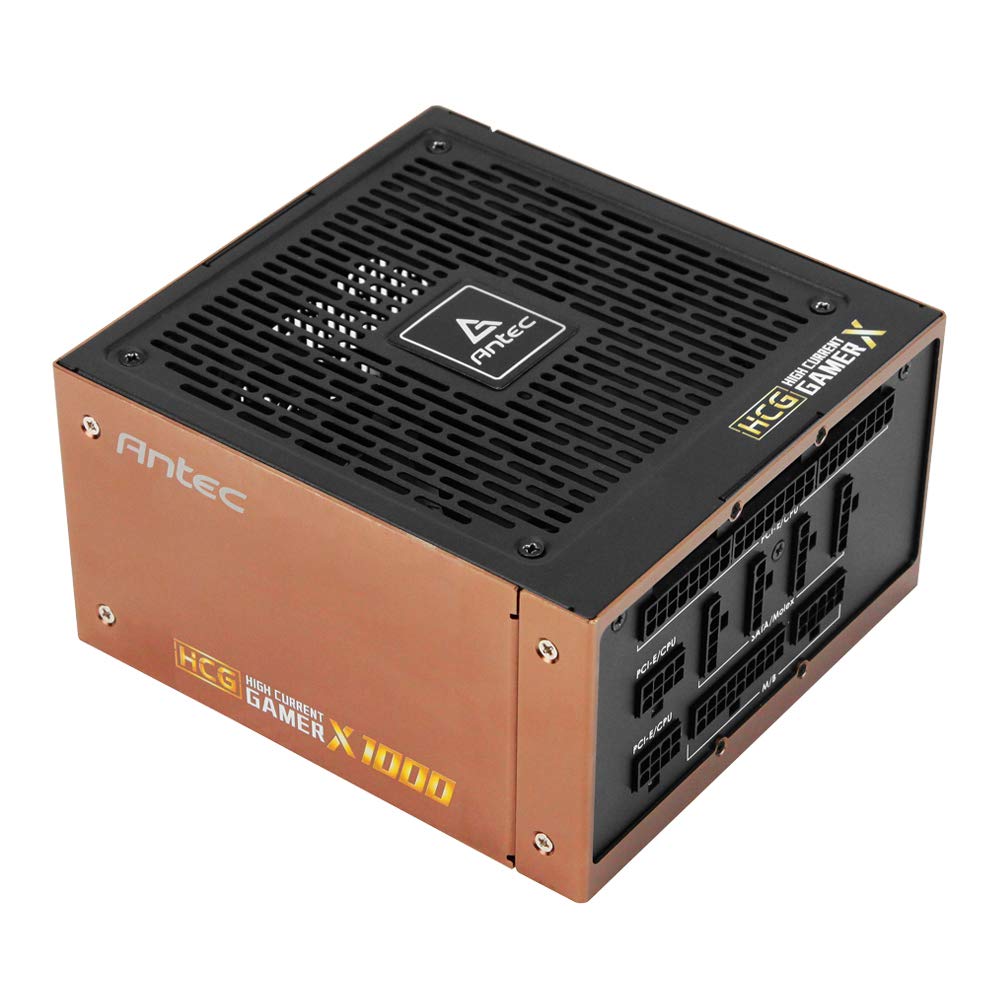

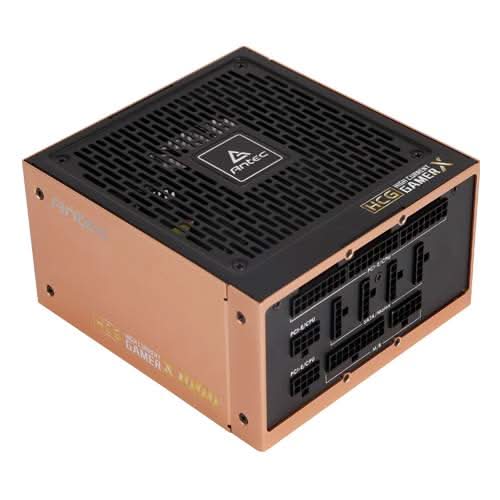

ANTEC 1000W HCG1000 EXTREME 80PLUS GOLD FULLY MODULAR SMPS

High Current Gamer Extreme Series

1000W

Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUSÆ Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.

100% Japanese Capacitors:
Using 100% high-performance Japanese capacitors,
the HCG Extreme Gold series ensures the tightest
DC stability and regulation, for reliability that you
and your system can count on.

PhaseWaveô Design:
A server-class full-bridge LLC design
with a synchronous rectification
based on a DC-DC topology.

Server-grade 50∞C Temperature Rating:
HCG Extreme delivers non-stop industrial class
performance for high-end computer systems
at up to 50∞C ambient.

135mm
FDB FAN

The whisper-quiet, 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

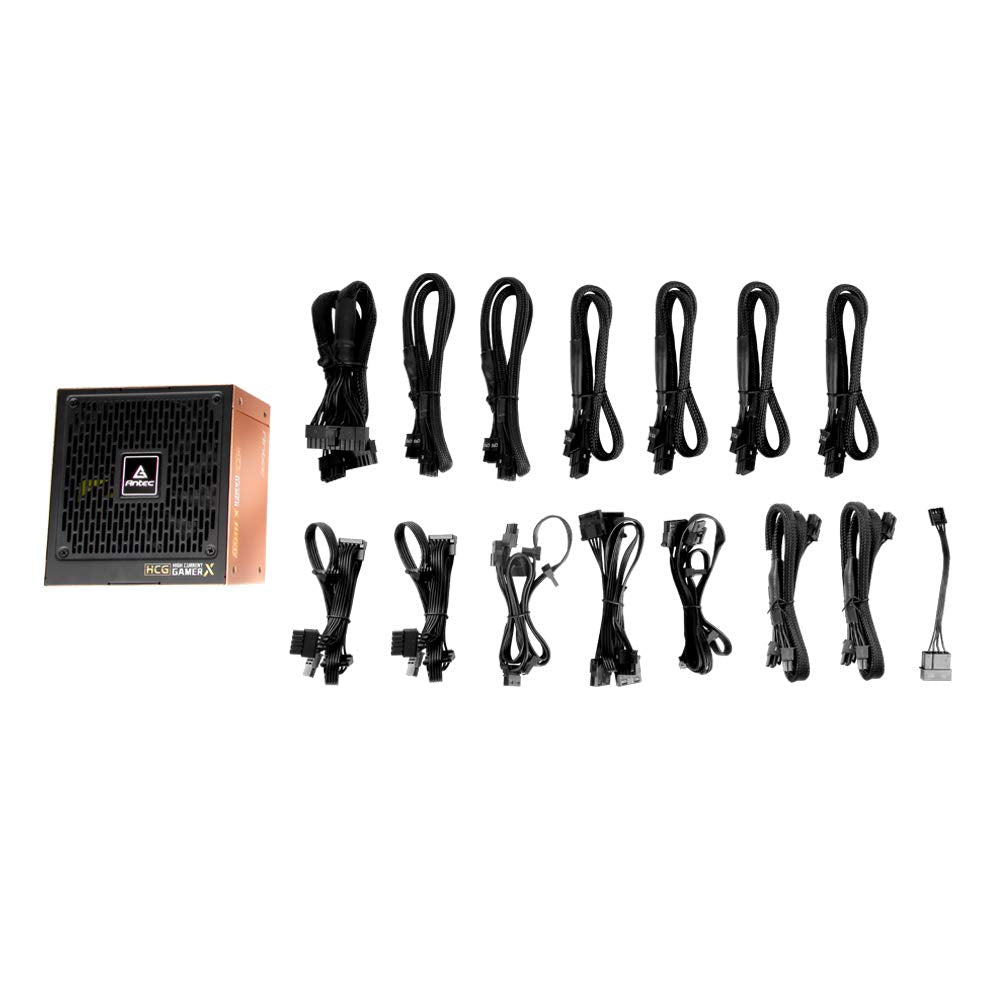

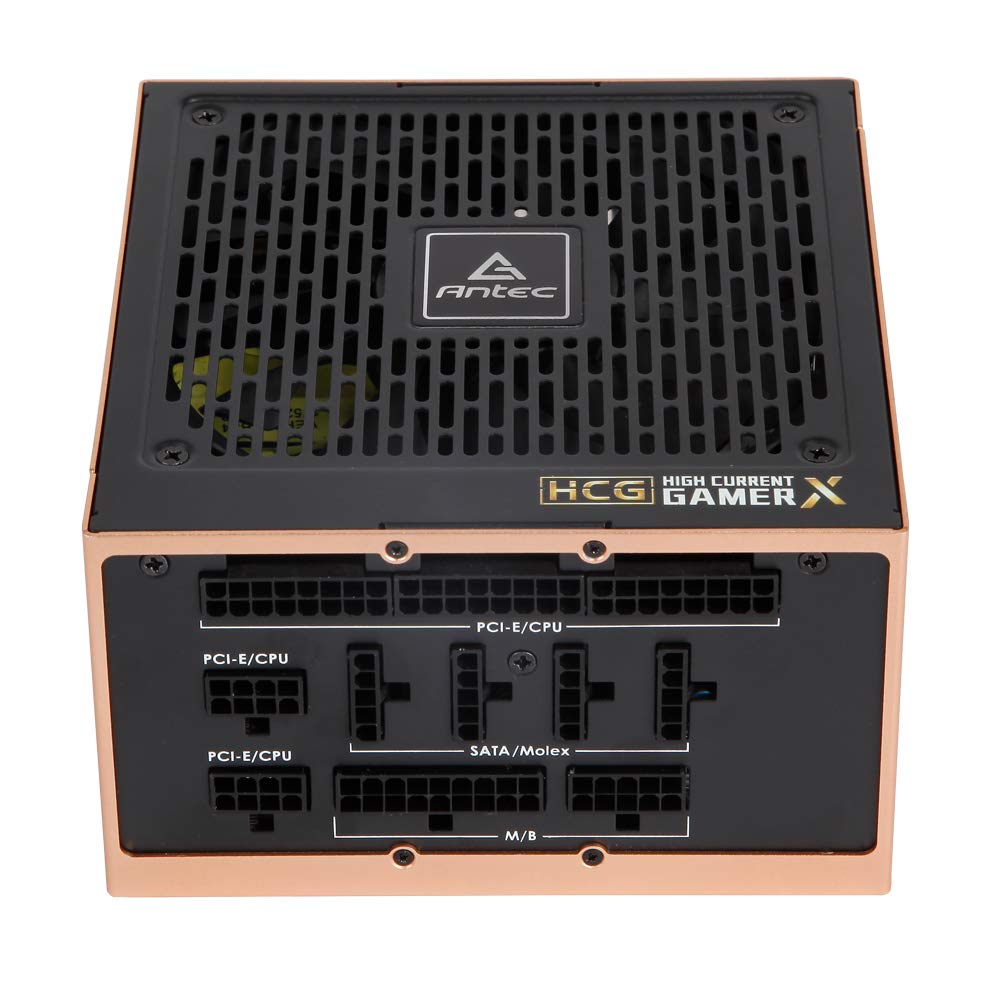

Connectors

Fully Modular Cable
Management System

FEATURES

• Guaranteed 1000W of Continuous Power from Antec
• 100% Modular?Improves airflow and reduces clutter
• 80 PLUSÆ GOLD certified?Up to 92% efficient, to reduce your electricity bill
• PhaseWaveô Design?A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• 16 pin Socket?Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
• Antec Quality 10-year warranty and lifetime global 24/7 support
• 135mm FDB Silence?Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
• Zero RPM Manager?An advanced low voltage fan control with fan-off mode at low loads for absolute silence
• 99%+12V - Output for maximum CPU & GPU support
• CircuitShieldô?Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your systemís performance
• 28(18+10) pin MBU socket - For possible future MBU connectors
• ATX12V 2.4?Engineered according to the newest PSU guideline and compatible with the latest CPU generation
• HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50∞C ambient.

SPECIFICATIONS

Model	HCG1000 Extreme
Type	ATX 12V 2.4
Modular	Fully Modular
Dimension (W x L x H)	160(L) x 150(W) x 86(H)
Warranty	10 years
Input Voltage	100-240 VAC ±10%
Input Current	13A-6.5A
Input Frequency Range	50Hz-60Hz
PFC	Active PFC (>0.9 typical)
Power Good Signal	100-500ms
Efficiency	92% Typically
Protection	OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity	1000W
Operation Temperature	0~50∞C
Regulatory	cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR
Fan	135mm FDB Fan
Certifications	80 Plus Gold
Connector	1 x MB 24(20+4) Pin
	2 x 8(4+4) Pin EPS 12V
	8 x 8(6+2) Pin PCI-E
	12 x SATA
	6 x Molex
	1 x FDD
Net Weight	1.66 Kgs
Gross Weight	3.40 Kgs
UPC#	0-761345-11563-6  HCG1000 Extreme
	0-761345-11562-9  HCG1000 Extreme CN
	0-761345-11561-2  HCG1000 Extreme AU
	0-761345-11560-5  HCG1000 Extreme EC
	0-761345-11559-9  HCG1000 Extreme GB
	0-761345-11558-2  HCG1000 Extreme JP
