| Category | Specification |
|---|---|
| Radiator | |
| Radiator Dimensions | 397 x 120 x 27 mm (L x W x H) |
| Radiator Material | Aluminum |

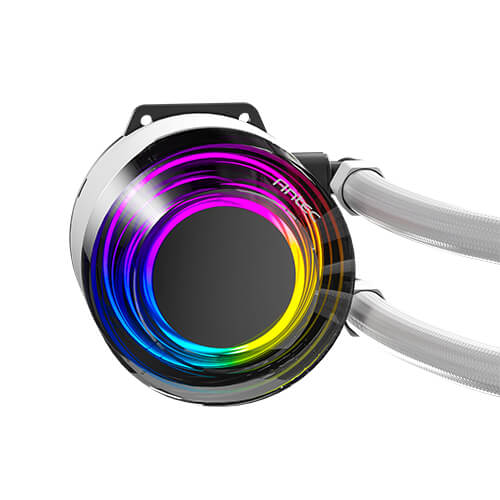

| Pump | |
| Dimensions | Φ67 x 48.5 mm |
| Rating Voltage | DC 12 V |
| Minimum Startup Voltage | ≥5.0 V |
| Fan Speed | 2800±10% RPM |
| Rated Current | 0.25±20% A |
| Consumed Power | 3.0 W |
| Flow Rate | ≥1300 mL/min |
| Water Pressure | 1.4 m |
| Operation Temperature | -10°C ~ +60°C |
| Noise Level | ≤28 dB(A) |
| Lifespan | 40,000 hours |
| Connector | Pump: 3-pin LED: 3-pin |

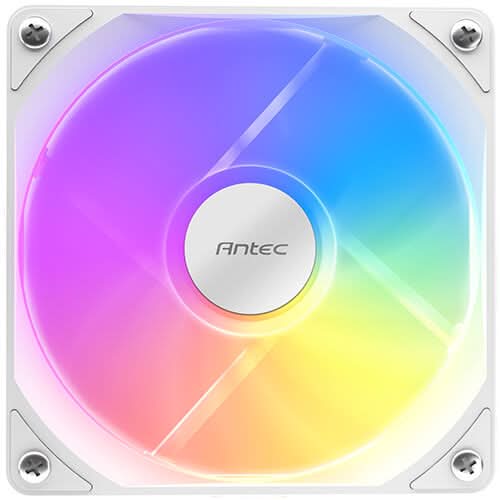

| Fan | |
| Fan Type | PWM Fan |
| Fan Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Hydraulic Bearing |
| LED Type | Addressable RGB |
| Fan Speed | 800±200 ~ 1800±10% RPM |
| Airflow | 71.5 CFM (max.) |
| Air Pressure | 2.45 mmH₂O (max.) |
| Fan Noise Level | 31 dB(A) |
| Lifespan | 40,000 hours |
| Connector | PH 2.0 7-pin (PWM + ARGB) |
| Rated Voltage | Fan: DC 12 V LED: DC 5 V |
| Operation Voltage | Fan: DC 10.8–13.2 V LED: DC 4.5–5.5 V |
| Rated Current | Fan: 0.20–0.25 A LED: 0.32 A |
| Compatibility | |
| Supported Sockets | Intel: LGA 115X/1200/1700/20XX/1851 AMD: AM3/AM4/AM5/TR4 |
| TDP Support | ≤ 280W |
| Other | |
| Warranty | 3 years |
| UPC# | 0-761345-40056-5 |
