Description

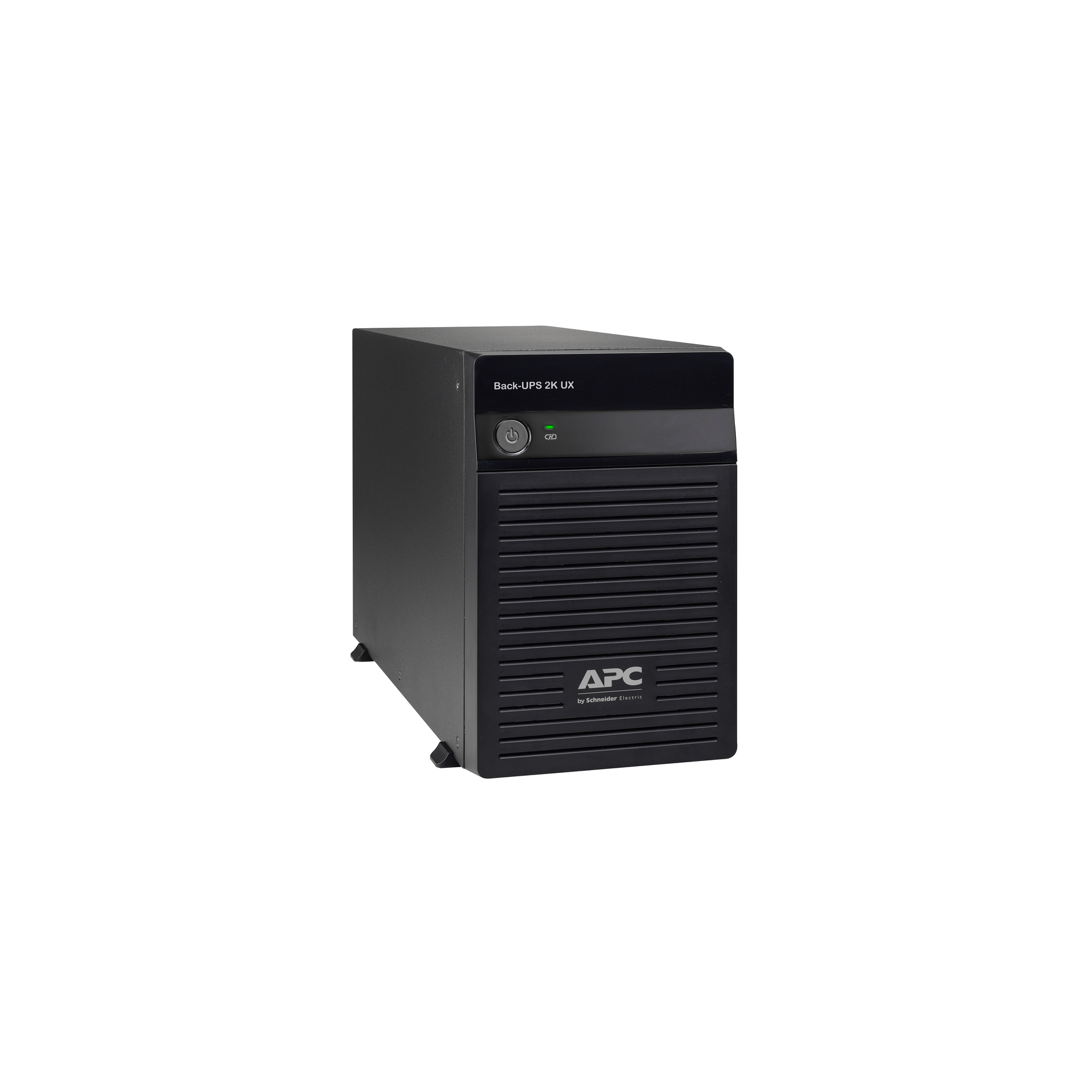

Experience uninterrupted power and enhanced protection for your IT and electronic equipment with the APC Back-UPS BX2000UXI, a robust 2000VA/1200W UPS solution designed for long backup durations and flexible battery configurations. Engineered by Schneider Electric, this UPS is ideal for homes, small offices, and environments with unstable power supply.
The BX2000UXI features a wide input voltage window (140V–300V), making it perfect for regions with frequent voltage fluctuations. It supports both SMF and tubular batteries, with selectable charging currents (5A/10A/15A/20A), allowing users to connect batteries of various sizes for customized backup needs. The unit includes a separate charging LED indicator, and an output terminal block for secure connections.
With genset compatibility and support for a wide frequency range (40Hz–70Hz), the BX2000UXI ensures seamless operation even during generator use. Its stepped sinewave output, fast transfer time, and resettable circuit breaker provide reliable protection and performance. Backed by a 2-year warranty, this UPS offers peace of mind and dependable power continuity.
Key Features:
-
High Power Capacity: 2000VA / 1200W – suitable for high-load IT and electronic equipment
-
Long Backup Support: Compatible with external batteries for extended runtime
-
Battery Flexibility: Supports SMF and tubular batteries
-
Selectable Charging Currents: 5A, 10A, 15A, 20A
-
Wide Input Voltage Range: Operates between 140V to 300V – ideal for poor power conditions
-
Genset Compatible: Works with generators across a wide frequency range (40Hz–70Hz)
-
Output Terminal Block: Secure and stable output connections for critical devices
-
Stepped Sinewave Output: Provides stable voltage during battery operation
-
Fast Transfer Time: 4–10 ms typical, 15 ms max – ensures minimal disruption
-
LED Indicators: Separate charging LED for easy monitoring
-
Durable Build:
-
Dimensions: 392 x 145 x 220 mm
-
Weight: 13.4 kg
-
-
Environmental Tolerance:
-
Operating temperature: 0–40°C
-
Humidity: Up to 95% non-condensing
-
-
Warranty: 2-year manufacturer warranty for reliable support
Specifications
| Category | Specification |
|---|---|
| Availability | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Back-UPS |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated Power (W) | 1200 W |
| Rated Power (VA) | 2000 VA |
| Maximum Configurable Power (W) | 1200 W |
| Maximum Configurable Power (VA) | 2000 VA |
| Output Frequency | 50 Hz ± 1 Hz (unsynchronized) |
| UPS Type | Line interactive |
| Waveform | Stepped approximation to a sinewave |
| Efficiency (Full Load) | 92% |
| Transfer Time | 8 ms typical / 12 ms max |
| Output Connector Type | Hard wire 3-wire (1P + N + E) × 1 |
| Cable Length | 1.5 m |
| Battery Voltage | 24 V |
| Battery Charger Power | 576 W rated |
| Extended Runtime | 0 |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| Power Module Free Slots | 0 |
| Power Module Filled Slots | 0 |
| Redundant | No |
| Plug Standard | India 3-pin 16A |
| Input Voltage Limits | 140–300 V |
| Network Frequency | 40–70 Hz auto sensing |
| Colour | Black |
| Height | 22 cm |
| Width | 14.5 cm |
| Depth | 39.2 cm |
| Weight | 13.4 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 ft |
| Storage Temperature | 0–45 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–914.4 m |
| Acoustic Noise Level | 50 dBA |
| IP Protection Rating | IP20 |
| Control Panel | LED status display with online / battery indicators |
| Surge Energy Rating | 160 J |
| Certifications | BIS |
| Provided Equipment | User manual |
| Package Type | PCE |
| Units per Package | 1 |
| Package Height | 33.5 cm |
| Package Width | 23.5 cm |
| Package Length | 47.7 cm |
| Package Weight | 14.3 kg |
| Warranty | 2 years (repair or replace) |
