Description
About the item:

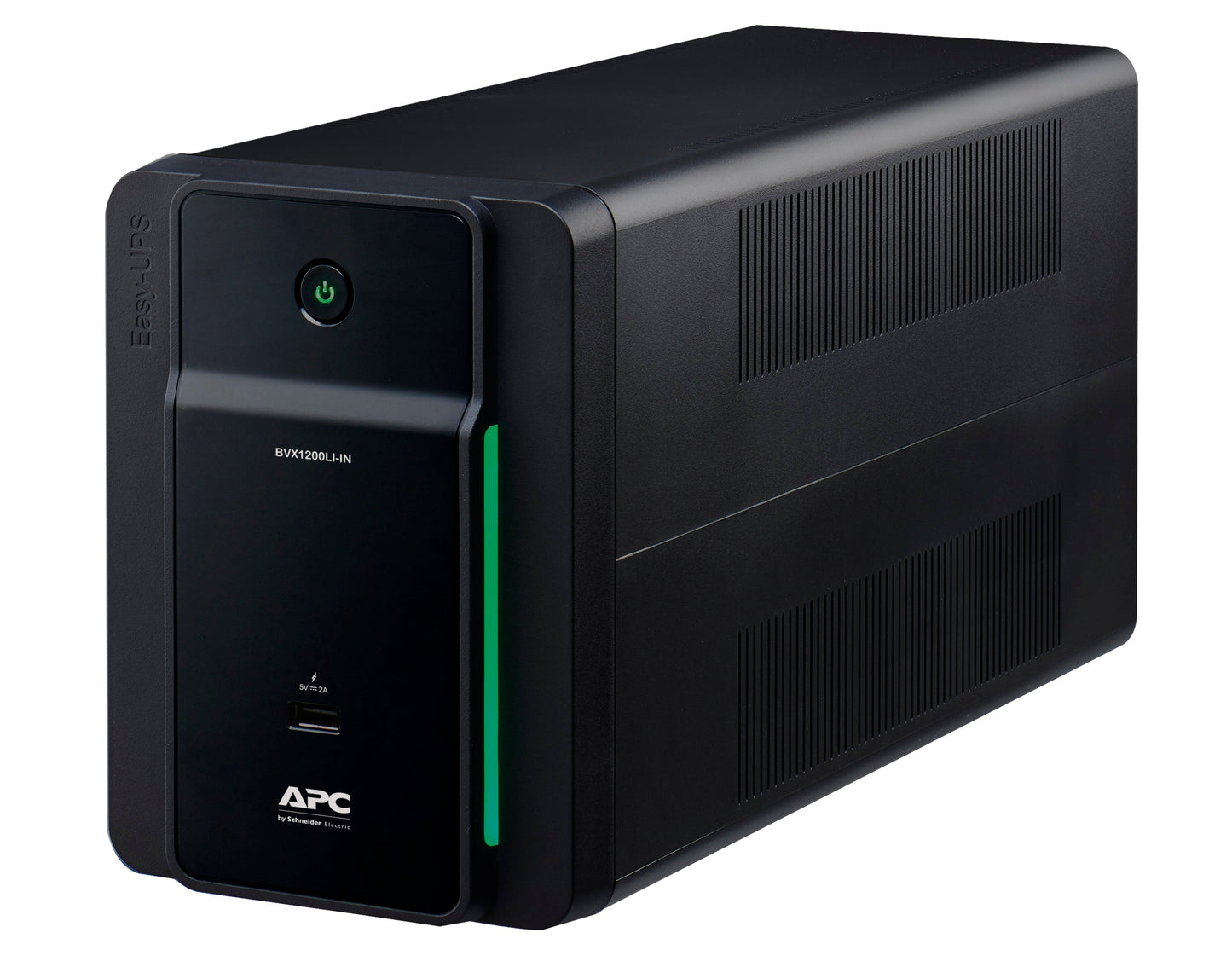

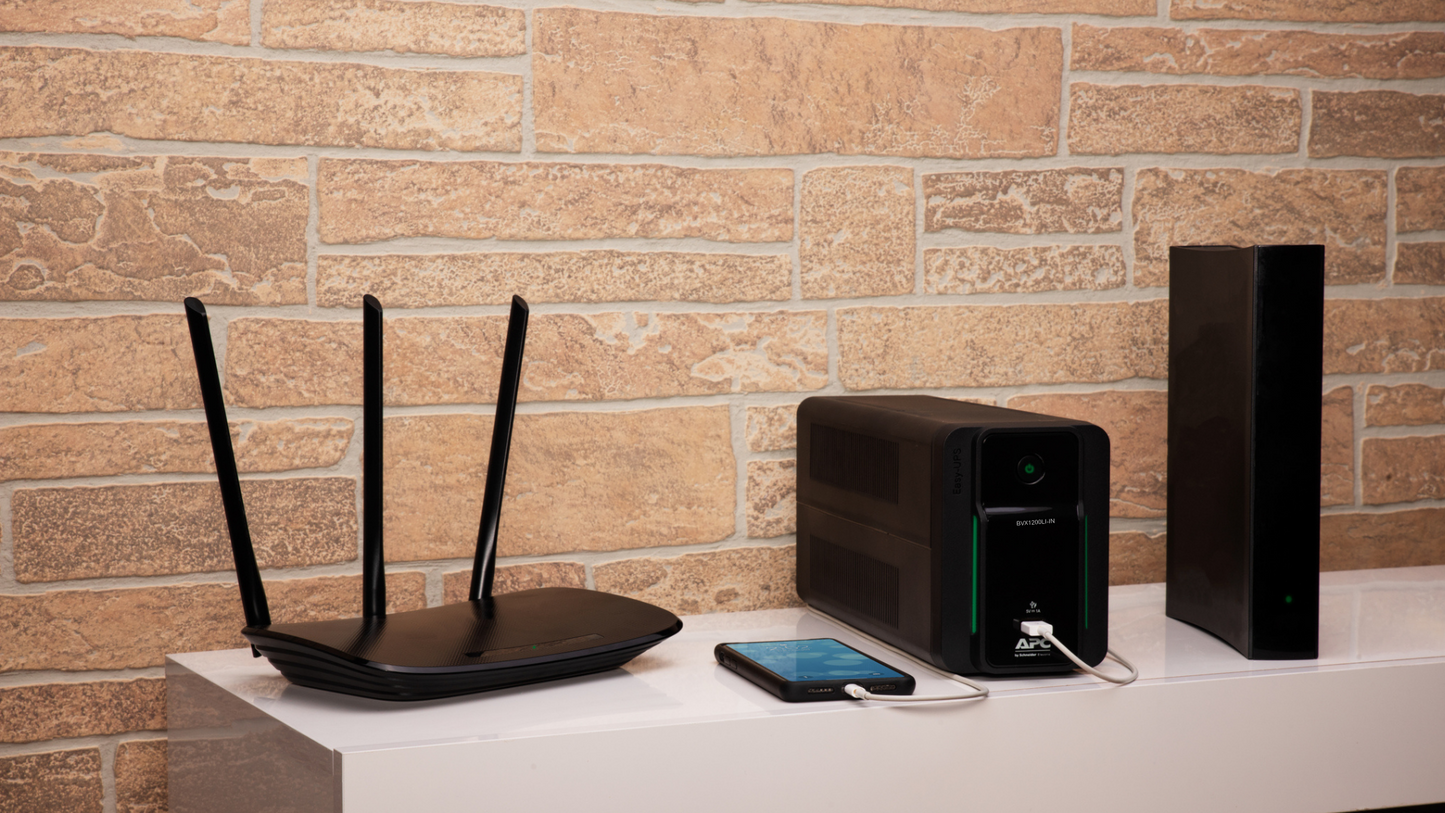

- Reliable Power Protection: 1200VA/650W Line-Interactive UPS provides essential battery backup and surge protection for home & office PCs, routers, modems, surveillance systems, and electronics.
- Stable Power Delivery: Features Automatic Voltage Regulation (AVR) and stepped sine wave output to ensure clean, stable 230V power, safeguarding devices from voltage fluctuations.
- Multiple Connectivity: Equipped with 6 Indian standard battery backup + surge protected outlets to connect and protect multiple devices simultaneously.

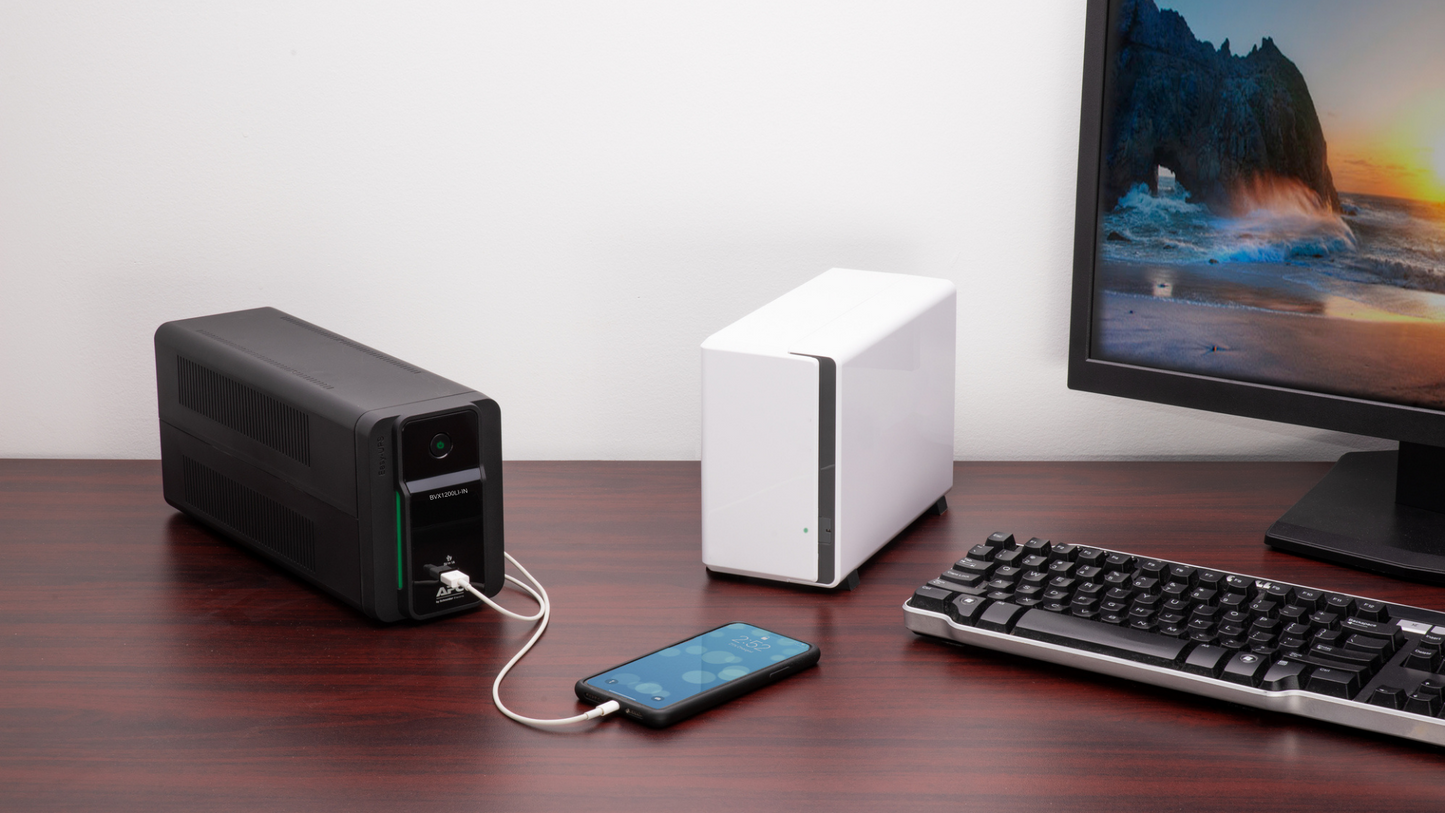

- Convenient USB Charging: Includes a 5V 2A USB charging port for quickly charging smartphones, tablets, and other USB-powered devices.
- Emergency Backup Power: Provides up to 4.5 minutes of backup at 50% load (1.6 minutes at 75% load) with a high-quality 12V 9Ah sealed lead-acid battery.
- Intuitive Monitoring: LED indicators and audible alarms offer real-time status updates on power conditions, battery level, and potential issues.
- Compact & Efficient: Space-saving design (7.5 kg) with a fast recharge time (6 hours to 90%) and 255 Joules surge protection across all outlets.
- Certified Quality: BIS approved for safety and reliability, ensuring peace of mind.
- Dual Warranty: Backed by a 2-year warranty on the UPS and a 1-year warranty on the battery for dependable performance.
Key Features:
-
Power Capacity: 1200VA / 650W – ideal for home offices, routers, PCs, and entertainment systems.
-
Battery Backup: 12V 9Ah sealed lead-acid battery; 4.5 minutes at 50% load, 1.6 minutes at 75% load.
-

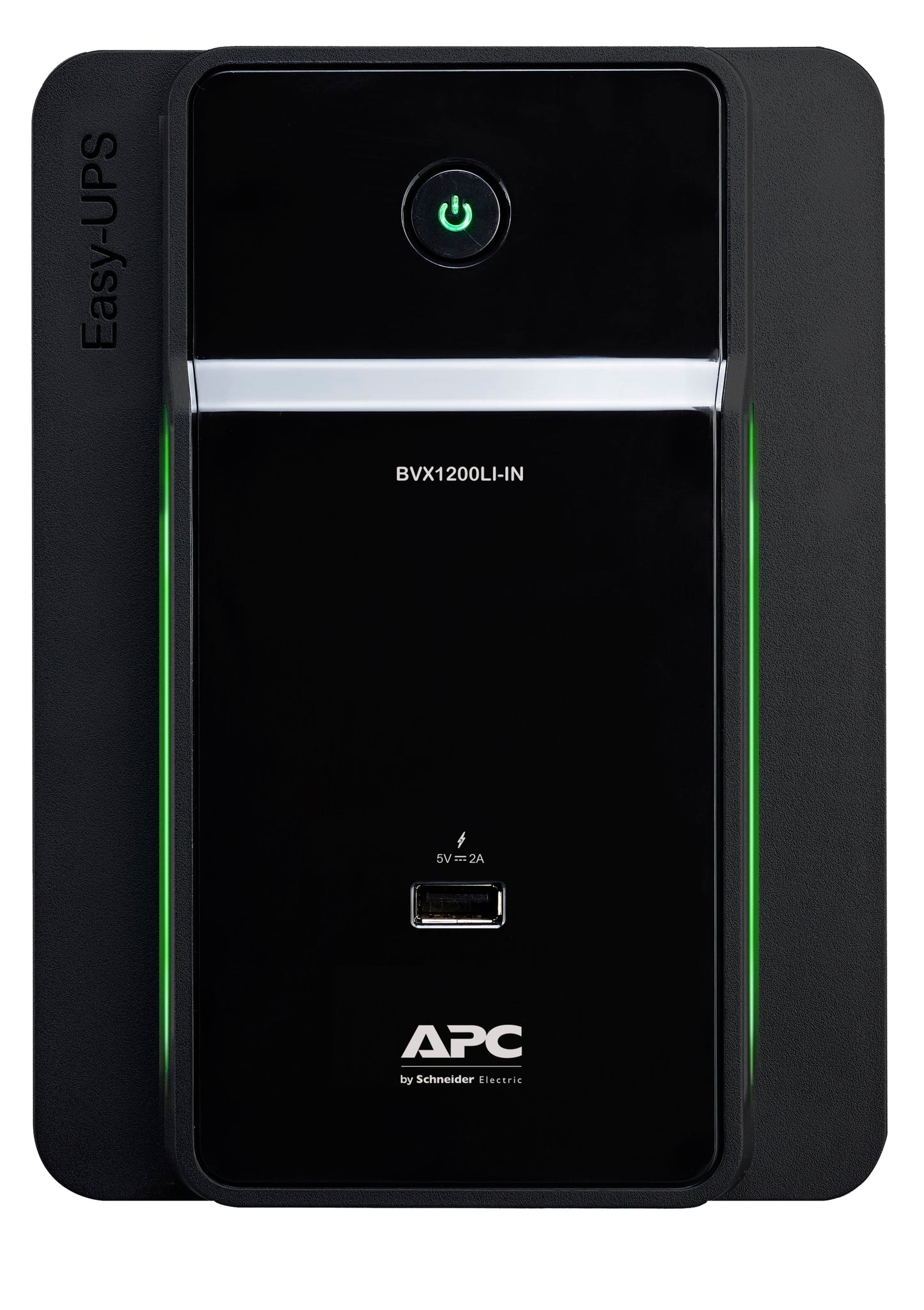

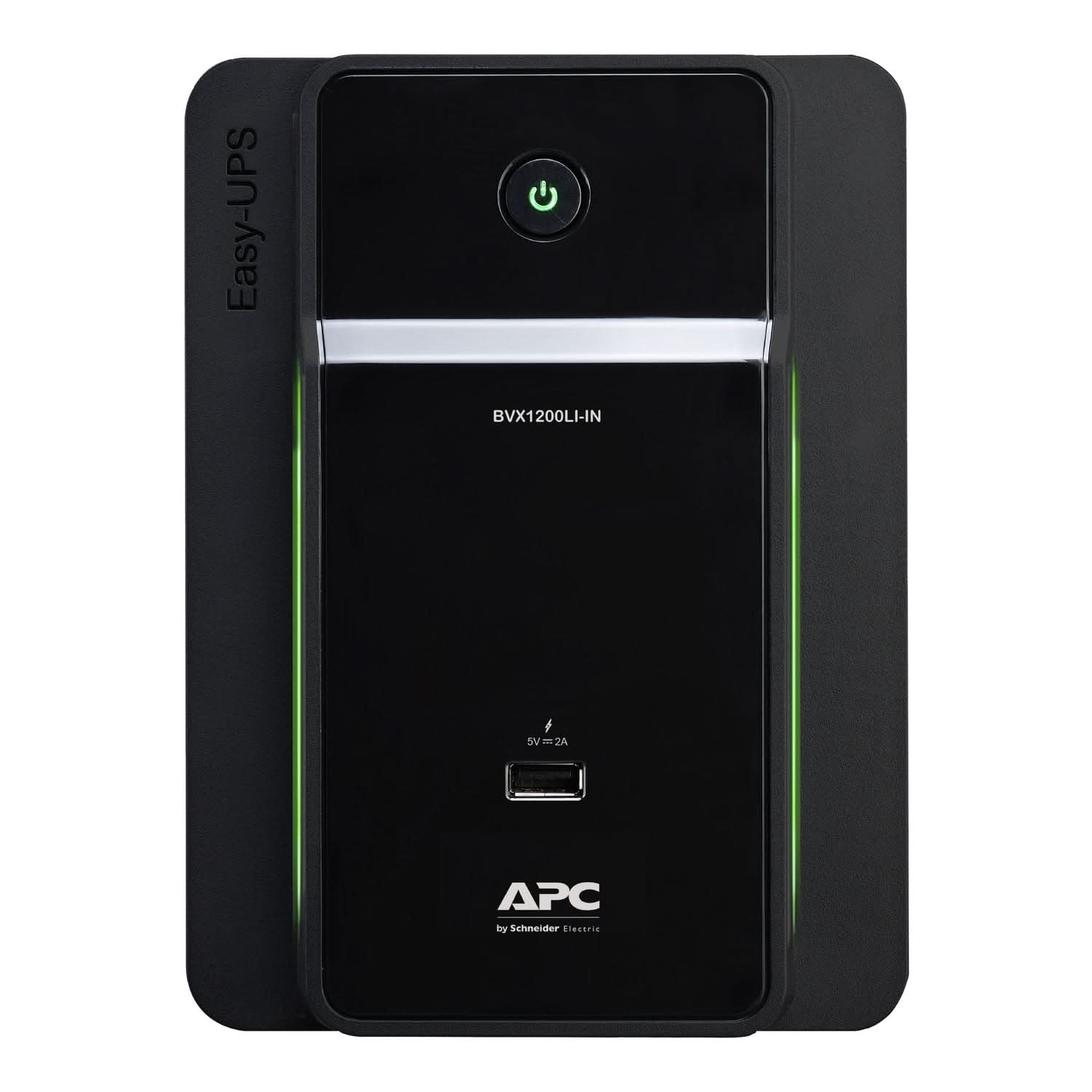

USB Charging: 5V DC, 2A port for convenient smartphone/tablet charging.
-
Output: 230V ±10%, 50/60Hz ±0.5Hz; stepped sine wave output.
-
Input Voltage Range: 140–300V AC; 50/60Hz ±5Hz.
-
Surge Protection: 255 Joules across all outlets.
-

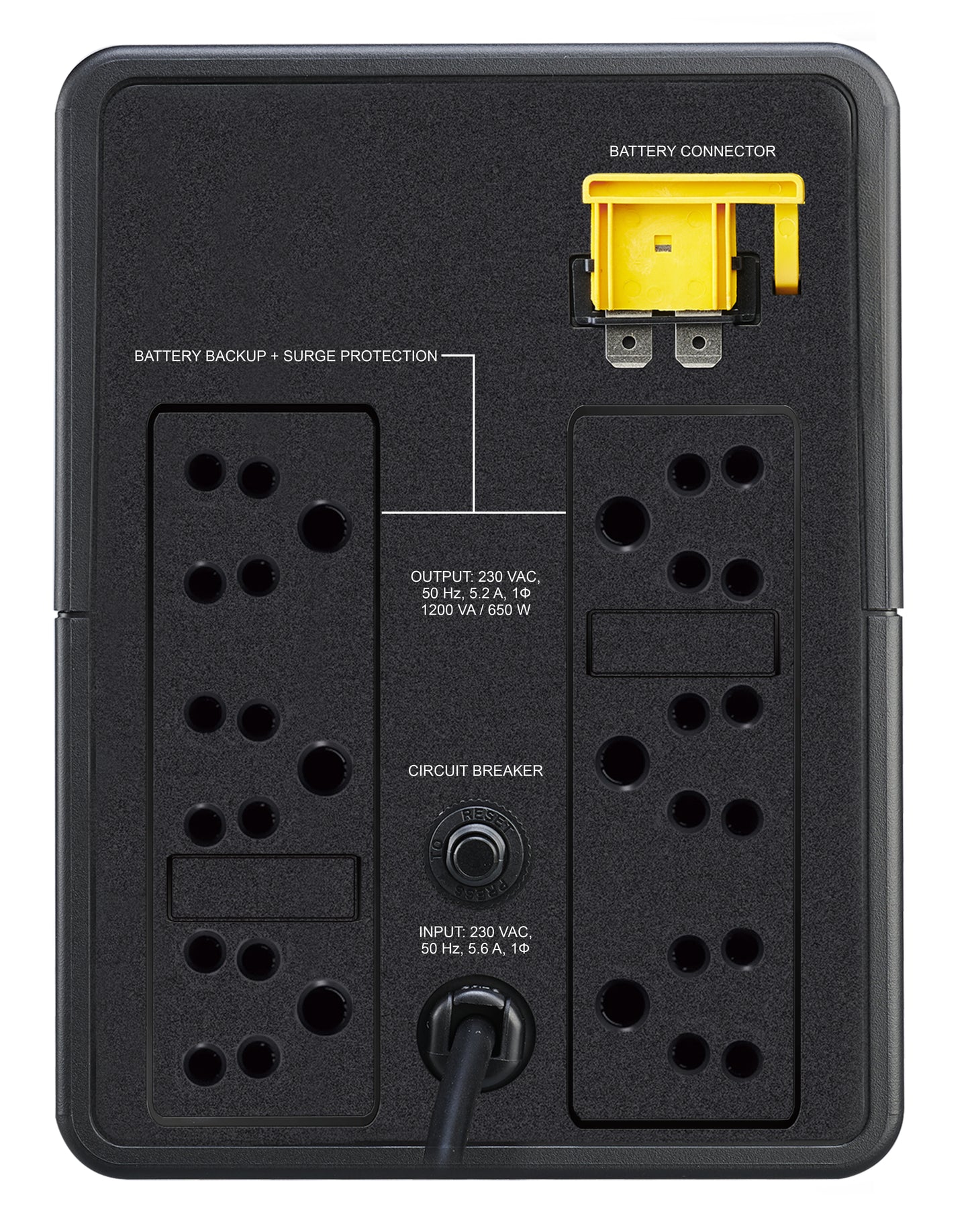

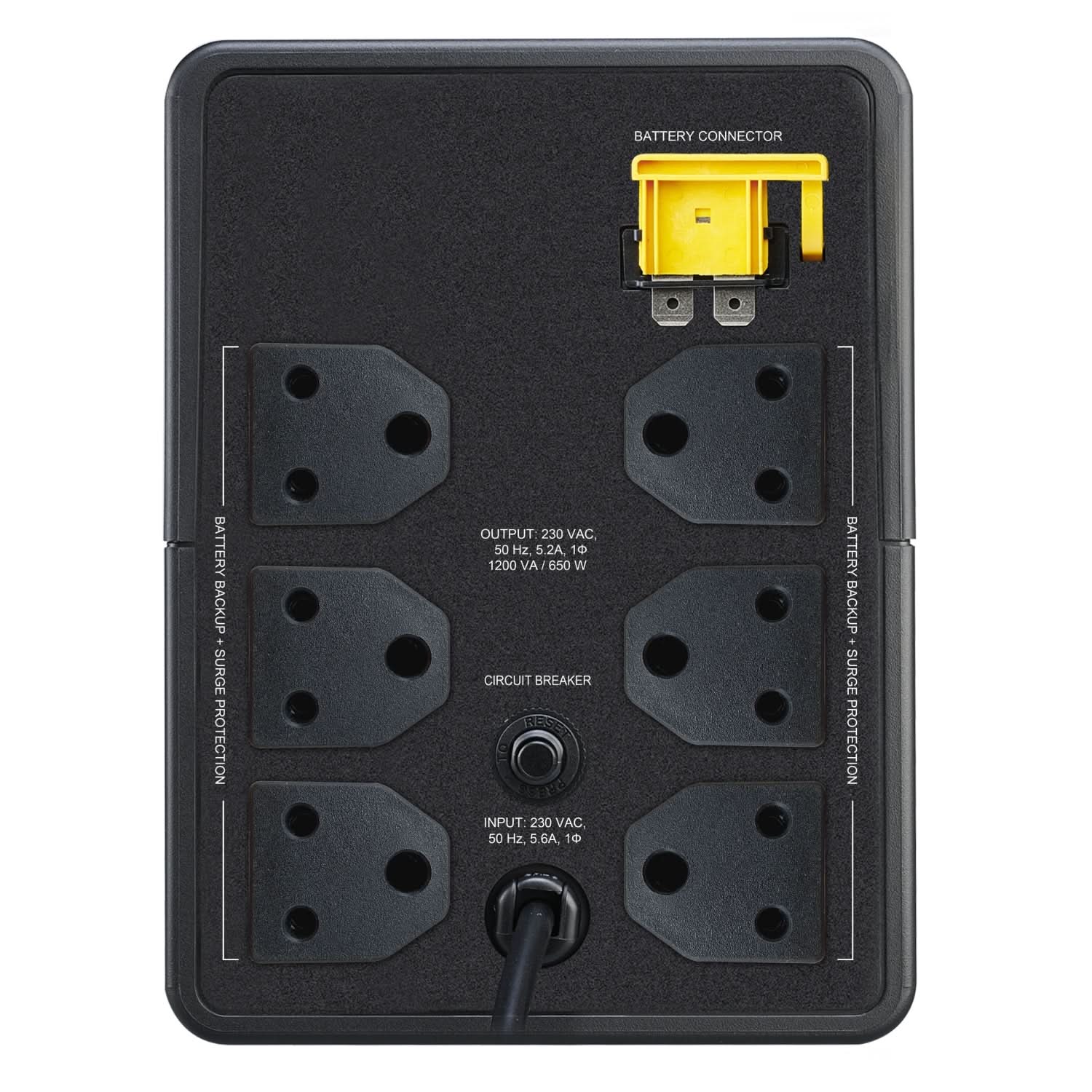

Outlets: 6 Indian standard battery backup + surge protection outlets.
-
Recharge Time: 6 hours to 90% capacity.
-
Indicators: LED status indicators for power and battery conditions.
-

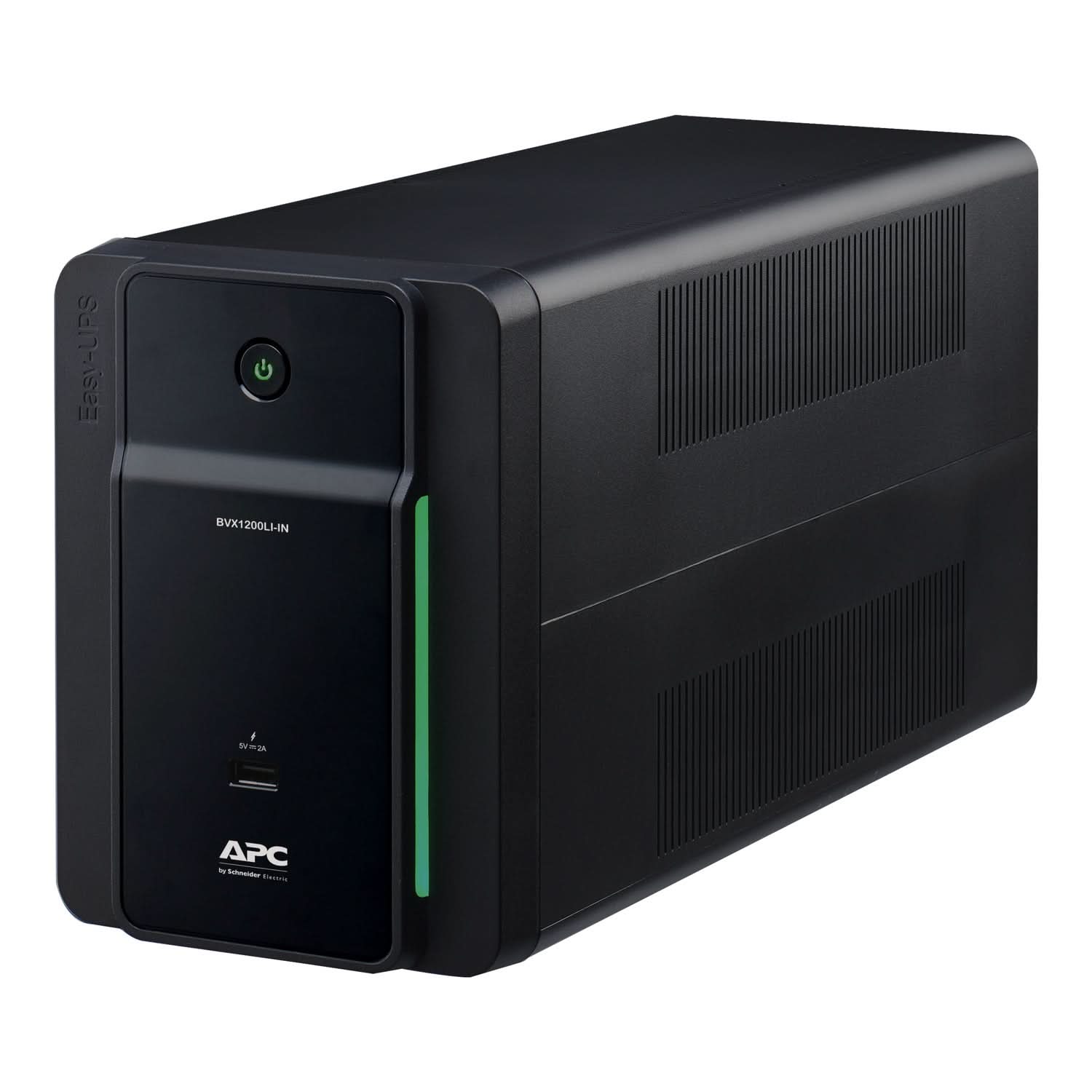

Form Factor: Compact design; dimensions: 190 x 140 x 390 mm; weight: 7.5 kg.
-
Noise Level: <45 dBA at 1 meter.
-
Certifications: BIS approved.
-
Warranty: 2 years on UPS, 1 year on battery.
Specifications
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Range | Easy UPS |
| Run Time for Load | 650 W |
| Min–Max Load Range | 65–650 W |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 230 V |
| Rated Power (W) | 650 W |
| Rated Power (VA) | 1200 VA |
| Maximum Configurable Power (W) | 650 W |
| Maximum Configurable Power (VA) | 1200 VA |
| Output Frequency | 50/60 Hz ±1 Hz unsynchronised |
| UPS Type | Line interactive |
| Waveform | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical / 10 ms maximum |
| Efficiency | View Efficiency Graph |
| Output Connection Type | 6x India 3-pin 6A |
| Cable Length | 1.2 m |
| Number of Cables | 1 |
| Battery Type | Lead-acid battery |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| Battery Charger Power | 14 W rated |
| Battery Recharge Time | 6 h |
| Extended Runtime Supported | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Graph Display | Yes |
| Battery Runtime Graph Note | View Runtime Graph |
| Provided Equipment | User manual |
| Power Module Slots (Free / Filled) | 0 / 0 |
| Redundant | No |
| UPS Size | WS |
| Colour | Black |
| Height | 19.0 cm |
| Width | 14.0 cm |
| Depth | 39.0 cm |
| Product Weight | 7.5 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Network Frequency | 40–70 Hz ±5 Hz auto-sensing |
| Plug Standard | India 3-pin 6A |
| Input Voltage Limits | 140–300 V |
| Input Protection Type | Circuit breaker |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 m |
| Storage Temperature | -20–50 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–15000 m |
| Acoustic Noise Level | 40 dBA |
| IP Degree of Protection | IP20 |
| Control Panel | LED status display with online, battery, replace battery, and overload indicators |
| Alarms | On battery, low battery, overload (distinctive tones) |
| Surge Energy Rating | 255 J |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H x W x L) | 29.7 cm x 49.5 cm x 23.5 cm |
| Package Weight | 8.5 kg |
| Warranty | 2 Years on UPS & 1 Year on Battery |
