Description
About the item
- Flexible & Scalable Power Solution: 2000VA/1600W True Double-Conversion On-Line UPS (Battery-Free) for IT and server rooms, offering unmatched flexibility for extended runtime configurations with external batteries.
- Customizable Battery Support: Designed to work with third-party external batteries (72V system), featuring a programmable charging current (1-8A) to precisely match your backup needs.
- Pure, Uninterrupted Power: Delivers clean, pure sine wave output (230V), protecting sensitive equipment from all power disturbances, including surges, sags, and outages.
- Wide Voltage Compatibility: Operates reliably across a wide input voltage range (160-280V full load, 110-285V half load), making it ideal for unstable power environments in India.

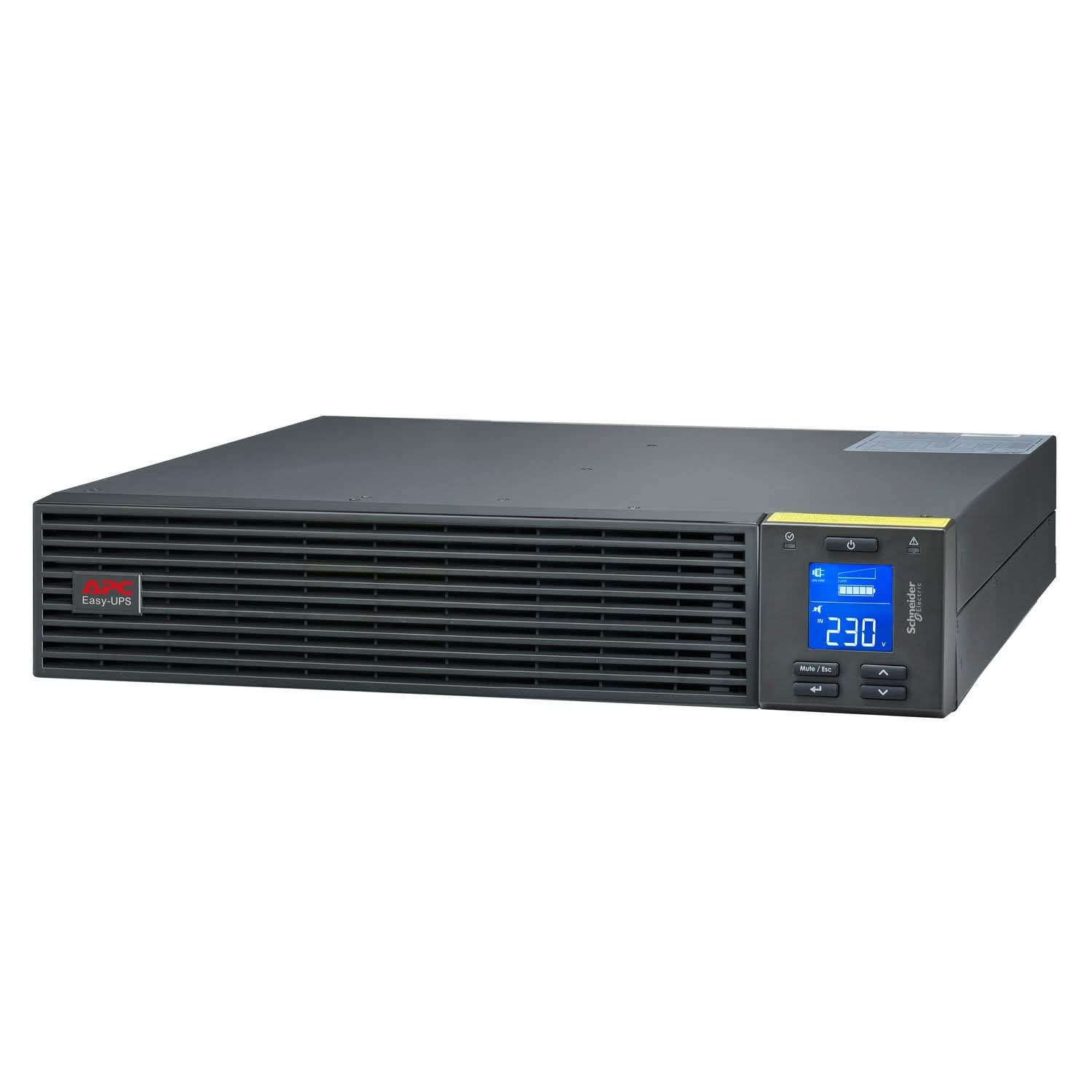

- Efficient Rackmount Design: Space-saving Rackmount 2U form factor (no rail kit included) for seamless integration into server racks and efficient use of valuable IT space.

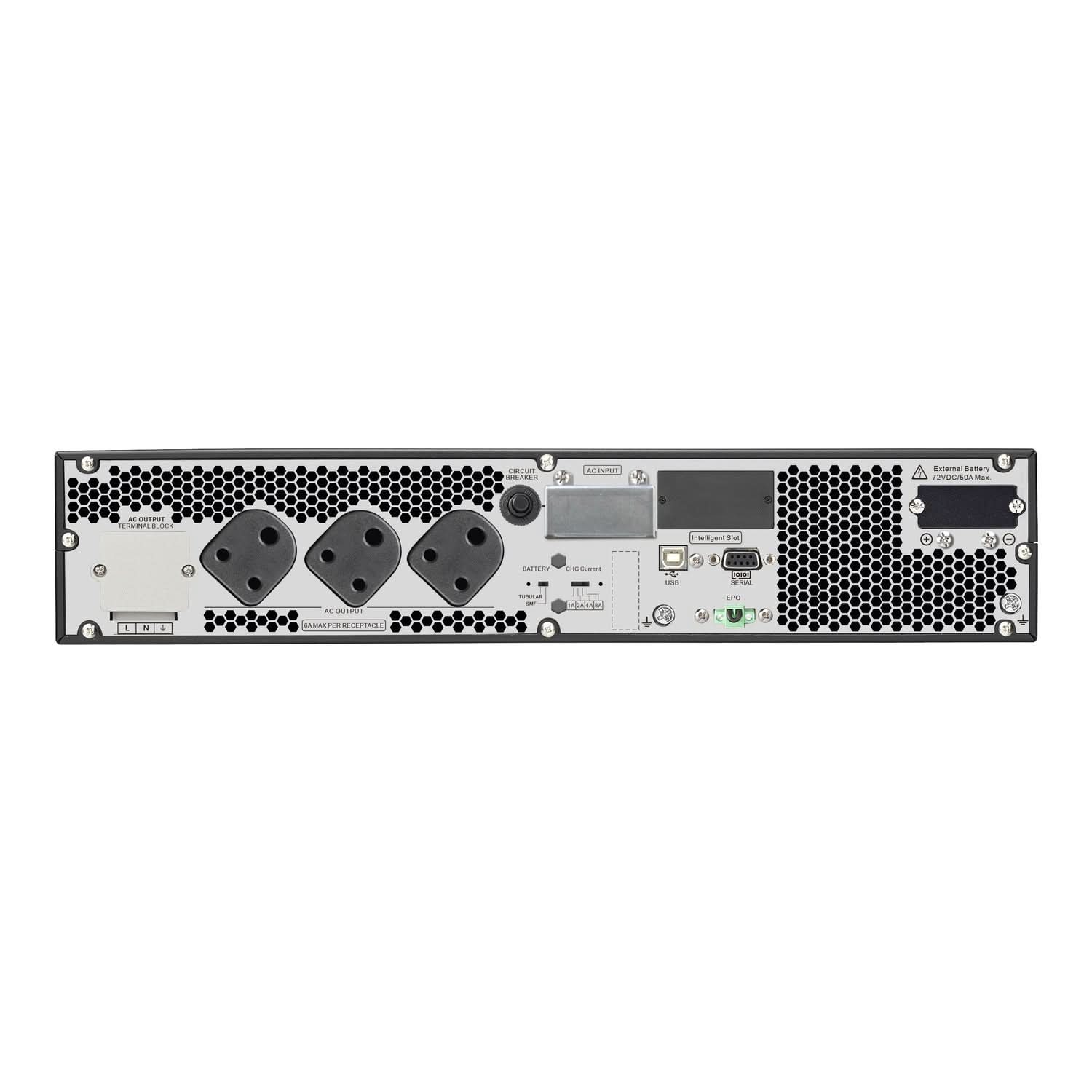

- Comprehensive Connectivity & Monitoring: Features 3x 6A Outlets + Hardwire connection, a multi-function LCD display, USB and RS-232 ports, and an Intelligent Slot for optional network management.
- Energy-Saving Operation: Achieves up to 90% efficiency in double-conversion mode and 95% in ECO mode, reducing energy consumption and operational costs.
- Enhanced Safety & Reliability: Includes Emergency Power Off (EPO) support and is generator compatible for robust power continuity.
- 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for dependable performance and peace of mind.
Key Features:
-
Power Capacity: 2000 VA / 1600 W – suitable for IT, telecom, and industrial loads.
-
Topology: True double-conversion online – delivers clean, uninterrupted power.
-
Input Voltage Range: 160–280V (full load), 110–285V (half load) – ideal for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Battery Support: No internal battery – supports third-party external batteries for flexible runtime.
-
Battery Charger: Programmable charging current (1–8A); 72V battery system.
-
Efficiency: Up to 90% in double-conversion mode, 95% in ECO mode – reduces energy costs.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management cards.
-
Display: Multi-function LCD with LED indicators for real-time system monitoring.
-
Safety: Emergency Power Off (EPO) with NC contacts for enhanced safety.
-
Design: Rack-mountable 2U form factor; dimensions: 438 x 86.2 x 462.2 mm; weight: 9.8 kg.
-
Environment: Operates at 0–40°C, <50 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specification
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 1600 W / 2000 VA |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Input Voltage Limits | 110–280 V (half load), 160–280 V (full load) |
| Input Frequency | 40–70 Hz auto sensing |
| Input Connector Type | Hard wire 3-wire (1P + N + E) |
| Output Connector Type | 3× India 3-pin 6A, 1× Hard wire (1P + N + E) |
| UPS Type | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | ≤ 3% |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Efficiency (Full Load) | 88% |
| Battery Type | External Battery System (Lead-acid) |
| Battery Voltage | 72 V |
| Extended Runtime Support | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Battery Charger Power | 700 W rated |
| Included Equipment | USB cable, RS-232 cable, rack mounting brackets, wall mount feet, battery cable, manual |
| Mounting Mode | Rack-mounted with kit |
| Mounting Units | 2U |
| Mounting Location | Front |
| Mounting Position | Horizontal |
| Color | Black (RAL 7010) |
| USB Compatible | Yes |
| Dimensions (H × W × D) | 8.6 × 43.8 × 46.2 cm |
| Product Weight | 9.8 kg |
| Control Panel | Multifunction LCD status and control console |
| Alarm Types | On battery, low battery, overload (distinctive and continuous tone) |
| Surge Energy Rating | 600 J |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 745 BTU/h |
| IP Rating | IP20 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% non-condensing |
| Package Dimensions (H×W×L) | 24 × 70 × 54.5 cm |
| Package Weight | 13.9 kg |
| Warranty | 2 Years Repair or Replace |
