About the item
- Robust Double-Conversion Protection: 3kVA/2400W On-Line UPS delivers continuous, pure sine wave power, crucial for critical IT, servers, data centers, and sensitive business equipment.
- Built for Indian Power Grids: Features a wide input voltage range (160-280V full load, 110-280V half load), ensuring stable operation even amidst severe voltage fluctuations.

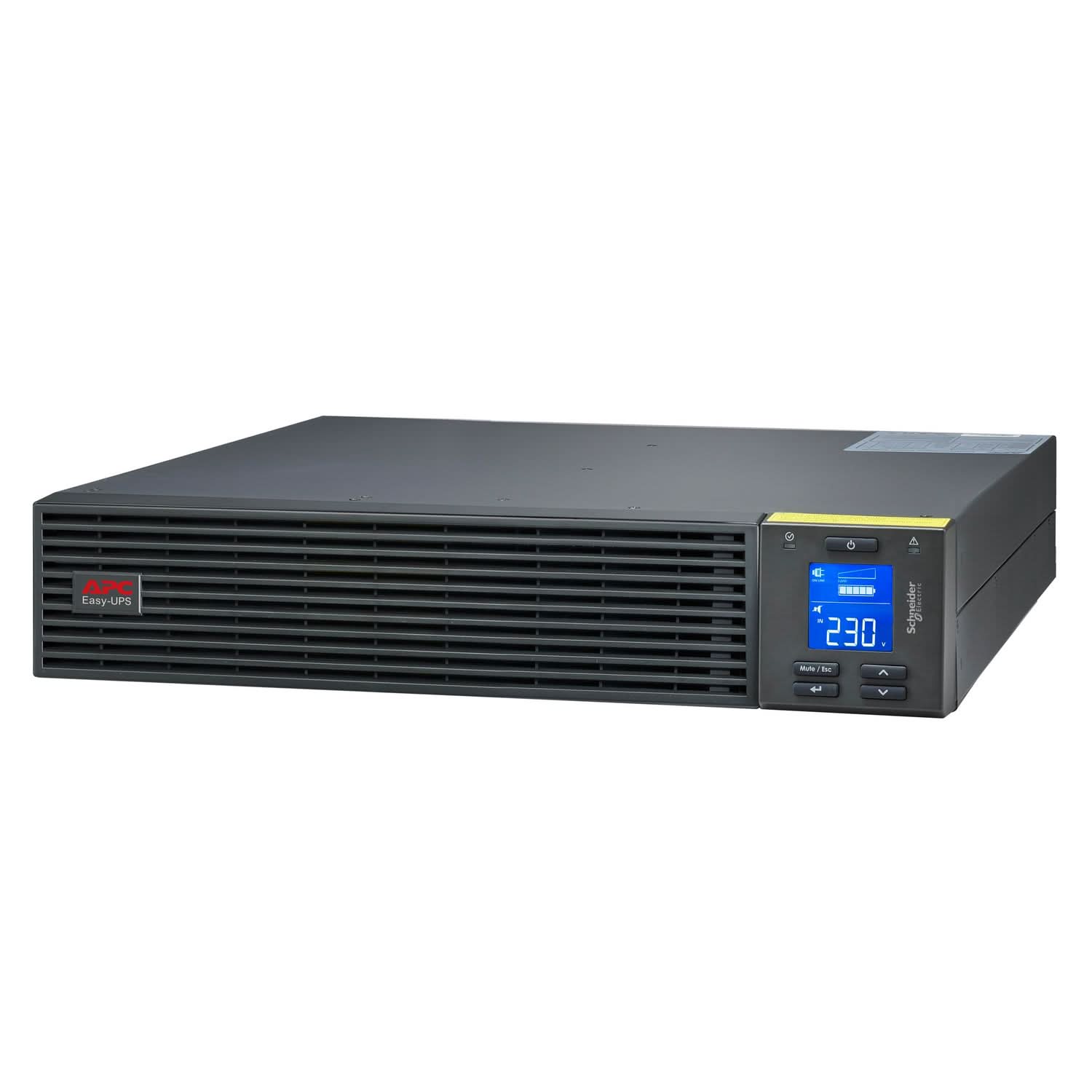

- Rackmount 2U Space-Saver: Efficient rack-mountable 2U form factor (no rail kit included) integrates seamlessly into existing server racks for optimal space utilization in IT environments.
- Reliable Integrated Battery Backup: Equipped with 6 x 12V 9Ah sealed lead-acid batteries, providing up to 11 minutes of runtime at half load and 3 minutes at full load for safe system shutdowns.
- Comprehensive Output & Connectivity: Offers 4x 6A Outlets + Hardwire connection, plus USB and RS-232 ports, and an Intelligent Slot for optional network management cards.
- Intuitive LCD & Audible Alarms: Multi-function LCD display, LED indicators, and audible alarms provide real-time UPS status, battery level, and alerts for easy monitoring.
- High Energy Efficiency: Achieves up to 90% efficiency in double-conversion mode and 95% in ECO mode, significantly reducing energy consumption and operational costs.
- Enhanced Safety & Compatibility: Features Emergency Power Off (EPO) support and is generator compatible for robust power continuity.
- BIS Certified & 2-Year Warranty: BIS certified for quality assurance and backed by a comprehensive manufacturer's 2-year repair or replace warranty for dependable performance.
Key Features:
-
Power Capacity: 3000 VA / 2400 W – ideal for IT, telecom, and industrial applications.
-
Topology: True double-conversion online – ensures clean, uninterrupted power.
-
Input Voltage Range: 160–280V (full load), 110–280V (half load) – suitable for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Battery Backup: 6 x 12V 9Ah sealed lead-acid batteries; 11 minutes at half load, 3 minutes at full load.
-
Recharge Time: 4 hours to 90% capacity.
-
Efficiency: Up to 90% in double-conversion mode, 95% in ECO mode – reduces energy and cooling costs.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management.
-

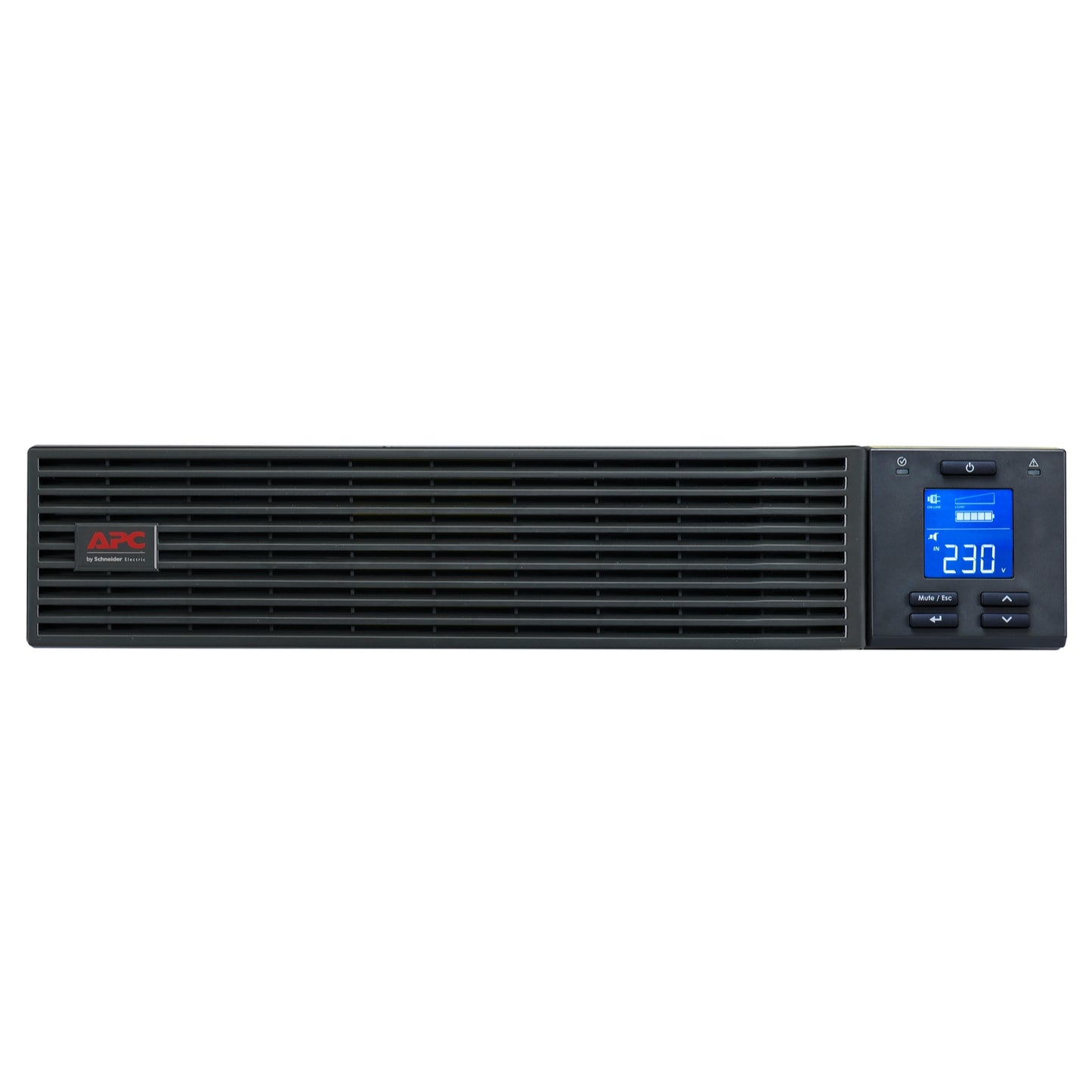

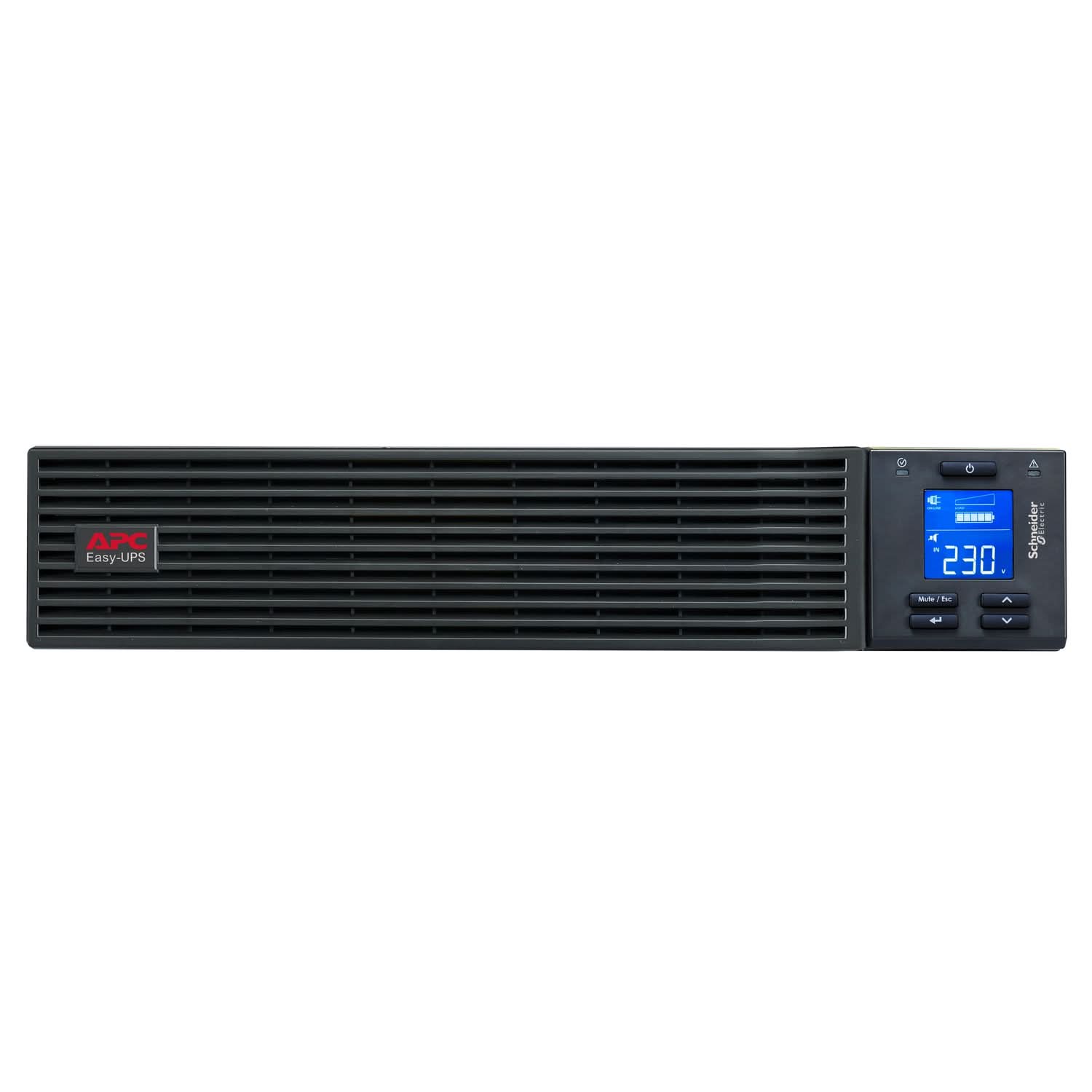

Display: Multi-function LCD with LED indicators for real-time system status.
-
Safety: Emergency Power Off (EPO) with NC contacts.
-
Design: Rack-mountable 2U form factor; dimensions: 438 x 88 x 632 mm; weight: 28 kg.
-
Environment: Operates at 0–40°C, <50 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
| Category | Details |
|---|---|
| Presentation | High quality, Double-conversion On-line UPS for essential power protection |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Rated Power (W / VA) | 2400 W / 3000 VA |
| Configurable Output Voltage | 220 V, 230 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Input Voltage Limits | 110–280 V (half load), 160–280 V (full load) |
| Input Frequency | 40–70 Hz auto sensing |
| Input Connector Type | IEC 60320 C20 |

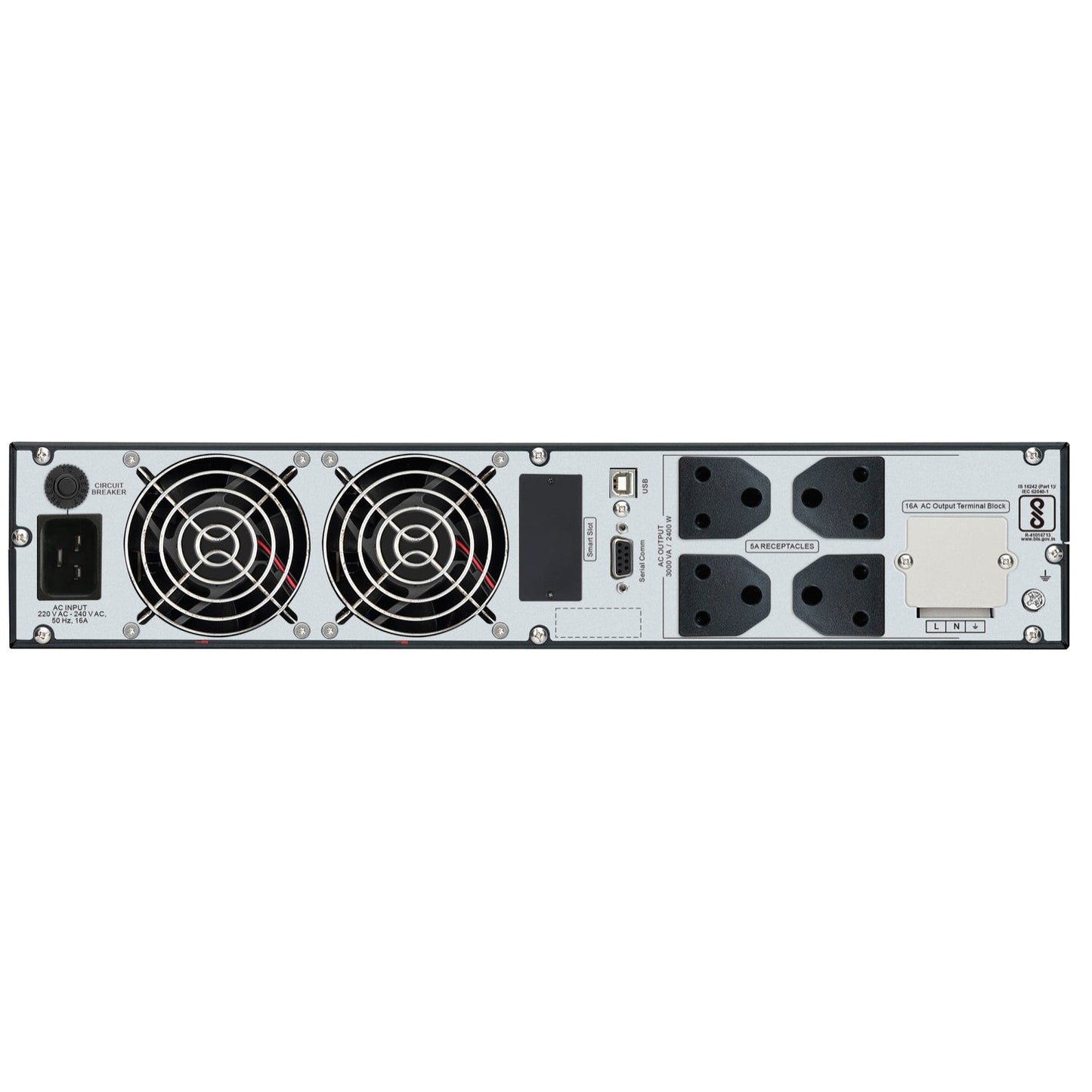

| Output Connector Type | 4× India 3-pin 6A, 1× Hard wire (H + N + E) |
| UPS Type | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | ≤ 3% |
| Output Frequency | 50/60 Hz ±3 Hz sync to mains |
| Efficiency (Full Load) | 90% |
| Max. Runtime @ Full Load | 2 min 38 sec |
| Battery Type | Lead-acid (Internal) |
| Battery Voltage | 72 V |
| Extended Runtime Support | No |
| Battery Slots (Filled / Free) | 1 / 0 |
| Battery Recharge Time | 4 h |
| Battery Charger Power | 60 W rated |
| Replacement Battery | APCRBCV202 |
| Included Equipment | USB cable, RS-232 cable, C19 to India 3-pin 16A cable, rack mounts, feet, user manual |
| Mounting Mode | Rack-mounted |
| Mounting Units | 2U |
| Mounting Location | Front |
| Mounting Position | Horizontal |
| Color | Black (RAL 7010) |
| USB Compatible | No |
| Dimensions (H × W × D) | 8.8 × 43.8 × 63.2 cm |
| Product Weight | 28 kg |
| Control Panel | Multifunction LCD status and control console |
| Alarm Types | Audible and visual (prioritized by severity) |
| Surge Energy Rating | 600 J |
| Acoustic Noise Level | 50 dBA |
| Heat Dissipation | 910 BTU/h |
| IP Rating | IP20 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Relative Humidity (Op/Storage) | 0–95% non-condensing |
| Package Dimensions (H×W×L) | 22.8 × 79.4 × 57 cm |
| Package Weight | 32 kg |
| Warranty | 2 Years Repair or Replace |
