Description
About the item
- Next-Gen Lithium-ion Performance: Experience superior reliability and lower Total Cost of Ownership (TCO) with the 2000VA/1800W Lithium-ion On-Line UPS, offering 3X longer battery life and ultra-fast recharge (90% in just 1.5 hours) compared to traditional VRLA batteries.
- Pure Sine Wave Double-Conversion: Ensures pristine, uninterrupted, and stable power with true double-conversion topology, safeguarding sensitive IT equipment, servers, ATMs, POS systems, and micro data centers from all power disturbances.

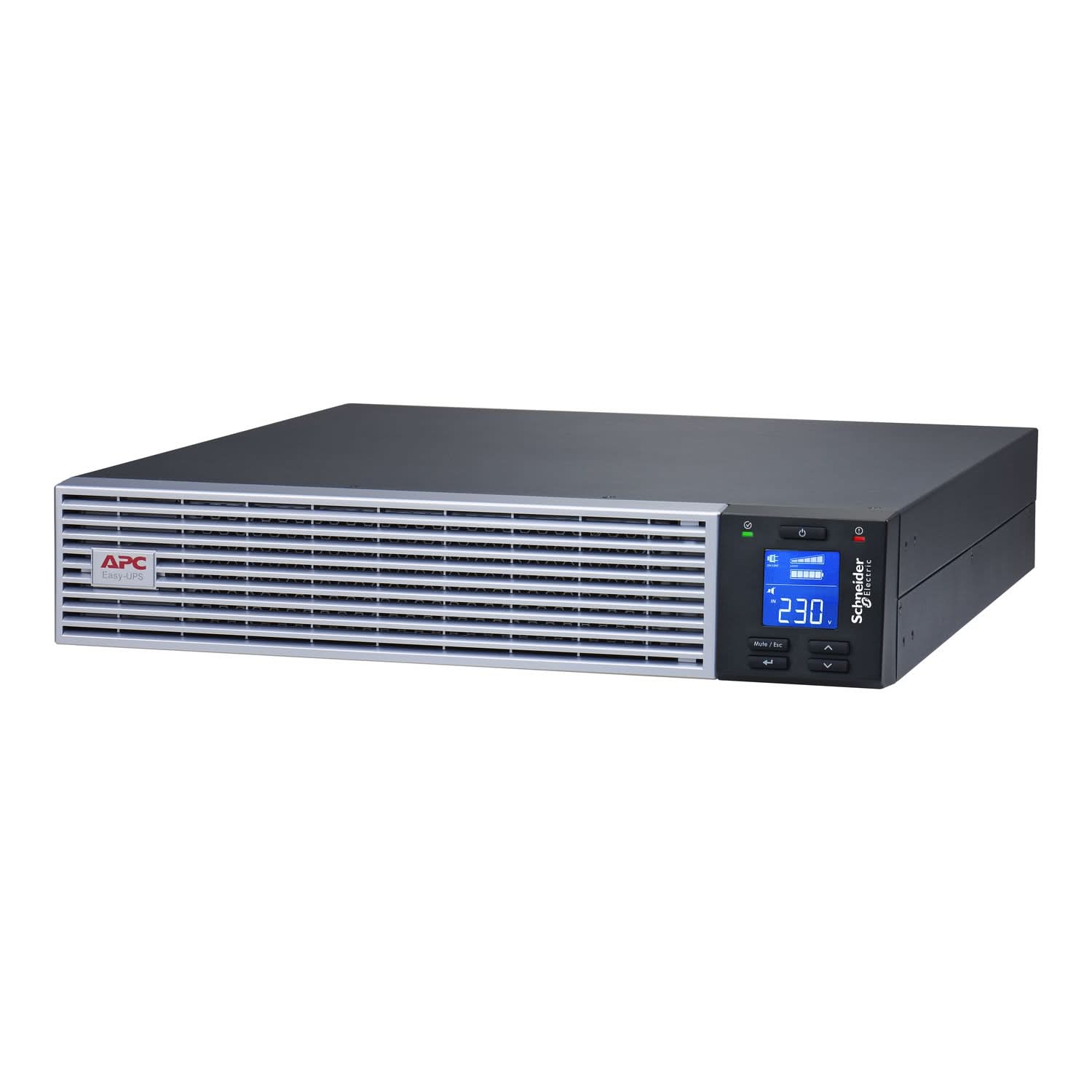

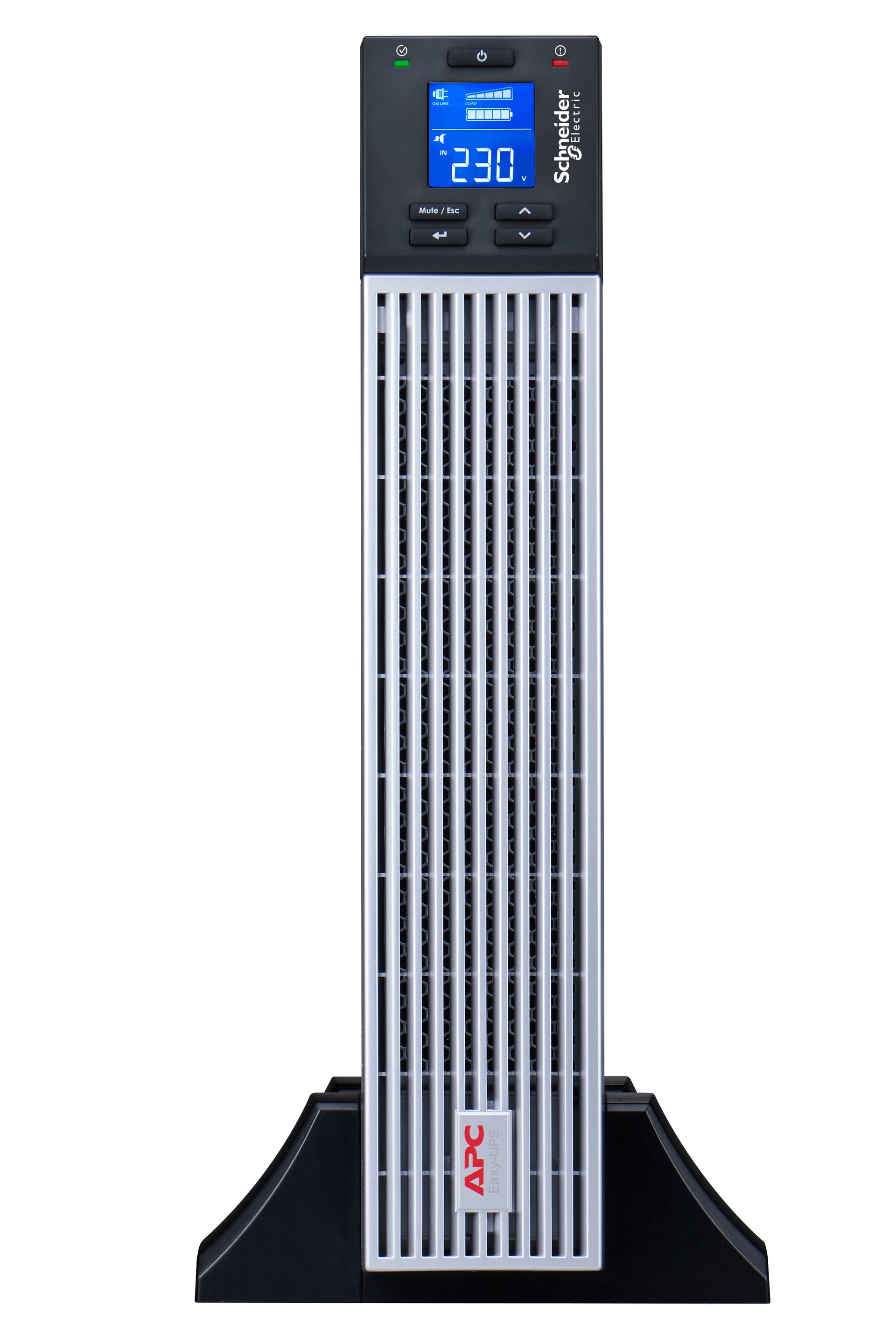

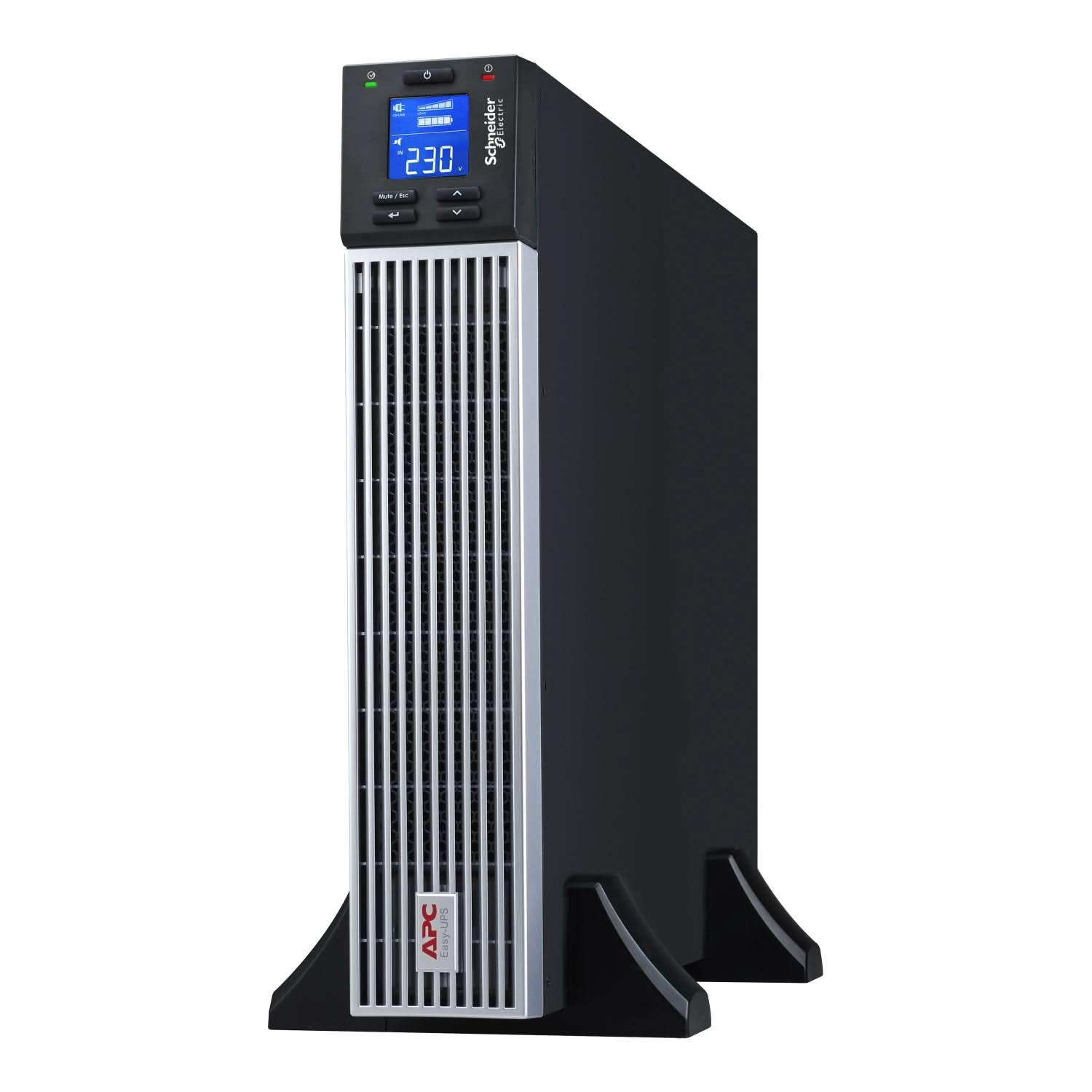

- Flexible Rack/Tower Installation: Adaptable Rack/Tower 2U convertible form factor (438 x 86 x 502 mm) allows for versatile and efficient installation in space-constrained environments in Bengaluru, Karnataka.
- Extended & Reliable Runtime: Provides ample backup with up to 20 minutes at half load and 10 minutes at full load (with 432 Wh capacity), crucial for safe system shutdowns and continuous operations.
- High Energy Efficiency: Achieves impressive efficiency of up to 90% in online mode and 96% in ECO mode, significantly reducing electricity consumption and cooling costs for your business.
- Intuitive Monitoring & Smart Management: Features a 90° rotatable LCD display, LED indicators, and intuitive navigation keys for real-time status monitoring, plus an Intelligent Slot for optional network management via USB and RS-232 ports.

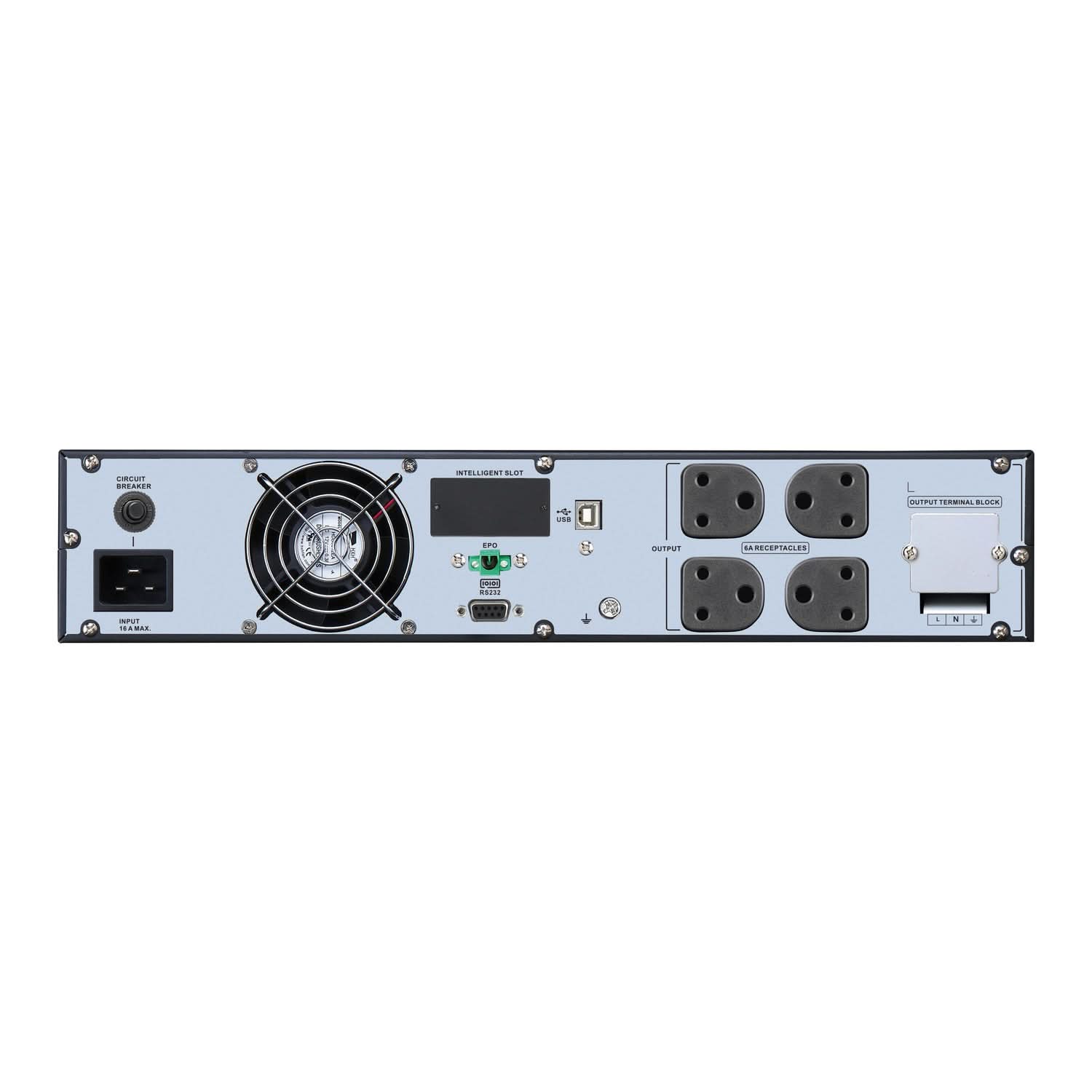

- Comprehensive Output Connectivity: Equipped with 4 outlets + Hardwire connection for flexible power distribution to multiple critical devices.
- Enhanced Safety & Compliance: Includes Emergency Power Off (EPO) support and is BIS certified (along with IEC 62040-1, IEC 62619, UN 38.3) for assured safety and quality.
- 3-Year Comprehensive Warranty: Enjoy ultimate peace of mind with an industry-leading 3-year repair or replace warranty covering both electronics and the advanced lithium-ion battery.
Key Features:
-
Power Capacity: 2000 VA / 1800 W – suitable for IT, retail, and edge applications.
-
Battery Type: Internal lithium-ion battery with 432 Wh capacity – 3× longer life than VRLA.
-
Runtime: Up to 20 minutes at half load and 10 minutes at full load.
-
Recharge Time: Fast recharge – 90% capacity in just 1.5 hours.
-
Efficiency: Up to 90% in online mode, 96% in ECO mode – reduces energy costs.
-
Topology: Double-conversion online – delivers pure sine wave output.
-
Input Voltage Range: 160–285V (full load), 110–285V (60% load).
-
Output Voltage: 230V (user-selectable 220V/240V).
-
Display & Controls: 90° rotatable LCD, LED indicators, intuitive navigation keys.
-
Connectivity: USB, RS-232, and intelligent slot for optional network management.
-
Form Factor: 2U rack height; dimensions: 438 x 86 x 502 mm; weight: 16.9 kg.
-
Safety & Compliance: EPO support, BIS certified, IEC 62040-1, IEC 62619, UN 38.3.
-
Warranty: 3-year comprehensive warranty on electronics and battery.
From the Manufacturer
Specifications
| Category | Specification |
|---|---|
| Presentation | Double-conversion On-line UPS with Lithium-Ion battery and scalable runtime. Ideal for unstable power conditions. |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Main Input Voltage | 230 V |
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltages | 220 V, 240 V |
| Rated Power (W / VA) | 1800 W / 2000 VA |
| Maximum Configurable Power | 1800 W / 2000 VA |
| Run Time at Full Load (1800 W) | 10 min 6 sec |
| Min-Max Load Range | 180–1800 W |
| Max Capacity Used | 100% |
| UPS Type | Double-conversion online |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Output Connector Types | 4x India 3-pin 6A1x Hard wire 3-wire (1P + N + E) |
| Input Connection Type | IEC 60320 C14 |
| Crest Factor | 3:1 |
| Bypass Type | Internal (automatic and manual) |
| Efficiency (Full Load) | 90% |
| Battery Type | Lithium-Ion (Li-Ion) |
| Battery Voltage | 48 V |
| Battery Recharge Time | 1.5 hours |
| Battery Design Life | 8–10 years |
| Replacement Battery | RBCV182-LI |
| Extended Runtime Supported | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Power Module Slots (Filled / Free) | 0 / 0 |
| Color | Black with silver front bezel |
| Dimensions (H × W × D) | 8.6 cm × 43.8 cm × 50.2 cm |
| Product Weight | 16.5 kg |
| Mounting Position | Horizontal and Vertical |
| Rack Units | 2U |
| USB Compatible | Yes |
| Input Voltage Limits | 160–285 V (full load), 110–285 V (60% load) |
| Network Frequency | 40–70 Hz (auto sensing) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 0–95% (non-condensing) |
| Storage Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| Heat Dissipation | 683 BTU/h |
| IP Degree of Protection | IP20 |
| Alarm Types | On battery, Low battery, Overload (distinct tones) |
| Emergency Power Off | Yes |
| Control Panel | Multifunction LCD status and control console |
| Surge Protection | 600 J |
| Certifications | BIS |
| Warranty | 3 years (repair or replace) |
| Provided Equipment | RS-232 cable, USB cable, Detachable power cord, Rack mounting brackets, Stabilization feet, User manual, Safety guide |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H × W × L) | 24 cm × 58 cm × 65 cm |
| Package Weight | 20 kg |
