Description
About the item
- Revolutionary Lithium-ion Technology: Experience unparalleled reliability and lower Total Cost of Ownership (TCO) with the 3000VA/2700W Lithium-ion On-Line UPS, boasting 3X longer battery life and efficient performance compared to VRLA.
- True Double-Conversion for Critical Loads: Delivers pristine, pure sine wave output with double-conversion topology, ensuring unwavering power protection for micro data centers, healthcare IT, telecom, and sensitive industrial equipment against all power disturbances.
- Scalable Extended Runtime: Features an internal 2400 Wh lithium-ion battery for up to 85 minutes at half load / 40 minutes at full load. Expand significantly with up to two external battery packs for over 4 hours of backup.

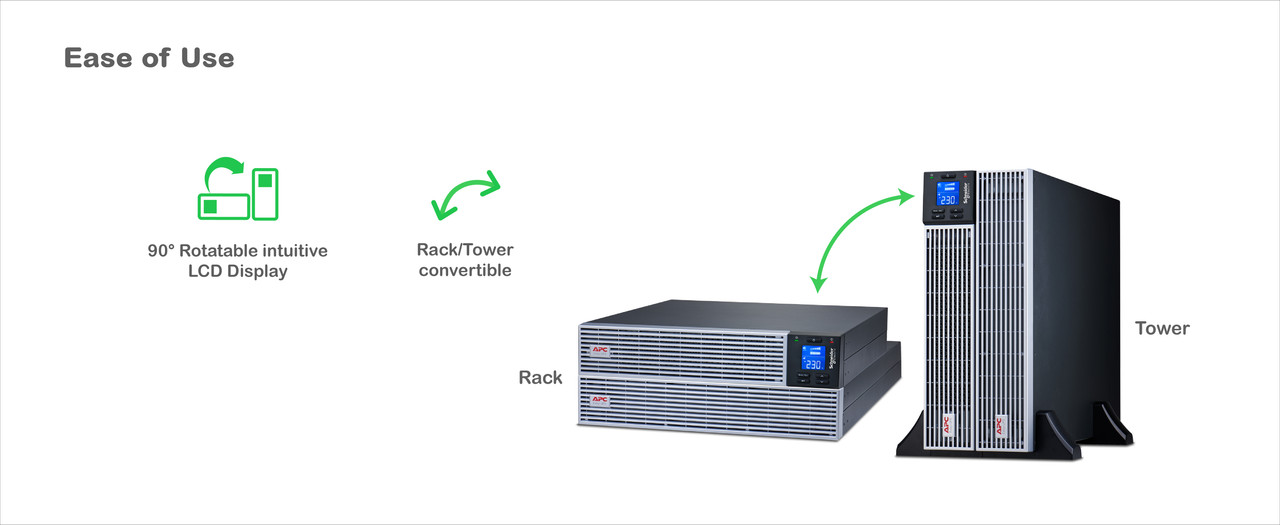

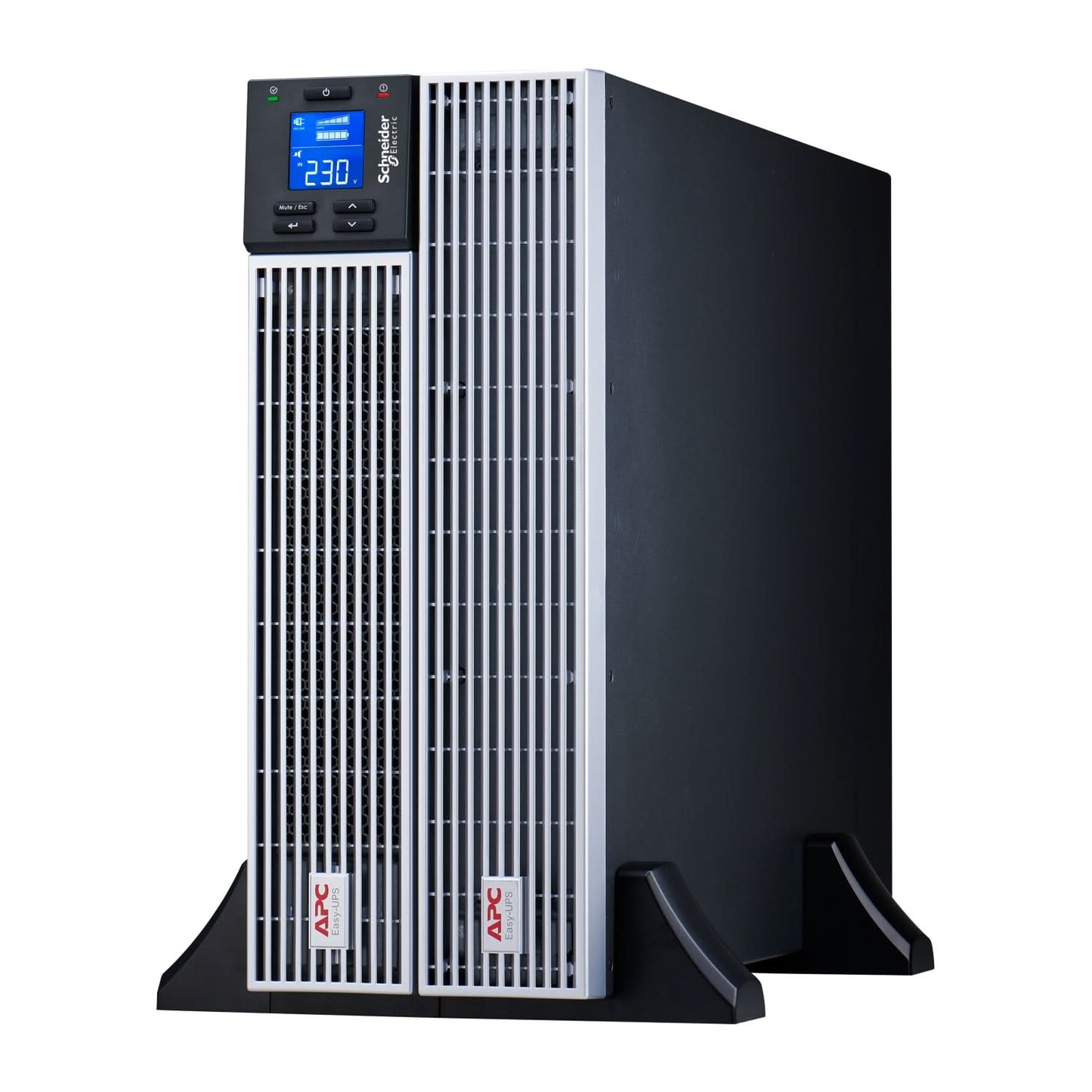

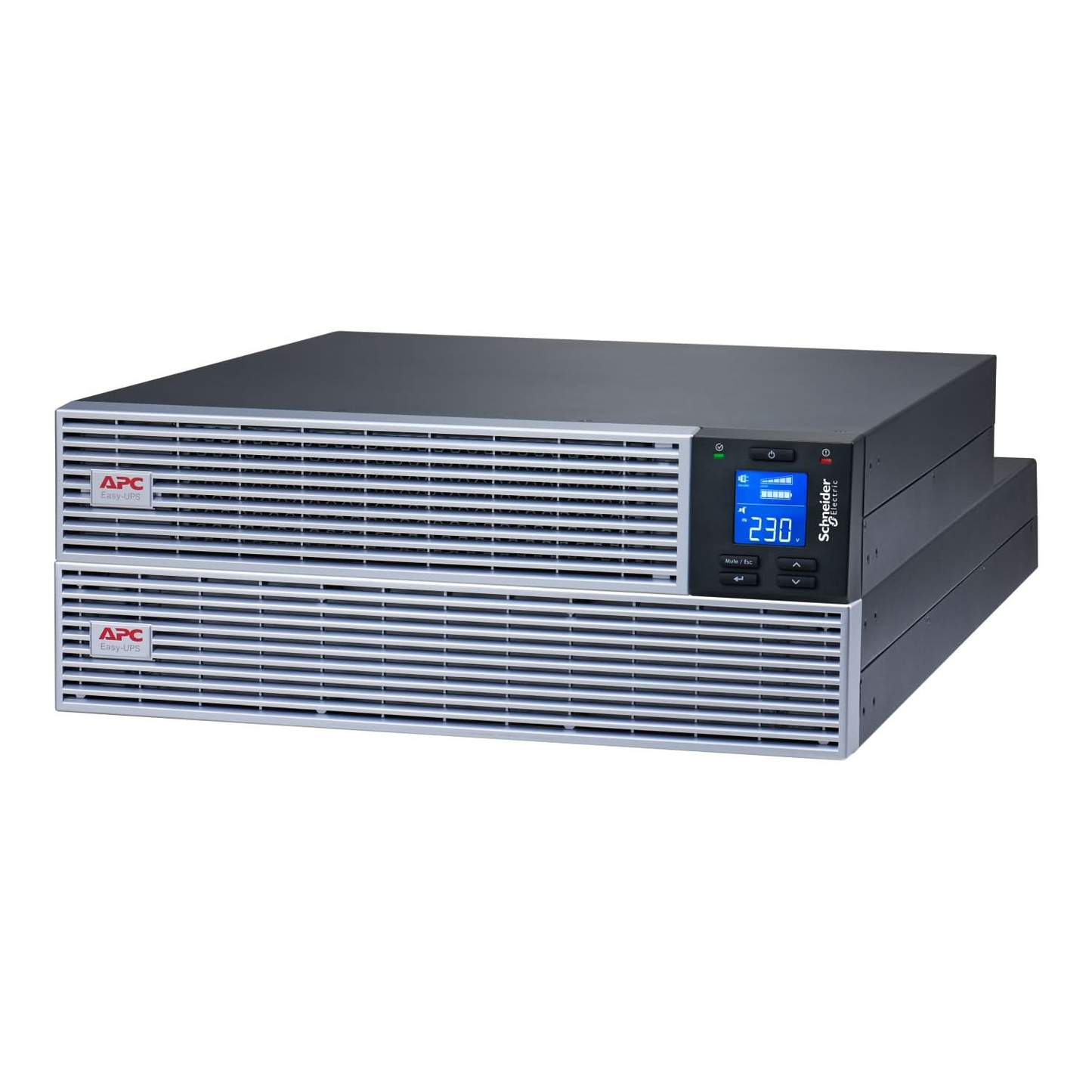

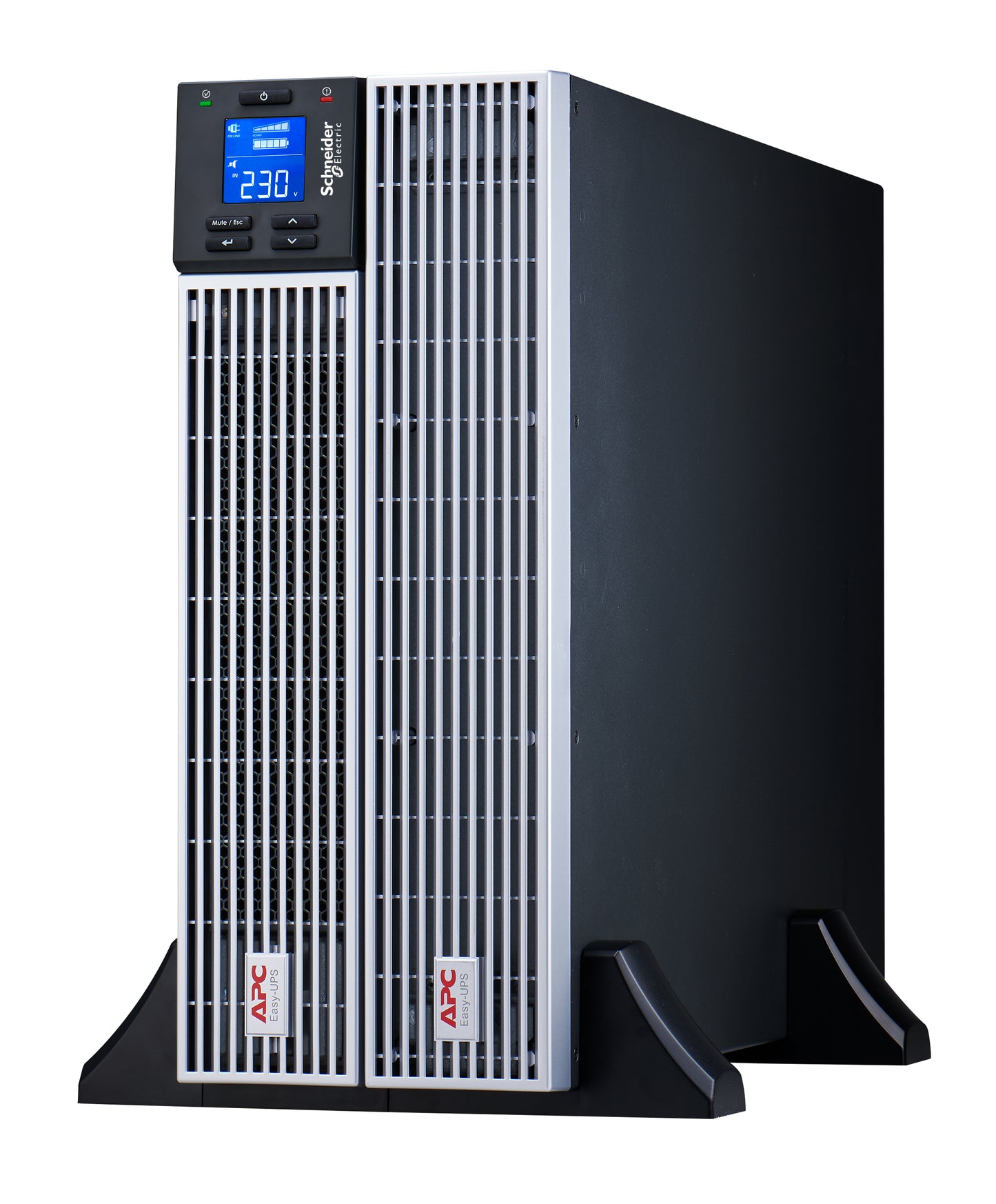

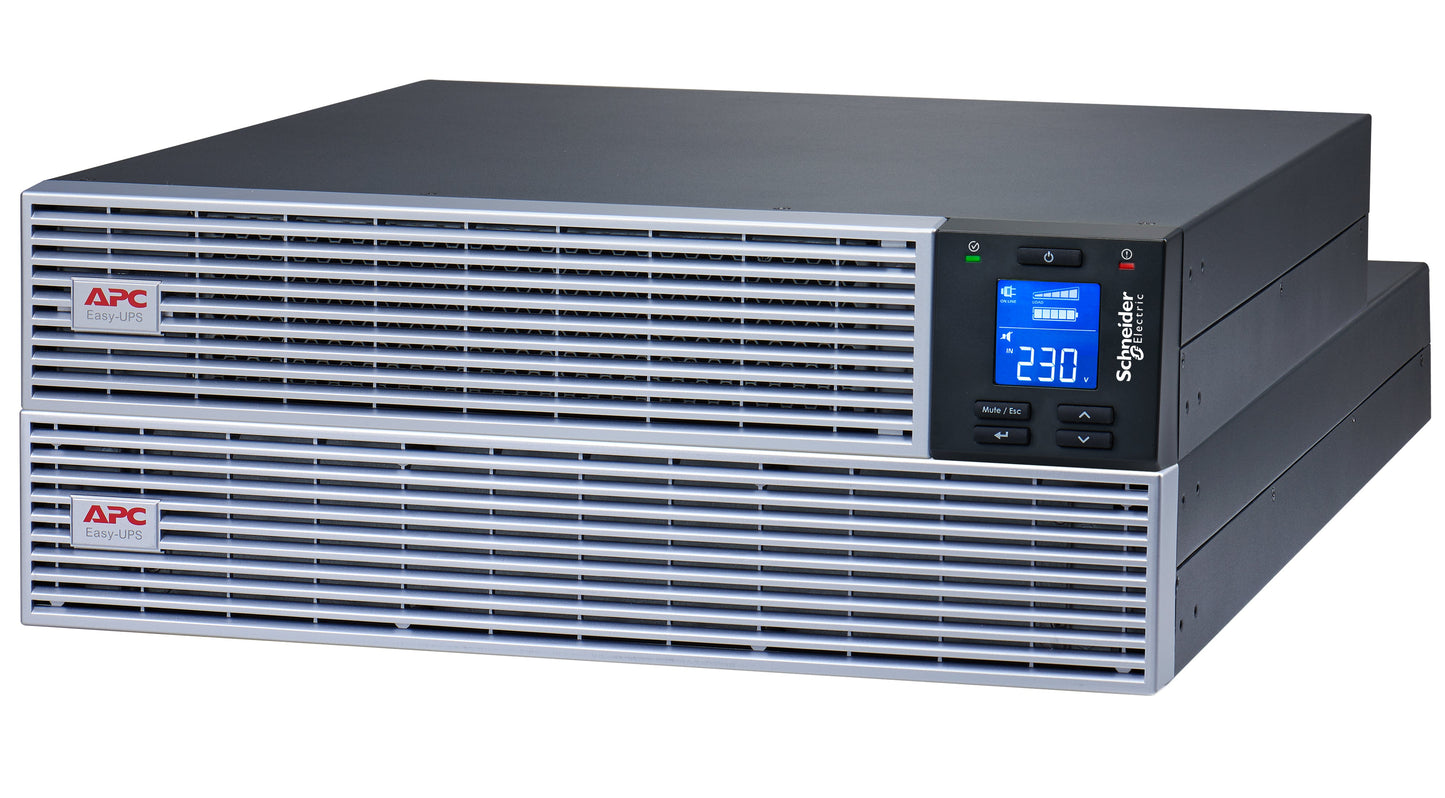

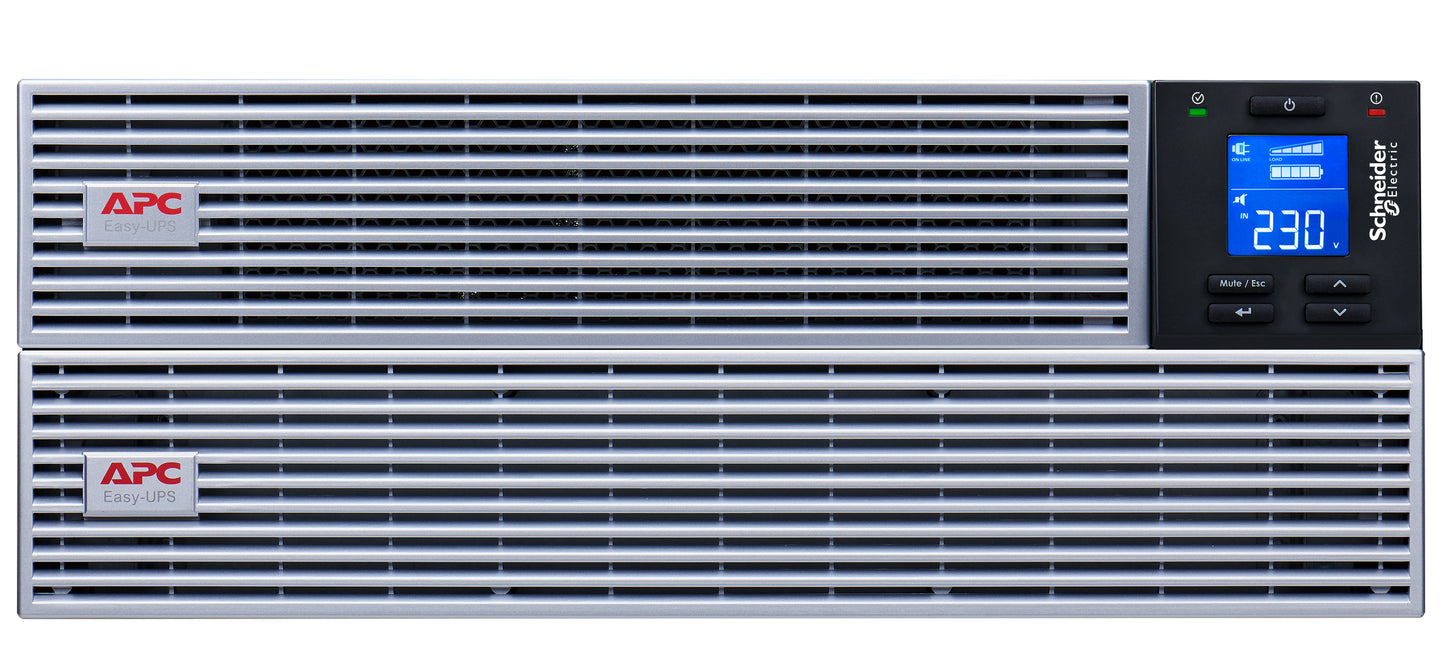

- Flexible Rack/Tower 4U Design: Versatile Rack/Tower convertible 4U form factor (total UPS + battery) for seamless integration into diverse IT environments in Bengaluru, Karnataka.
- Advanced Monitoring & Connectivity: Intuitive 90° rotatable LCD display, LED indicators, comprehensive connectivity (USB, RS-232, RS-485, CANbus), and an Intelligent Slot for optional network management cards ensure full control.
- High Energy Efficiency: Achieves impressive efficiency of up to 90% in online mode and 96% in ECO mode, leading to significant reductions in energy consumption and cooling costs.

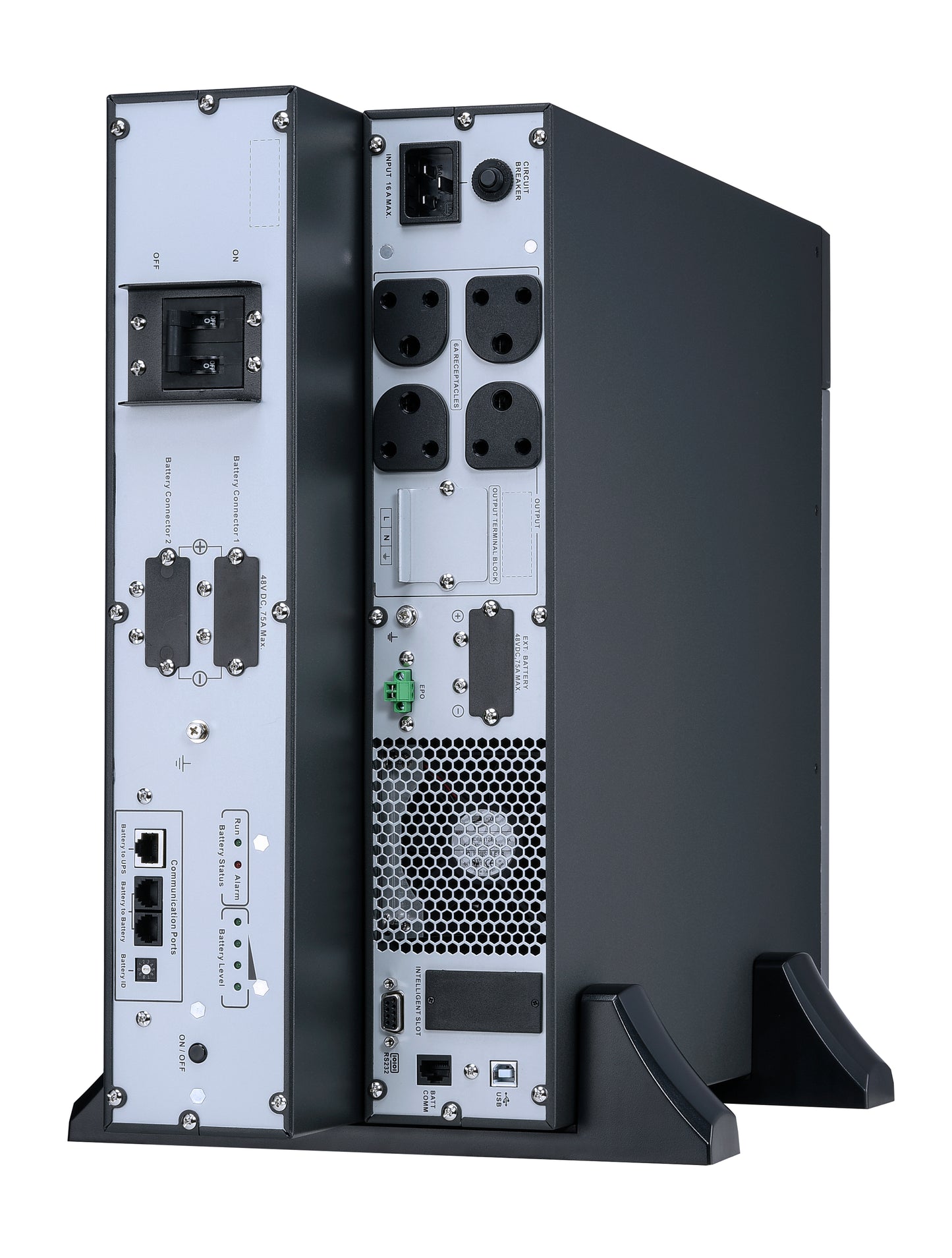

- Comprehensive Output & Safety: Provides 4 outlets + Hardwire connection for flexible power distribution and includes Emergency Power Off (EPO) for enhanced safety.
- Industry-Leading Warranty: Enjoy superior peace of mind with a 3-year repair or replace warranty on the UPS and an exceptional 5-year repair or replace warranty on the lithium-ion battery.
- Certified Reliability: BIS certified for quality assurance and compliance (IEC 62040-1, IEC 62619, UN 38.3), guaranteeing dependable performance for your critical operations.
Key Features:
-
Power Capacity: 3000 VA / 2700 W – ideal for IT, telecom, and industrial applications.
-
Battery Type: Internal lithium-ion battery with 2400 Wh capacity – 3× longer life than VRLA.
-
Extended Runtime: Up to 85 minutes at half load and 40 minutes at full load (with internal battery); up to 4 hr 15 min with 2 external battery packs.
-
Recharge Time: 4.8 hours to 90% capacity.
-
Efficiency: Up to 90% in online mode, 96% in ECO mode – reduces energy and cooling costs.
-
Topology: Double-conversion online – delivers pure sine wave output.
-
Input Voltage Range: 160–285V (full load), 110–285V (60% load).
-
Output Voltage: 230V (user-selectable 220V/240V).
-

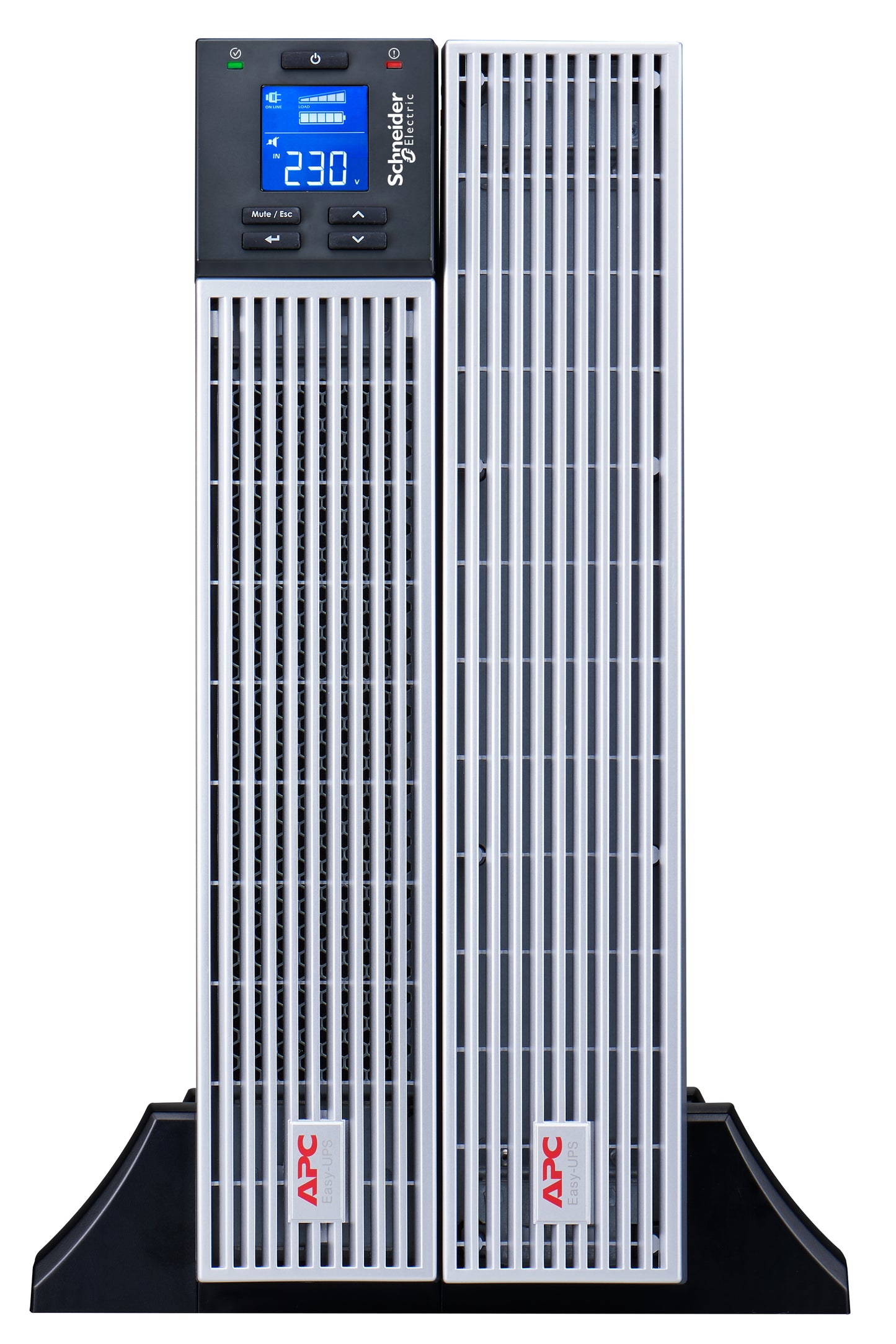

Display & Controls: 90° rotatable LCD, LED indicators, intuitive navigation keys.
-

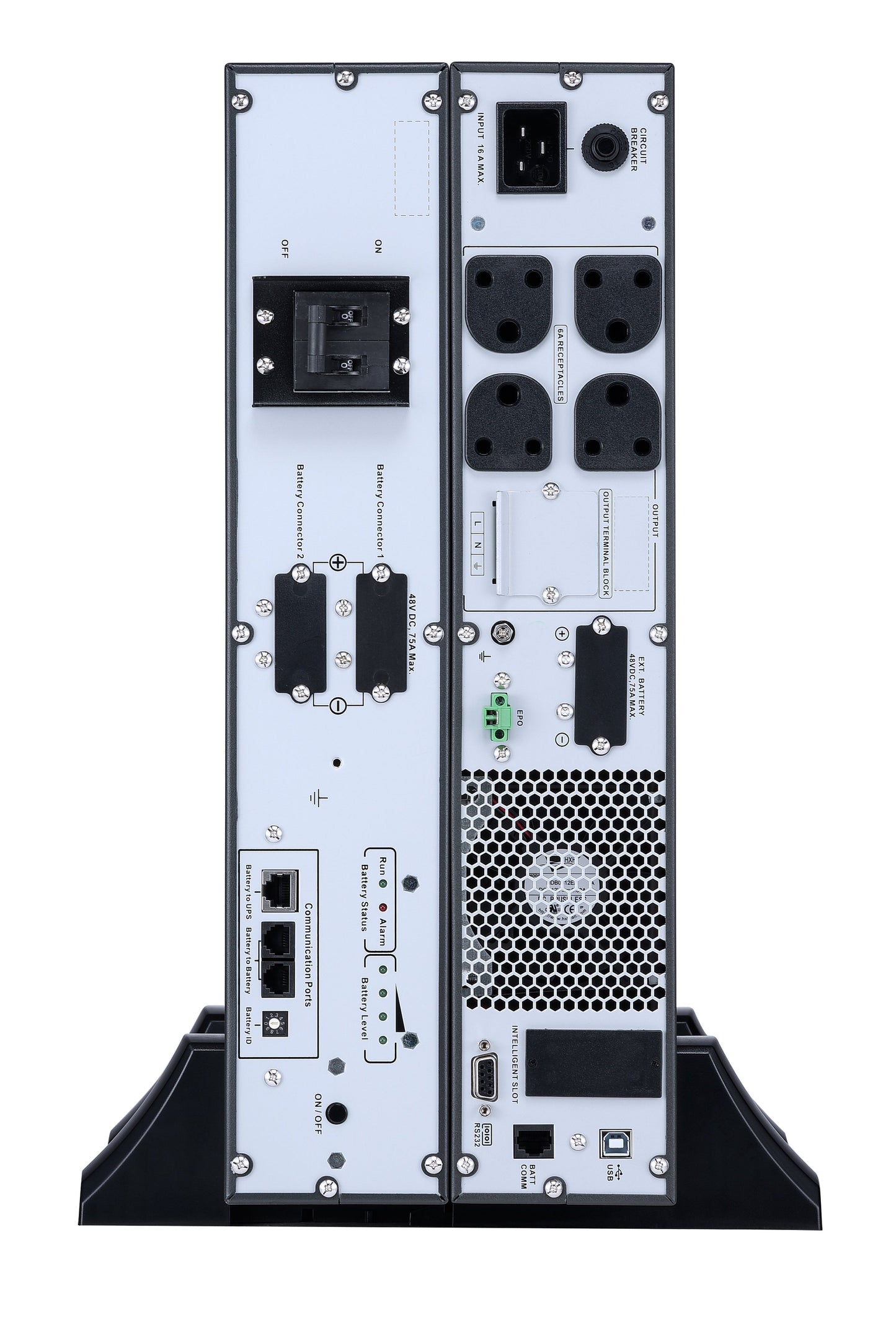

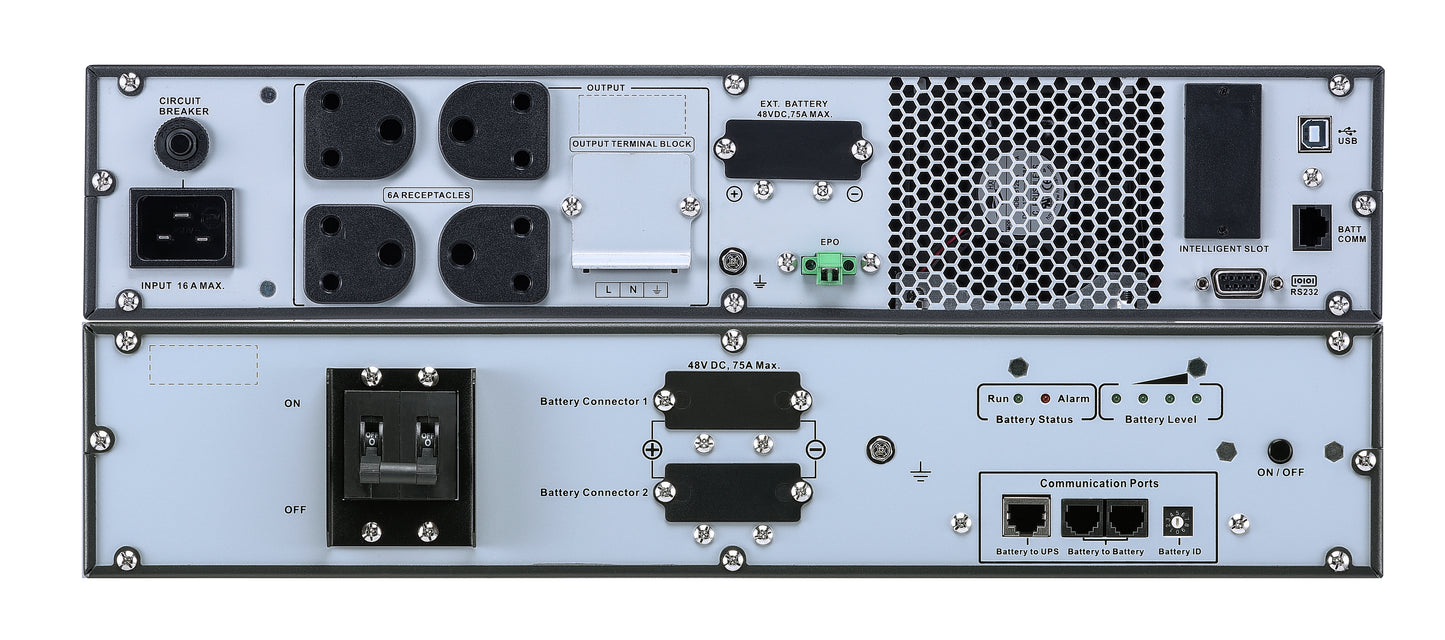

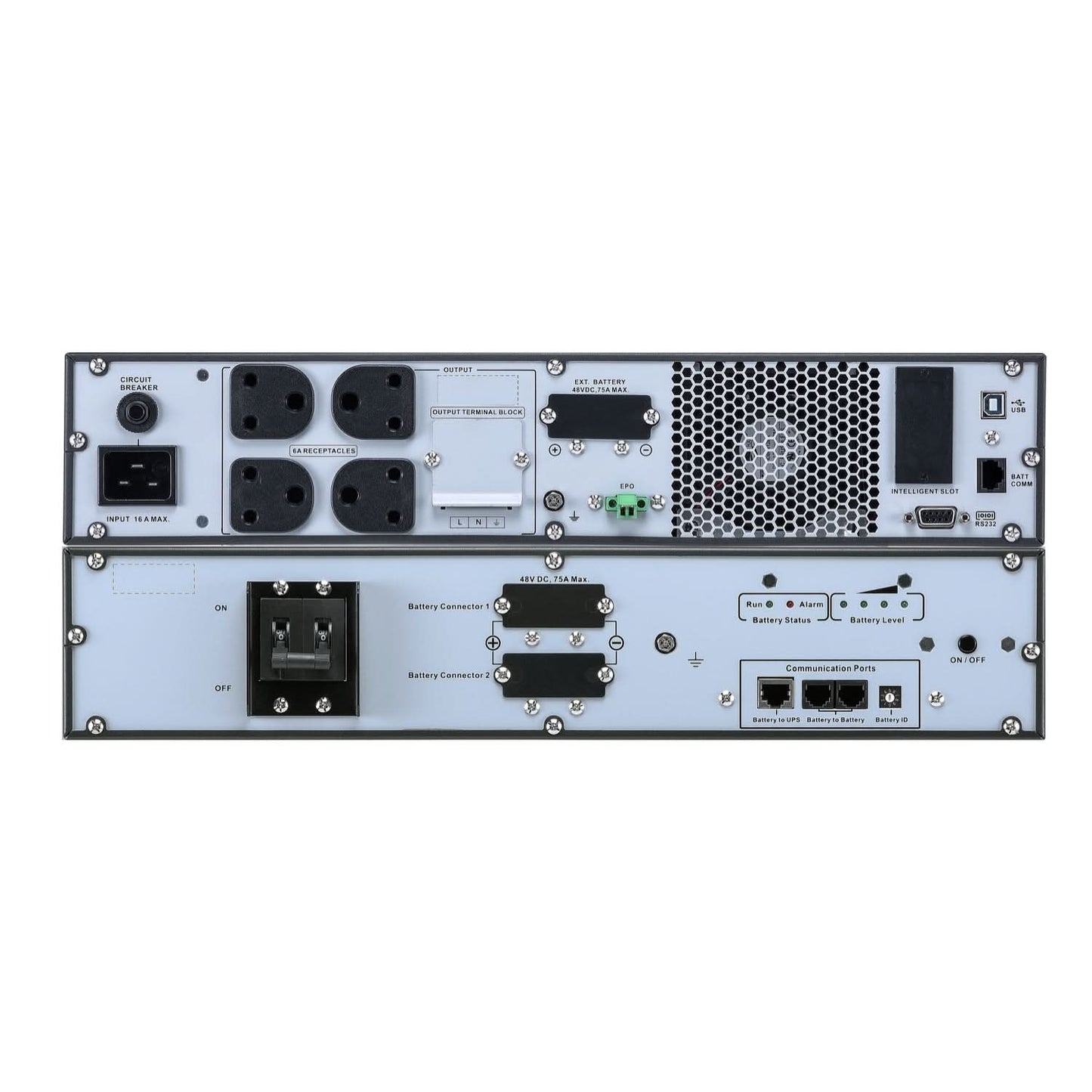

Connectivity: USB, RS-232, RS-485 (RJ45), CANbus (RJ11), and intelligent card slot.
-

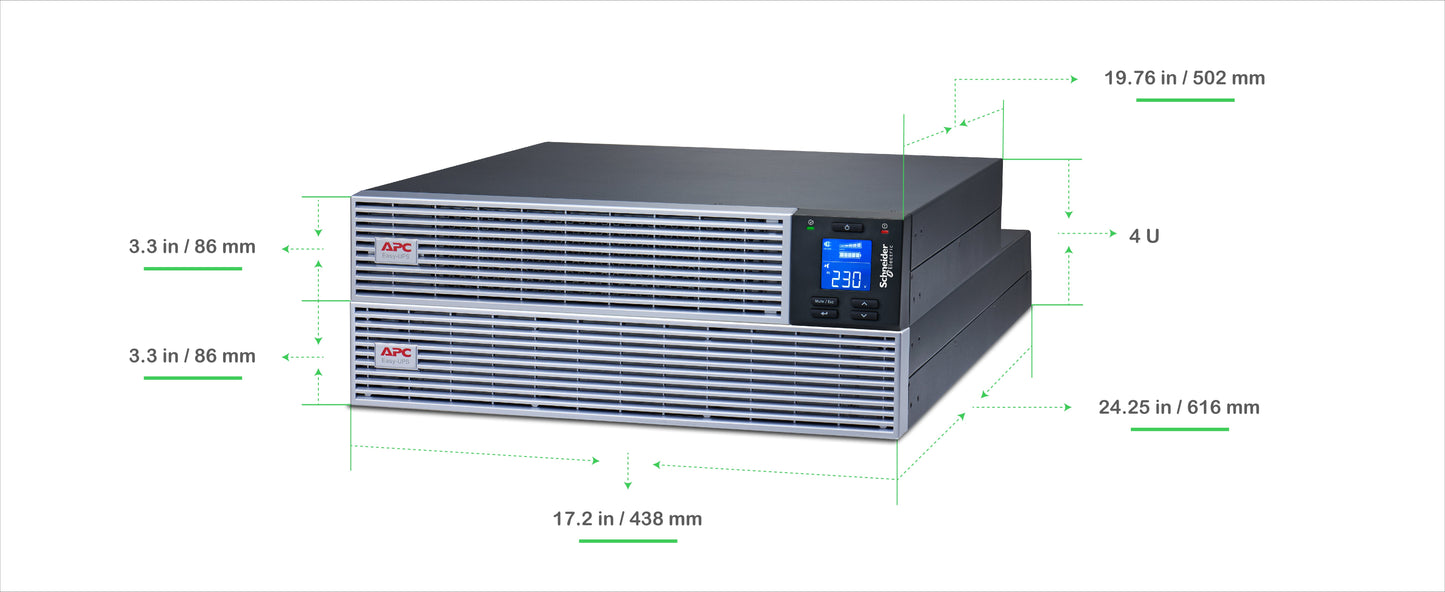

Form Factor: 4U rack height (UPS + battery); UPS: 438 x 86 x 502 mm, Battery: 438 x 86 x 616 mm.
-
Weight: UPS: 10.0 kg; Battery Pack: 28.3 kg.
-
Safety & Compliance: EPO support, BIS certified, IEC 62040-1, IEC 62619, UN 38.3.
-
Warranty: 3-year warranty on UPS, 5-year warranty on lithium-ion battery.
From the Manufacturer
Specifications
| Category | Specification |
|---|---|
| Presentation | Double-conversion On-line UPS with Lithium-Ion battery and scalable runtime. Ideal for essential power protection in unstable power conditions. |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Easy UPS On-Line |
| Main Input Voltage | 230 V |
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltages | 220 V, 240 V |
| Rated Power (W / VA) | 2700 W / 3000 VA |
| Maximum Configurable Power | 2400 W / 3000 VA |
| Run Time at Full Load (2700 W) | 43 minutes |
| Min-Max Load Range | 270–2700 W |
| Max Capacity Used | 100% |
| UPS Type | Double-conversion online |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Output Connector Types | 4x India 3-pin 6A1x Hard wire 3-wire (1P + N + E) |
| Input Connection Type | IEC 60320 C20 |
| Input Connectors | 1x Hard wire 3-wire (1P + N + E) |
| Crest Factor | 3:1 |
| Bypass Type | Internal (automatic and manual) |
| Efficiency (Full Load) | 90% |
| Battery Type | Lithium-Ion (Li-Ion) |
| Battery Voltage | 48 V |
| Battery Recharge Time | 4.8 hours |
| Battery Design Life | 8–10 years |
| Battery Charger Power | 500 W |
| Extended Runtime Support | Yes |
| Battery Slots (Filled / Free) | 0 / 0 |
| Replacement Battery | RBCV183-LI |
| Power Module Slots (Filled / Free) | 0 / 0 |
| Redundant | No |
| Color | Black with silver front bezel |
| Dimensions (H × W × D) | 17.2 cm × 43.8 cm × 61.6 cm |
| Rack Units | 4U |
| Product Weight | 38.3 kg |
| Mounting Position | Horizontal and Vertical |
| USB Compatible | Yes |
| Input Voltage Limits | 160–285 V (full load), 110–285 V (60% load) |
| Network Frequency | 40–70 Hz (auto sensing) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–50 °C |
| Operating Humidity | 0–95% (non-condensing) |
| Storage Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 50 dBA |
| IP Degree of Protection | IP20 |
| Alarm Types | On battery, Low battery, Overload (distinct tones) |
| Emergency Power Off | Yes |
| Control Panel | Multifunction LCD status and control console |
| Surge Protection | 600 J |
| Certifications | BIS |
| Warranty | 3 years UPS repair or replace;5 years battery repair or replace |
| Provided Equipment | RS-232 cable, USB cable, RJ45 cable, RJ11 cable, Detachable power cord, Battery cable, Rack mounting brackets, Stabilization feet, User manual, Safety guide |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H × W × L) | 48 cm × 60 cm × 80 cm |
| Package Weight | 47.3 kg |
