Description
About the item
- Premium Double-Conversion Protection: 1000VA/800W On-Line UPS provides superior, uninterrupted power protection for critical IT infrastructure, servers, networking equipment, and sensitive electronics.
- High Energy Efficiency: Operates at over 90% efficiency in standard mode and up to 93% in Green Mode, significantly reducing energy consumption and operating costs.
- Built for Harsh Environments: Engineered to perform reliably in regions with unstable power, ensuring continuous operation even in challenging conditions.
- Flexible Battery Options: The -IN model includes 3 x 9Ah internal batteries, while the UXI variant offers a high-power charger (2A/4A/8A/12A selectable) for external SMF/flooded batteries, enabling up to 3 hours backup at full load.

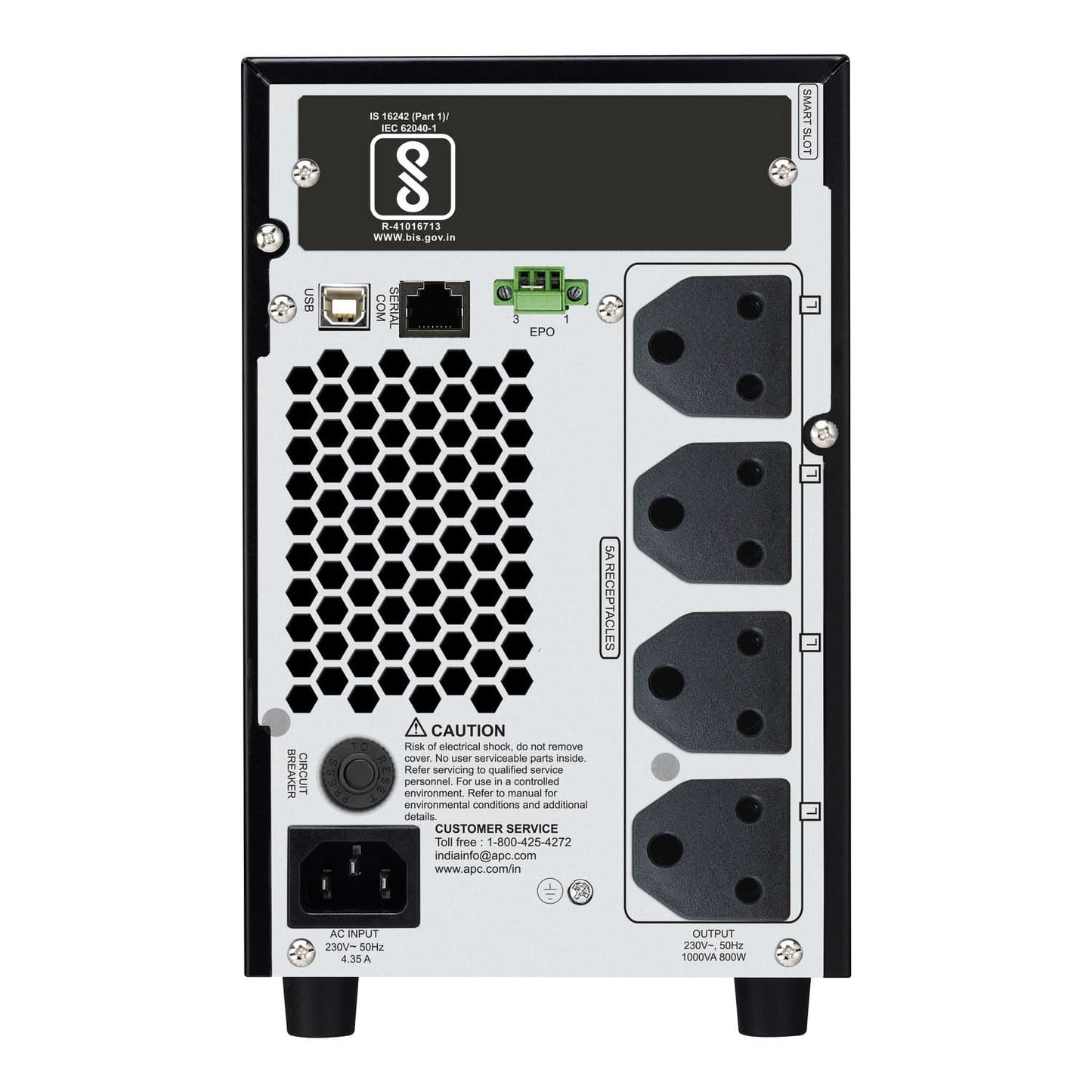

- Comprehensive Connectivity: Features 4 India 3-pin 6A outlets for multiple devices, plus a SmartSlot for advanced network management cards.
- Intuitive Monitoring & Control: Graphical LCD interface, visual LED indicators, and audible alarms with a mute option provide real-time status and simplified operation.
- Generator Compatible: Ensures seamless power transition and reliable performance even during generator use.
- 2-Year Warranty: Backed by a comprehensive manufacturer's warranty for peace of mind and dependable support.
Key Features:
-
1000VA / 800W Load Capacity: Delivers reliable backup power for servers, desktop PCs, networking equipment, and sensitive electronics.
-
4 India 3-Pin 6A Outlets: Supports multiple devices with battery backup and surge protection using standard Indian sockets.
-
Automatic Voltage Regulation (AVR): Stabilizes voltage fluctuations without switching to battery, preserving battery life and ensuring consistent performance.
-
Visual LED Indicators & Audible Alarms: Real-time alerts for power status, battery condition, and overload protection.
-
Harsh Environment Compatibility: Engineered to perform reliably in areas with unstable power supply and challenging conditions.
-
Energy Efficient Design: Optimized for low power consumption, reducing electricity costs while maintaining high performance.
-
Compact & Durable Build: Space-saving design with robust construction for long-term reliability.
-
2-Year Warranty: Backed by a comprehensive 2-year warranty for peace of mind and dependable protection.
Specifications
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Range | Smart-UPS On-Line |
| UPS Type | Double conversion online |
| Run Time for Load | 800 W |
| Min–Max Load Range | 80–800 W |
| Run Time Duration | 8 min 2 sec |
| Max. Capacity Used | 100% |
| Rated Power (W) | 800 W |
| Rated Power (VA) | 1000 VA |
| Maximum Configurable Power (W) | 800 W |
| Maximum Configurable Power (VA) | 1000 VA |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V / 240 V |
| Input Connection Type | India 3-pin 6A |
| Output Connection Type | 4x India 3-pin 6A |
| Cable Length | 1.5 m |
| Number of Cables | 1 |
| Plug Standard | India 3-pin 6A |
| Switching Current Capacity | 10 A |
| Input Voltage Limits | 110–280 V (half load) |
| Network Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Waveform Type | Pure Sine Wave |
| Efficiency | 90% (full load), 88% (half load) |
| Bypass Type | Built-in bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | < 2% |
| Battery Type | Lead-acid battery |
| Battery Recharge Time | 6 h |
| Battery Charger Power | 54 W rated |
| Extended Runtime Support | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Power Module Slots (Filled / Free) | 0 / 0 |
| Redundant | No |
| USB Compatible | No |
| Colour | Black |
| Height | 22 cm |
| Width | 14.5 cm |
| Depth | 40 cm |
| Product Weight | 13.5 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Altitude | 0–3000 ft |
| Storage Altitude | 0–4572 m |
| Operating Humidity | 0–95% |
| Storage Humidity | 0–95% |
| IP Degree of Protection | — |
| Control Panel | LED status display with online, battery, replace battery, and overload indicators |
| Alarms | On battery, low battery, overload (distinctive tones) |
| Provided Equipment | RS-232 cable, user manual, warranty card |
| Surge Energy Rating | — |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H x W x L) | 34 cm x 47.8 cm x 23.5 cm |
| Package Weight | 14.5 kg |
| Warranty | 2 years repair or replace |
