Description
About the item

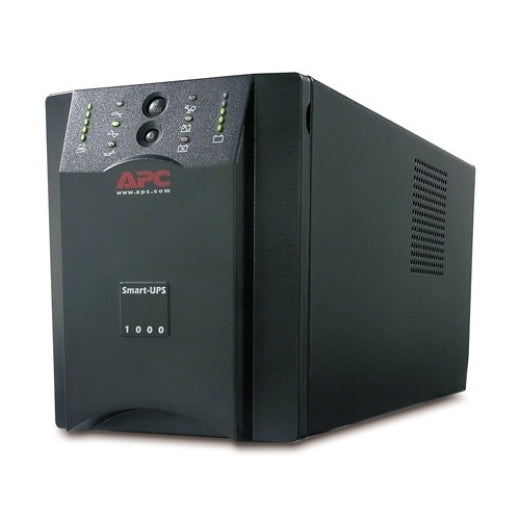

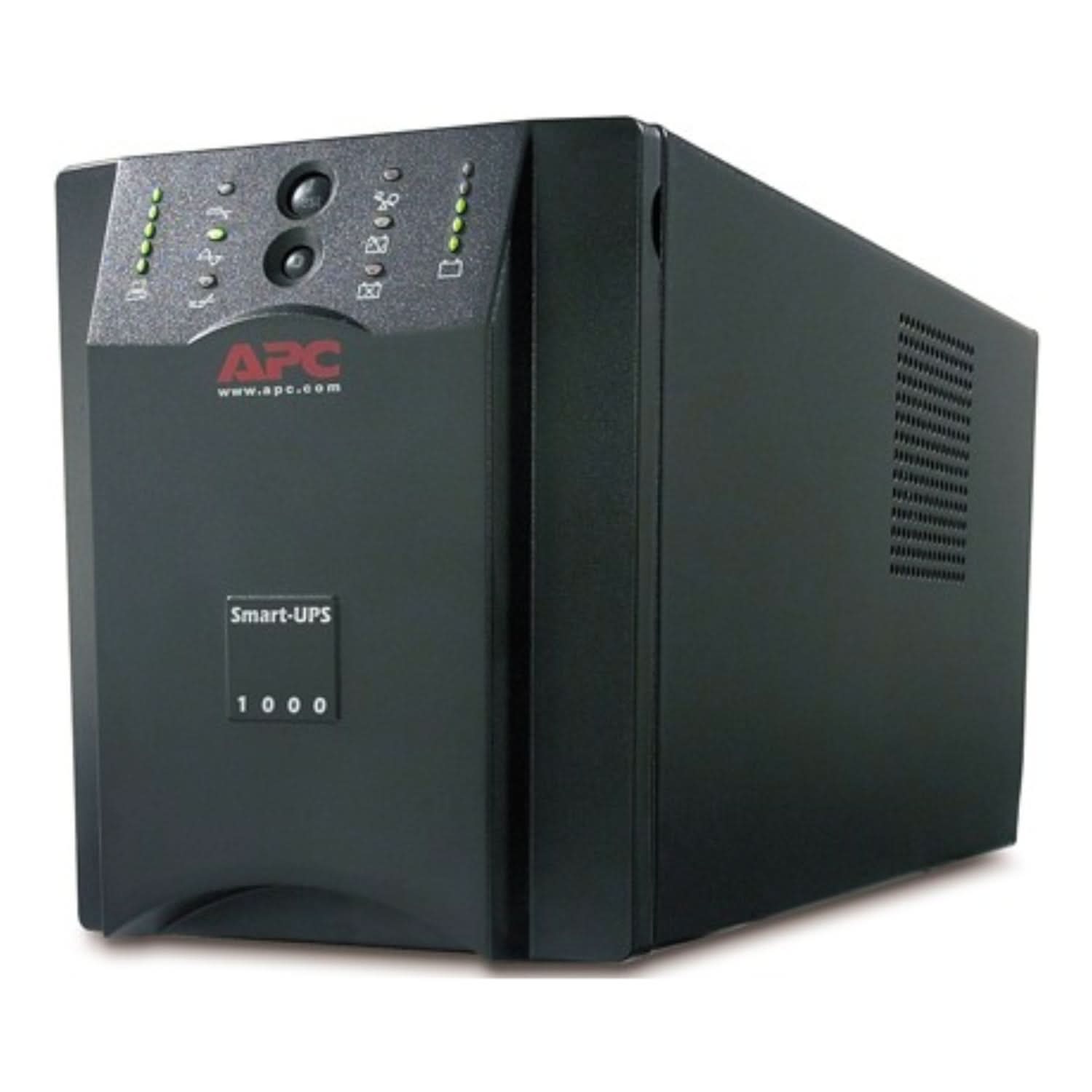

- Trusted Power Protection: APC Smart-UPS 1000VA/670W provides reliable, pure sine wave output for critical servers, networks, and sensitive IT equipment, a globally trusted solution with millions sold.
- Optimized for Indian Power: Features Automatic Voltage Regulation (AVR) and a wide input voltage range (151-302V adjustable), ensuring stable power delivery in India's unique electrical conditions.
- Reliable Battery Backup: Equipped with 2 x 11Ah sealed lead-acid batteries, offering up to 20.6 minutes runtime at 50% load and 6 minutes at full load for safe system shutdowns.
- Comprehensive Connectivity: Includes 4 Indian 6A outlets, plus USB and serial ports, with a Smart-Slot for optional network management cards for advanced control.
- User-Friendly Monitoring: LED status indicators, load/battery bar graphs, and audible alarms provide clear, real-time insights into UPS performance and power status.
- Energy Efficient Design: Built to optimize power consumption, helping reduce electricity costs while maintaining high performance.
- Enhanced Surge Protection: Provides 320 Joules surge protection to safeguard your valuable electronics from damaging voltage spikes.
- User-Replaceable Battery: Designed for easy maintenance and extended UPS lifespan with a user-replaceable battery, reducing service costs.
- BIS Certified & 2-Year Warranty: BIS certified for compliance with Indian standards and backed by a comprehensive 2-year repair or replace warranty for dependable protection and peace of mind.
Key Features:
-
Power Capacity: 1000VA / 670W – ideal for servers, switches, routers, and POS systems.
-
Battery Backup: 2 x 11Ah built-in batteries; 6 minutes at full load, 20.6 minutes at 50% load.
-
Efficiency: Up to 96% – reduces energy consumption and heat generation.
-
Output: Pure sine wave at 230V; 50/60 Hz auto-sensing frequency.
-
Input Voltage Range: 160–285V (standard), 151–302V (adjustable).
-
Connectivity: USB, RS-232 serial port, and SmartSlot for optional network cards.
-
Display: LED status indicators with load and battery bar graphs.
-
Surge Protection: 320 Joules; full-time multi-pole noise filtering.
-
Software: PowerChute Business Edition – supports Microsoft Exchange, SQL Server, IIS, and more.
-
Form Factor: Compact design with sleek dimensions for optimal space utilization.
-
Certifications: BIS, CE, EN50091, IEC60950, RoHS compliant.
-
Warranty: 1-year warranty.
Specifications
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| UPS Type | Line interactive |
| Rated Power (W / VA) | 670 W / 1000 VA |
| Maximum Configurable Power | 670 W / 1000 VA |
| Main Input Voltage | 230 V |
| Input Voltage Limits | 151–302 V (adjustable) |
| Plug Standard | India 3-pin 6A |
| Input Connection Type | India 3-pin 6A |
| Network Frequency | 50/60 Hz ±3 Hz (auto-sensing) |
| Main Output Voltage | 230 V |
| Other Configurable Voltages | 220 V, 240 V |
| Output Frequency | 47–53 Hz (for 50 Hz nominal, sync to mains) |

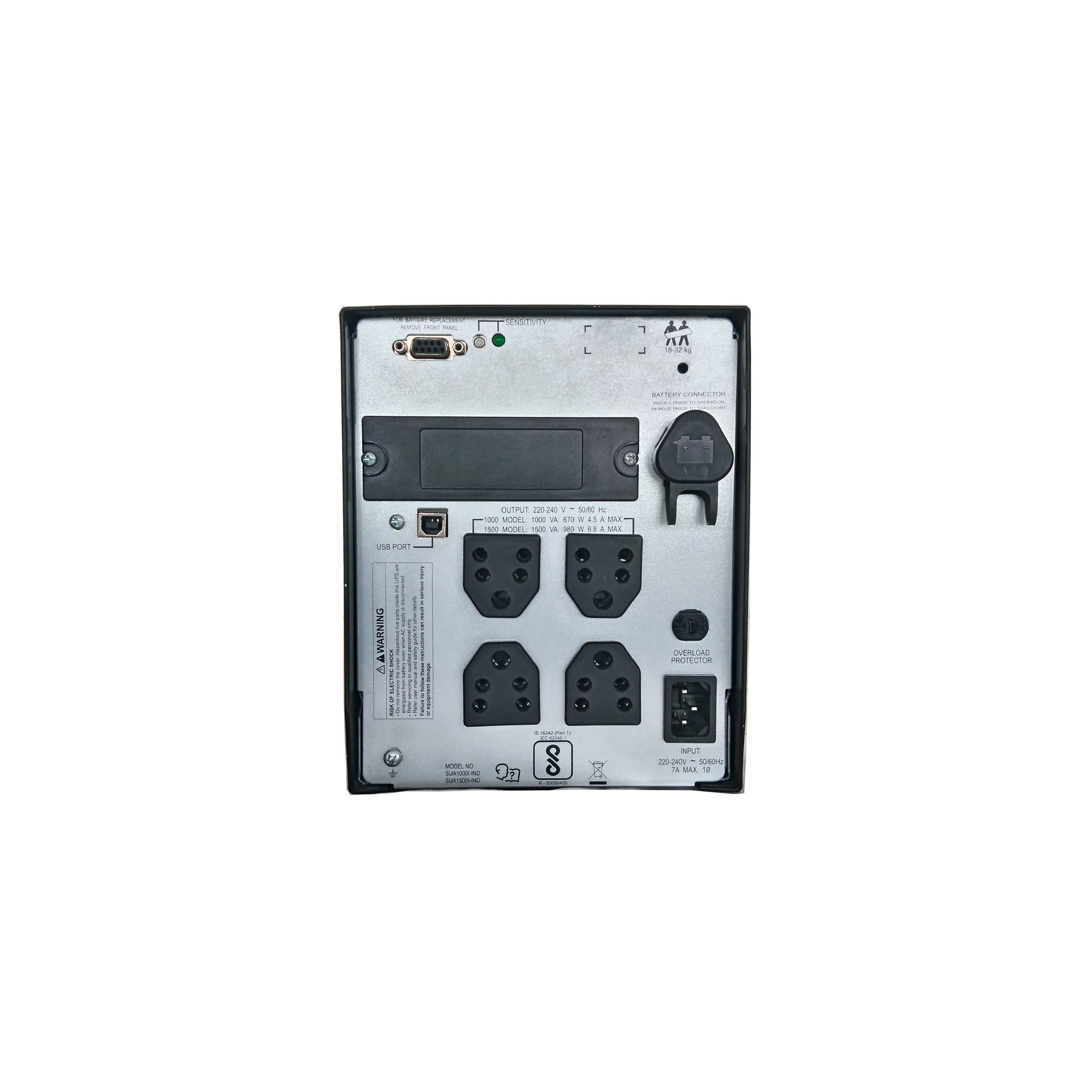

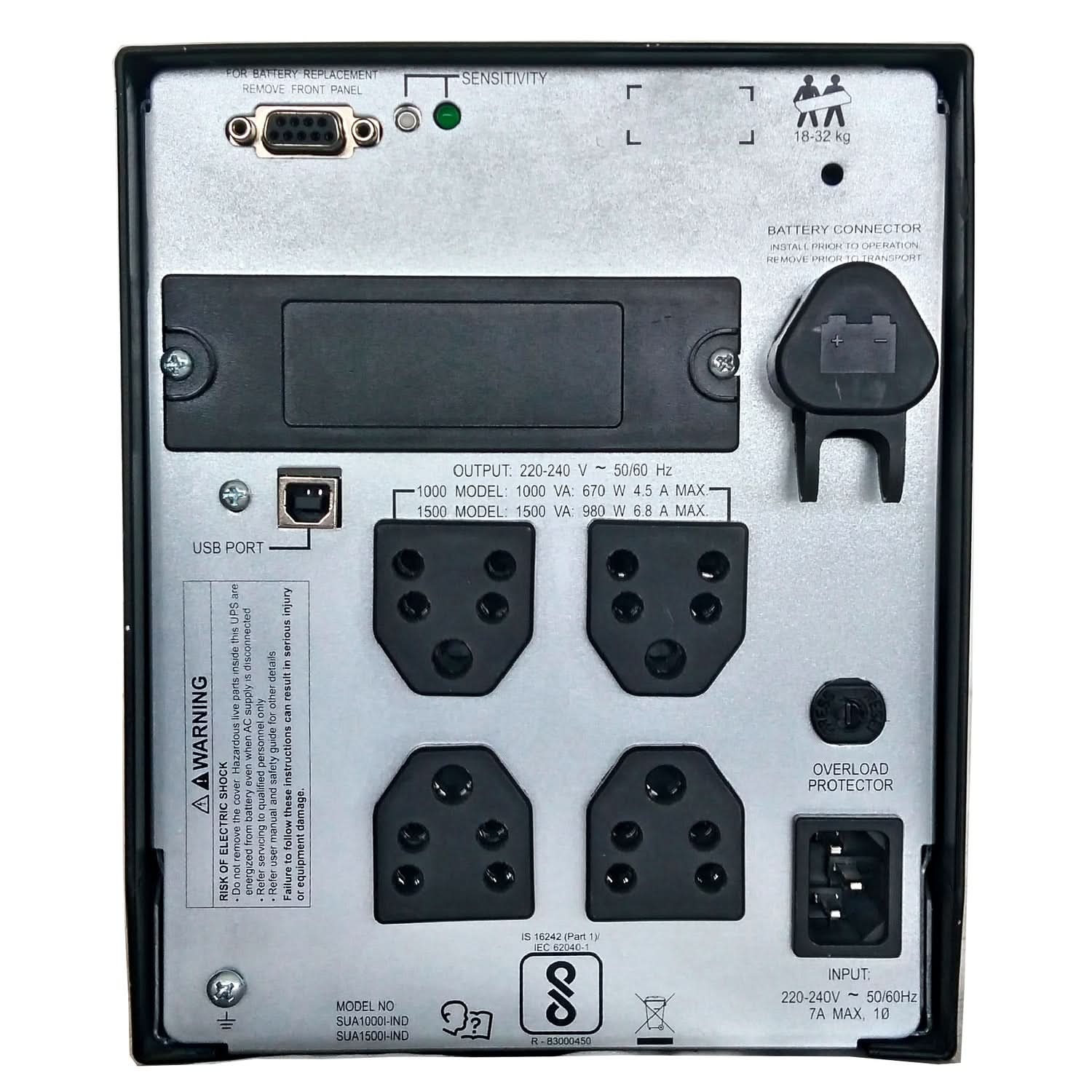

| Output Connector Type | 4x India 3-pin 6A |
| Harmonic Distortion | < 5% |
| Crest Factor | Not specified |
| Run Time at Full Load (670 W) | 6 min 5 sec |
| Min-Max Load Range | 67–670 W |
| Max Capacity Used | 100% |
| Battery Type | Lead-acid battery |
| Battery Recharge Time | 3 hours |
| Battery Life | 2–4 years |
| Battery Charger Power | 88 W (rated) |
| Extended Runtime Supported | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| SmartSlot Available | Yes |
| Redundant Support | No |
| Control Panel | LED status display (online, on battery, replace battery, overload indicators) |
| Alarm | On battery, Low battery (distinctive), Configurable delays |
| USB Compatible | No |
| Provided Equipment | CD with software, RS-232 cable, USB cable, User manual |
| Color | Not specified |
| Mounting Preference / Mode | No preference / Not rack-mountable |
| Two Post Mountable | No |
| Physical Dimensions (H × W × D) | 21.6 cm × 17 cm × 43.9 cm |
| Product Weight | 18.82 kg |
| Surge Protection | 320 J |
| Noise Suppression | Full-time multi-pole filtering0.3% IEEE surge let-throughZero clamping responseMeets UL 1449 |
| Acoustic Level | 41 dBA |
| Heat Dissipation | 100 BTU/h |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -15–45 °C |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Operating / Storage Humidity | 0–95% (non-condensing) |
| Certifications | BIS |
| Warranty | 2 years (repair or replace) |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H × W × L) | 38.1 cm × 58.4 cm × 33 cm |
| Package Weight | 20.87 kg |
