Description
Specifications
| P14 PWM PST — Combined Specifications | |
|---|---|

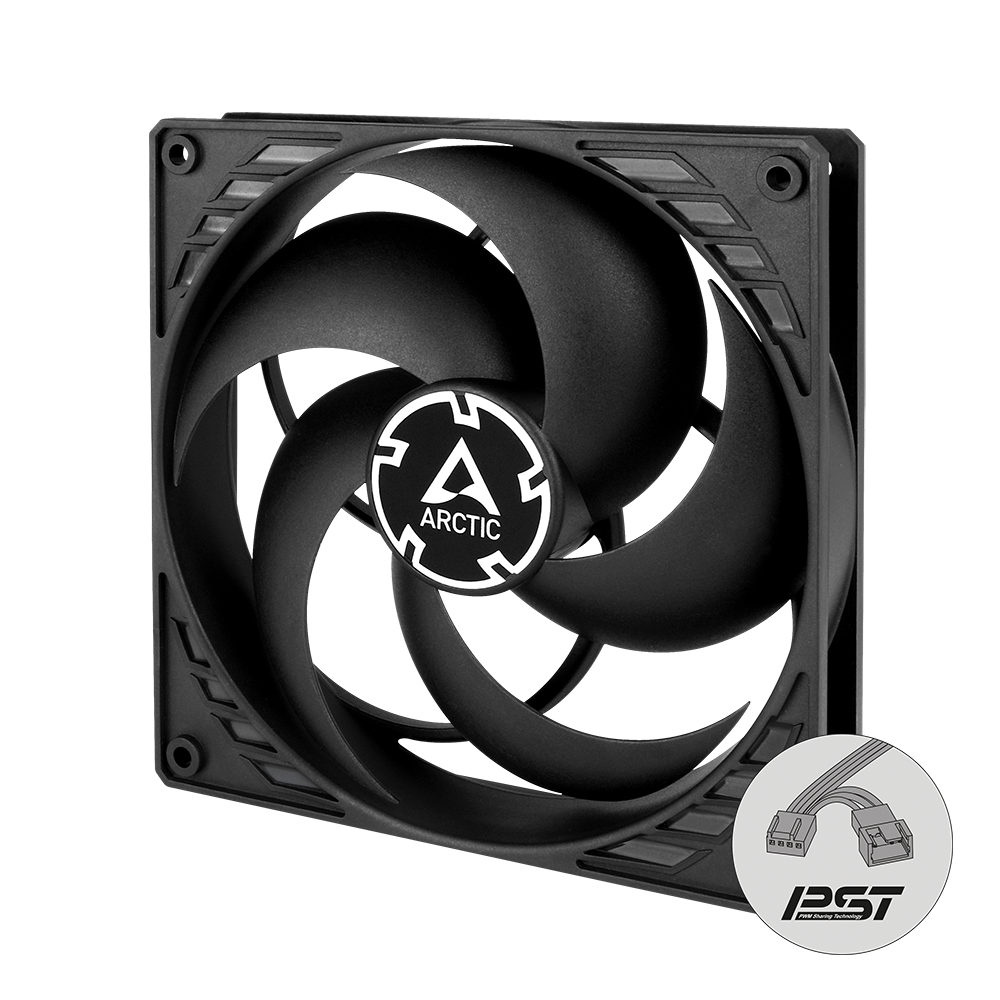

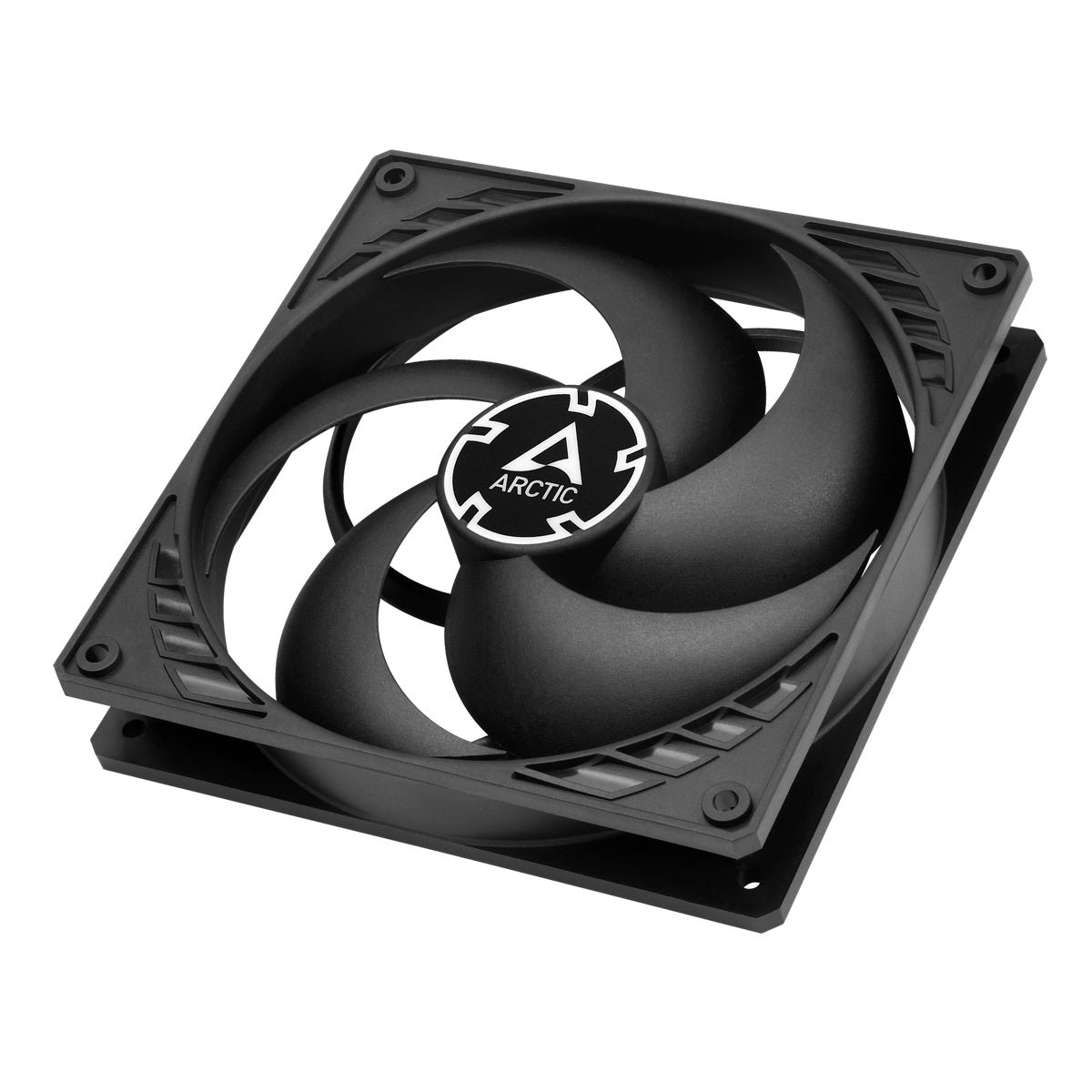

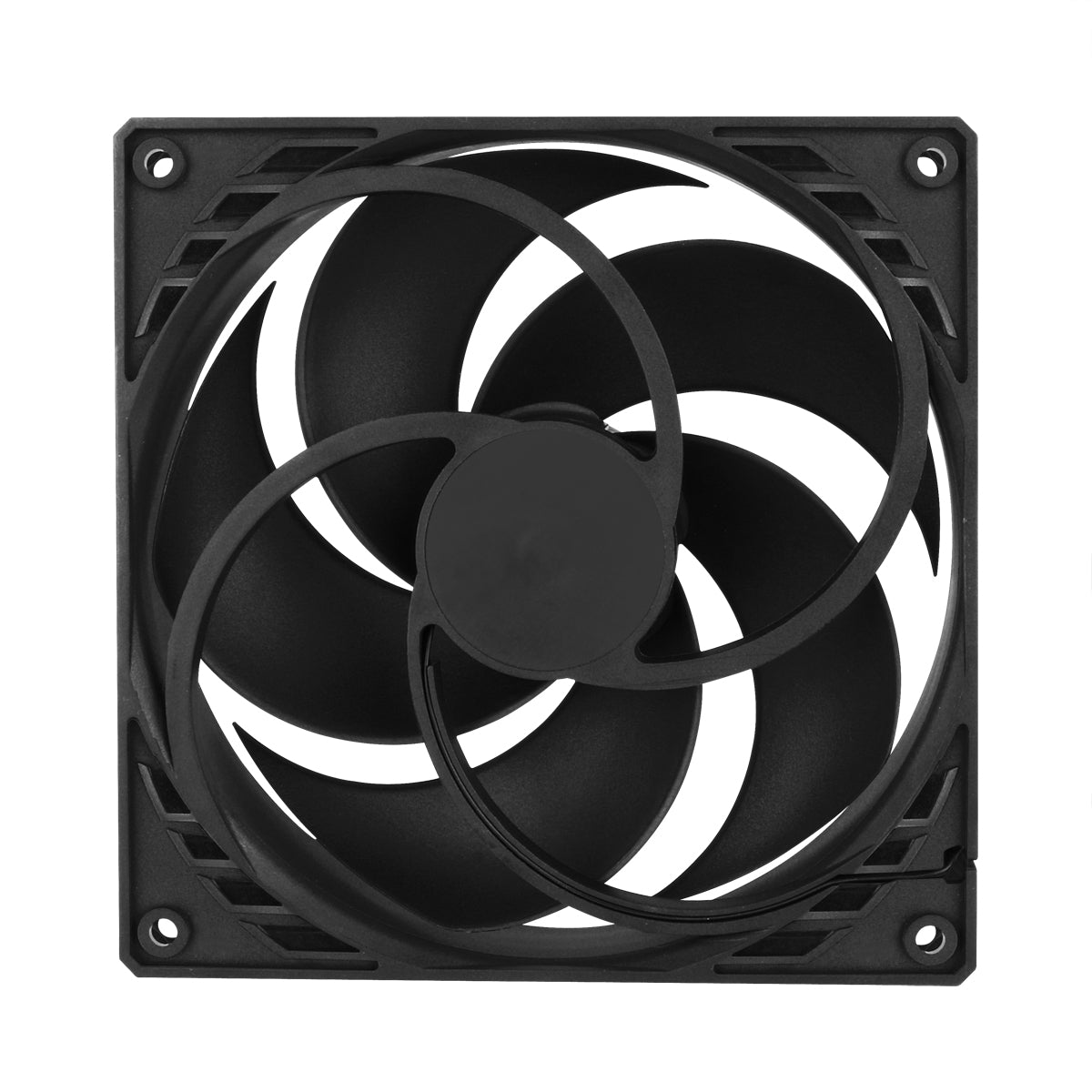

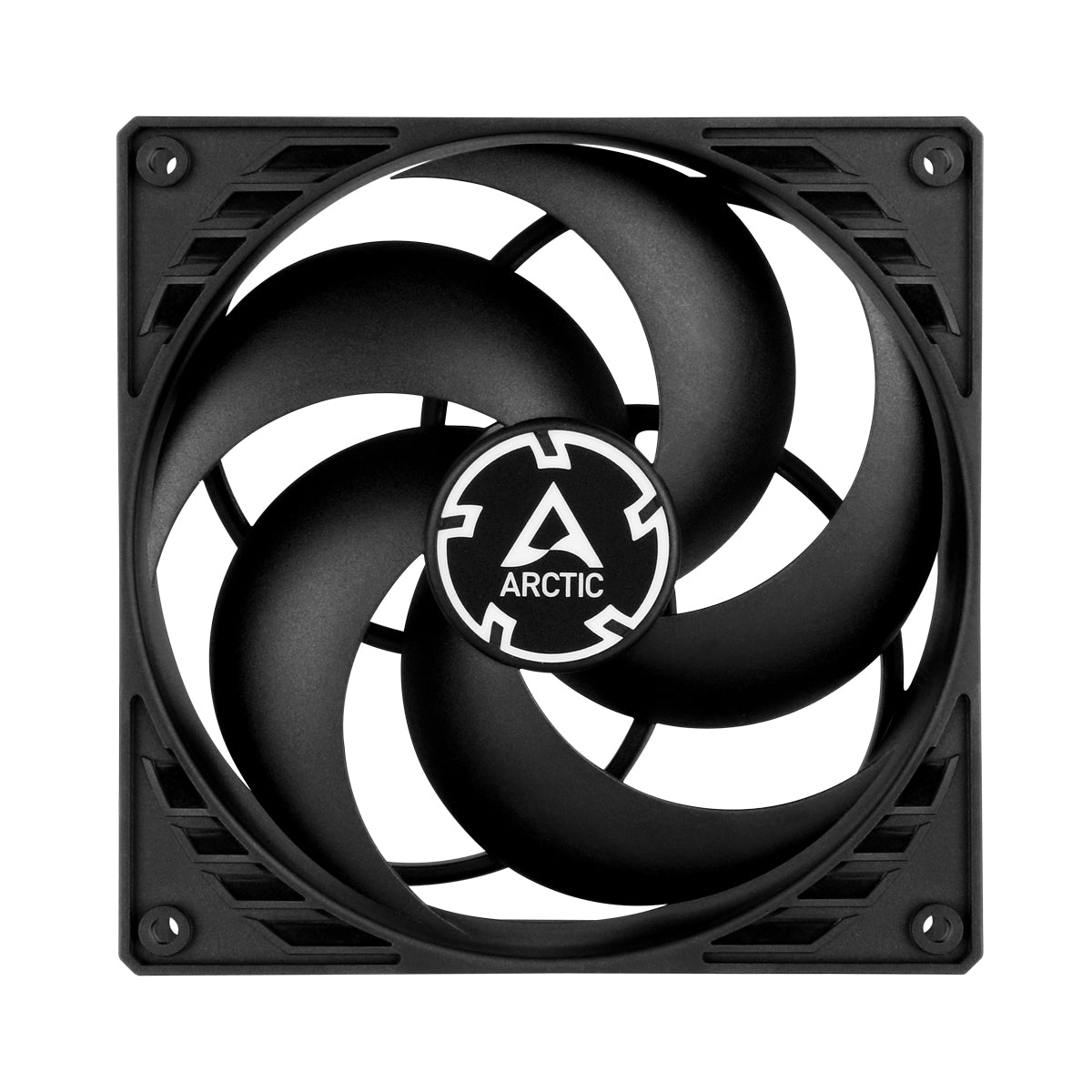

| Product Name | P14 PWM PST — 140 mm PWM Fan with Cable Splitter |
| Model / SKU | ACFAN00125A |

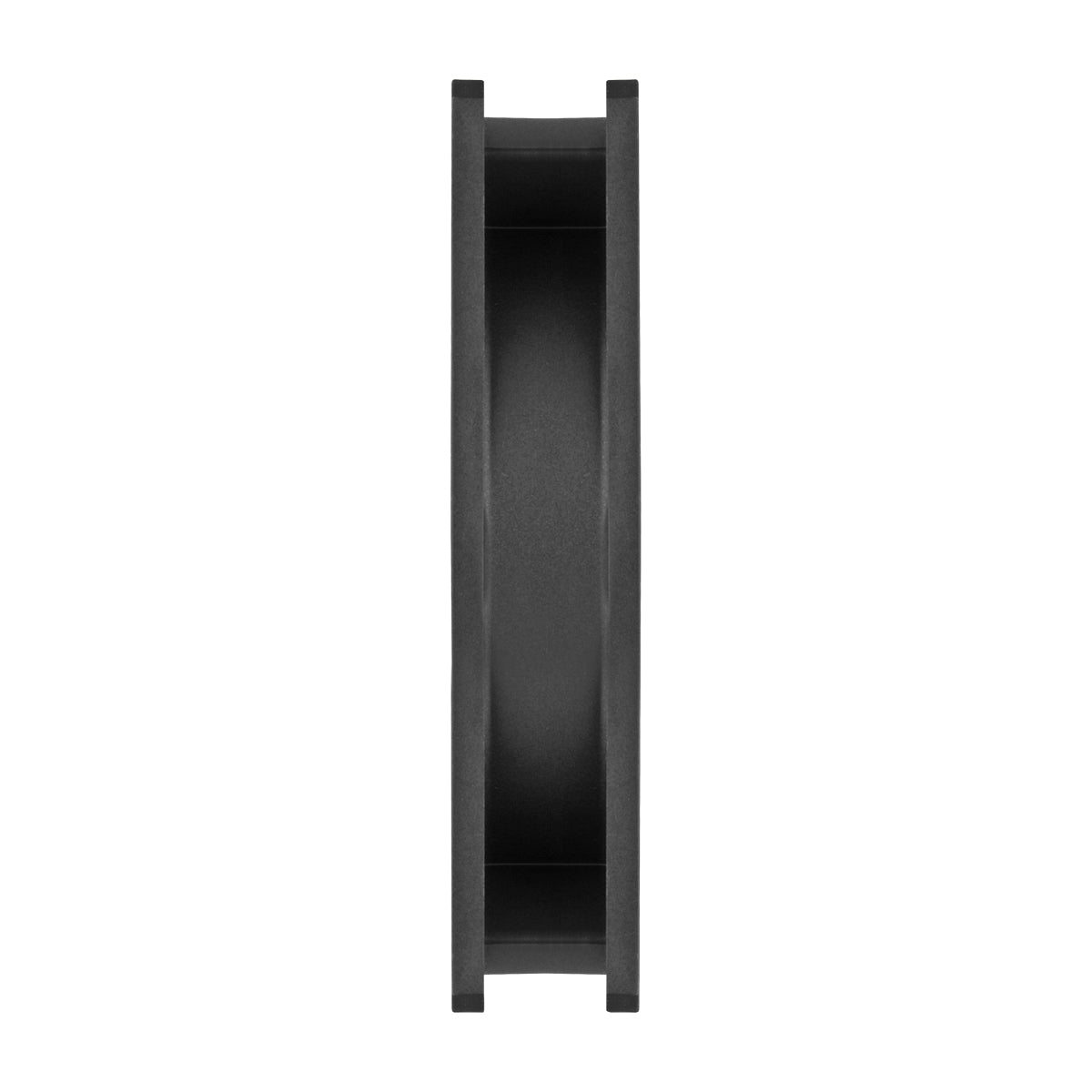

| Dimensions | 140 × 140 × 27 mm |
| Weight | 194 g |
| Speed | 200–1700 rpm (0 rpm < 5% PWM) |
| Speed Control | PWM (Pulse Width Modulation) |
| Static Pressure | 2.40 mmH₂O |
| Airflow | 72.8 cfm | 123.80 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |
| Connector Type | 4-Pin Connector + 4-Pin Plug (PST) |
| Current / Voltage | 0.12 A / 12 V DC |
| Starting Voltage | 3.9 V DC |
| Noise Level | 0.3 Sone |
| Operating Temperature | 0 – 40 °C |
| Packaging Details | |

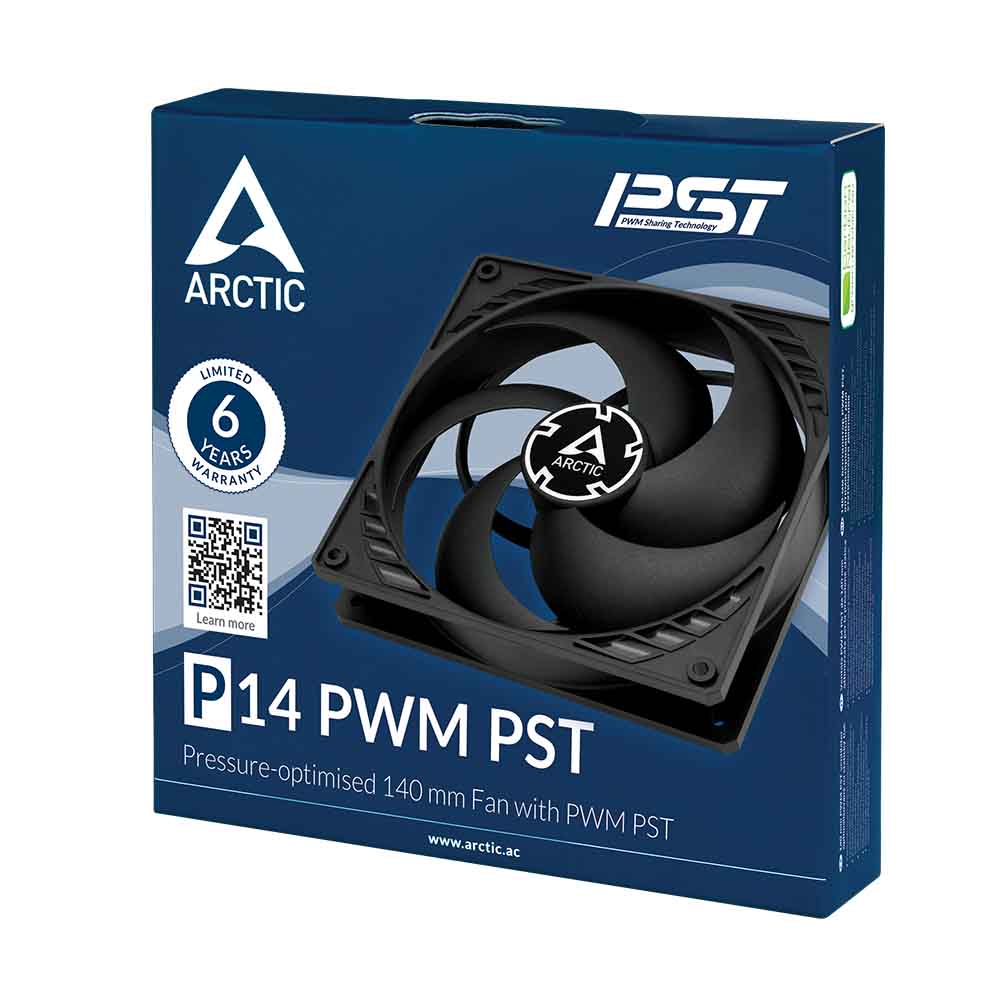

| Standard Box Dimensions | 143 × 143 × 29 mm |
| Standard Box Weight | 235 g |
| Standard SKU | ACFAN00125A |
| Standard EAN / UPC | EAN: 4895213701563 | UPC: 872767009509 |
| Standard Box Contents | P14 PWM PST × 1, Mounting screws × 4 |
| Black Version SKU | ACFAN00197A |
| Black Version EAN / UPC | EAN: 4895213703116 | UPC: 840033400916 |
| Value Pack (5-Pack) SKU | ACFAN00138A |
| 5-Pack Dimensions | 145 × 139 × 146 mm |
| 5-Pack Weight | 960 g |
| 5-Pack EAN / UPC | EAN: 4895213701600 | UPC: 872767009547 |
| 5-Pack Contents | P14 PWM PST × 5, Mounting screws × 20 |
| Pinout | |
| Pin 1 | Ground (−) |
| Pin 2 | Power (+) |
| Pin 3 | Signal (Tachometer) |
| Pin 4 | PWM Control |
