Specifications:
| Category | Specification |
|---|---|
| Unique Feature | Superb Productivity: Dual Channel DDR5 Rock-Solid Durability: 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer EZ Troubleshooter: ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors* *Refer to CPU Support List on ASRock's website for more information. |
| Chipset | AMD A620 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Max capacity: 128GB Supports XMP and EXPO memory modules |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (varies by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, max resolution: 4K 120Hz 1 x DisplayPort 1.4, max resolution: 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (supports x16 mode) Chipset: 2 x PCIe 3.0 x1 Slots, 1 x M.2 Socket (Key E, supports type 2230 WiFi/BT PCIe module) |
| Storage | CPU: 1 x Hyper M.2 Socket (Key M, type 2280 PCIe Gen4x4 mode) Chipset: 1 x M.2 Socket (Key M, type 2260/2280 SATA3 & PCIe Gen3x2 modes), 2 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, 1, and 10 for M.2 NVMe storage devices |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector |

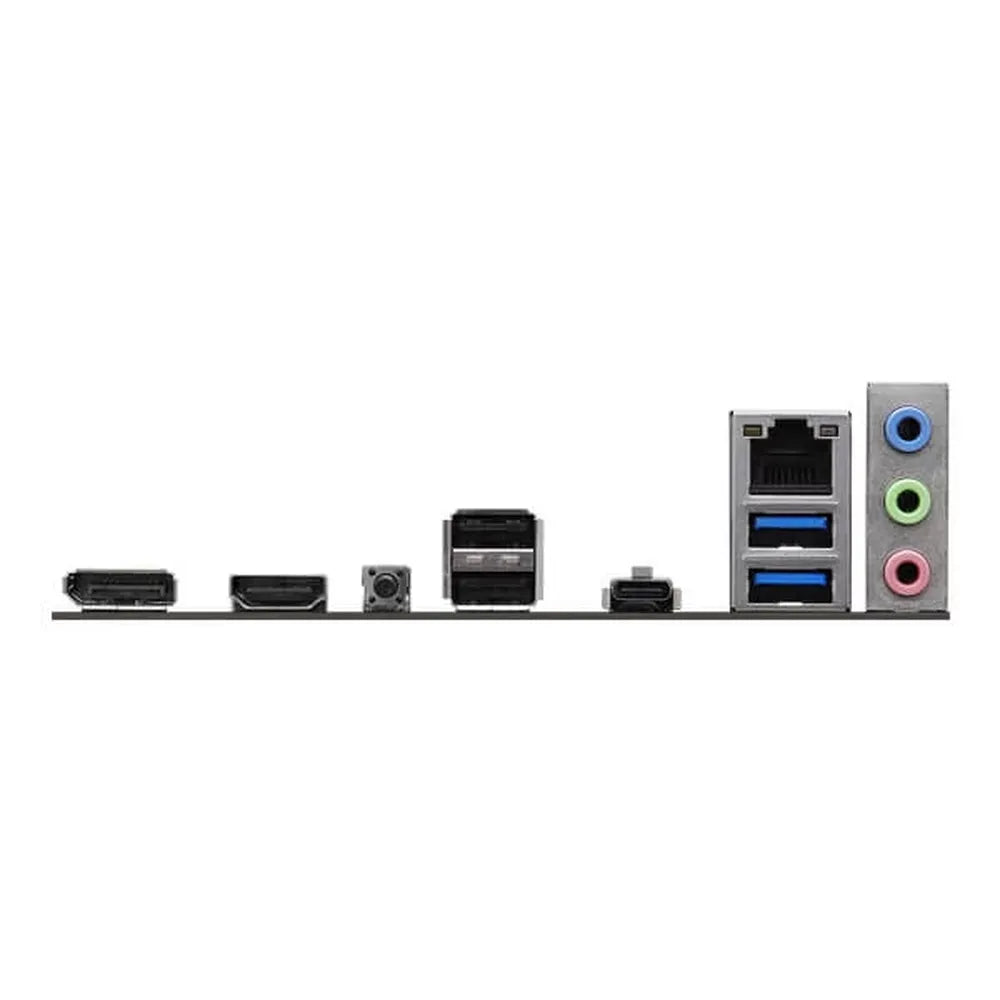

| Rear Panel I/O | 2 x Antenna Mounting Points 1 x HDMI Port, 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button HD Audio Jacks (Line in, Front Speaker, Microphone) |
| Software and UEFI | ASRock Motherboard Utility (A-Tuning), ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash |
| Accessories | 1 x User Manual, 1 x I/O Shield 2 x SATA Data Cables, 3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm, 2oz Copper PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP power supply required) |
