Description
Features
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700).
- 5+1+1 Power Phase.
- 2 x DDR4 DIMMs. Supports Dual Channel, up to 5333+ (OC).
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi.
- Graphics Output Options: HDMI, DisplayPort, D-Sub.
- Realtek ALC887/897 7.1 CH HD Audio Codec.
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA).
- 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front).
- Realtek 1G LAN.
- Supports ASRock Auto Driver Installer.
Specifications
| Unique Feature | Rock-Solid Durability: 5+1+1 Power Phase EZ Update: ASRock Auto Driver Installer |
|---|---|
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | Intel® B760 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 1DPC 1R: Up to 5333+ MHz (OC), 3200 MHz natively 1DPC 2R: Up to 4400+ MHz (OC), 3200 MHz natively |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks |
| Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) All USB ports support ESD Protection |
| Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) CPU_FAN1 supports fan power up to 1A (12W). CPU_FAN2/WP supports fan power up to 2A (24W). CHA_FAN1~2/WP support fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if a 3-pin or 4-pin fan is in use. |

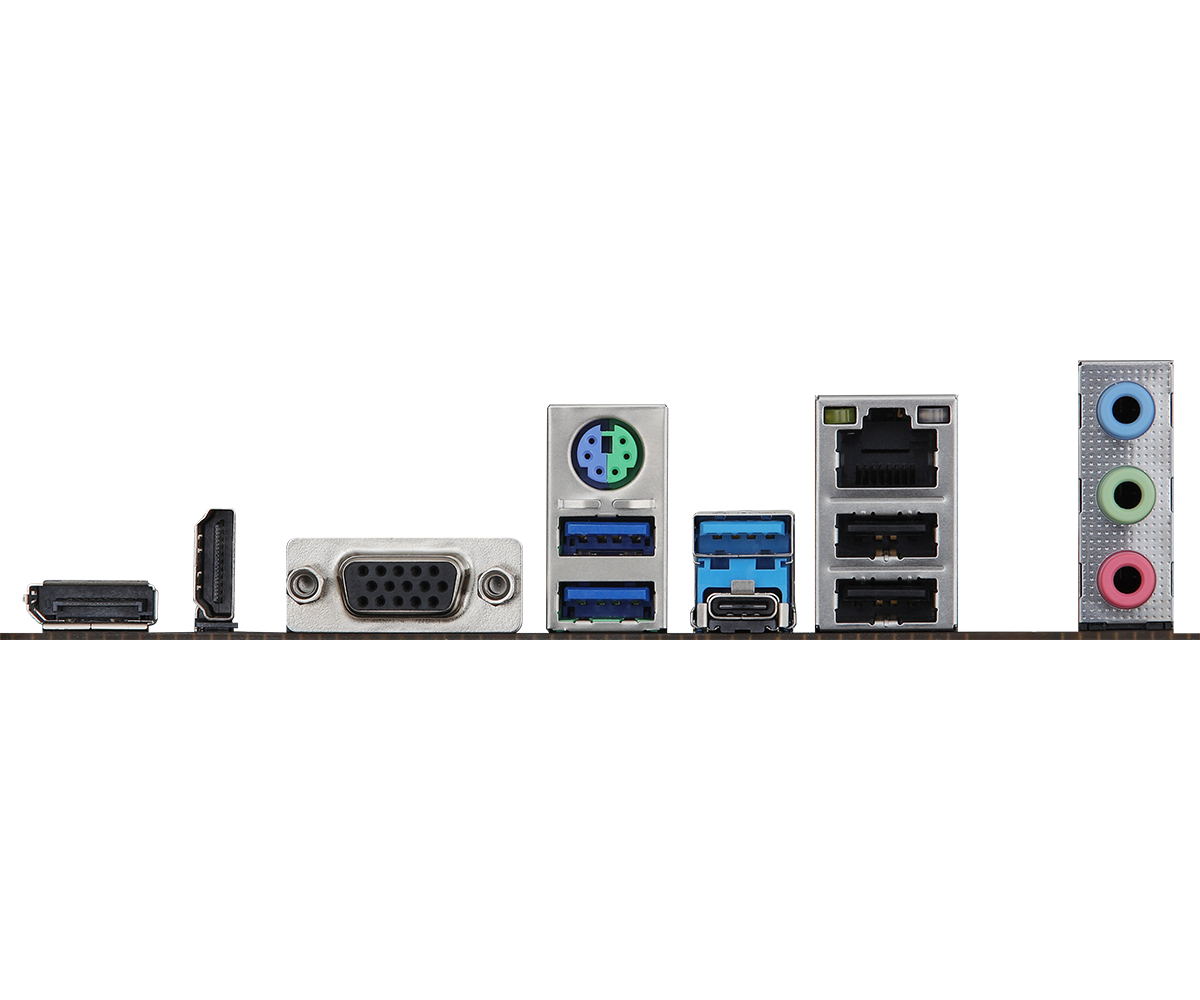

| Rear Panel I/O | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software: ASRock Motherboard Utility (A-Tuning) UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
