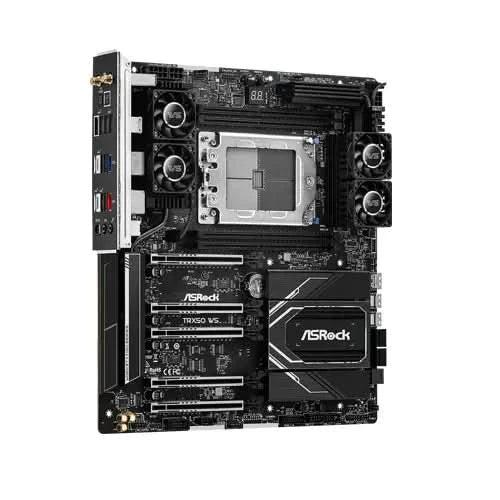

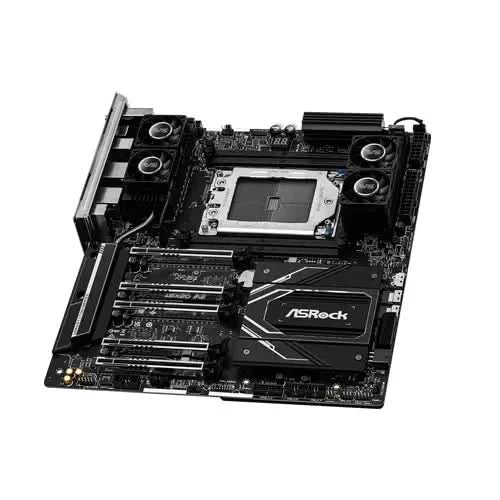

Description
Features
- Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
- 18 3 3 Power Phase Design, 110A SPS for VCore
- Supports 4 DIMMs DDR5 ECC Registered memory
- 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Quad Channel DDR5 Rock-Solid Durability – Ultra Low-Loss PCB – 18+3+3 Power Phase, 110A SPS for VCore – Pre-Installed I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| CPU | – Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors – Supports AMD Socket sTR5 – Supports ASRock Hyper BCLK Engine |
| Chipset | AMD TRX50 |
| Memory | – Quad Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) – Max. capacity of system memory: 1TB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | N/a |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| LAN | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) – Support Wake-On-LAN – Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO |
| Slots | CPU: – 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slots |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* – 1 x MCIO PCIe Gen5x4 Connector – 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* – 4 x SATA3 6.0 Gb/s Connectors |
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| USB | CPU: – 1 x USB 3.2 Gen2x2 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 4 x USB 2.0 (Front) |
| Connector | – 2 x Thermistor Cable Headers – 1 x SPI TPM Header – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 2 x Addressable LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 3 pin ATX Power Connector***** – 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |

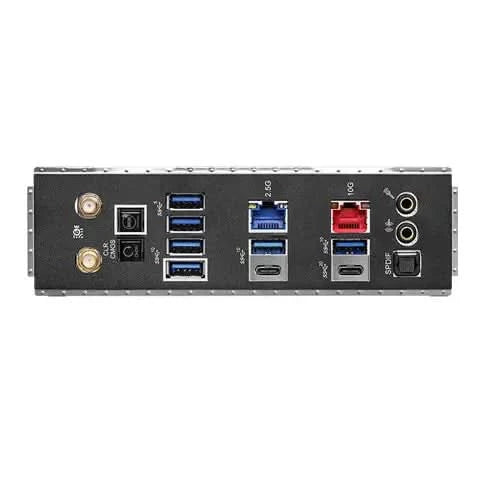

| Rear Panel I/O | – 2 x Antenna Ports – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 2 x RJ-45 LAN Ports – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software & UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |

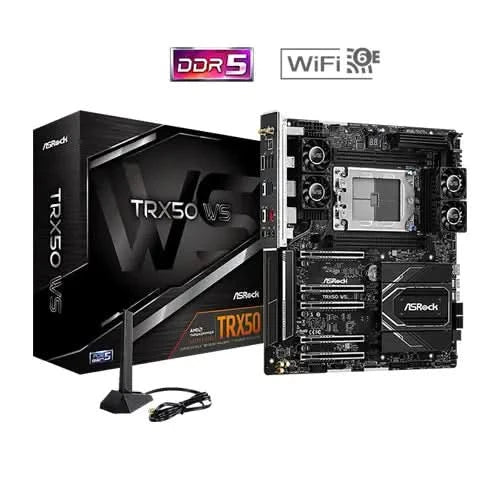

| Accessories | – 1 x User Manual – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 2 x Thermistor Cables – 1 x Multi PSU Adaptor Cable – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Form Factor | – EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm – 12 Layer PCB – 2oz Copper PCB |
| OS | Microsoft® Windows® 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
