Description

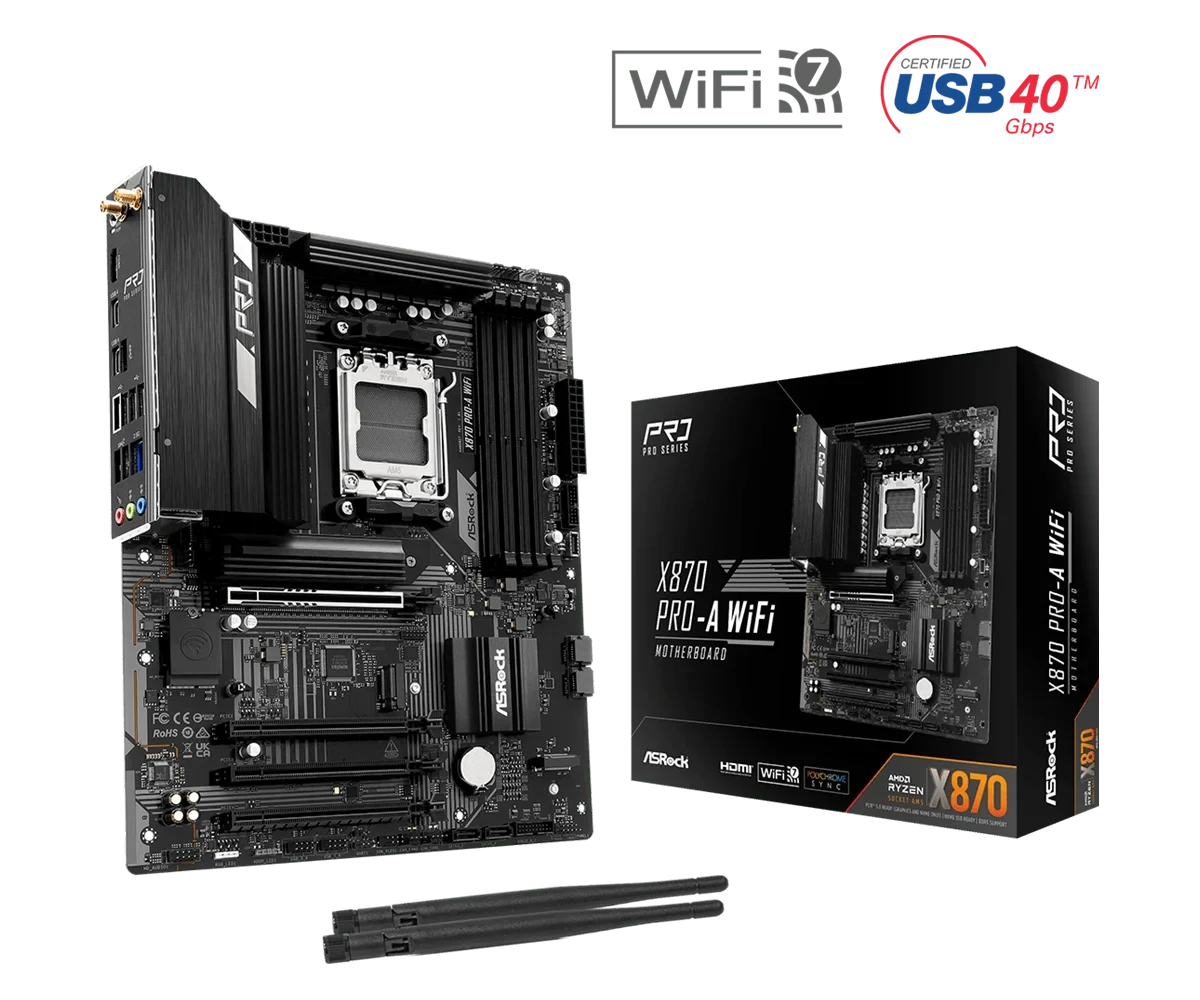

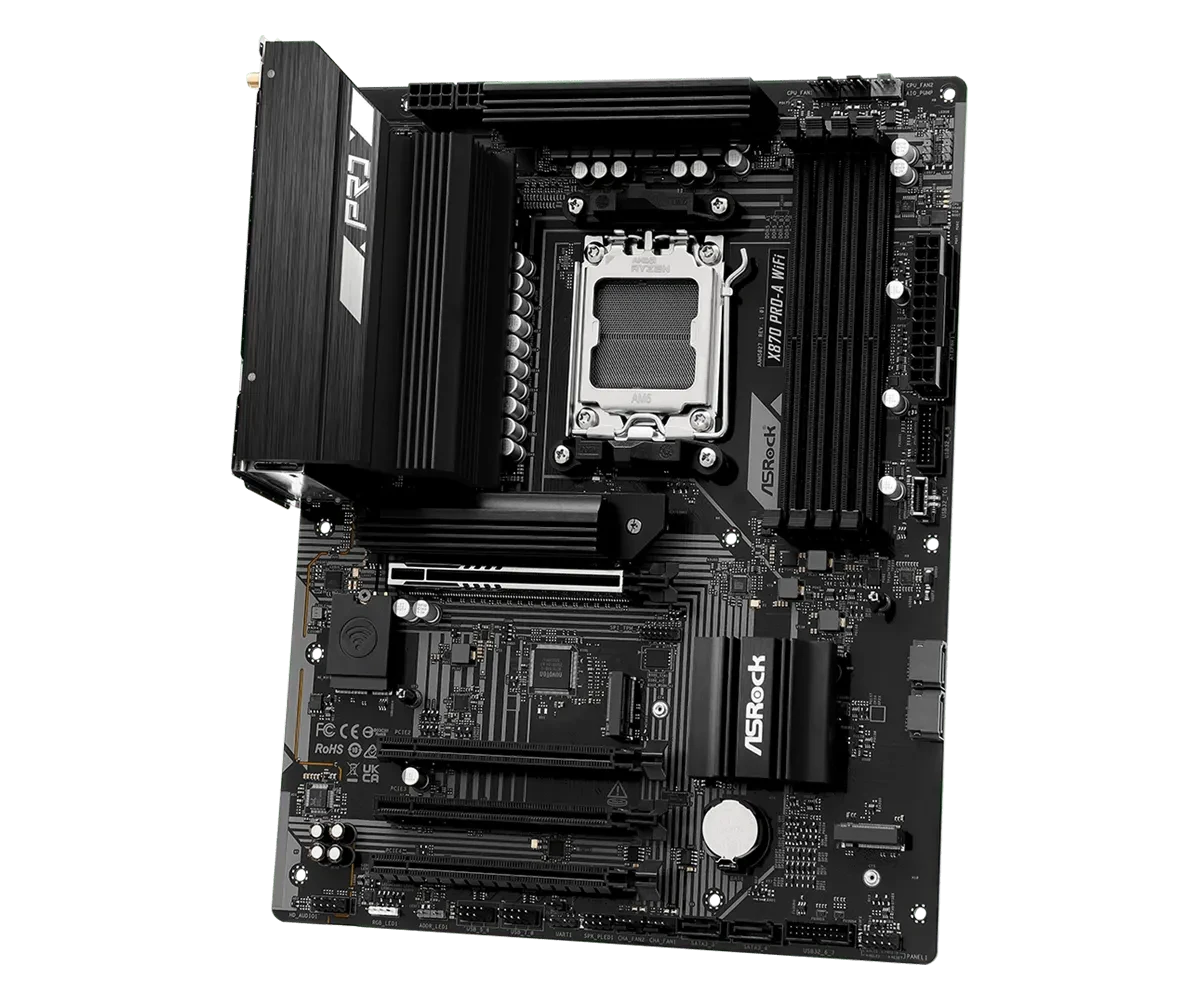

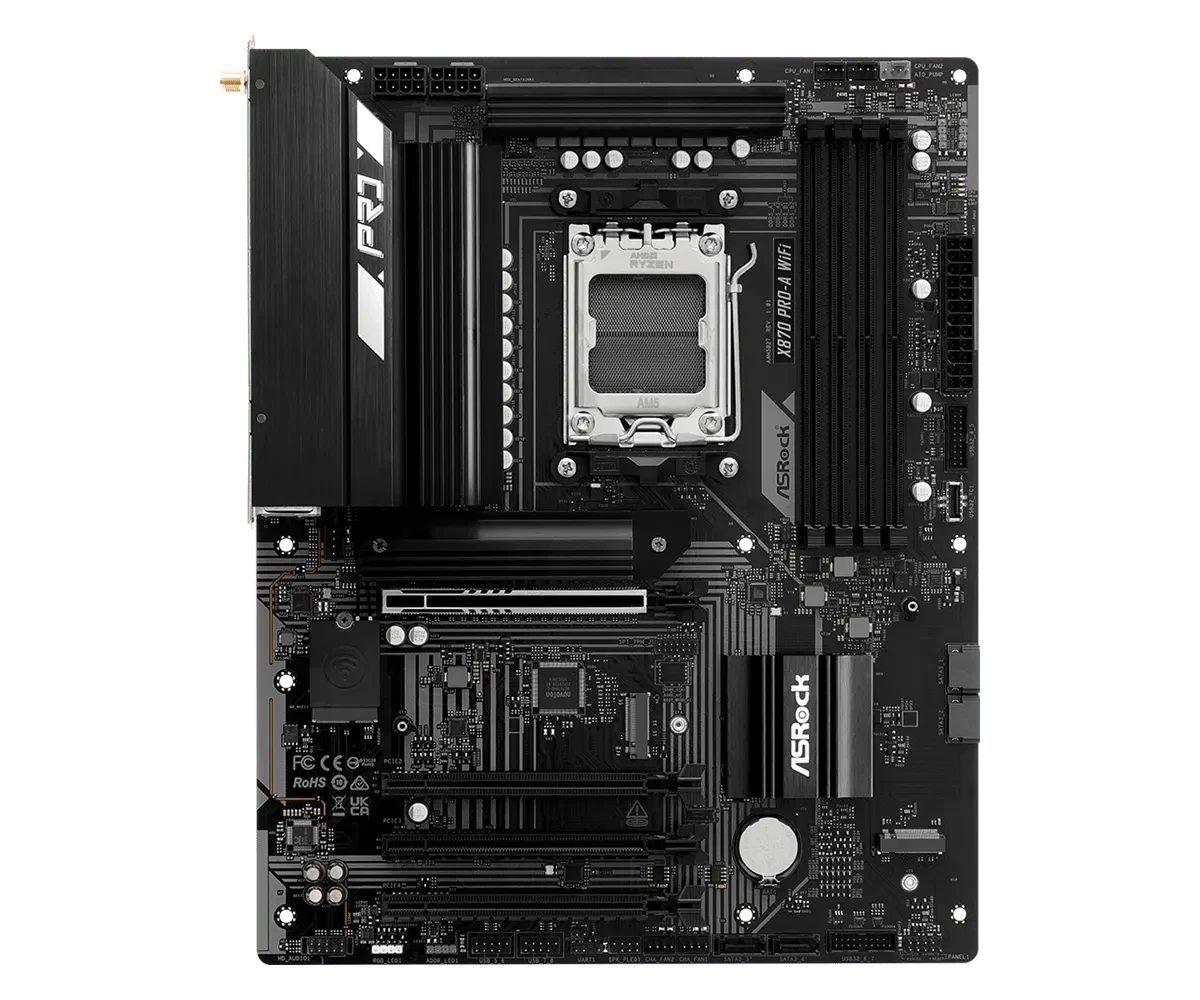

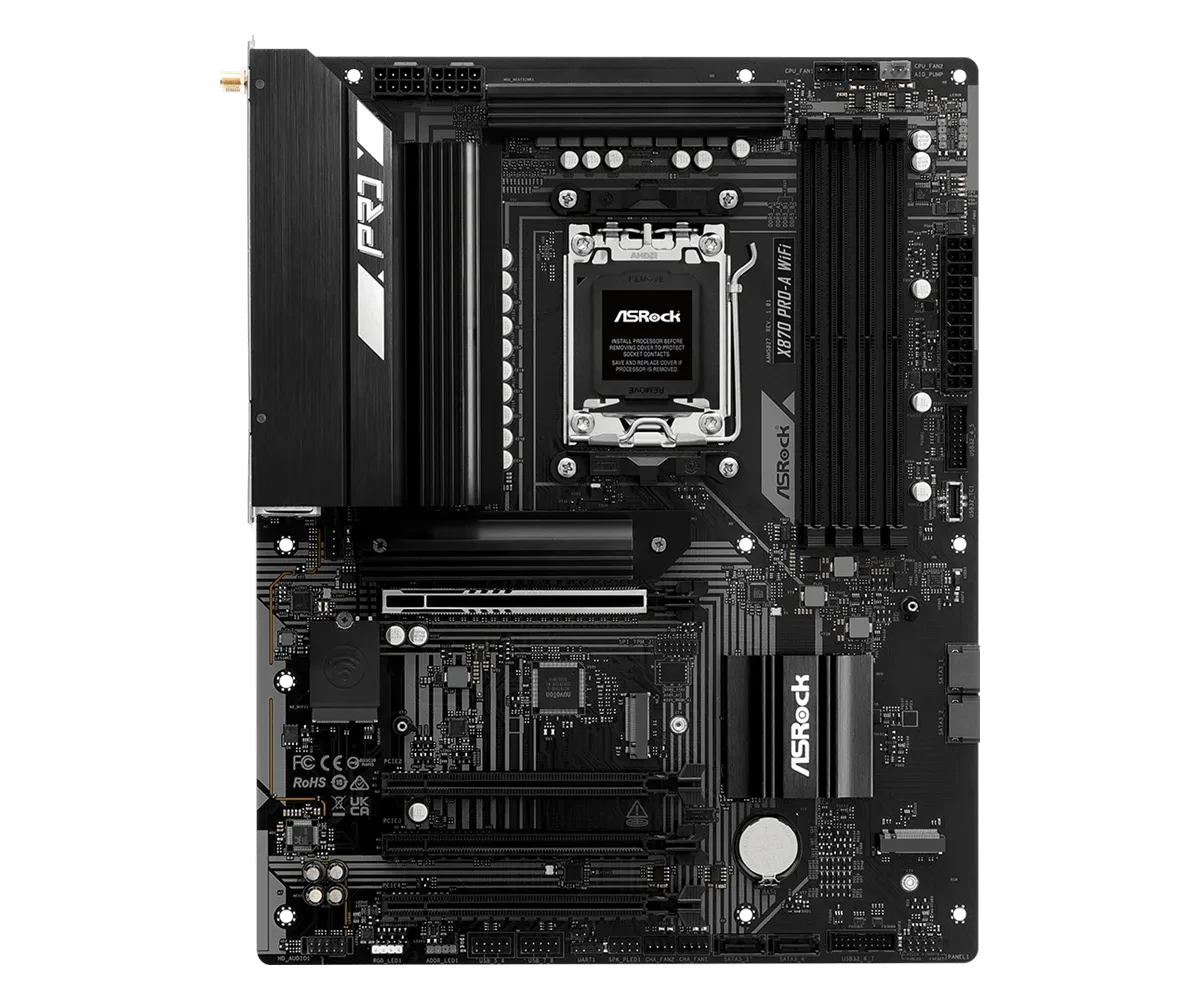

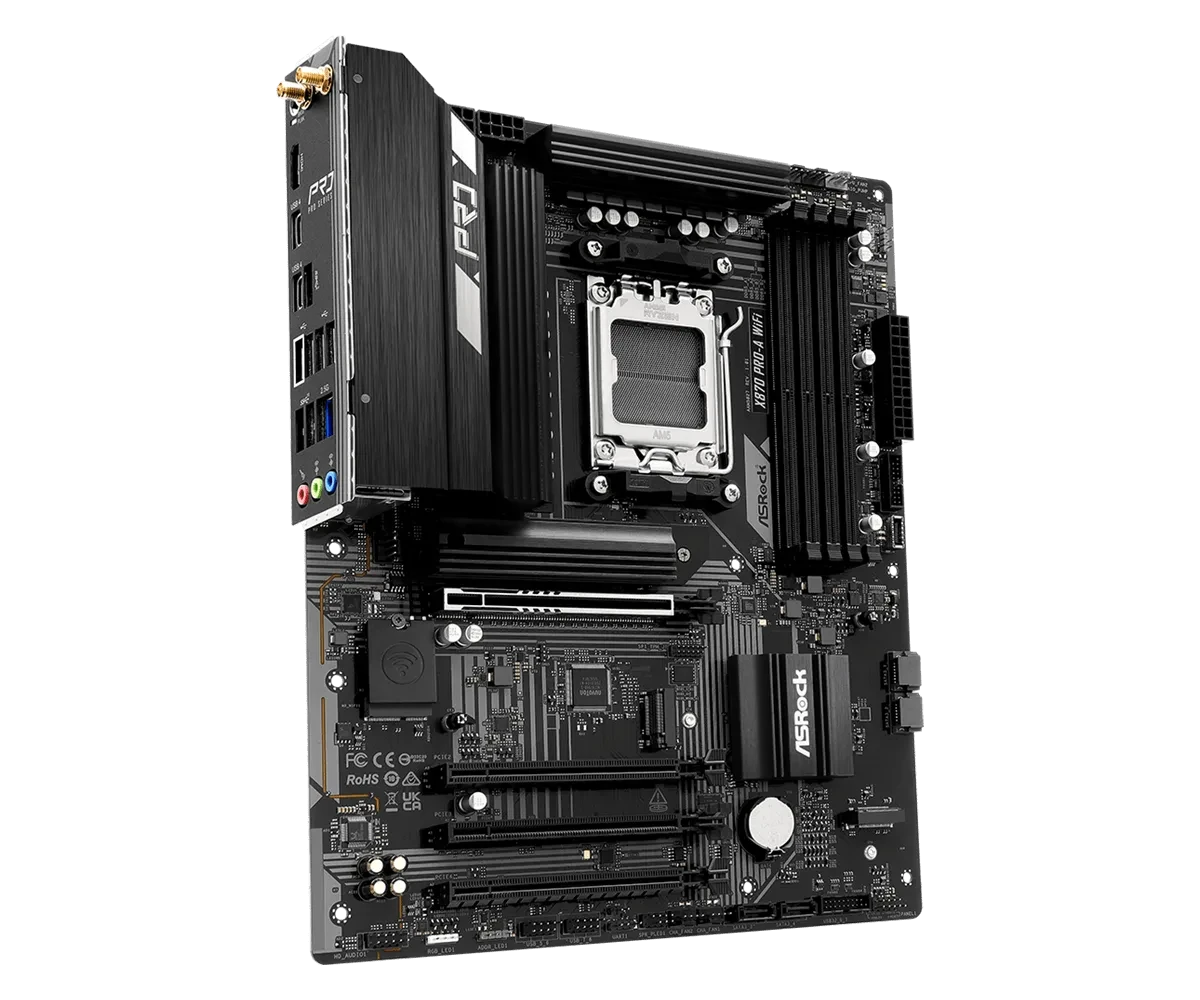

ASRock X870 A Pro WiFi AMD Motherboard AM5 DDR5 WiFi 7 ATX
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 3 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3 - 2 USB4 Type-C (Rear)
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5GbE LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports M.2 Bottom Heatsink
Specifications
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability – 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | AMD X870 |
| Memory | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*Please refer to Memory Support List on ASRock’s website for more information. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. USB4 Type-C ports on the rear panel and PCIE3 slot share PCIe Gen4x4 bandwidth. Both run at PCIe Gen4x2 when PCIE3 slot is occupied. You can switch PCIE3 to PCIe Gen4x4 in the BIOS, but this will disable the USB4 Type-C ports. The USB4 host controller supports up to PCIe Gen4x4. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless Lan | 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 160MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode* – 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. PCIE3 will run at Gen4x2 with 9000, 7000 and 8000 (Phoenix 1) series processors and disable with 8000 (Phoenix 2) series processors. USB4 Type-C ports on the rear panel and PCIE3 slot share PCIe Gen4x4 bandwidth. Both run at PCIe Gen4x2 when PCIE3 slot is occupied. You can switch PCIE3 to PCIe Gen4x4 in the BIOS, but this will disable the USB4 Type-C ports. The USB4 host controller supports up to PCIe Gen4x4. Supports NVMe SSD as boot disks |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If M2_2 is occupied, SATA3_3 and SATA3_4 will be disabled. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | CPU: – 2 x USB4 Type-C (Rear) – 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen1 Type-C (Front) – 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front)* All USB ports support ESD Protection |
| Connecter | 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

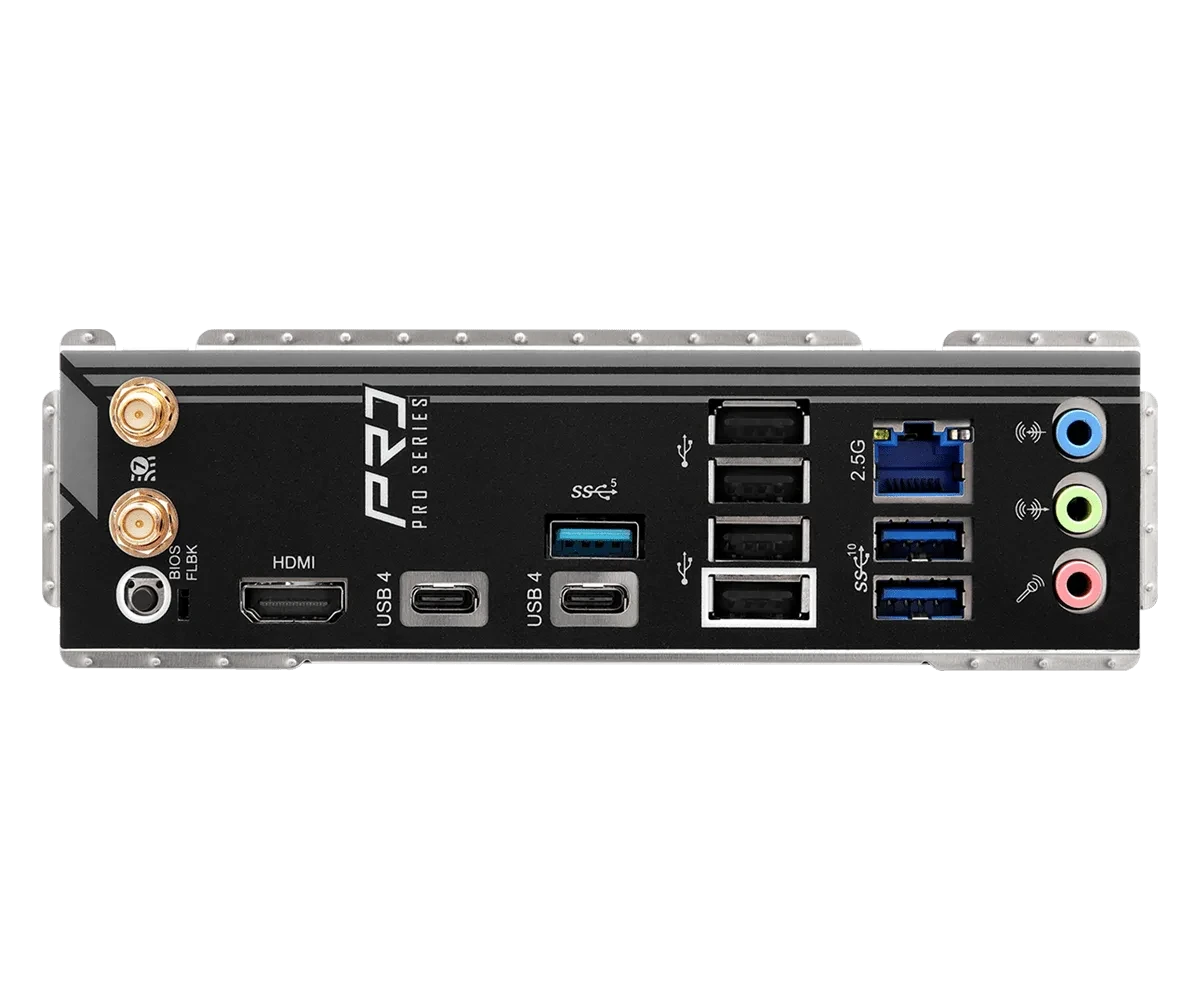

| Rear Panel I/O | 2 x Antenna Ports – 1 x HDMI Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 1 x USB 3.2 Gen1 Type-A Port – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone* Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessorise | 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) – CEC Tier II ready |
| Warranty | 3 Years |
| Note | Prices, Specifications & Features are subject to change without notice |
