Specifications:
| Category | Details |
| OC Formula Power Kit | - 16 Phase CPU Power design |
| - 2 Phase Memory Power design | |
| - Digi Power (CPU and Memory) | |
| OC Formula Connector Kit | - Hi-Density Power Connector |
| - 15? Gold Contact (memory sockets and PCIe x16 slot) | |
| OC Formula Cooling Kit | - 12 Layer PCB |
| - 2oz Copper | |
| - Heat Pipe Design | |
| Unique Features | - ASRock USB 3.2 Gen2 (Front Panel Type-C USB 3.2 Gen2x2 Header, USB 3.2 Gen2 Type-A Port, USB 3.2 Gen2 Type-C Port) |
| - ASRock Super Alloy (XXL Aluminum Alloy Heatsink, Premium 90A Power Choke, 90A SPS, 50A Dr.MOS, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Shaped PCB Design, Matte Black PCB, High Density Glass Fabric PCB) | |
| - Server-Grade Low-Loss PCB | |
| - Intel® 2.5G LAN | |
| - Intel® 802.11ax WiFi 6E | |
| - ASRock Steel Slots | |
| - ASRock Full Coverage M.2 Heatsink | |
| - ASRock Hyper M.2 (PCIe Gen4x4) | |
| - ASRock POST Status Checker (PSC) | |
| - ASRock Ultra USB Power | |
| - ASRock Status OLED | |
| - ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| - ASRock Live Update & APP Shop | |
| CPU Support | - Supports 10th Gen and 11th Gen Intel® Core™ Processors (LGA1200) |
| - Digi Power design | |
| - 16 Power Phase design | |
| - Supports Intel® Turbo Boost Max 3.0 Technology | |
| - Supports Intel® K-Series unlocked CPUs | |
| - Supports ASRock Hyper BCLK Engine III | |
| Chipset | - Intel® Z590 |
| Memory | - Dual Channel DDR4 Memory Technology |
| - 2 x DDR4 SMD DIMM Slots | |
| - Supports DDR4 non-ECC, un-buffered memory up to 6000+(OC) for 11th Gen and 5000+(OC) for 10th Gen | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| - Max. capacity of system memory: 64GB** | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| - 15? Gold Contact in DIMM Slots | |
| *11th Gen Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. | |
| *10th Gen Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. | |
| **Due to OS limitation, actual memory size may be less than 4GB for reservation for system usage under Windows® 32-bit OS. Windows® 64-bit OS with 64-bit CPU has no such limitation. | |
| BIOS | - 2 x 256Mb AMI UEFI Legal BIOS with multilingual GUI support |
| - ACPI 6.0 Compliant wake-up events | |
| - SMBIOS 2.7 Support | |
| - Multi-adjustment for CPU Vcore, DRAM (VCCM, VPPM, VTT), VCCSA, CPU PLL, VCC PLL, STANDBY voltages, VCCIO, VCCIOMEM, PCH Voltage, CPU Internal PLL, Ring PLL, System Agent PLL Voltage | |
| Graphics | - Not applicable (No integrated graphics) |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| - Premium Blu-ray Audio support | |
| - Supports Surge Protection | |
| - WIMA Audio Capacitors for Front Outputs | |
| - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) | |
| - Pure Power-In | |
| - Direct Drive Technology | |
| - PCB Isolate Shielding | |
| - Impedance Sensing on Rear Out port | |
| - Individual PCB Layers for R/L Audio Channel | |
| - Gold Audio Jacks with LED | |
| - 15? Gold Audio Connector | |
| - Nahimic Audio | |
| LAN | - 1 x 2.5 Gigabit LAN (Intel® I225V) |
| - 1 x Gigabit LAN (Intel® I219V) | |
| - Supports Wake-On-LAN | |
| - Lightning/ESD Protection | |
| - Energy Efficient Ethernet 802.3az | |
| - Supports PXE | |
| Wireless LAN | - Intel® 802.11ax Wi-Fi 6E Module |
| - Supports IEEE 802.11a/b/g/n/ax | |
| - Dual-Band 2x2 160MHz with extended 6GHz band support (activation expected via update) | |
| - 2 antennas for 2 (Transmit) x 2 (Receive) diversity technology | |
| - Supports Bluetooth 5.2 + High speed class II | |
| - Supports MU-MIMO | |
| Slots | - 3 x PCI Express x16 Slots (PCIE1/PCIE4/PCIE5: single at Gen4x16; dual at Gen4x8; triple at Gen4x8/Gen3x4) for 11th Gen Intel |
| - 2 x PCI Express 2.0 x1 Slots | |
| - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ | |
| - 1 x Vertical M.2 Socket (Key E) for WiFi-802.11ax module | |
| - 15? Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | - 6 x SATA3 6.0 Gb/s Connectors |
| - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061 | |
| - 1 x Hyper M.2 Socket (M2_1) for M Key type 2260/2280 M.2 PCI Express module (Gen4x4 for 11th Gen or Gen3x4 for 10th Gen) | |
| - 1 x Ultra M.2 Socket (M2_2) for M Key type 2260/2280 M.2 SATA3 or PCIe module up to Gen3 x4 | |
| - 1 x Ultra M.2 Socket (M2_3) for M Key type 2260/2280/22110 M.2 SATA3 or PCIe module up to Gen3 x4 | |
| *M2_2, SATA3_0 and SATA3_1 share lanes; if one is used, others are disabled. | |
| **Supports Intel® Optane™ Technology (M2_2 and M2_3 only) | |
| **Supports NVMe SSD as boot disks; Supports ASRock U.2 Kit | |
| RAID | - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices (RAID function for PCIe mode SSD in M2_1 available with Intel® SSD installed with 11th Gen Intel® Core™ Processors) | |
| Connectors | - 1 x Power LED and Speaker Header |
| - 2 x RGB LED Headers | |
| - 2 x Addressable LED Headers | |
| - 1 x CPU Fan Connector (4-pin) | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) | |
| - 6 x Chassis/Water Pump Fan Connectors (4-pin) | |
| - 1 x 24 pin ATX Power Connector (Hi-Density) | |
| - 2 x 8 pin 12V Power Connectors (Hi-Density) | |
| - 1 x Front Panel Audio Connector (15? Gold) | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| - 1 x Dr. Debug with LED | |
| - 1 x Power Button with LED | |
| - 1 x Reset Button with LED | |
| - 1 x Retry Button | |

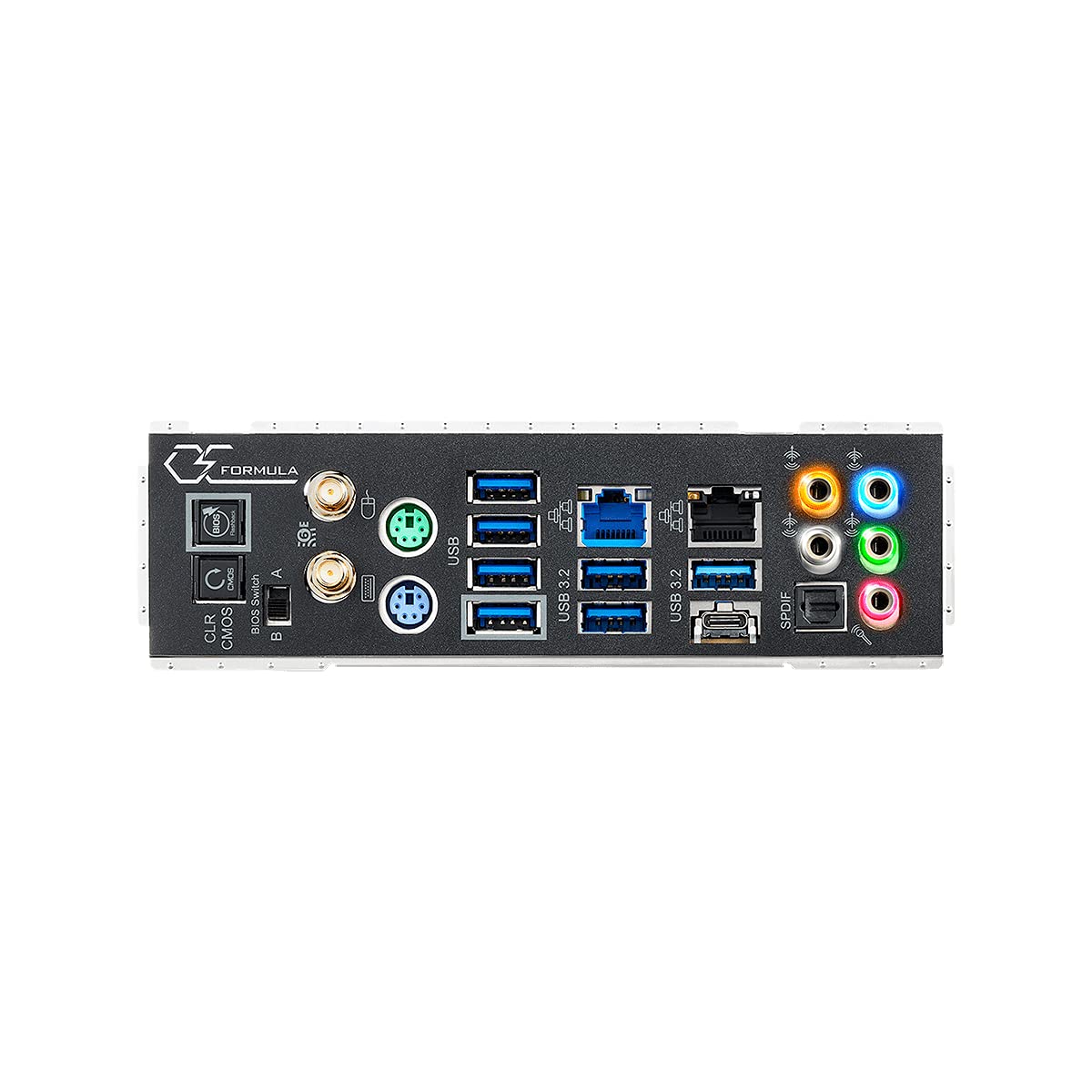

| Rear I/O Ports | 2 Antenna Ports, PS/2, USB 3.2 Gen2 Type-A/C, RJ-45 LAN, Audio Jacks (Gold), SPDIF, BIOS Flashback |
| Form Factor | EATX, 12 Layer PCB, 2oz Copper PCB |
| OS Support | Windows® 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |
