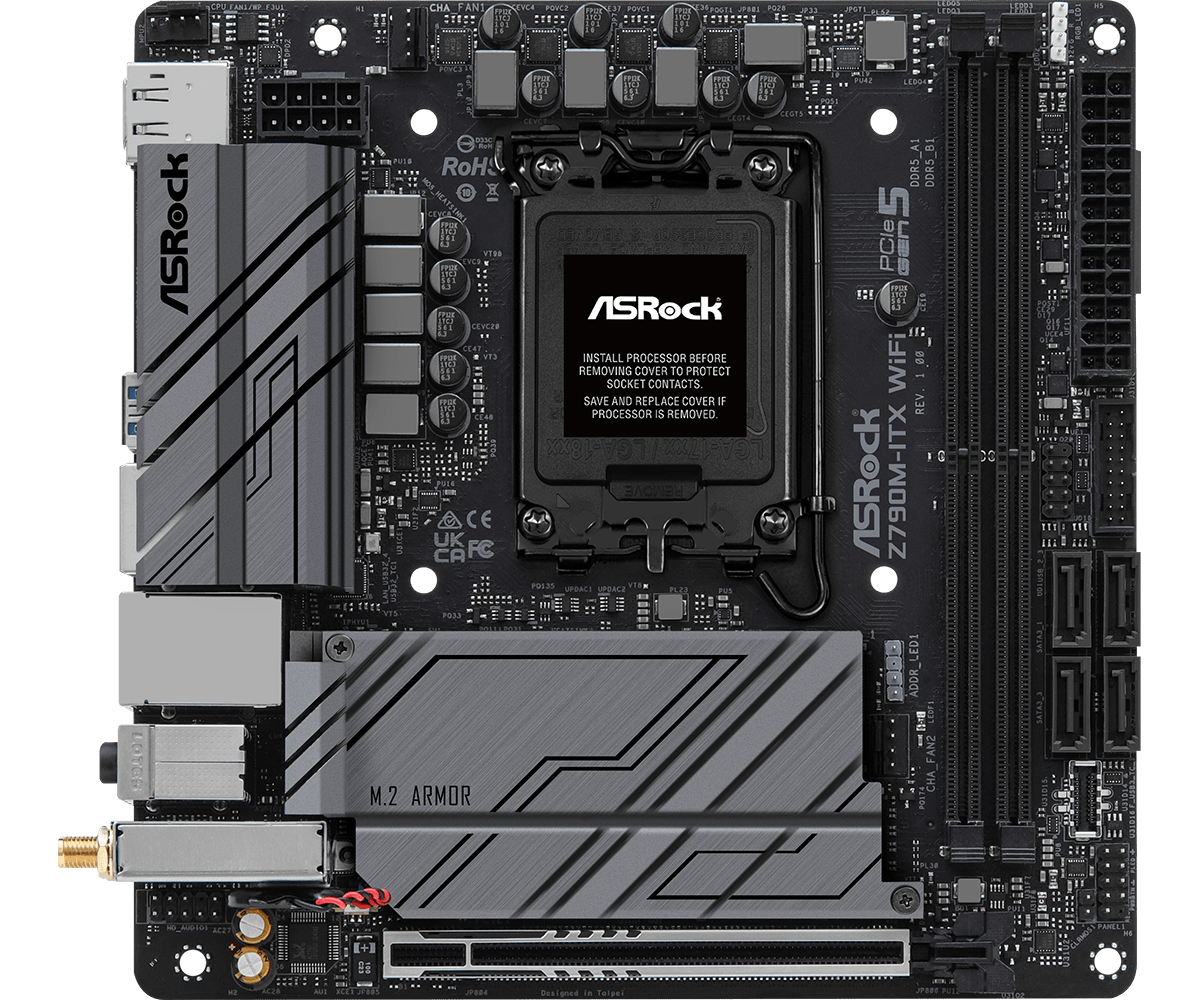

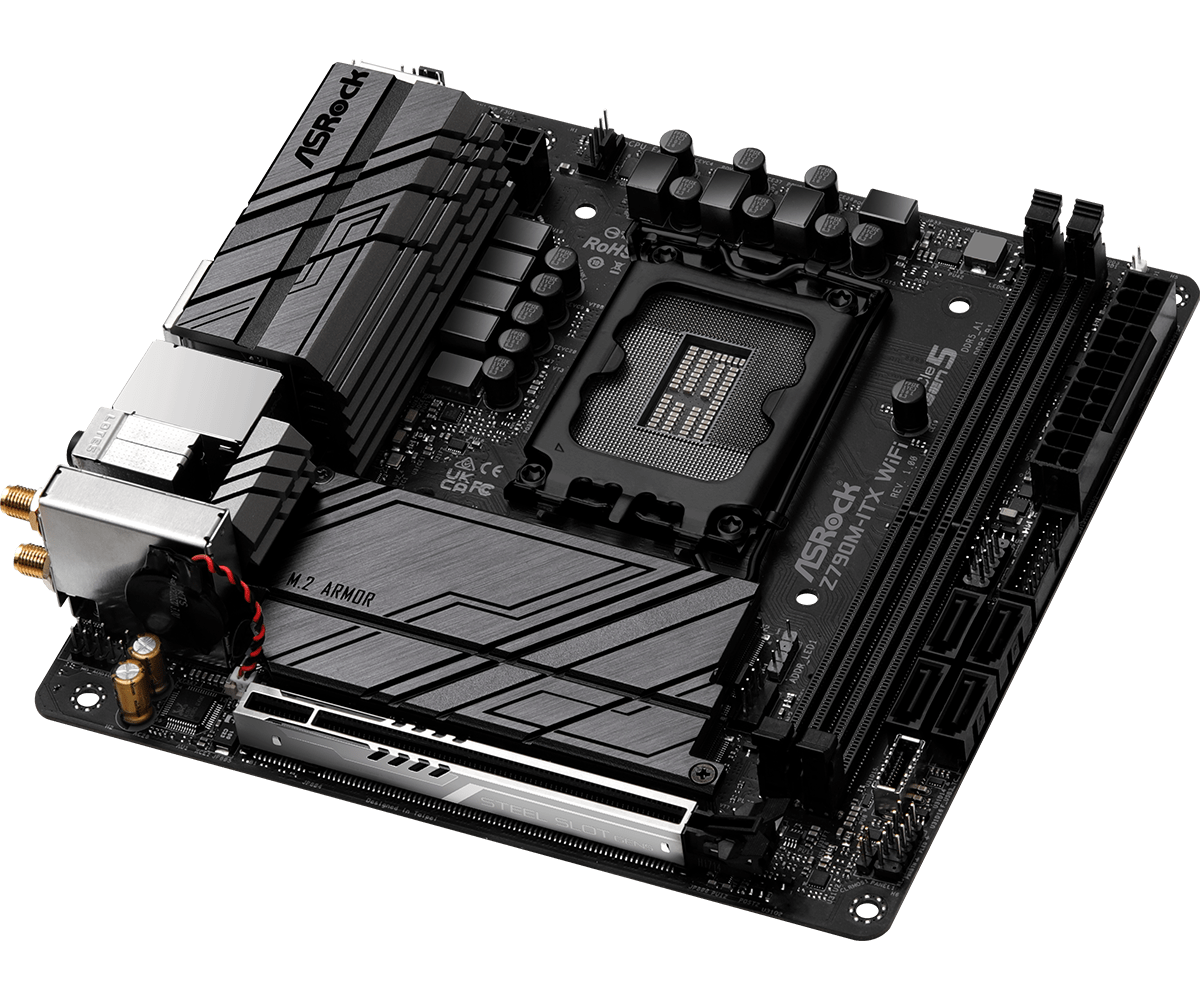

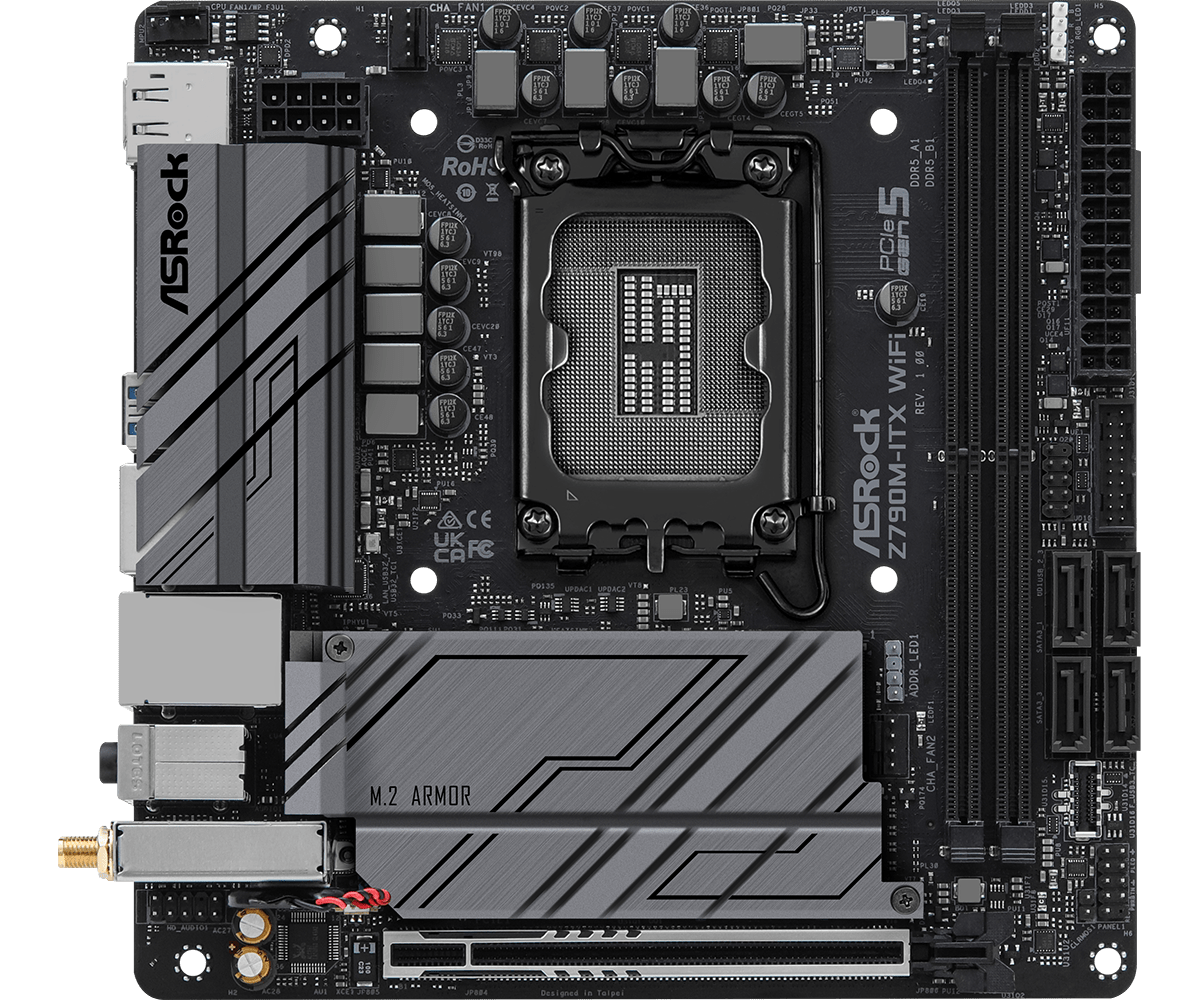

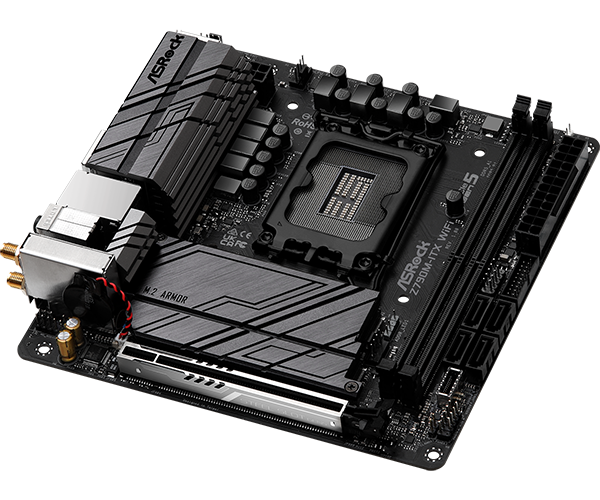

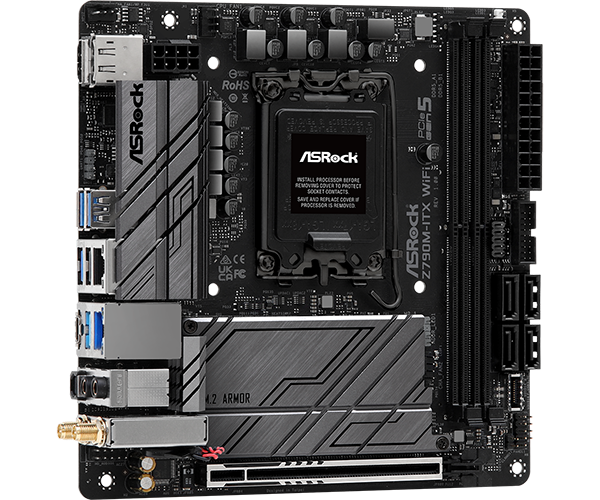

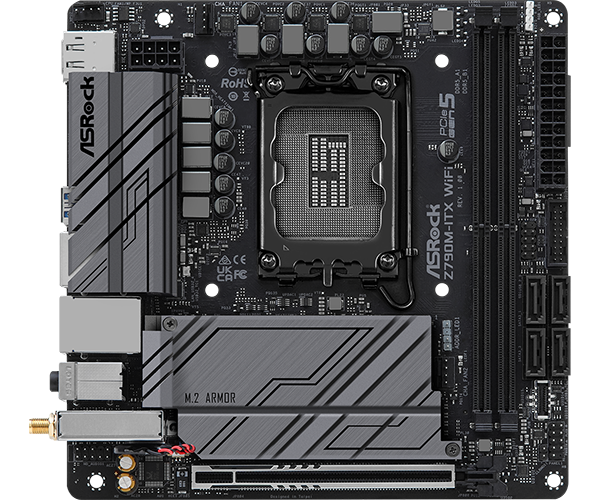

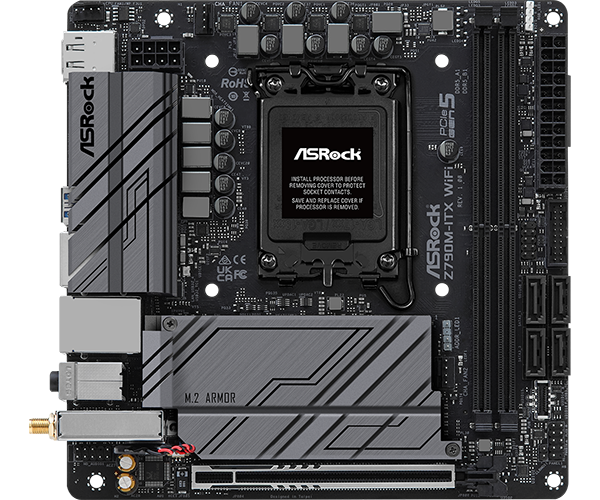

ASROCK Z790M-ITX WIFI DDR5 MOTHERBOARD

• PCIe Gen5 (Graphics)
• Dual Channel DDR5

• 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
• Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

• 2.5G LAN
• 802.11ax Wi-Fi 6E Module

• ASRock Auto Driver Installer

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
• 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. A 6GHz compatible router is required for 6E functionality.

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Supports PCIe riser cards to extend one x16 slot to two x8 slots. Supports NVMe SSD as boot disks.

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD). Supports NVMe SSD as boot disks.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 5.

• 1 x USB 3.2 Gen2x2 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 4 x USB 3.2 Gen2 Type-A (Rear)
• 2 x USB 3.2 Gen1 (Front)
• 3 x USB 2.0 (1 Rear, 2 Front)

*All USB ports support ESD Protection.

• 1 x eDP Signal Connector
• 1 x RGB LED Header*
• 1 x Addressable LED Header**
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 2 x Chassis Fan Connectors (4-pin)****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*****

*Supports in total up to 12V/3A, 36W LED Strip.
**Supports in total up to 5V/3A, 15W LED Strip.
***CPU_FAN1/WP supports the fan power up to 2A (24W).
****CHA_FAN1~2 support the fan power up to 1A (12W).
*****Actual speed depends on USB devices and extension cable in the chassis.

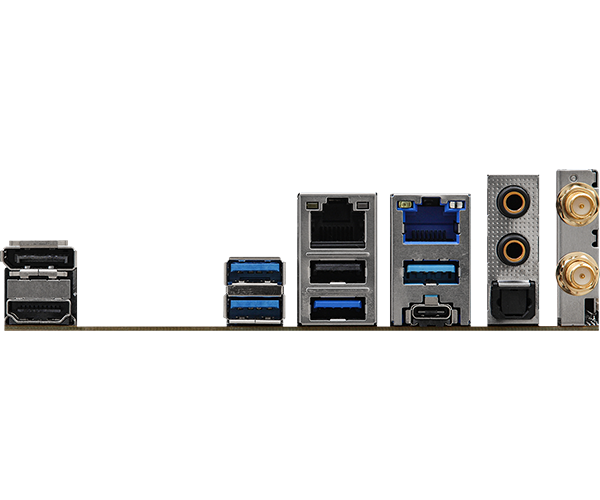

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 1 x USB 2.0 Port
• 2 x RJ-45 LAN Ports
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC

UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer.

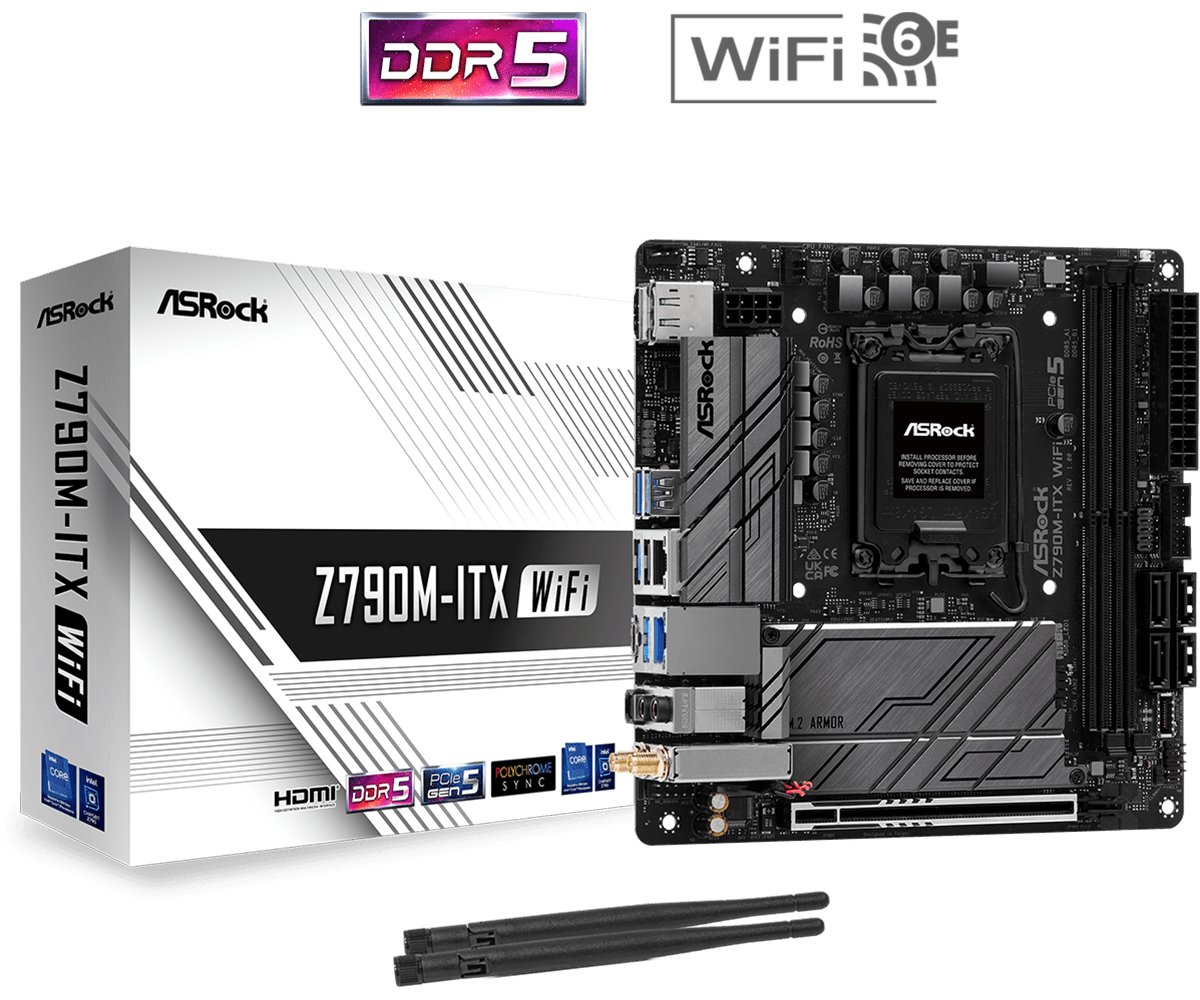

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 2 x Screws for M.2 Sockets

• Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• 8 Layer PCB

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
