Description
Features
- AM4 socket: Ready for AMD Ryzenô 5000 Series / 4000 G-Series / 3000 Series desktop processors

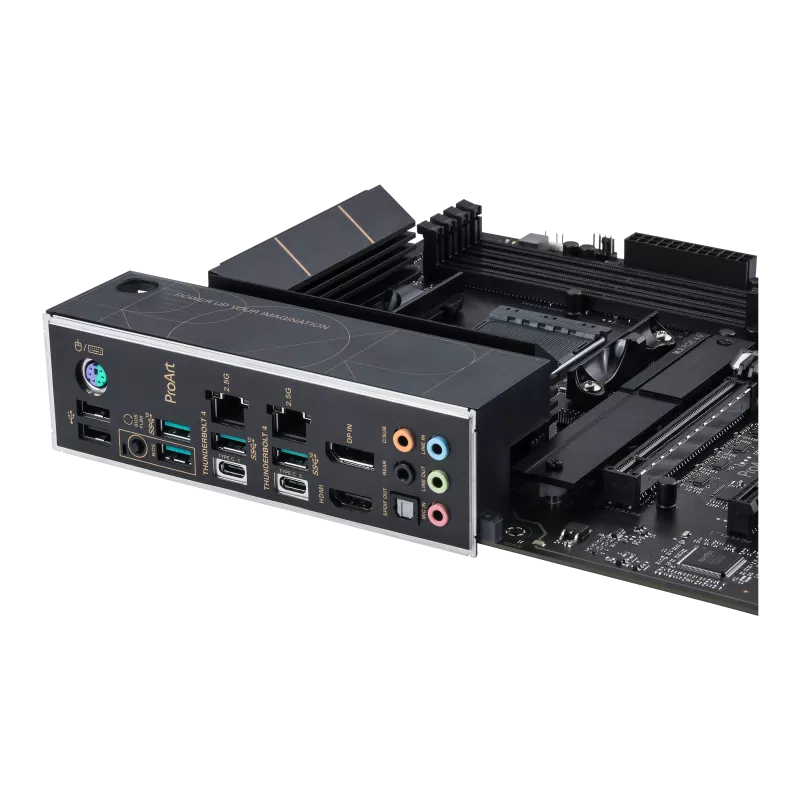

- Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMIô 2.1 and DisplayPortô 1.2 output
- Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
- Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with Creation First for one-stop system control
- Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with Safe Slot for enhanced durability
Specifications
| General | |
| Socket | AM4 |
| Chipset | B550 |
| Form Factor | ATX |
| Voltage Regulator | 12 Phase (12+2, 50A MOSFETs for Vcore) |
| Video Ports | HDMI (v2.1) |
| Thunderbolt 4 USB Type-C | |
| USB Ports | DisplayPort (v1.2, input for TB4 ports) |
| Thunderbolt 4, Type-C (40 Gbps) | |
| USB 3.2 Gen 2, Type-A (10 Gbps) | |
| USB 2.0 (480 Mbps) | |
| Network Jacks | 2.5 GbE |
| Audio Jacks | Analog + SPDIF |
| Legacy Ports/Jacks | PS/2 |
| Other Ports/Jack | ? |
| PCIe x16 | v4.0 (x16, x8/x8) |
| v3.0 (x4) | |
| PCIe x8 | ? |
| PCIe x4 | ? |
| PCIe x1 | v3.0 (x1) |
| CrossFire/SLI | AMD 3-Way/2-Way CrossfireX |
| DIMM slots | DDR4 4866+(OC), 128GB Capacity |
| M.2 slots | PCIe 4.0 x4 (64 Gbps) / PCIe + SATA (up to 110mm) |
| PCIe 3.0 x4 (32 Gbps) / PCIe + SATA (up to 110mm) | |
| U.2 Ports | ? |
| SATA Ports | SATA3 6 Gbps (RAID 0, 1 and 10) |
| USB Headers | USB v3.2 Gen 2, Type-C (10 Gbps) |
| USB v3.2 Gen 1 (5 Gbps) | |
| USB v2.0 (480 Mbps) | |
| Fan/Pump Headers | 4-Pin |
| RGB Headers | aRGB (3-pin) |
| (2) RGB (4-pin) | RGB (4-pin) |
| Legacy Interfaces | ? |
| Other Interfaces | FP-Audio |
| Diagnostics Panel | Post Status Checker (4 LEDs) |
| Internal Button/Switch | ? |
| SATA Controllers | ? |
| Ethernet Controller(s) | Intel I225-V (2.5 Gbps) |
| Wi-Fi / Bluetooth | ? |
| USB Controllers | ? |
| HD Audio Codec | Realtek ALC1220A |
| DDL/DTS Connect | ? / ? |
| Warranty | 3 Years |
