Specifications
| Specification | Details |
|---|---|

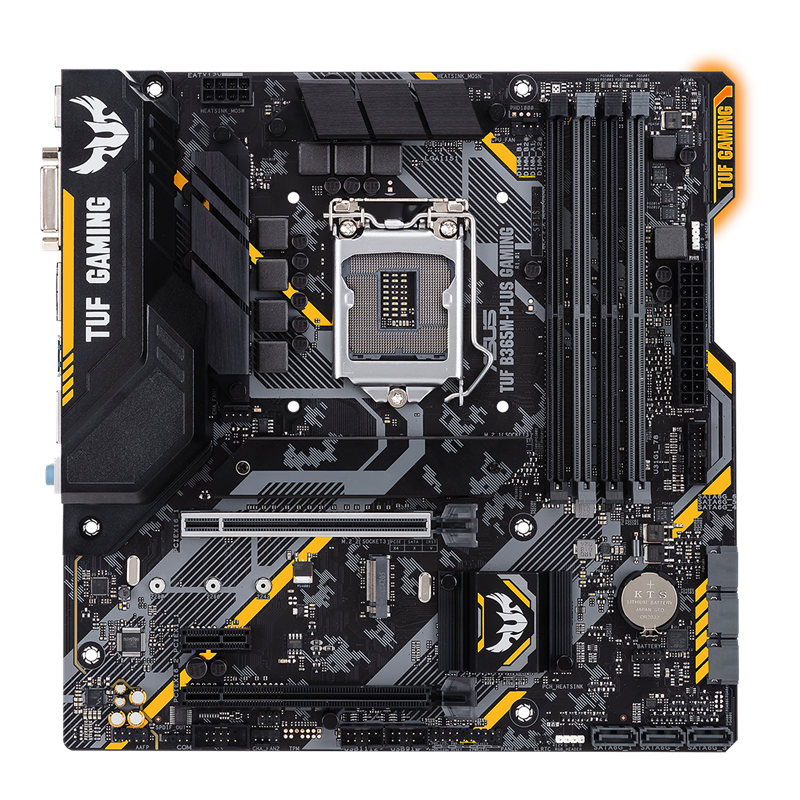

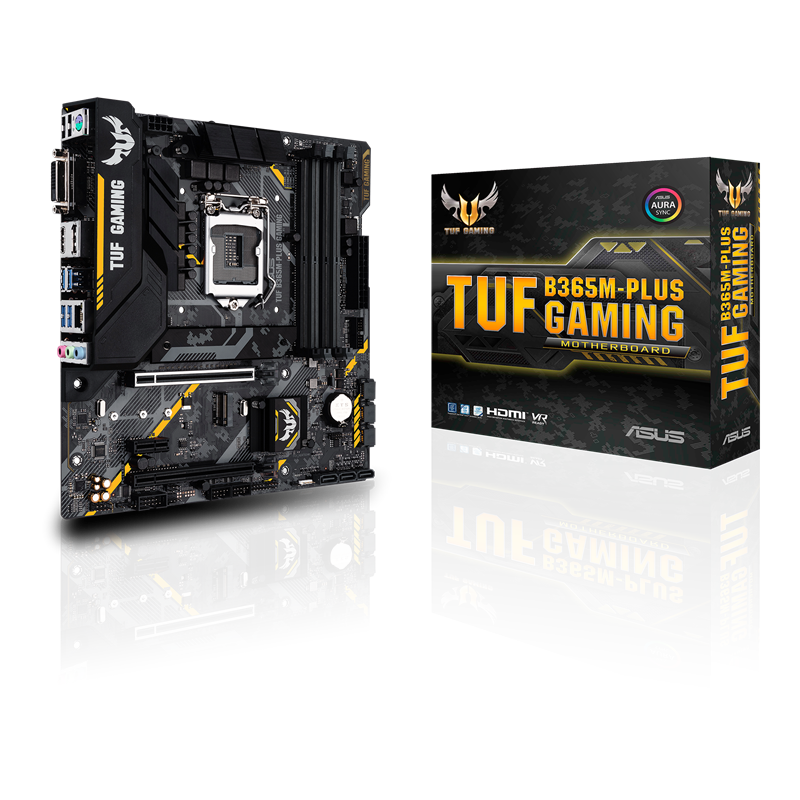

| Model | TUF B365M-PLUS GAMING |
| CPU | * Refer to www.asus.com for CPU support list.,Intel Socket 11519th / 8th Gen Intel Core, Pentium Gold and Celeron Processors,Supports Intel 14nm CPU,Supports Intel Turbo Boost Technology 2.0,* The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel B365 |
| Memory | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Intel B365 Chipset ,4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP),* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. |
| Graphic | Integrated Graphics Processor- Intel HD Graphics support,Multi-VGA output support : HDMI/DVI-D/DisplayPort ports,- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider,Supports up to 3 displays simultaneously |
| Multi-GPU Support | Supports AMD CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (max at x4 mode),1 x PCIe 3.0/2.0 x1 |
| Storage | Intel B365 Chipset : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),6 x SATA 6Gb/s port(s), gray,Support Raid 0, 1, 5, 10,Intel Optane Memory Ready |
| LAN | Intel I219V, 1 x Gigabit LAN,TUF LANGuard |
| Audio | Realtek ALC12008-Channel High Definition Audio CODEC,- Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), Intel B365 Chipset : ,6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features | ASUS TUF PROTECTION ,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Precision control for stable power,- ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace, ASUS OptiMem： ,- Optimem (Improved DDR4 stability), ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- PC Cleaner, ASUS Quiet Thermal Solution :,- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution,- ASUS Fan Xpert 2+, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

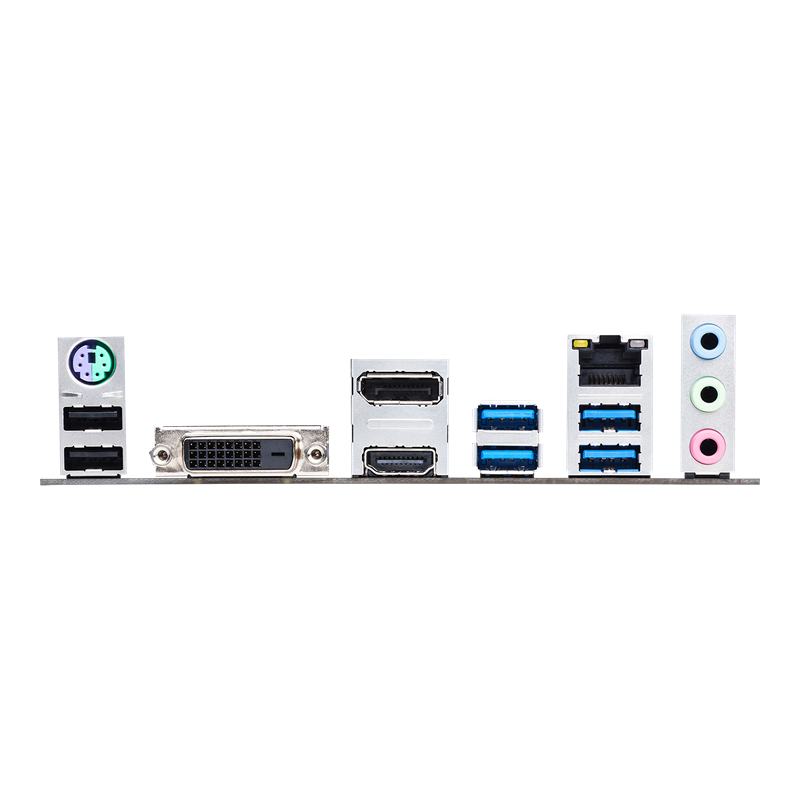

| Back I/O Ports | 4 x USB 3.1 Gen 1 Type-A up to 5Gbps,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,1 x 8-channel Audio I/O |
| Internal I/O Ports | 1 x Addressable RGB header,1 x Aura RGB Strip Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),2 x Chassis Fan connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector |

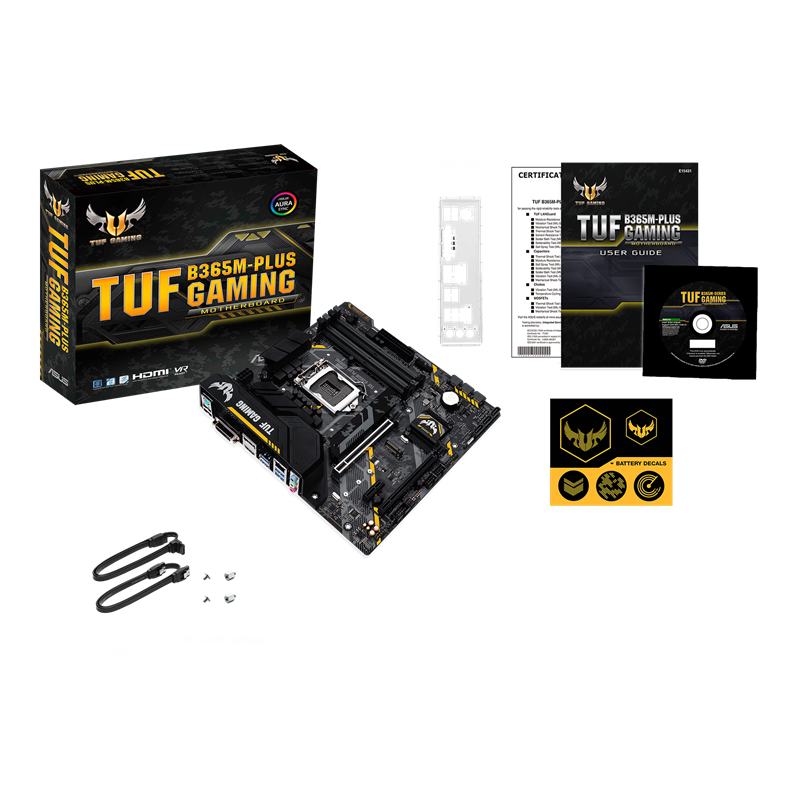

| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),2 x M.2 screws,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s) |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Operating System | Windows 10 64-bit |
| Form Factor | mATX Form Factor,9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm ) |
| Management Solution | WOL by PME, PXE |
