Prime A520M-K/CSM
Guaranteed safe & Secure checkout
Checking availability...
Location Restricted This product is only available for orders within Hyderabad.
Description

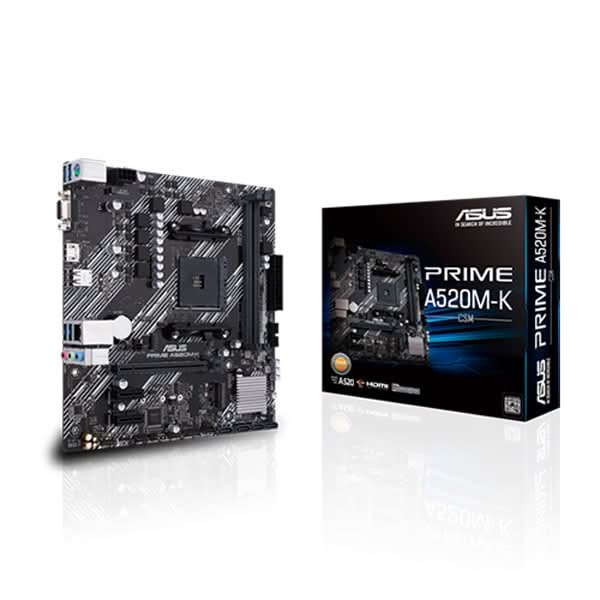

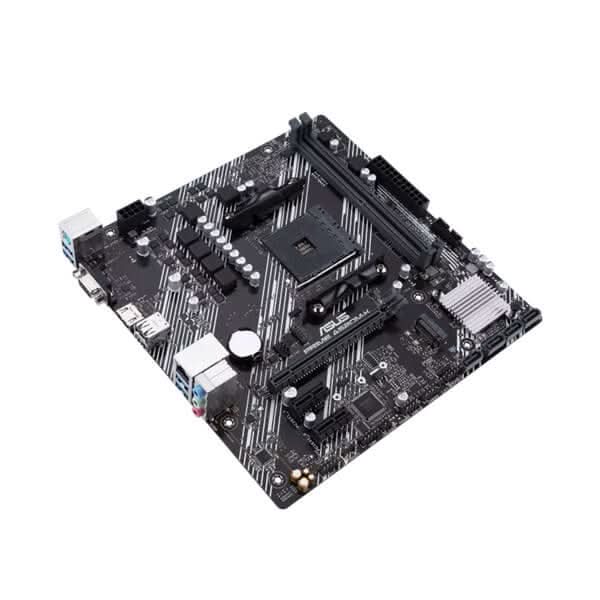

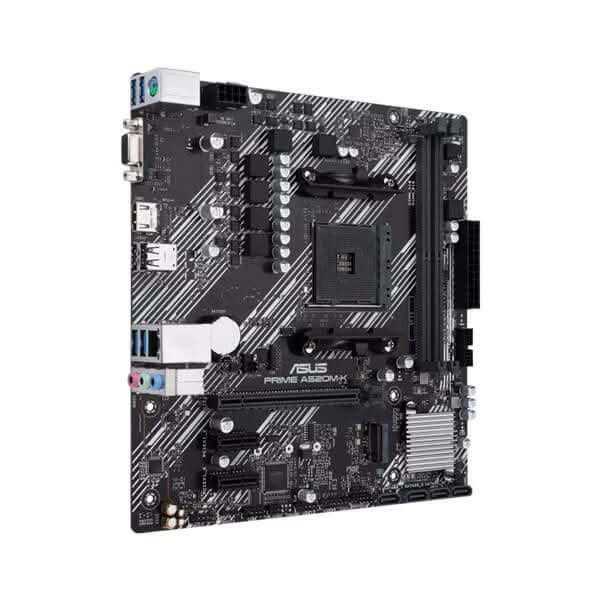

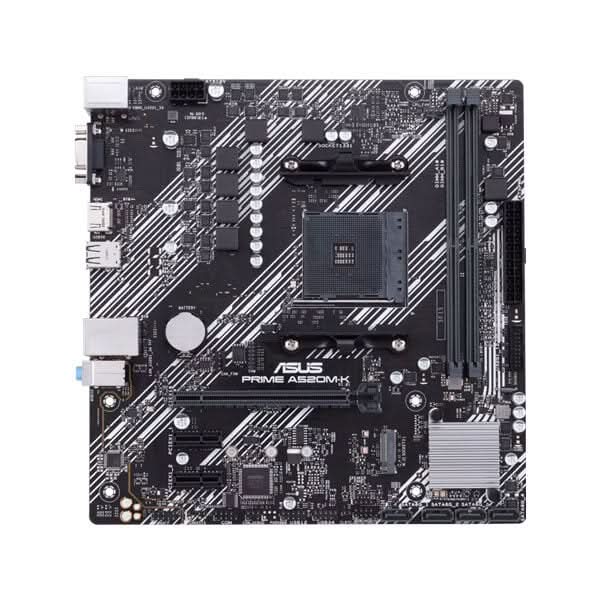

The ASUS Prime A520M-K/CSM is a dependable Micro-ATX motherboard designed for budget-friendly AMD desktop builds, office computers and everyday computing. Featuring the AMD A520 chipset and AM4 socket, it supports compatible AMD Ryzen desktop processors and dual-channel DDR4 memory up to 64GB. With PCIe 3.0 expansion, an M.2 storage slot, four SATA 6Gb/s ports, HDMI and D-Sub display outputs, and Gigabit Ethernet, it provides essential connectivity for a practical PC setup. ASUS 5X Protection III technologies help enhance system reliability, making it a suitable choice for home and business computers.
Key Features
- AMD A520 chipset with AM4 socket
- Supports compatible AMD Ryzen desktop processors
- Dual-channel DDR4 memory support up to 64GB
- PCIe 3.0 x16 slot for a compatible graphics card
- M.2 slot for compatible NVMe SSDs and SATA M.2 drives
- Four SATA 6Gb/s storage connectors
- HDMI and D-Sub display outputs
- Realtek Gigabit Ethernet
- 7.1-channel HD audio
- ASUS 5X Protection III technologies
- Compact Micro-ATX form factor
- CSM edition designed for commercial system deployment
Specifications
| Brand | ASUS |
| Model | Prime A520M-K/CSM |
| Motherboard Chipset | AMD A520 |
| CPU Socket | AMD AM4 |
| Processor Support | Compatible AMD Ryzen desktop processors, subject to BIOS support |
| Memory Type | DDR4 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 64GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to 5100 MT/s OC, depending on CPU and configuration |
| Graphics Interface | 1 × PCIe 3.0 x16 |
| Additional Expansion | 2 × PCIe 3.0 x1 |
| M.2 Slot | 1 × M.2, supports compatible PCIe 3.0 x4 and SATA drives |
| M.2 Drive Sizes | 2242, 2260, 2280 |
| SATA Connectors | 4 × SATA 6Gb/s |
| RAID Support | RAID 0, 1 and 10 |

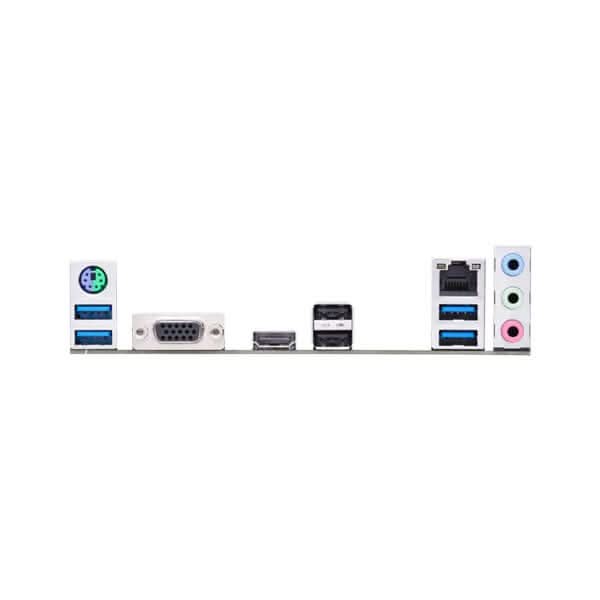

| Display Outputs | 1 × HDMI, 1 × D-Sub |
| LAN | Realtek Gigabit Ethernet |
| Audio | 7.1-channel HD audio |
| USB Connectivity | USB 3.2 Gen 1 and USB 2.0 ports |
| Protection Features | ASUS 5X Protection III |
| Special Edition | CSM |
| Form Factor | Micro-ATX |
