Specifications
| CPU | AMD AM4 Socket AMD Ryzenô 2nd Generation/Ryzenô with Radeonô Vega Graphics/Ryzenô 1st Generation Processors |
| Chipset | AMD B450 |
| Memory | AMD Ryzenô 2nd Generation/ Ryzenô with Radeonô Vega Graphics/ Ryzenô 1st Generation Processors |
| 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC mode) support varies by CPU. | |
| Graphic | Integrated in the AMD Ryzenô with Radeonô Vega Graphics Processors |
| Multi-VGA output support : HDMI/DVI-D/D-Sub ports | |
| - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
| - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
| - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz | |
| Expansion Slots | AMD Ryzenô 2nd Generation/ Ryzenô 1st Generation Processors |
| 1 x PCIe 3.0/2.0 x16 (x16 mode) | |
| AMD Ryzenô with Radeonô Vega Graphics Processor | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD B450 chipset | |
| 2 x PCIe 2.0 x1 | |
| Storage | AMD B450 chipset : |
| 4 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| AMD Ryzenô 2nd Generation/ Ryzenô with Radeonô Vega Graphics/ Ryzenô 1st Generation Processors : | |
| 2 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| AMD Ryzenô 2nd Generation/ Ryzenô with Radeonô Vega Graphics/ Ryzenô 1st Generation Processors : | |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 | |
| LAN | RealtekÆ RTL8111H, 1 x Gigabit LAN Controller(s) |
| ASUS LAN Guard | |
| Audio | RealtekÆ ALC887 8-Channel High Definition Audio CODEC |
| Audio Feature : | |
| - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. | |
| - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | |
| USB Ports | AMD Ryzenô 2nd Generation/ Ryzenô with Radeonô Vega Graphics/ Ryzenô 1st Generation : |
| 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) | |
| AMD B450 chipset : | |
| 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) | |
| AMD B450 chipset : | |
| 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) | |
| AMD B450 chipset : | |
| 4 x USB 2.0/1.1 port(s) (4 at mid-board) | |
| Special Features | ASUS 5X Protection III : |
| - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| - ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| - ASUS DIGI+ VRM: 6 Phase digital power design | |
| ASUS Exclusive Features : | |
| - AI Suite 3 | |
| - Ai Charger | |
| ASUS Quiet Thermal Solution : | |
| - Stylish Fanless Design Heat-sink solution | |
| - ASUS Fan Xpert 2+ | |
| ASUS EZ DIY : | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| - Multi-language BIOS | |
| ASUS Q-Design : | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |

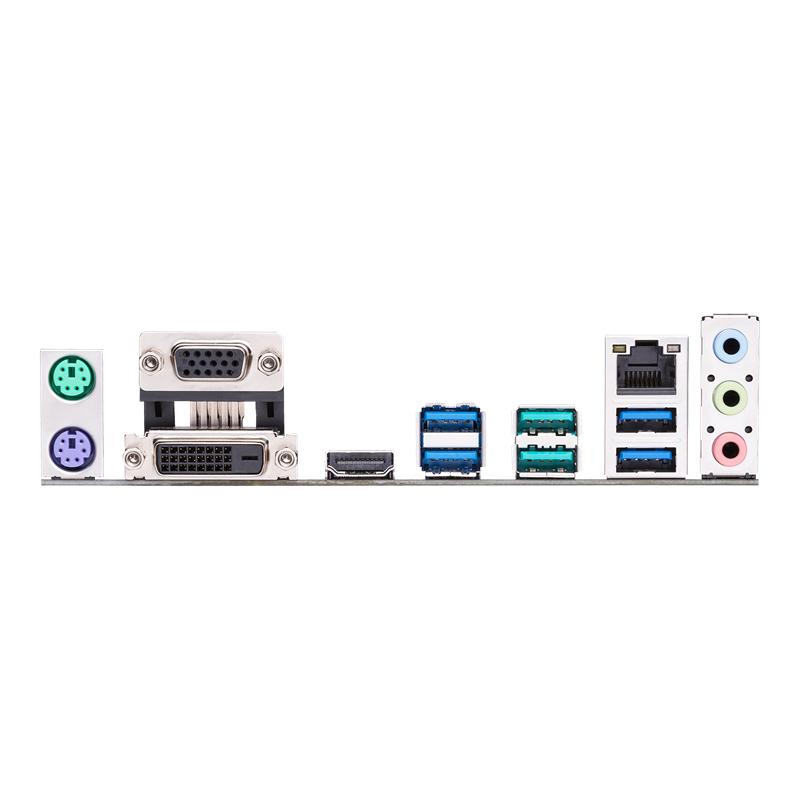

| Back I/O Ports | 1 x PS/2 keyboard (purple) |
| 1 x PS/2 mouse (green) | |
| 1 x DVI-D | |
| 1 x D-Sub | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 2 x USB 3.1 Gen 2 | |
| 4 x USB 3.1 Gen 1 , | |
| 3 x Audio jack(s) | |
| Internal I/O Ports | 1 x Aura RGB Strip Header |
| 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1 x TPM header | |
| 1 x COM port(s) connector(s) | |
| 6 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) (1 x 4 -pin) | |
| 2 x Chassis Fan connector(s) (2 x 4 -pin) | |
| 1 x S/PDIF out header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Speaker connector | |

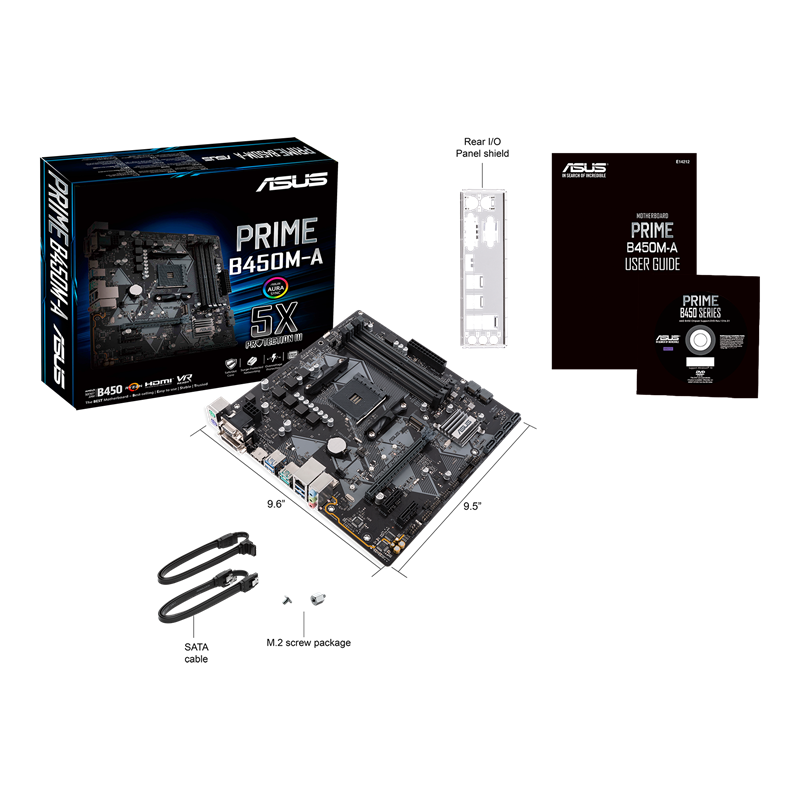

| Accessories | User¥s manual |
| I/O Shield | |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| Operating System | WindowsÆ 10 64-bit |
| Form Factor | mATX Form Factor |
| 24.4 cm x 24 cm (9.6 x 9.5 ) |
