| Specification | Details |
|---|---|

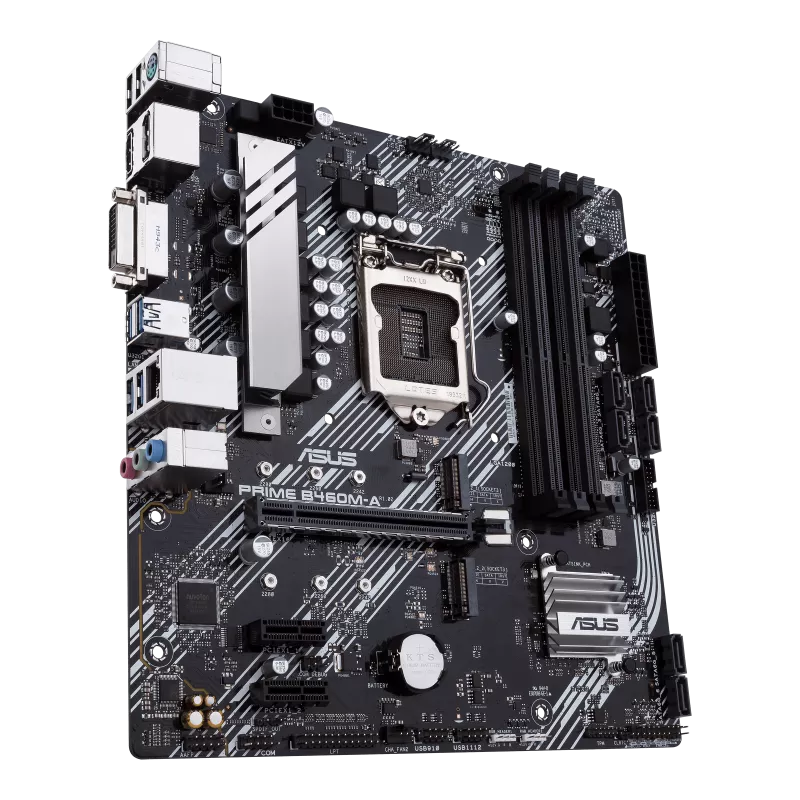

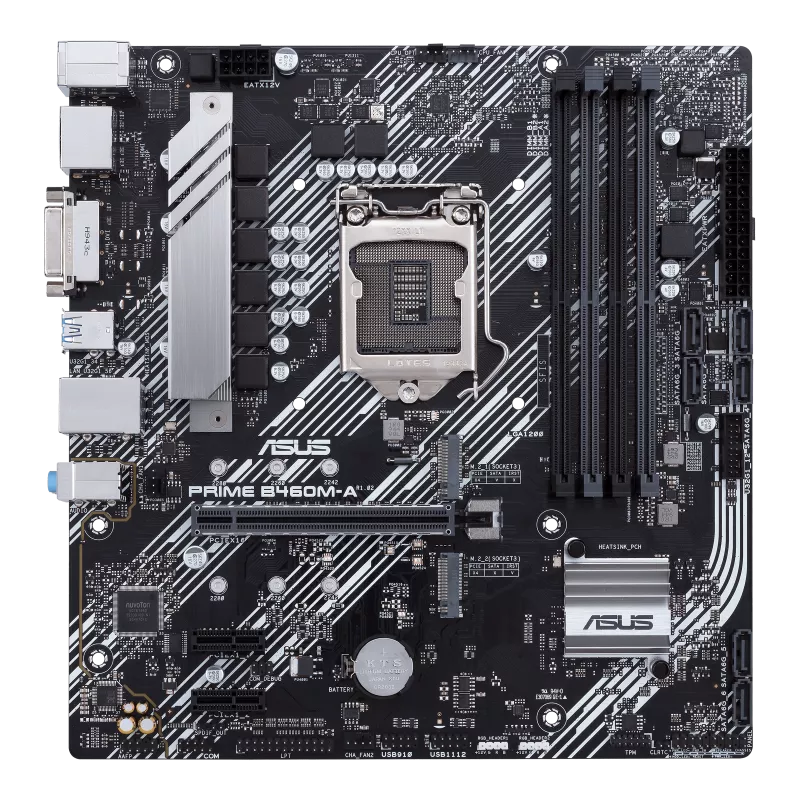

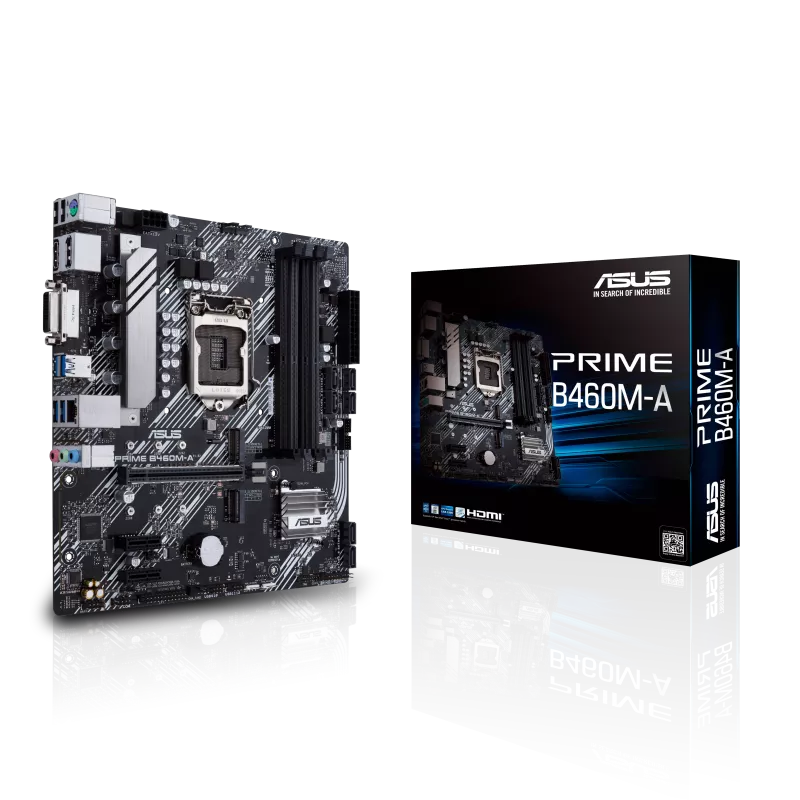

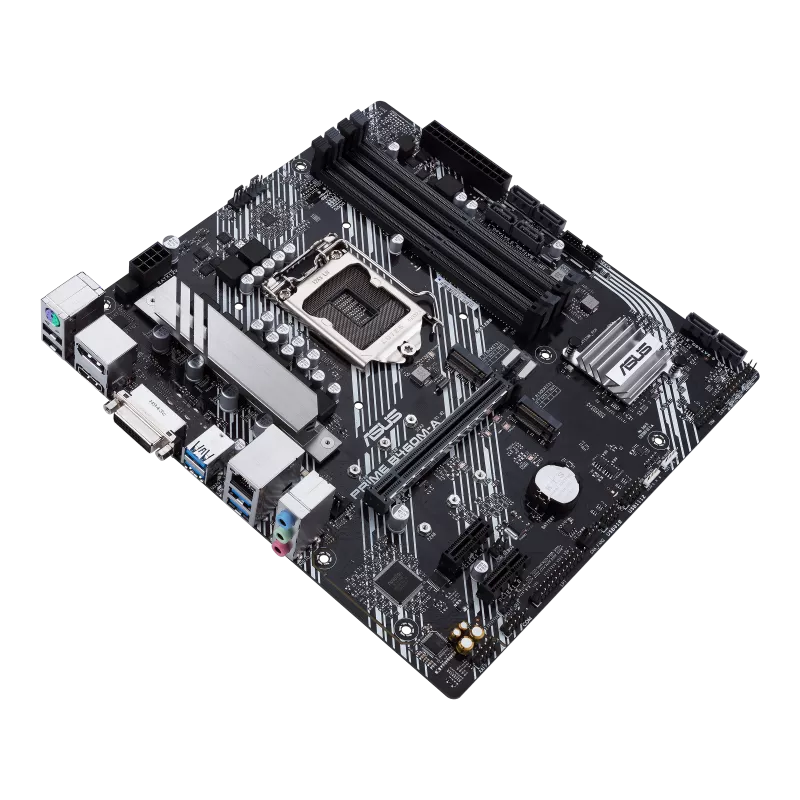

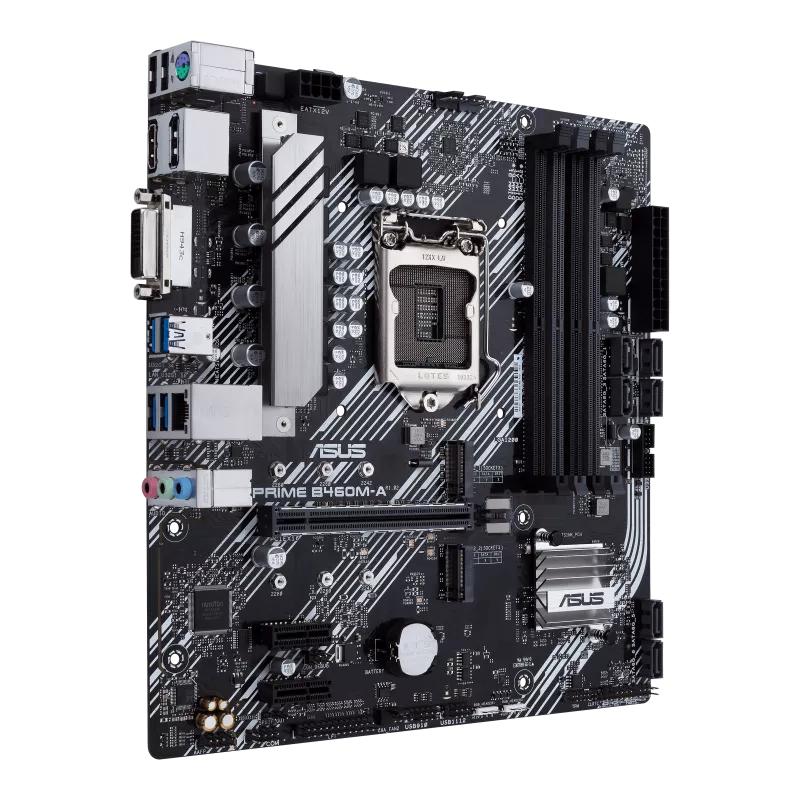

| Model | PRIME B460M-A |
| CPU | * Refer to www.asus.com for CPU support list.,Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU |
| Chipset | Intel B460 |
| Memory | * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,Supports Intel Extreme Memory Profile (XMP) |
| Graphic | **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x HDMI port,1 x DisplayPort 1.4,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor- Intel UHD Graphics support |
| Expansion Slots | Intel B460 Chipset , Intel 10th Gen Processors ,1 x PCIe 3.0/2.0 x16 (x16 mode),2 x PCIe 3.0/2.0 x1 |
| Storage | Intel B460 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel Rapid Storage Technology supports,Intel Optane Memory Ready |
| LAN | Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Audio | - Supports : Jack-detection, up to 24-Bit/192kHz playback,Realtek ALC8877.1-Channel High Definition Audio CODEC *,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s),4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A), Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM ASUS Sync - Standard RGB header(s) |

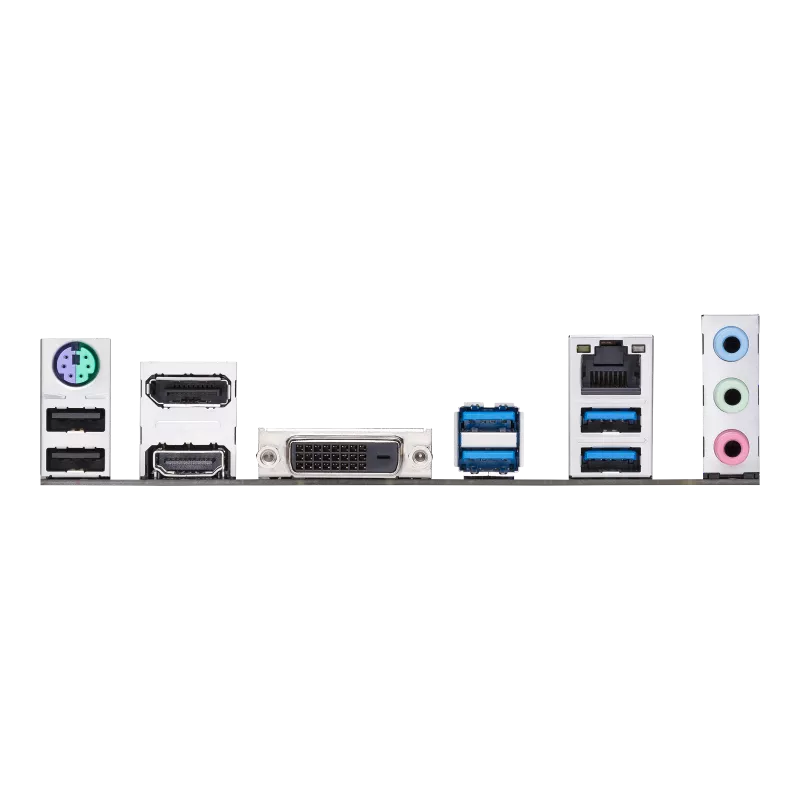

| Back I/O Ports | 4 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports | 1 x COM port header,1 x AAFP connector,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),2 x Chassis Fan connector(s) (2 x 4-pin),2 x M.2 Socket 3,1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x AAFP connector,2 x Aura RGB Strip Header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x LPT header,6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header |

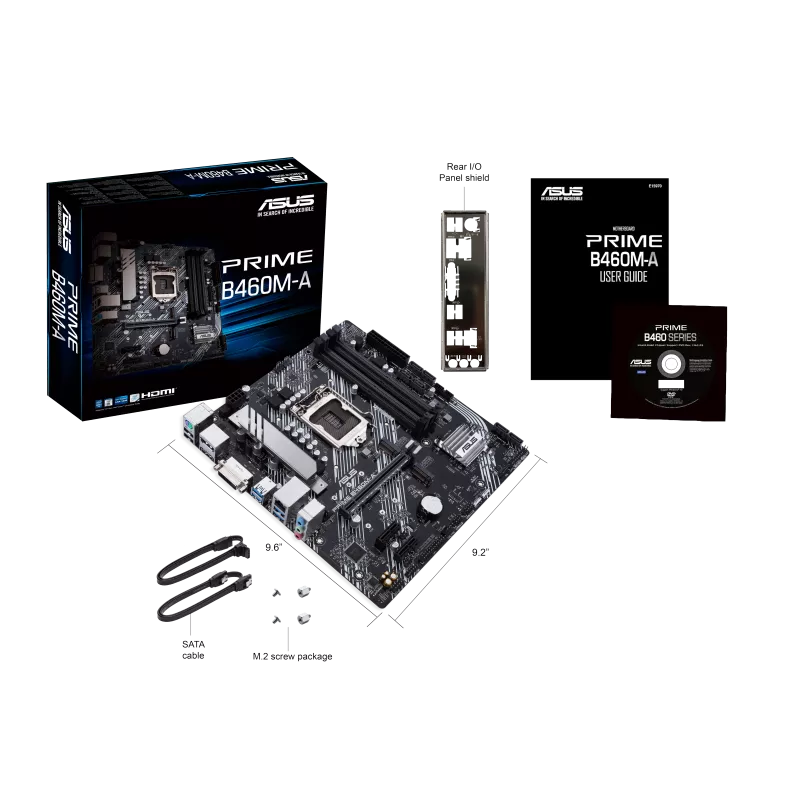

| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD,2 x SATA 6Gb/s cable(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm ),mATX Form Factor |
| Note | *M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *NVME RAID is supported with M.2_2 and PCIe X16.PCIe x16´s device needs to use Intel brand. |
