Description
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPOô) | |
| OptiMem II | |
| Graphics | 1 x DisplayPort** |
| 1 x VGA port | |
| 1 x HDMIÆ port | |
| Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Supports 4K@60Hz as specified in HDMIÆ 2.1. | |
| Expansion Slots | AMD Ryzenô 7000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD B650 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x1 mode) | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzenô 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD B650 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernetq |
| Wireless & Bluetooth | Wi-Fi 6 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| BluetoothÆ v5.2 | |
| USB | Rear USB (Total 8 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Dedicated Audio PCB layers | |

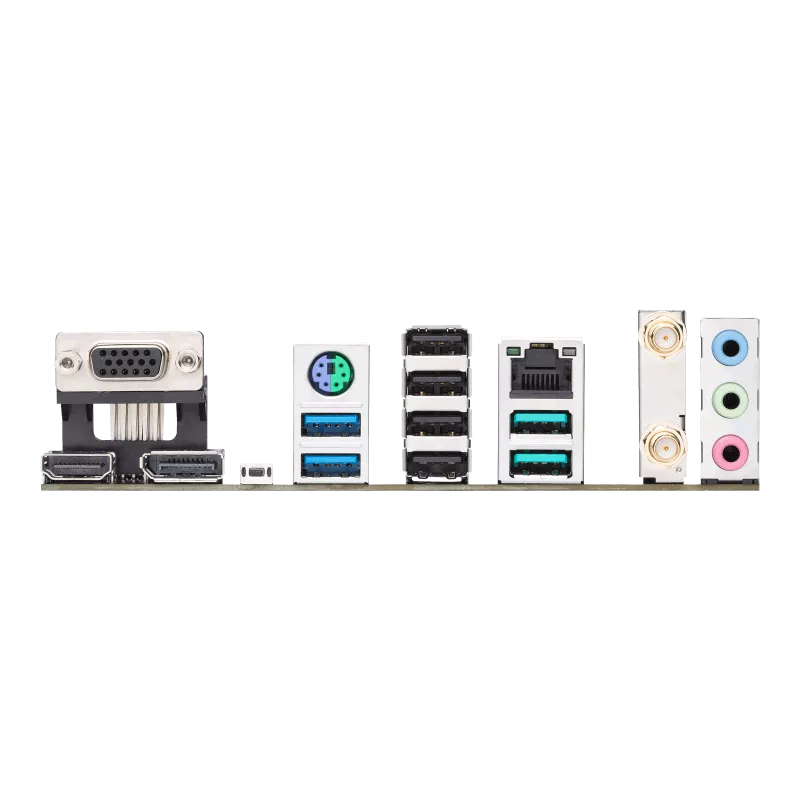

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x VGA port | |
| 1 x HDMIÆ port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBackô button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ ) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core+ | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED core | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 2+ | |
| - Power Saving | |
| AI Suite 3 | |
| - TurboV EVO | |
| - DIGI+ VRM | |
| - PC Cleaner | |
| ASUS CPU-Z | |
| MyAsus | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x User guide | |
| Operating System | WindowsÆ 11, WindowsÆ 10 64-bit |
| Form Factor | M-ATX Form Factor |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Warranty | 3 Years |
