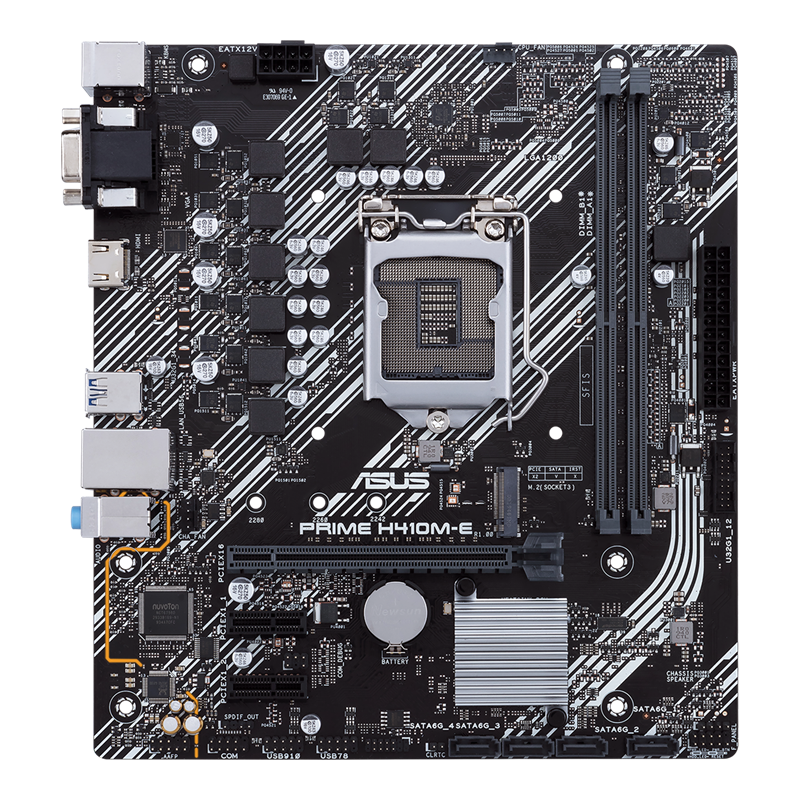

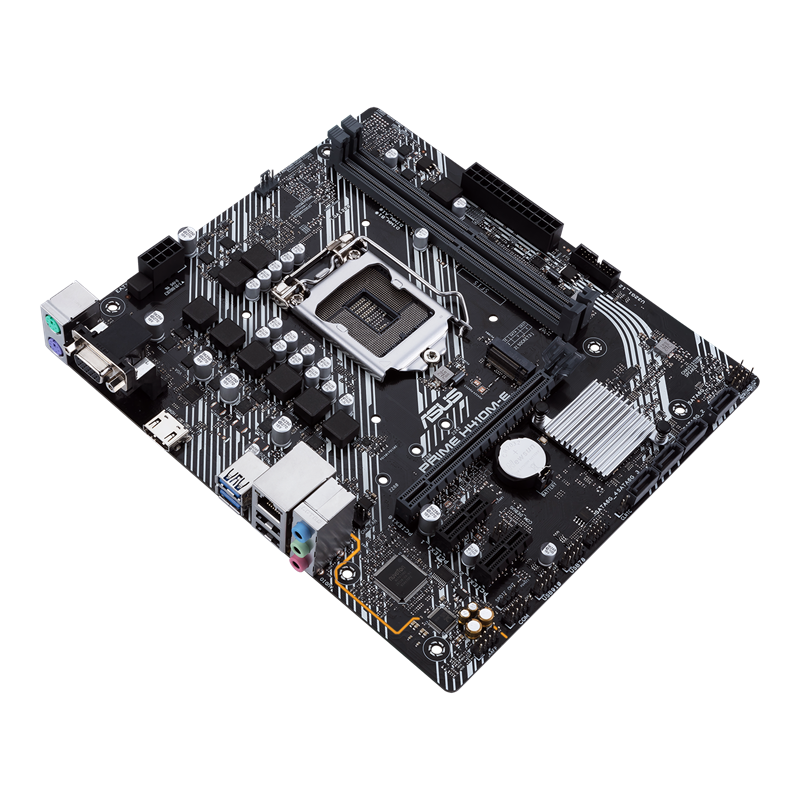

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen IntelÆ Coreô processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.
- IntelÆ LGA 1200 socket: Ready for 10th Gen IntelÆ Coreô processors
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Specifications
| CPU | IntelÆ Socket 1200 for 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors * |
| Supports IntelÆ 14 nm CPU | |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list | |
| **IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | IntelÆ H410 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem | |
| * 10th Gen IntelÆ Coreôi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphic | Integrated Graphics Processor * |
| 1 x D-Sub | |
| 1 x HDMI 1.4b | |
| *Graphics specifications may vary between CPU types. | |
| Expansion Slots | |
| IntelÆ 10th Gen Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| IntelÆ H410 Chipset | |
| 2 x PCIe 3.0 x1 | |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports |
| IntelÆ H410 Chipset : | |
| 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 | |
| 4 x SATA 6Gb/s port(s) | |
| LAN | RealtekÆ RTL8111H |
| Audio | - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Audio Feature : | |
| - LED-illuminated design | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |
| - Premium Japanese audio capacitors | |

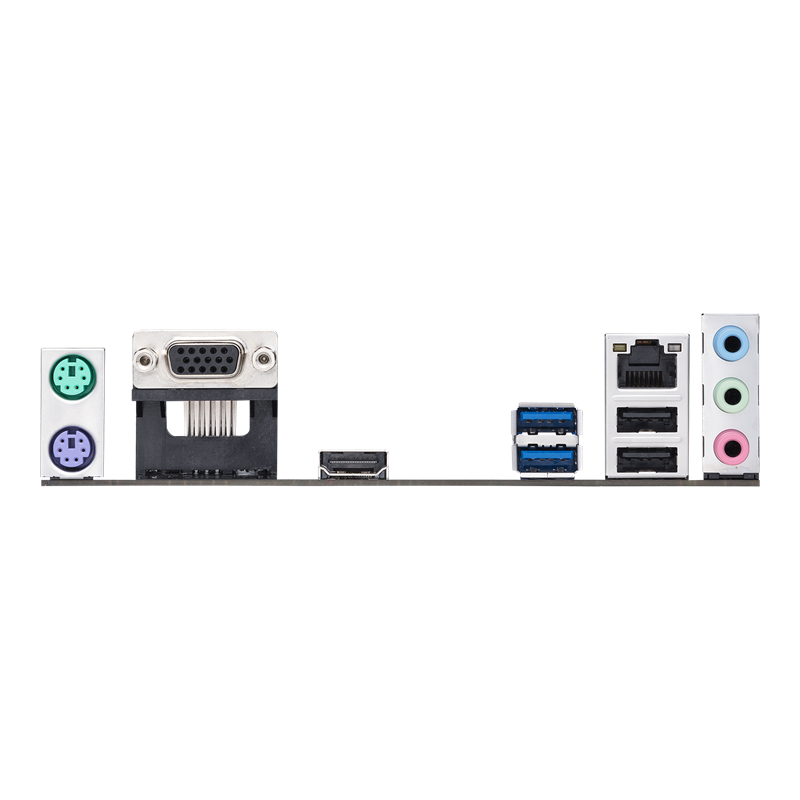

| USB Ports | Rear USB Port ( Total 4 ) |
| 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) | |
| 2 x USB 2.0 port(s)(2 x Type-A) | |
| Front USB Port ( Total 6 ) | |
| 2 x USB 3.2 Gen 1 port(s) | |
| 4 x USB 2.0 port(s) | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert | |
| - EZ update | |
| ASUS CPU-Z | |
| AI Charger | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial for 60 days) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| ASUS Special Features | ASUS 5X PROTECTION III |
| - ASUS DIGI+ VRM | |
| - ASUS LANGuard | |
| - ASUS Overvoltage Protection | |
| - ASUS SafeSlot Core | |
| - ASUS Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-Slot | |
| ASUS Thermal Solution | |
| - Aluminum heatsink design | |
| Accessories | I/O Shield |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Anchor | |
| 1 x Supporting DVD | |
| User manual | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | WindowsÆ 10 64-bit |
| Form Factor | mATX Form Factor |
| 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
