PCIe 5.0 Slot 

Prime X670 motherboards offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

PCIe 5.0 M.2 Support

PRIME X670-P WIFI offers a total of three M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.

*Actual transmission speeds will be lower than the theoretical maximum speed.

M.2 Heatsink

An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.

Removable captive screws reduce the risk of drops or loss during heatsink removal.

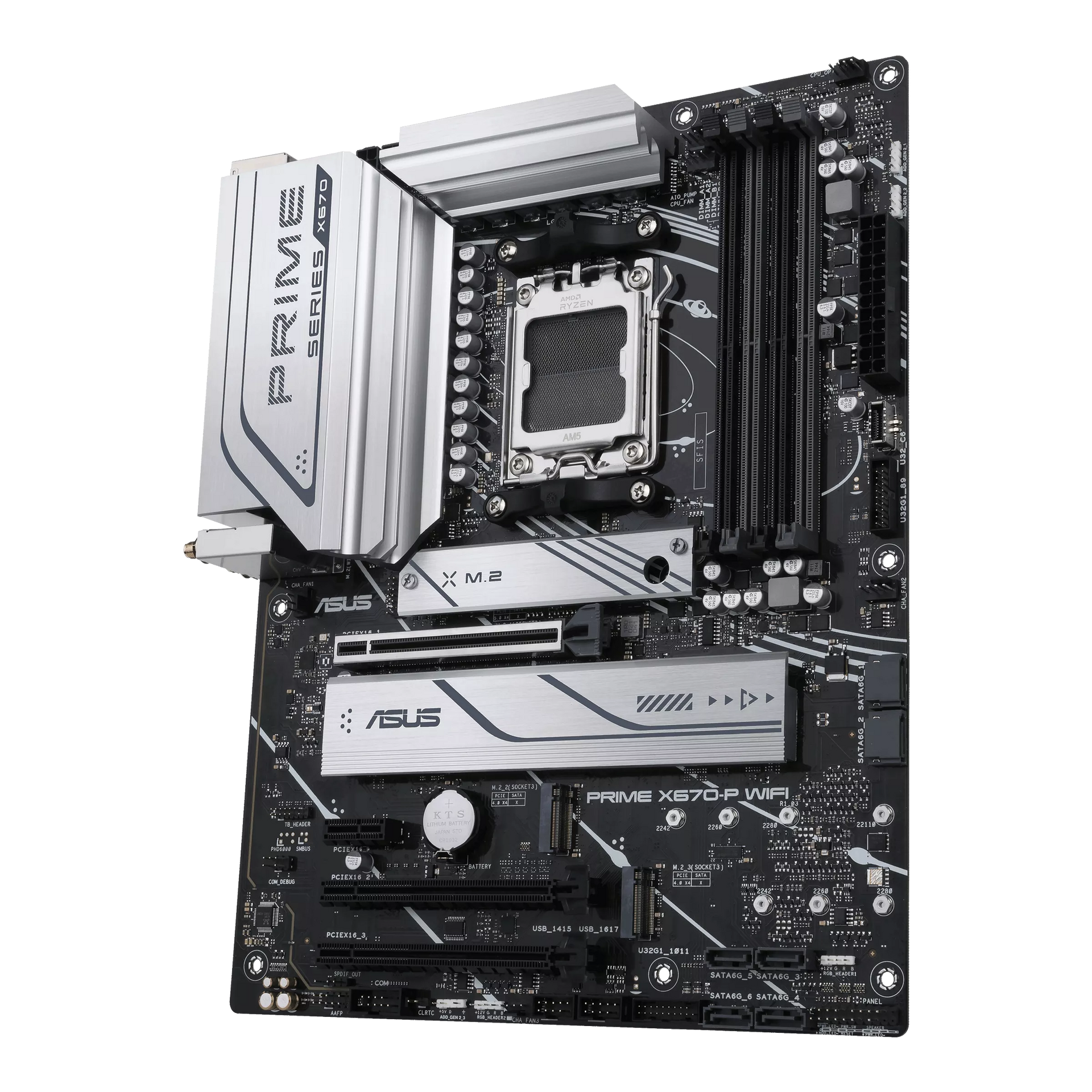

VRM Heatsinks and High-quality Thermal Pads

Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Robust Power Design

Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME X670-P WIFI is geared to cater to the demands of these high-core-count CPUs.

1. ProCool Connectors

Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

2. 12+2 DrMOS Power Stages

12+2 DrMOS power stages combine high-side and low-side MOSFETS and drivers into packages rated for 60 amperes each, delivering power, efficiency, stability and performance to current and future AMD processors.

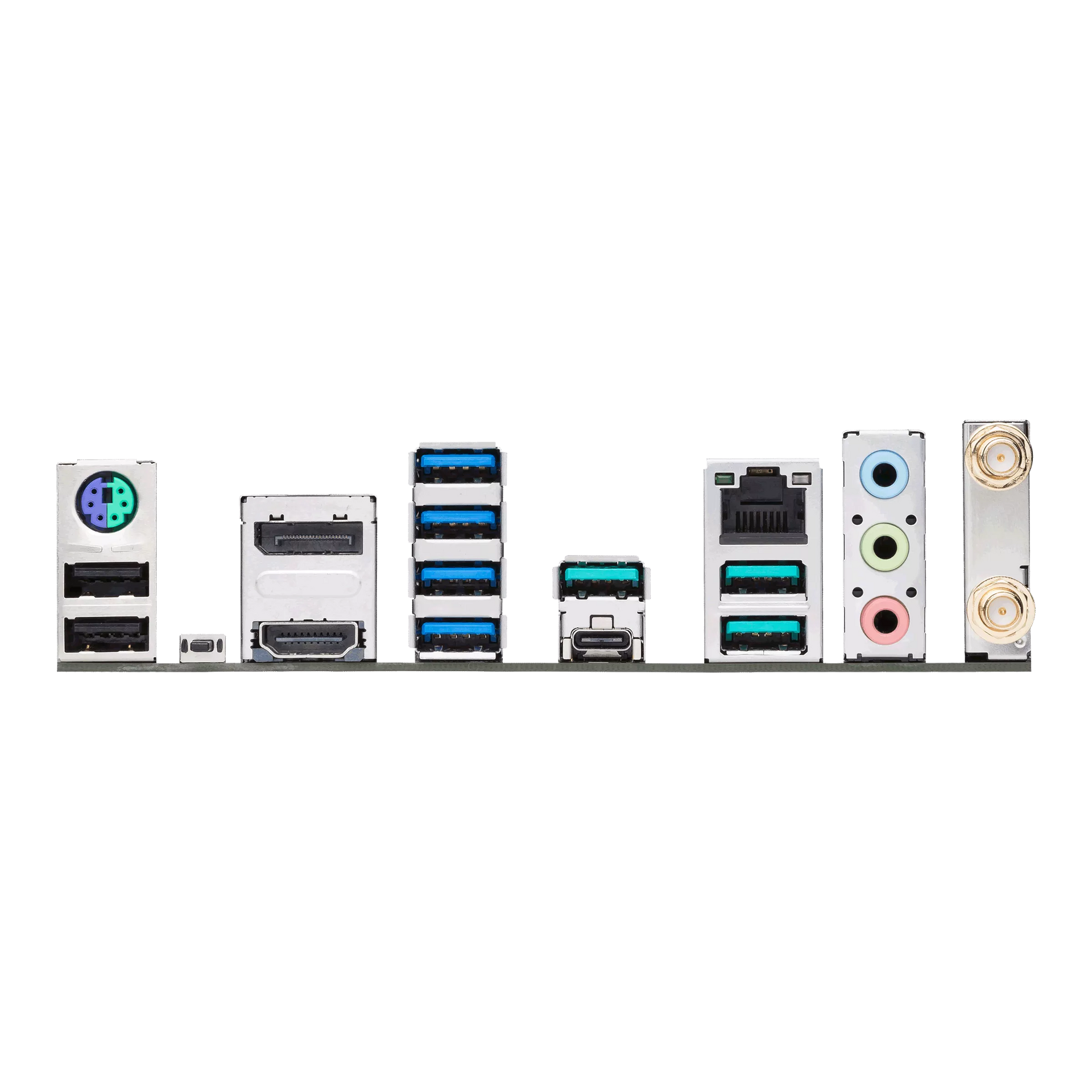

USB 3.2 Gen 2x2 Type-C

A batch of USB ports supports high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20Gbps.
