Specification :
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI® port*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI® 2.1 | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD X670 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot* | |
| ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports | |
| PCIe 4.0 x4 mode) | |
| 6 x SATA 6Gb/s ports** | |
| * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2 | |
| USB | Rear USB (Total 10 ports) |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
| 3 x USB 3.2 Gen 2 ports (3 x Type-A) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

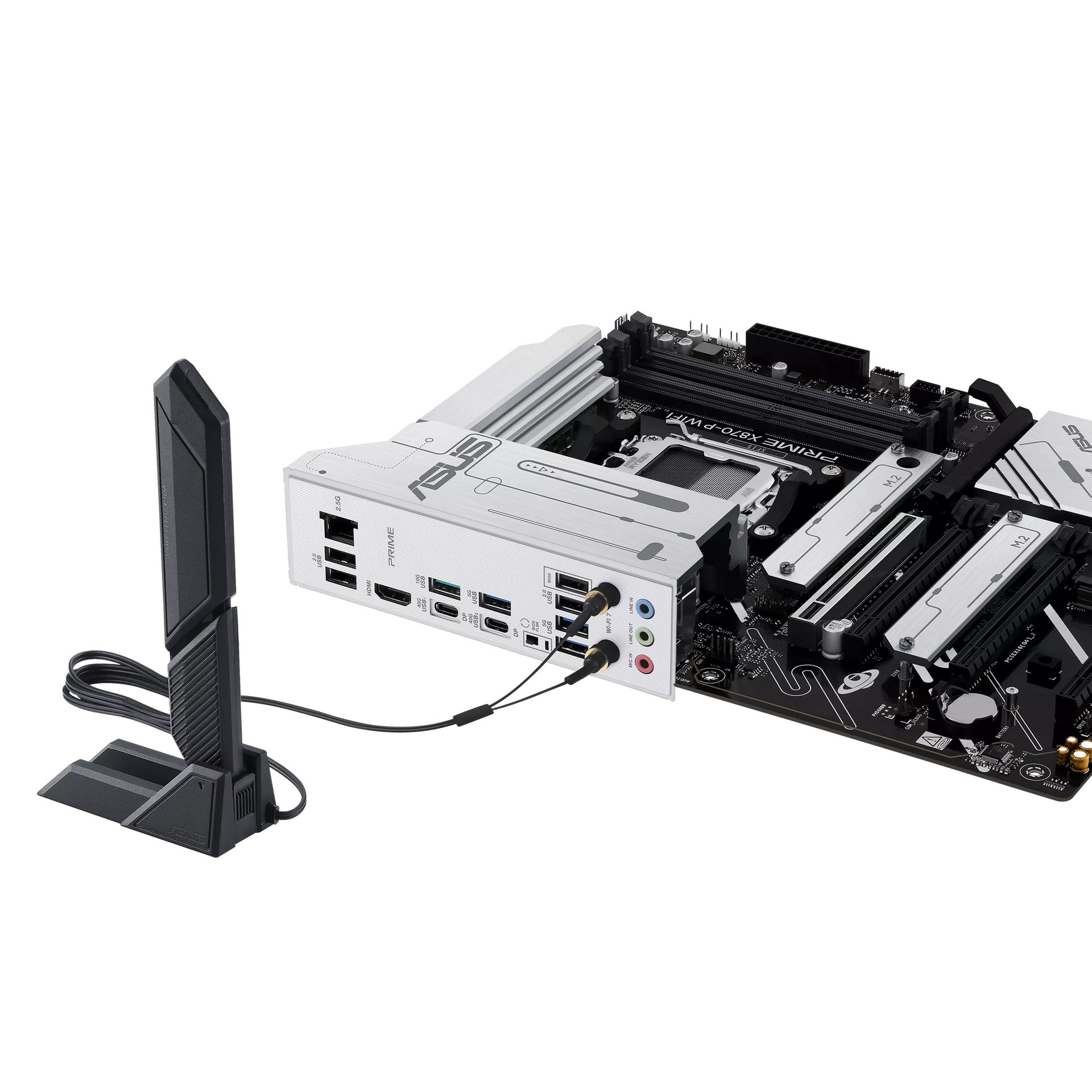

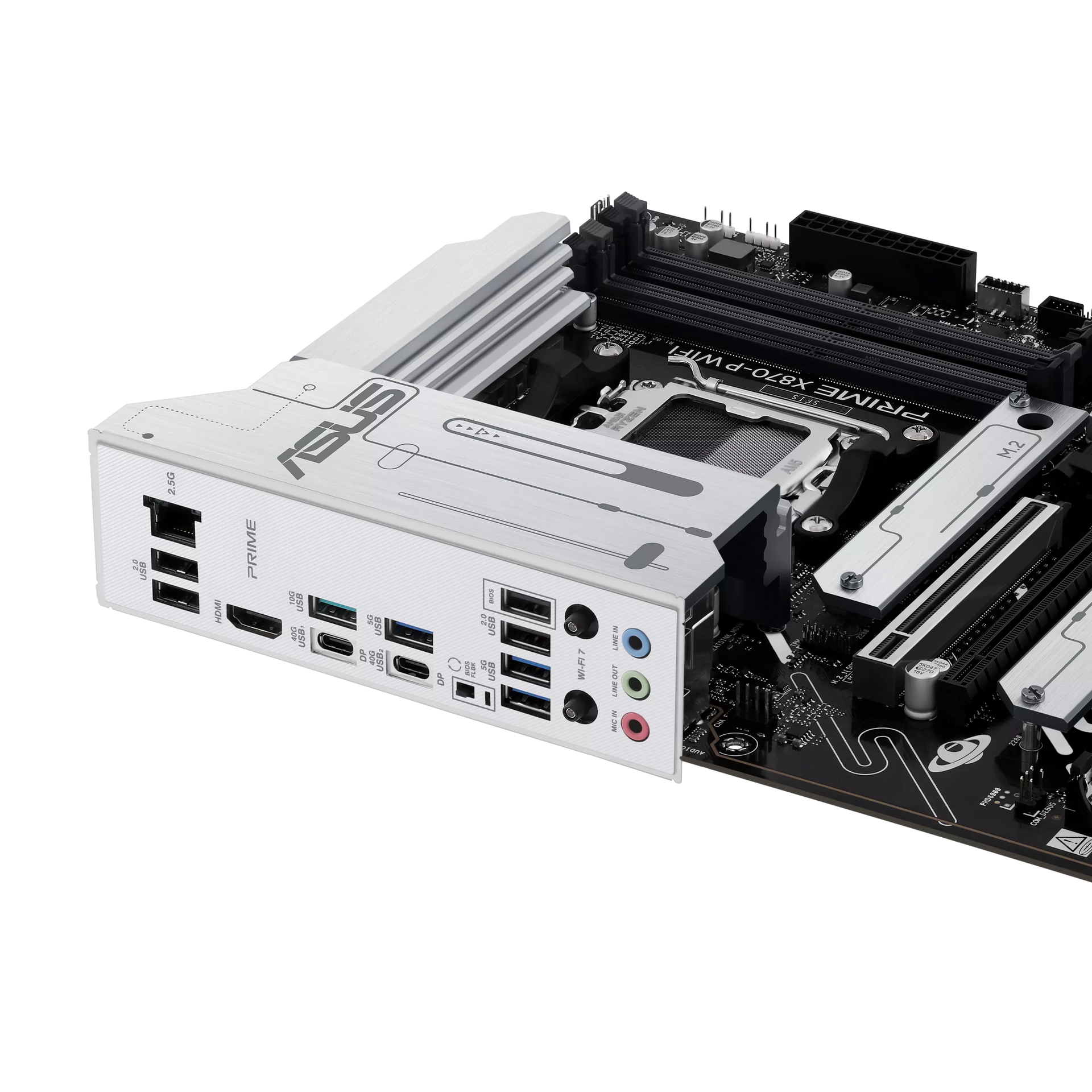

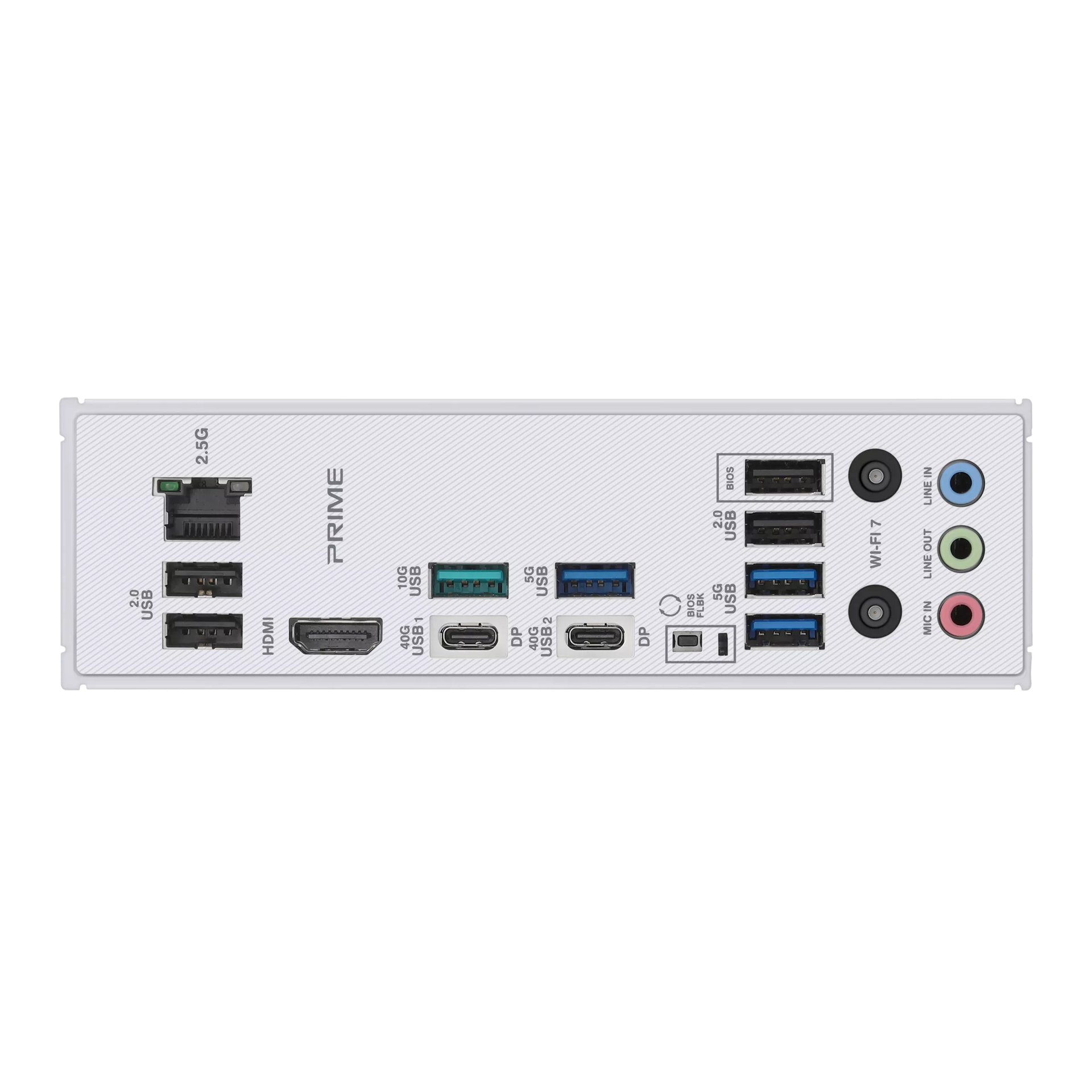

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 3 x USB 3.2 Gen 2 ports (3 x Type-A) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x Aura RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (Digital power design with DrMOS) | |
| ESD Guards | |
| LANGuard | |
| Overvoltage Protection | |
| Safeslot Core+ | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| ProCool | |
| Aura Sync | |
| Aura RGB headers | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 with AI Cooling II | |
| Power Saving | |
| AI Suite 3 | |
| TurboV EVO | |
| DIGI+ VRM | |
| PC Cleaner | |
| ASUS CPU-Z | |
| IT Management software supported | |
| ASUS Control Center Express(ACCE) | |
| MyASUS | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x Rubber Package for M.2 | |
| 2 x Screw Packages for M.2 SSD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
