Description
| CPU | IntelÆ Socket LGA1700 for 13th, 12th Gen IntelÆ Coreô, Pentium Gold and Celeron Processors |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Z790 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÆ port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| **Support 4K@60Hz as specified in DisplayPort 1.4. | |
| ***Support 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | IntelÆ 13th Gen and 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot | |
| IntelÆ Z790 Chipset** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 4.0 x1 slots | |
| * Please check PCIe bifurcation table in support site. | |
| ** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot | |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| IntelÆ Z790 Chipset** | |
| M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| Ethernet | 1 x IntelÆ 1Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| *Wi-Fi module is sold separately. | |
| USB | Rear USB:Total 8 ports |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB:Total 7 ports | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports* | |
| * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| Audio | Realtek 7.1 Surround Sound High |
| Definition Audio CODEC* | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

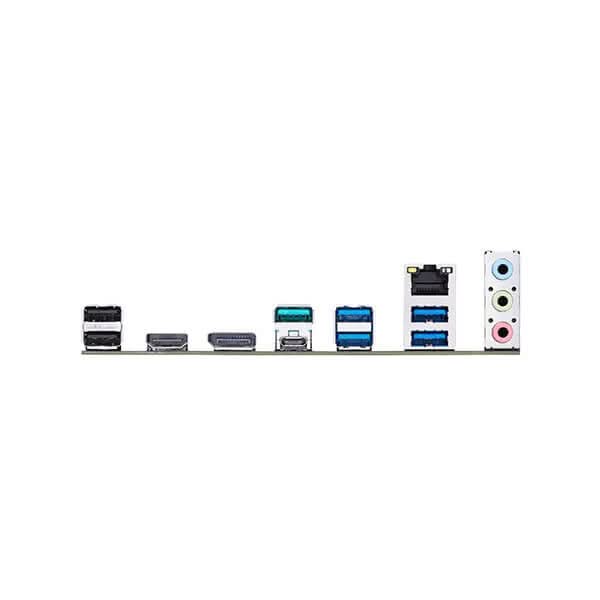

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIÆ port | |
| 1 x IntelÆ 1Gb Ethernet port | |
| 3 x Audio jacks | |
| Intrernal I/O Connectors | Fan and cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x M.2 slot (Key E) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderboltô header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| ProCool | |
| AURA Sync | |
| AURA RGB header | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Sync | |
| - Fan Xpert 4 | |
| Power Saving | |
| AI Suite 3 | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| PC Cleaner | |
| ASUS CPU-Z | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI |
| BIOS | |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 2 x M.2 SSD screw packages | |
| Documentation | |
| 1 x User guide | |
| 1 x ACC Express Activation Key Card | |
| Operating System | WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Form Factor | microATX |
| 24.4cm x 24.4cm | |
| Waranty | 3 Years |
