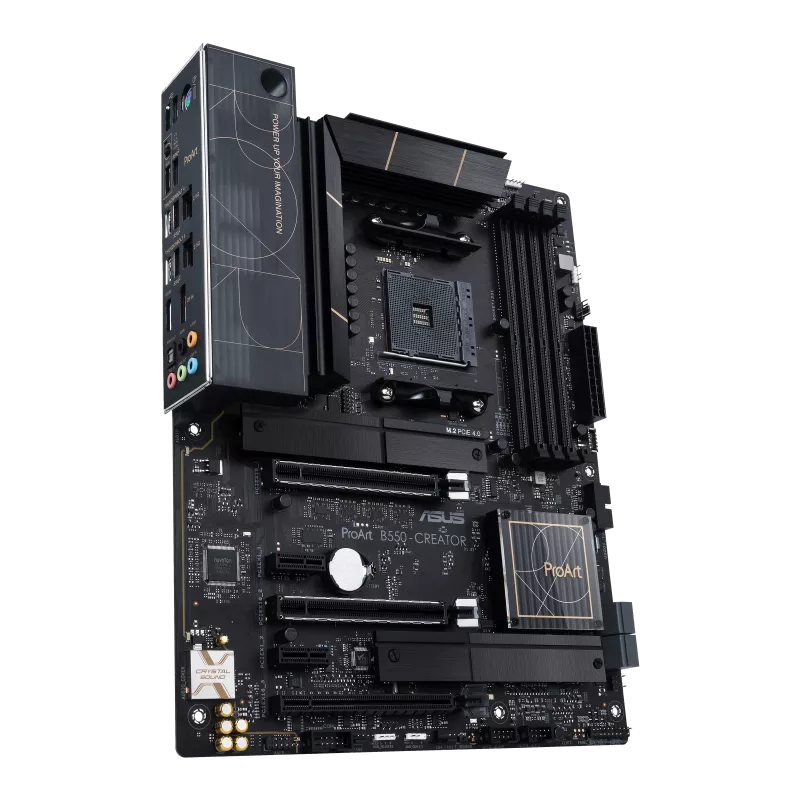

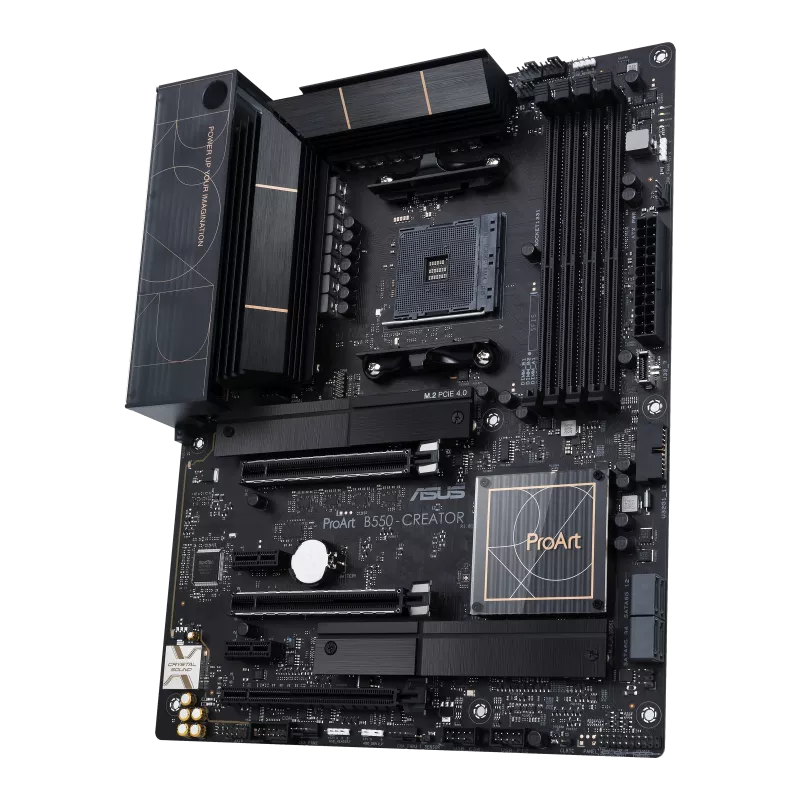

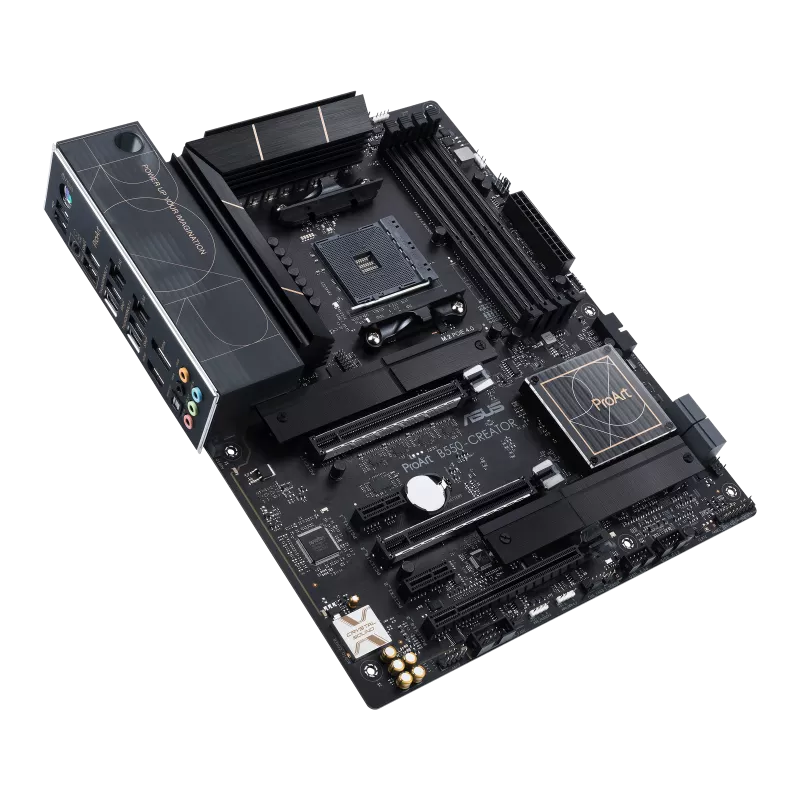

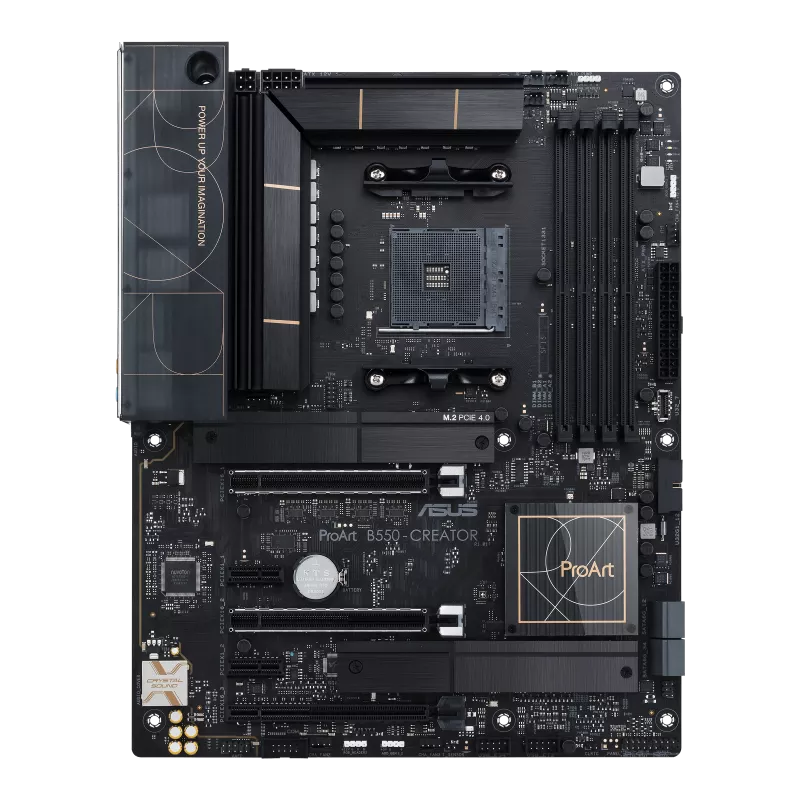

| ProArt B550-CREATOR_One Page Spec | |
| CPU | AMD AM4 Socket for AMD Ryzenô 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors * |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD B550 Chipset |
| Memory | AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors |
| 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * | |
| AMD RyzenTM 4000 G-Series Processors | |
| 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory | |
| OptiMem II | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC mode) support varies by CPU. | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphics | 1 x HDMIô 2.1(4K@60HZ) |
| 2 x IntelÆ Thunderboltô 4 ports (USB Type-CÆ) support DisplayPort 1.2/1.4 and Thunderboltô video outputs * | |
| * Output at TBT4_E1 and TBT4_E2, the USB Type-CÆ ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types. | |
| ** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manul. | |
| Expansion Slots | AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors |
| 2 x PCIe 4.0 x16 (x16 or dual x8)* | |
| AMD RyzenTM 4000 G-Series Processor | |
| 2 x PCIe 3.0 x16 (x16 or dual x8)* | |
| AMD B550 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)** | |
| 2 x PCIe 3.0 x1 slots*** | |
| * Support PCIe bandwidth bifurcation for RAID on CPU function. | |
| ** PCIe 3.0 x4 will be switched from Thunderboltô 4 to PCIEX16_3 if the slot is populated; by then Thunderboltô 3 will have no output | |
| *** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will | |
| Multi-GPU Support | Supports AMD 3-Way/2-Way CrossFireXô Technology |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors : | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| AMD RyzenTM 4000 G-Series Processor : | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |
| AMD B550 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| Supports RAID 0, 1, 10 | |
| Ethernet | 2 x IntelÆ I225-V 2.5Gb Ethernet |
| ASUS LANGuard | |
| USB | Rear USB (Total 8 ports) |
| 2 x Thunderboltô 4 port(s) (2 x USB Type-CÆ) with up to 5V/3A, 15W charging support | |
| 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) | |
| 2 x USB 2.0 port(s) (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (support(s) USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* |
| Audio Features | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Rear optical S/PDIF out port | |
| - Premium Japanese audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

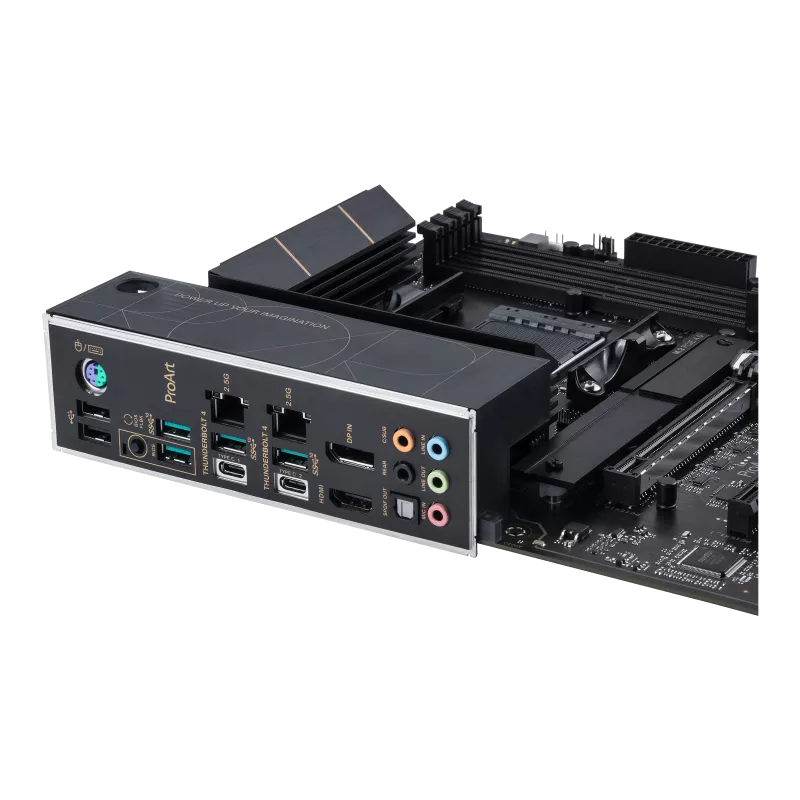

| Back Panel I/O Ports | 2 x Thunderboltô 4 USB Type-CÆ port(s) |
| 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) | |
| 2 x USB 2.0 port(s) (2 x Type-A) | |
| 1 x DisplayPort (Input only) | |
| 1 x HDMIô port | |
| 2 x IntelÆ I225-V 2.5Gb Ethernet ports | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBackô button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin CPU OPT Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 4 x 4-pin Chassis Fan header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (support(s) USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2 x AURA Addressable Gen 2 header(s) | |
| 2 x AURA RGB header(s) | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS 5X PROTECTION III | |
| - DIGI+ VRM (- Digital power design with Dr. MOS) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Latch | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Box Headers | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| AURA Sync | |
| - AURA RGB header(s) | |
| - Addressable Gen 2 RGB header(s) | |
| Bespoke Motherboard Design & Business Focused Features | |
| - 24/7 Reliability | |
| - Overcurrent Protection | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - 5-Way Optimization by Dual Intelligent Processors 5 | |
| TPU | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 4 | |
| Turbo app | |
| - EZ update | |
| ASUS CPU-Z | |
| IT Management software supported | |
| - ASUS Control Center Express(ACCE) | |
| ProArt Creator Hub | |
| AI Charger | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

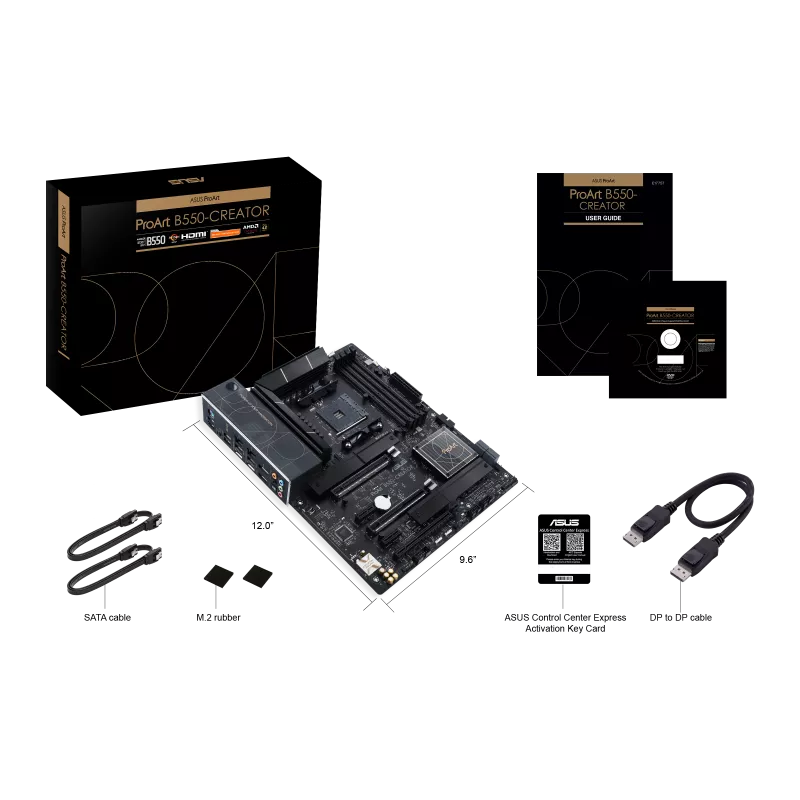

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| 1 x DP to DP cable for Thunderboltô 4 | |
| Miscellaneous | |
| 1 x M.2 Rubber Package(s) | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User manual | |
| Operating System | WindowsÆ 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
